Build log date: Sunday, November 02, 2003
-
Max helped rivet today - finished up the left wing.
-

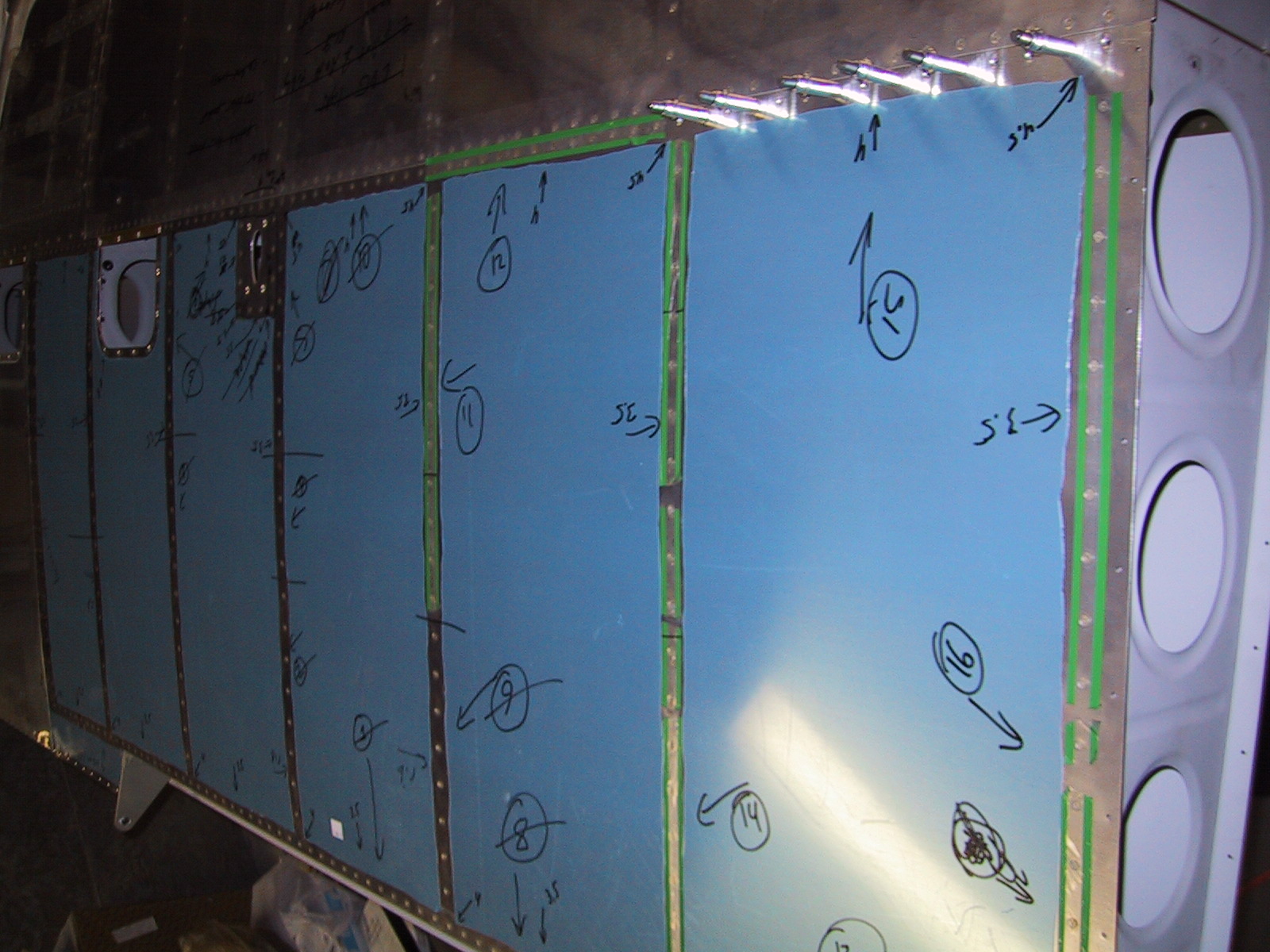

Part way done.
-

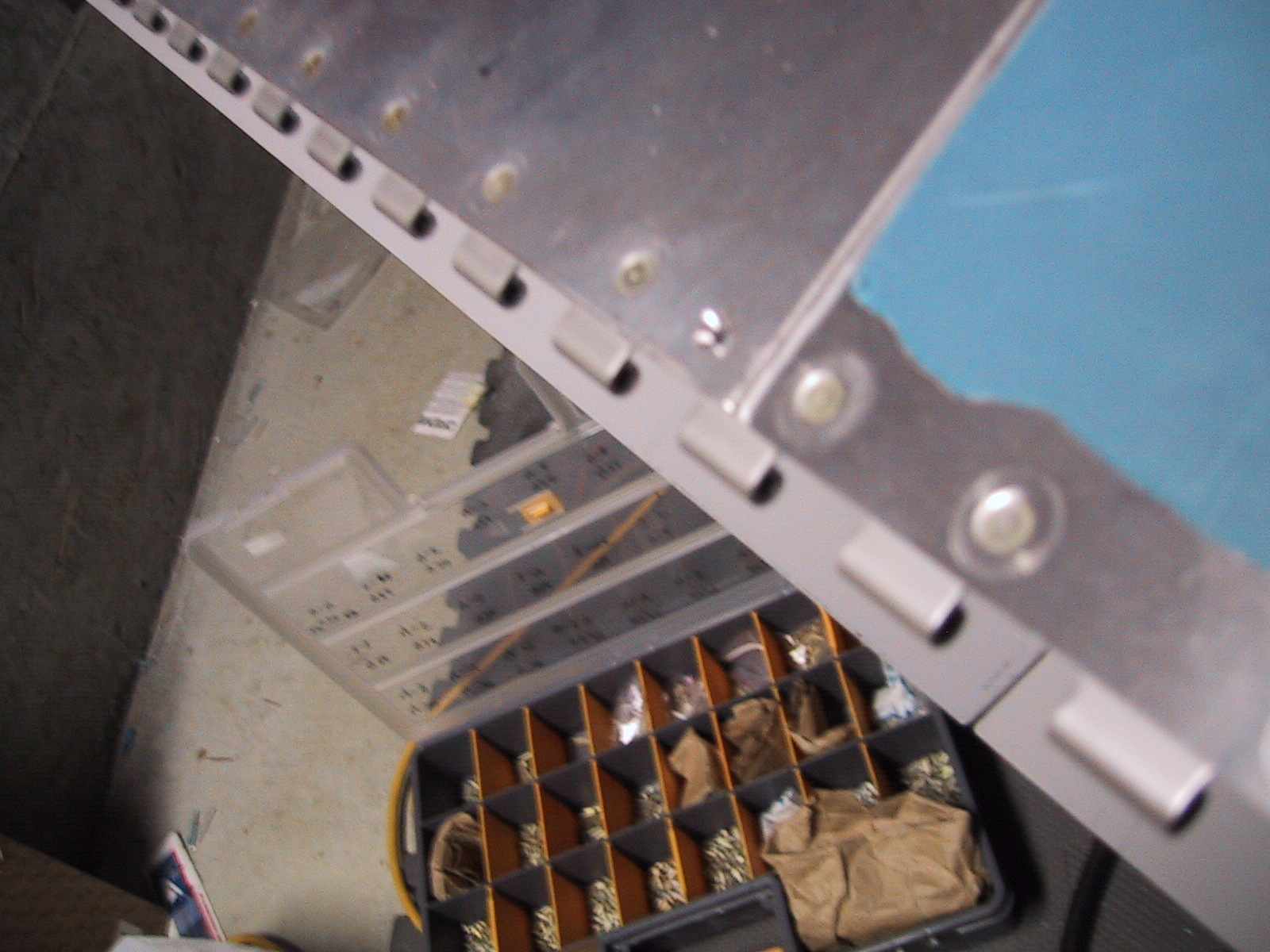

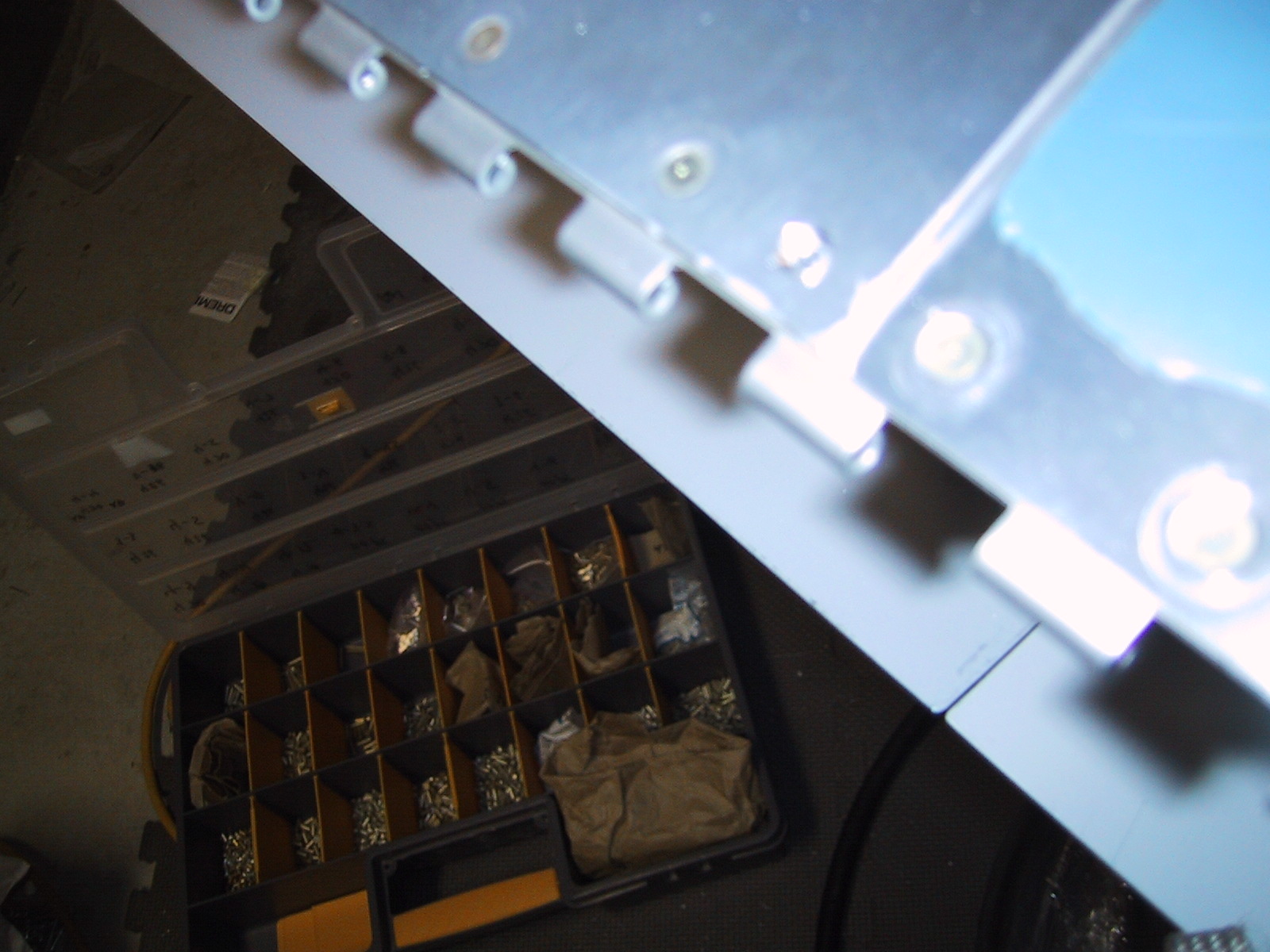

This crummy picture is my attempt to show where I needed to add an extra rivet to the inboard bottom skin of the left wing. This skin was tending to lift up, because I over countersunk a hole on the flap reinforcement.
-
Since I decided to add this hole after the wing was assembled, I needed to countersink rather than dimple. It worked out okay because there is extra material behind the hole.
-

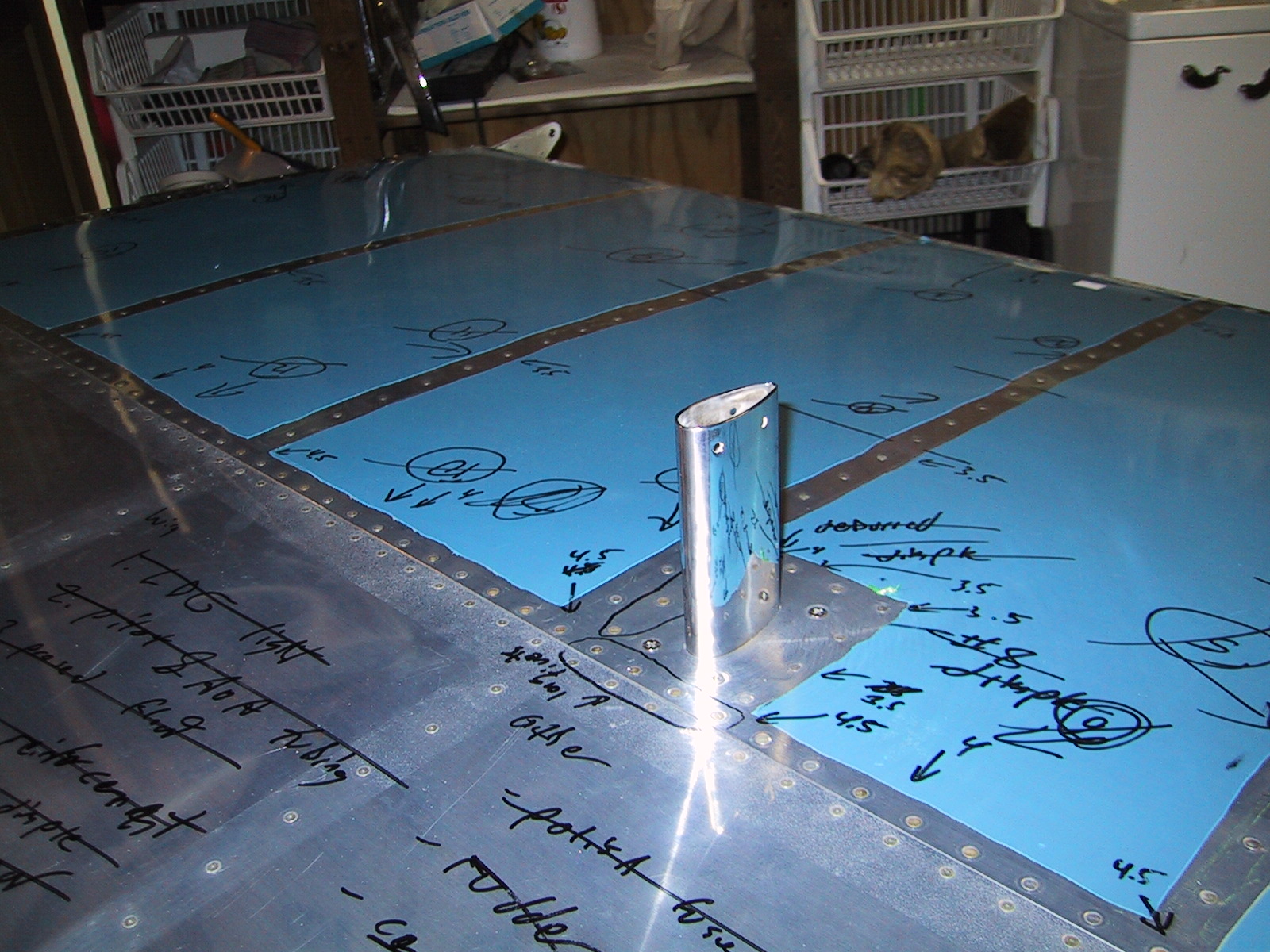

Pretty - the gretz pitot mount is installed. I'll remove it again someday.
