Build log date: Monday, November 03, 2003
-

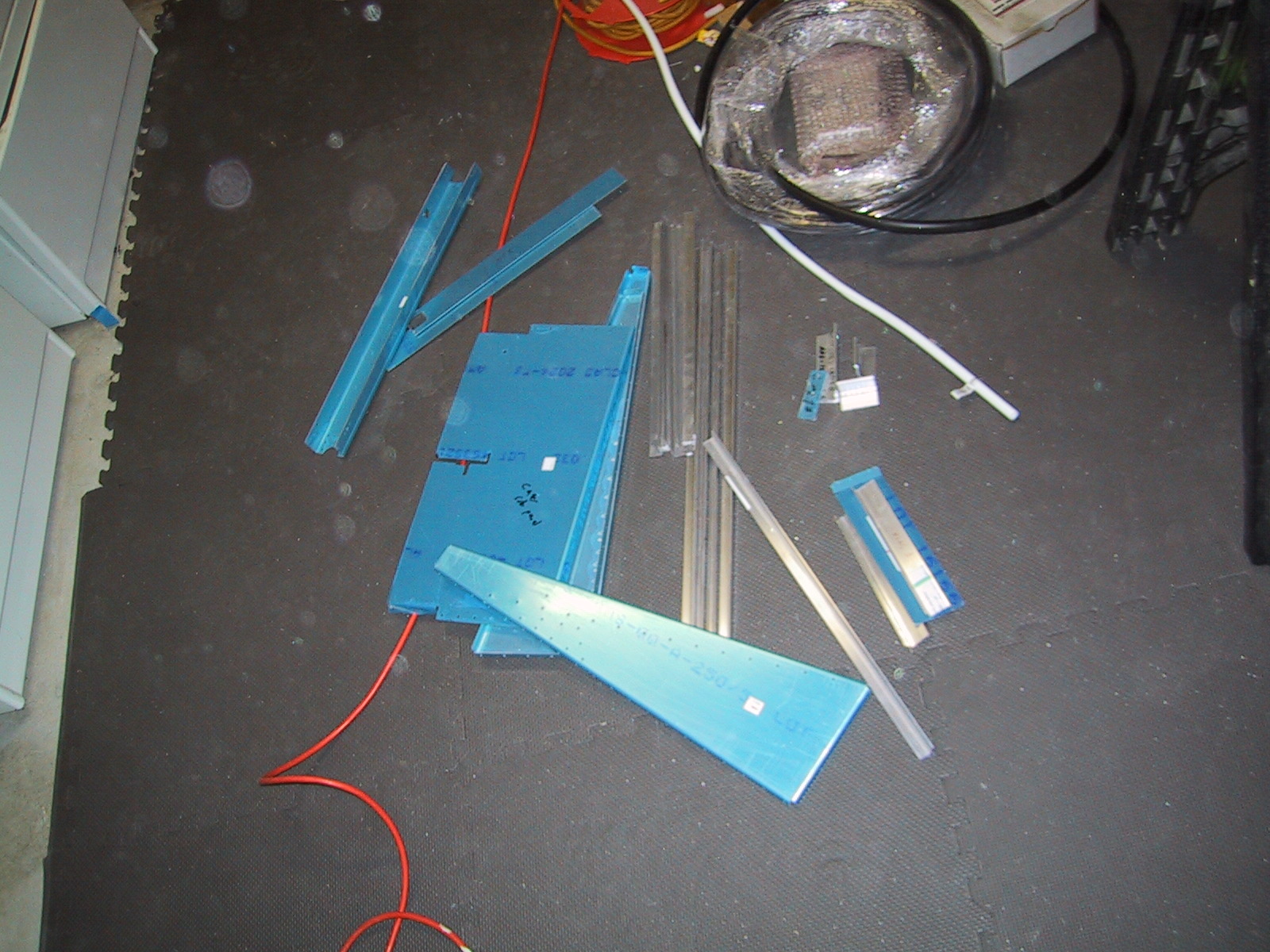

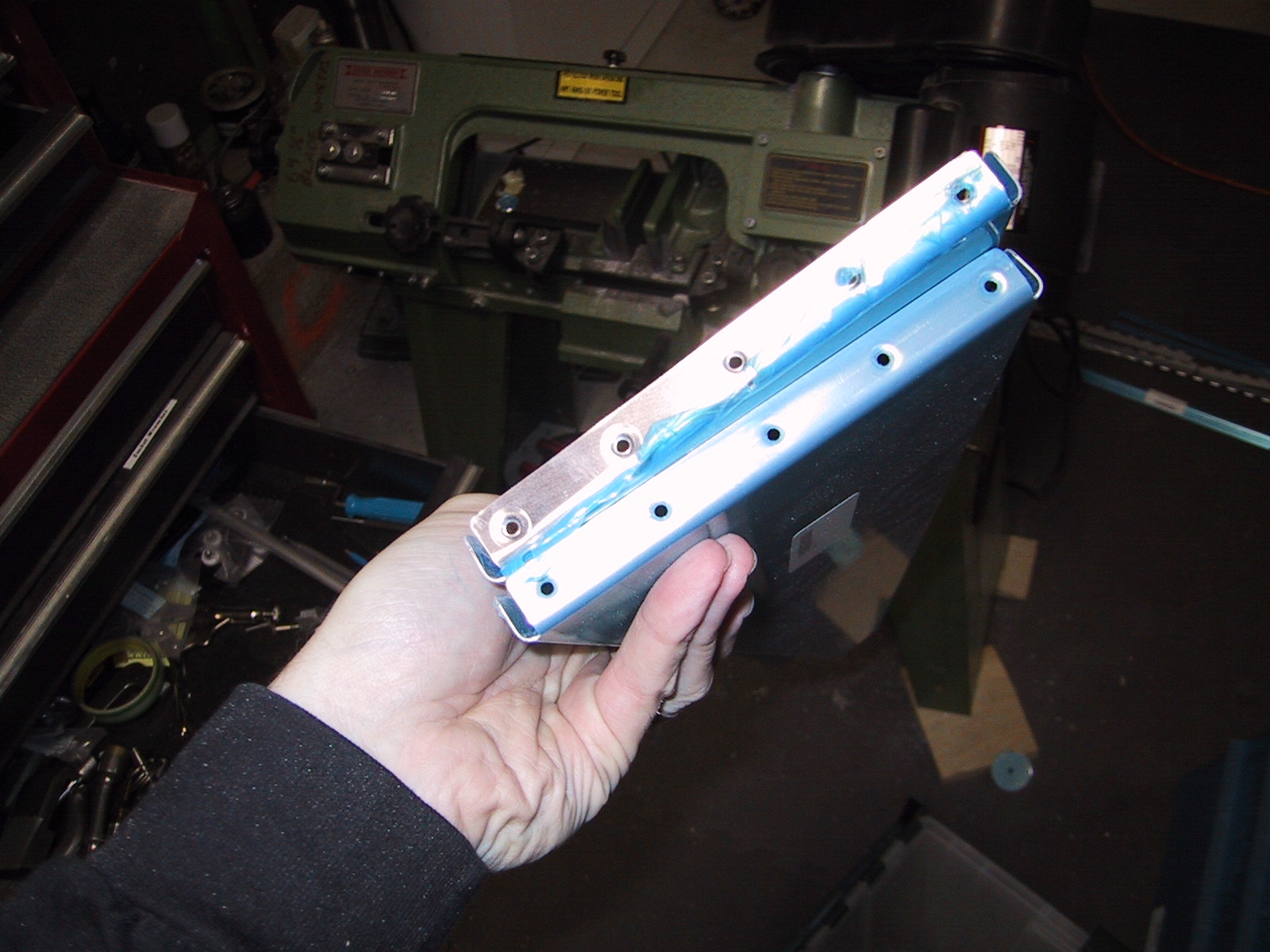

This is about half of what I fabricated today.
-

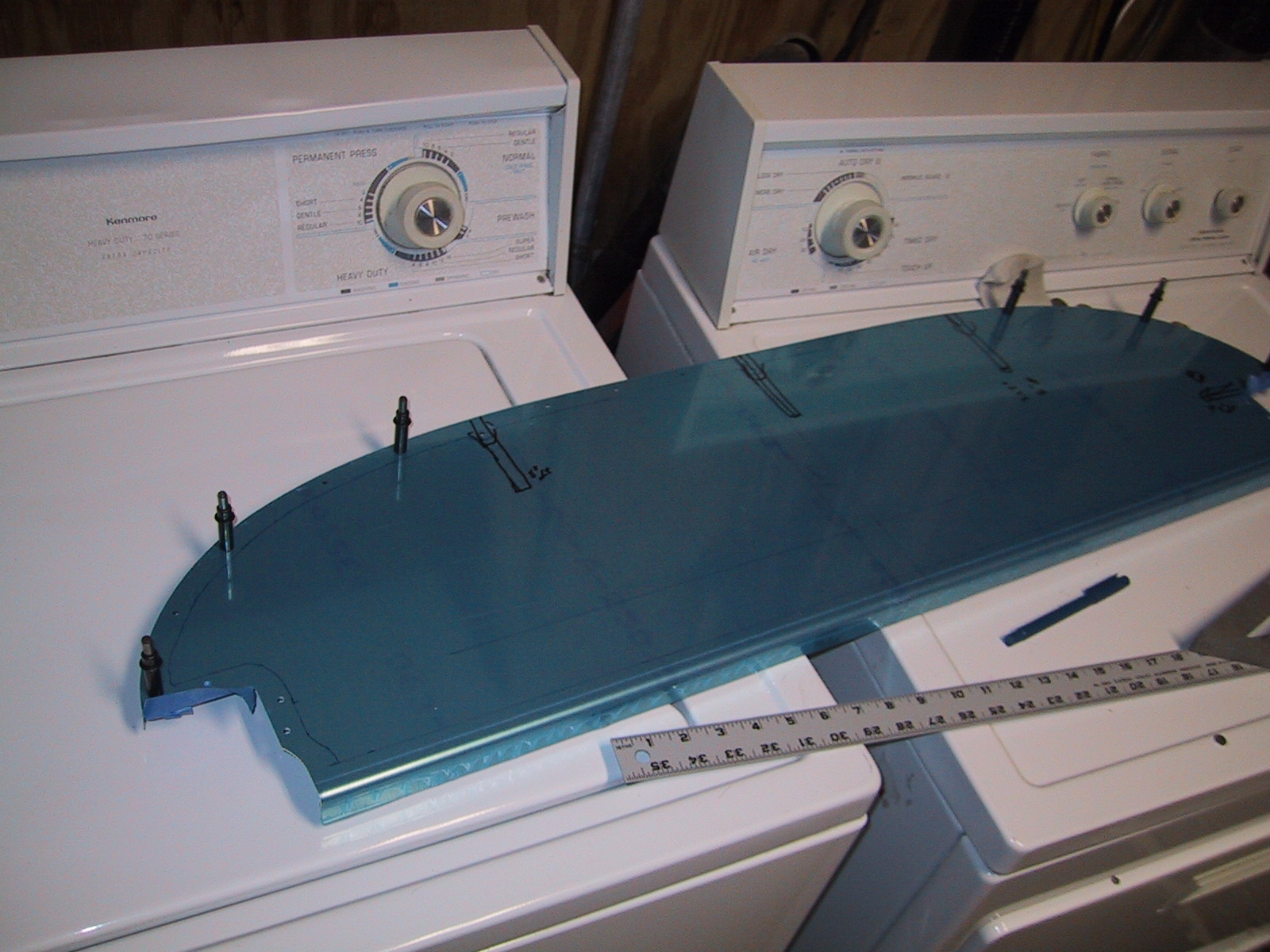

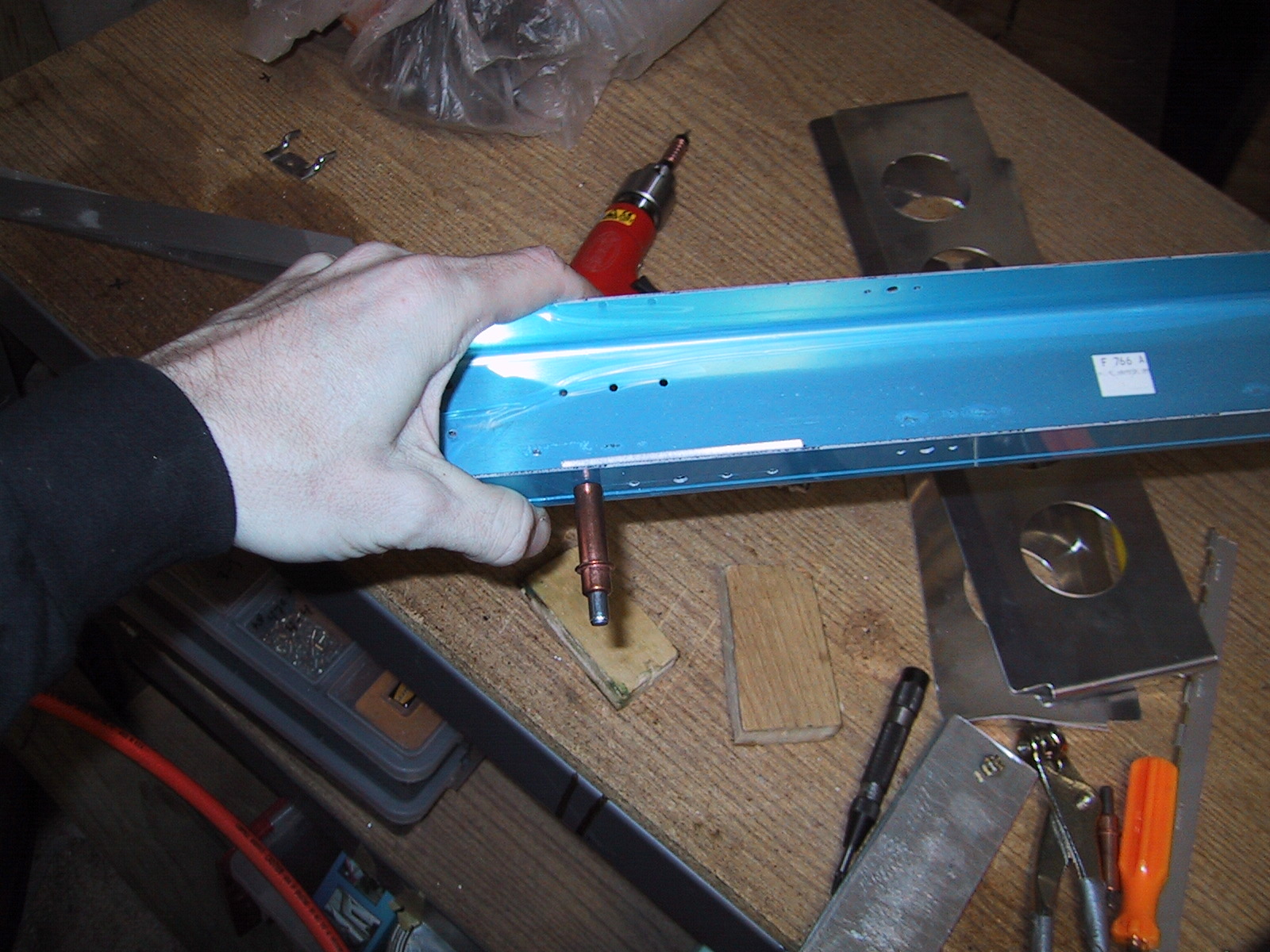

Drilled and dimpled the forward skin/instrument panel supports. This will allow me to match drill that whole portion of the fuse.
-

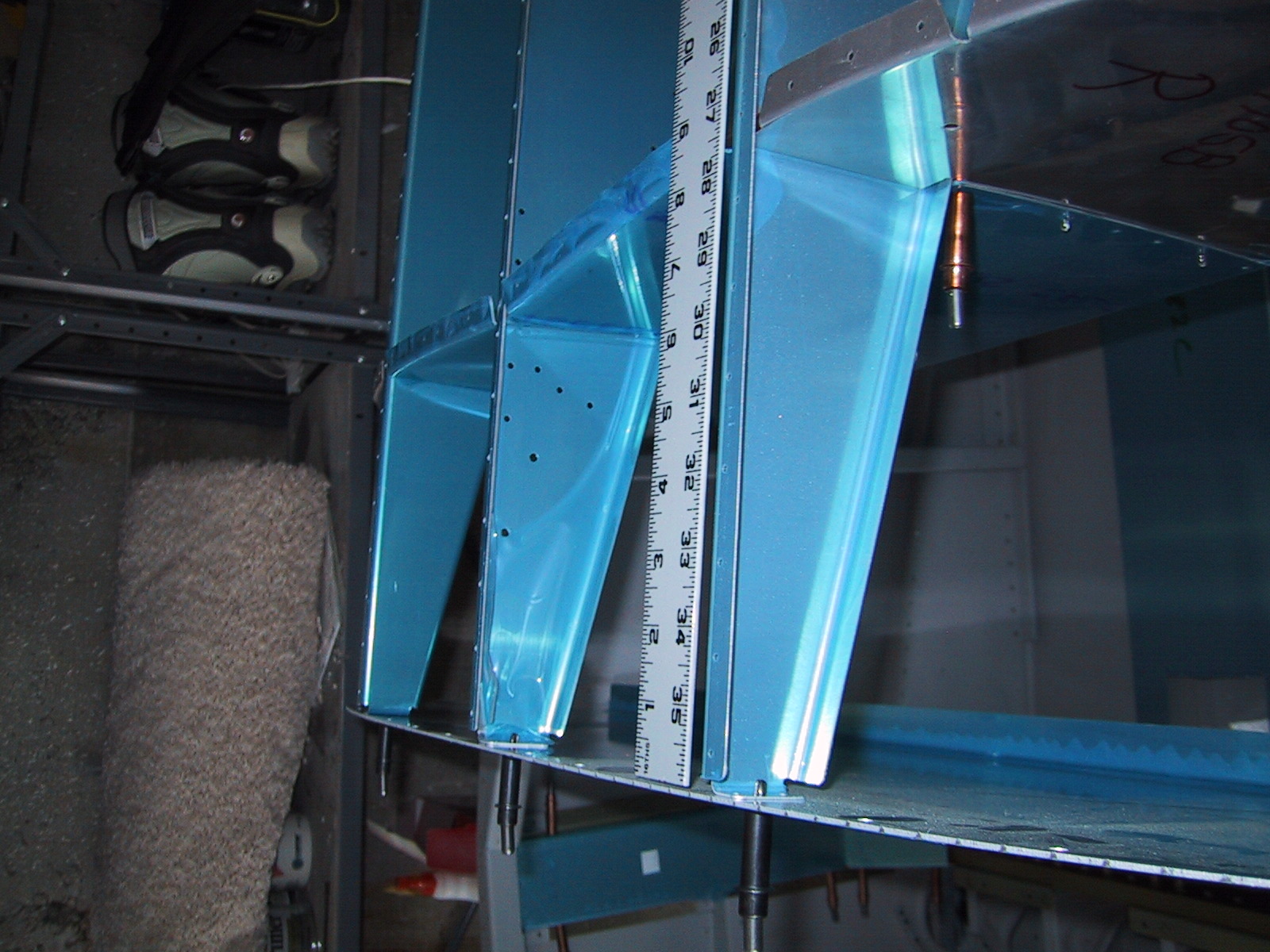

A little more tha 8" from instrument panel to bulkhead. These support arms eat away up to 3.25" of space if you go 8" back. I'll need to be careful on instrument placement.
-
Playing with ideas on the instrument placement.
-
Drilled out four rivets so I can match drill the pitch servo for the auto pilot.
-

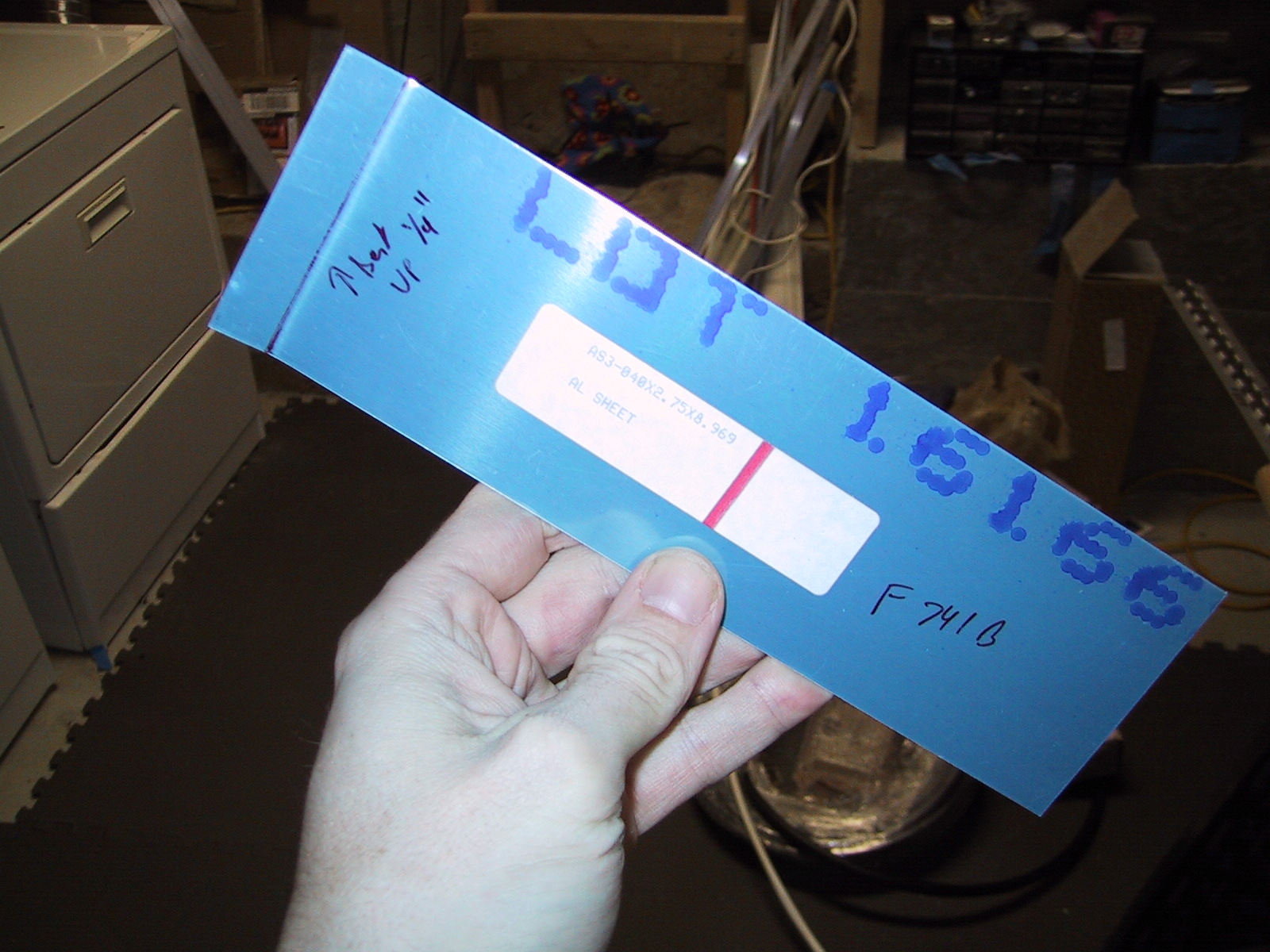

Fabricate F741B - a small bend is needed.
-

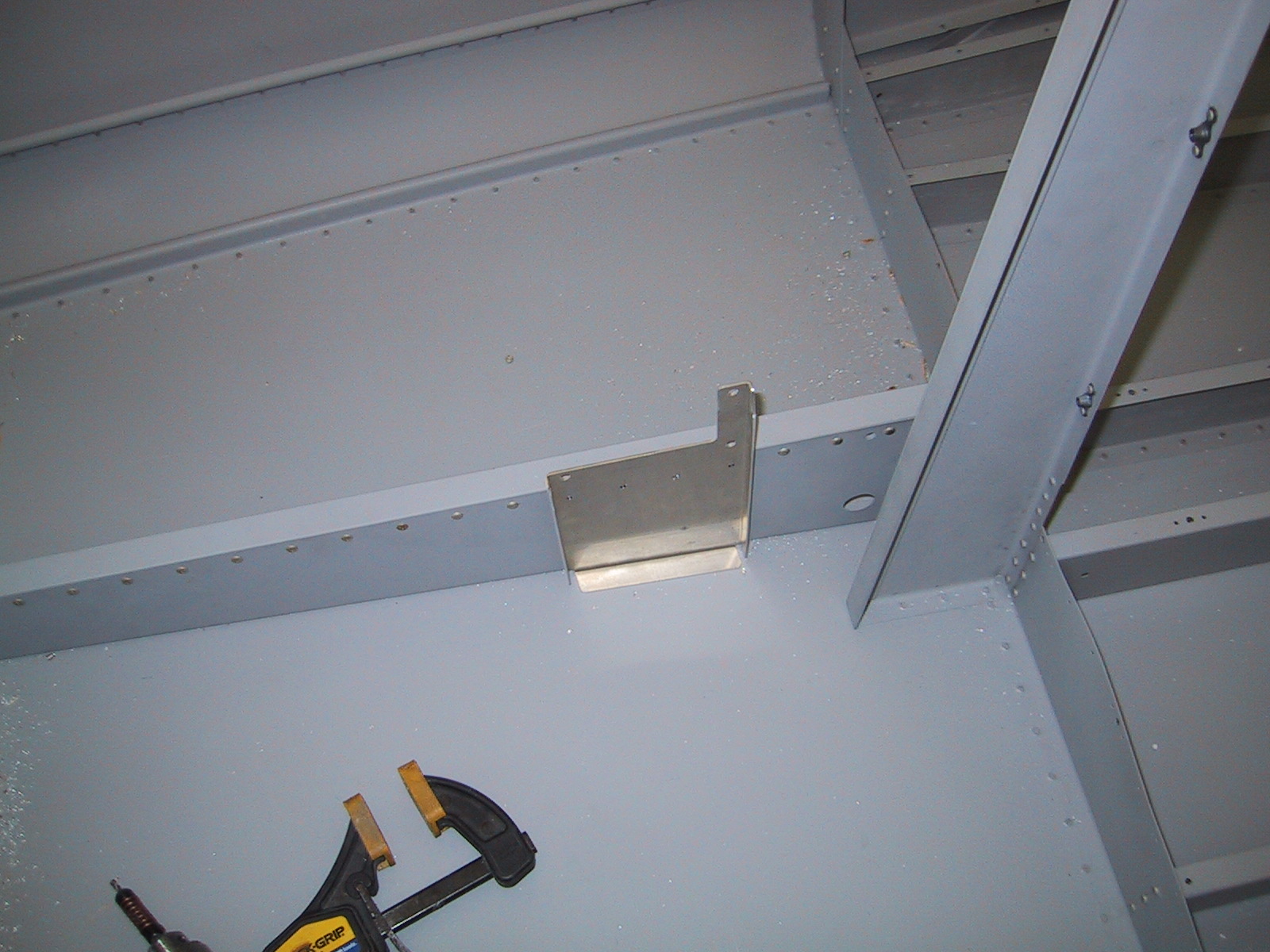

Match drilling the upper flap bracket.
-

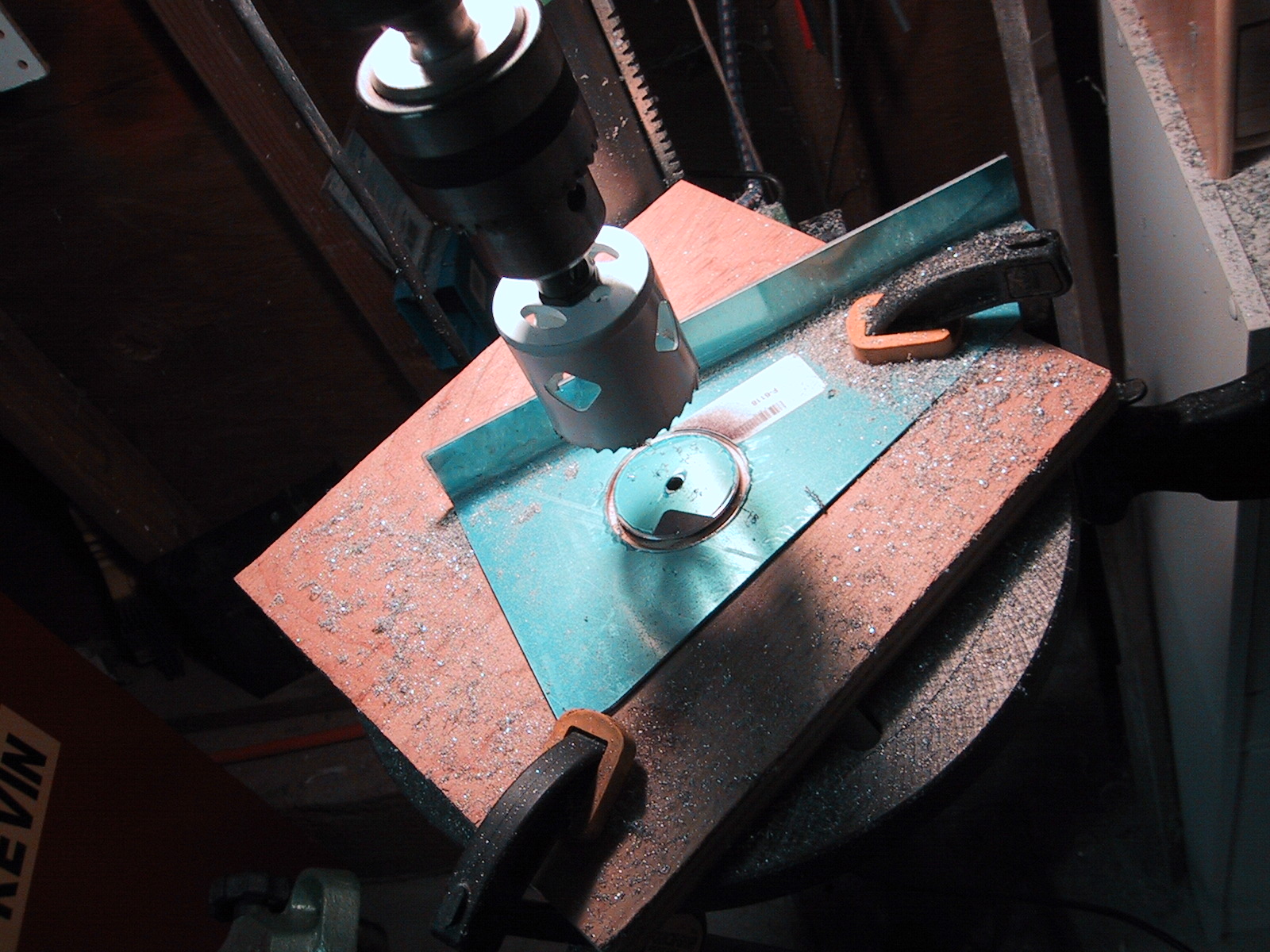

Drilling lightening holes in the rudder peddal support.
-

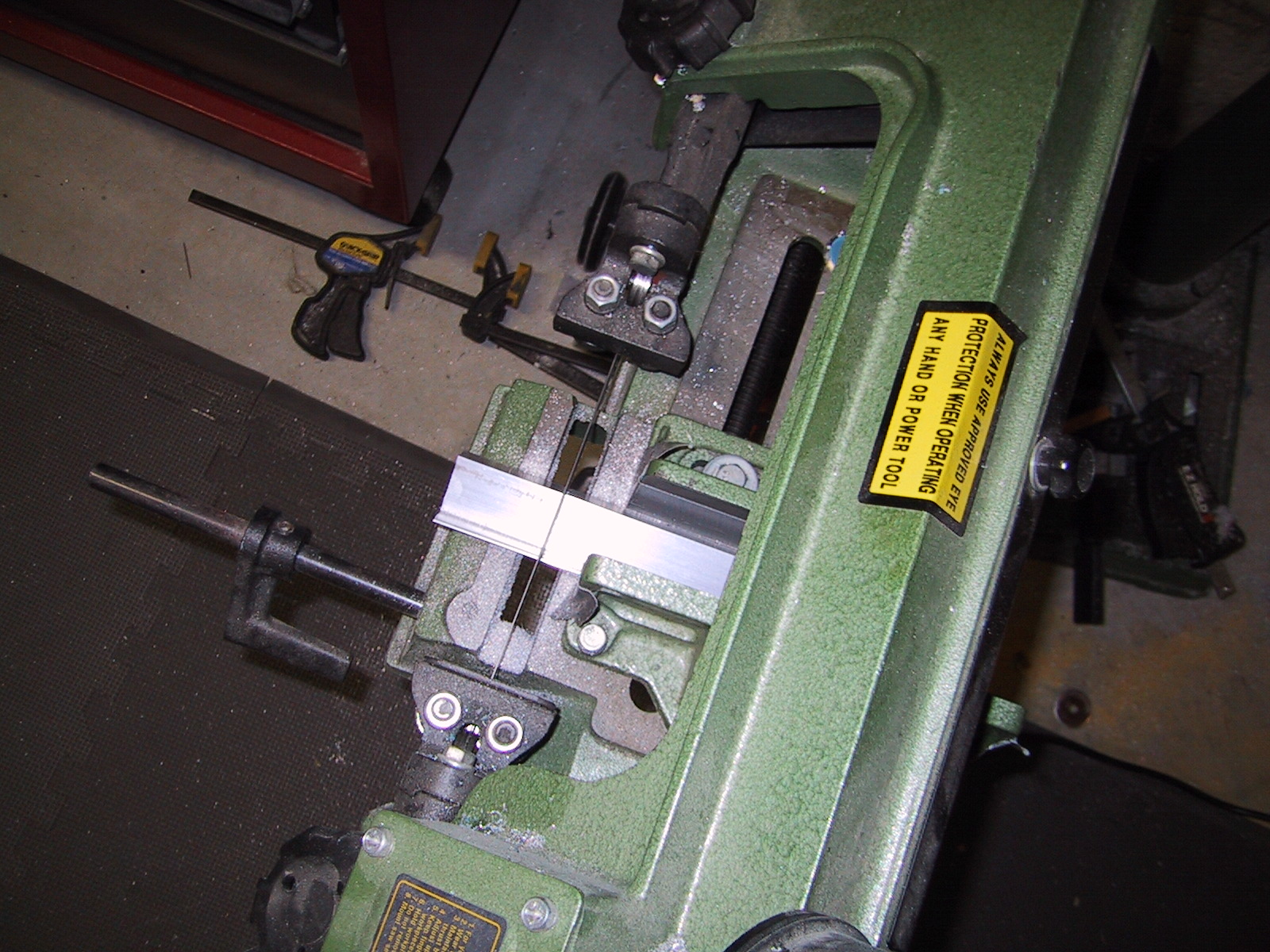

Lots of cutting aluminum brackets, sheets, and hinges. Here I'm cutting the Z channel for the seat cover.
