Build log date: Monday, September 29, 2003
-
I've now bent the right and left fuel level floats. For the right wing I've used a nylon tie to make sure that the float can reach empty and full.

-

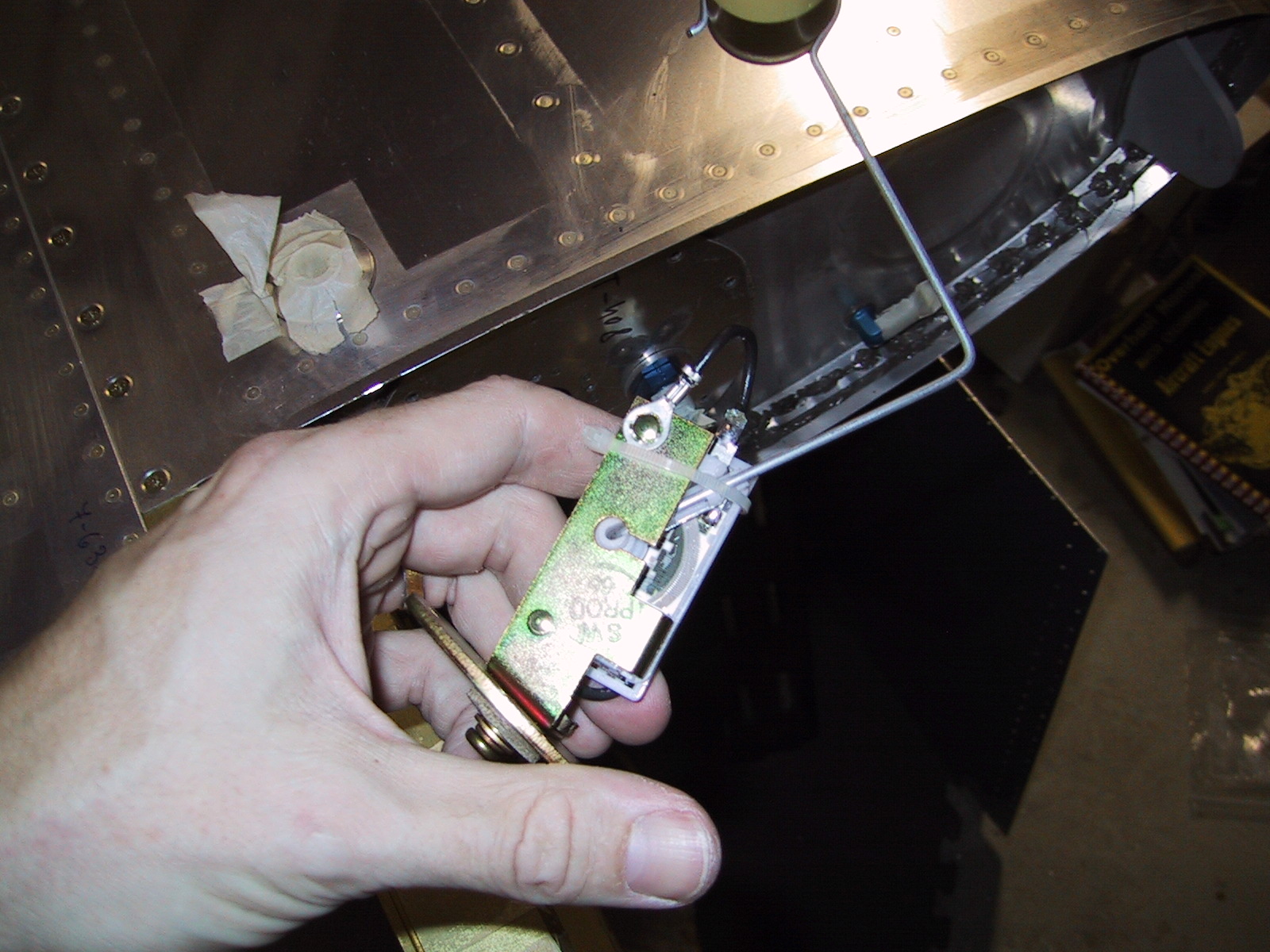

This is a detail on the tie I used while measuring the travel of the float.

-

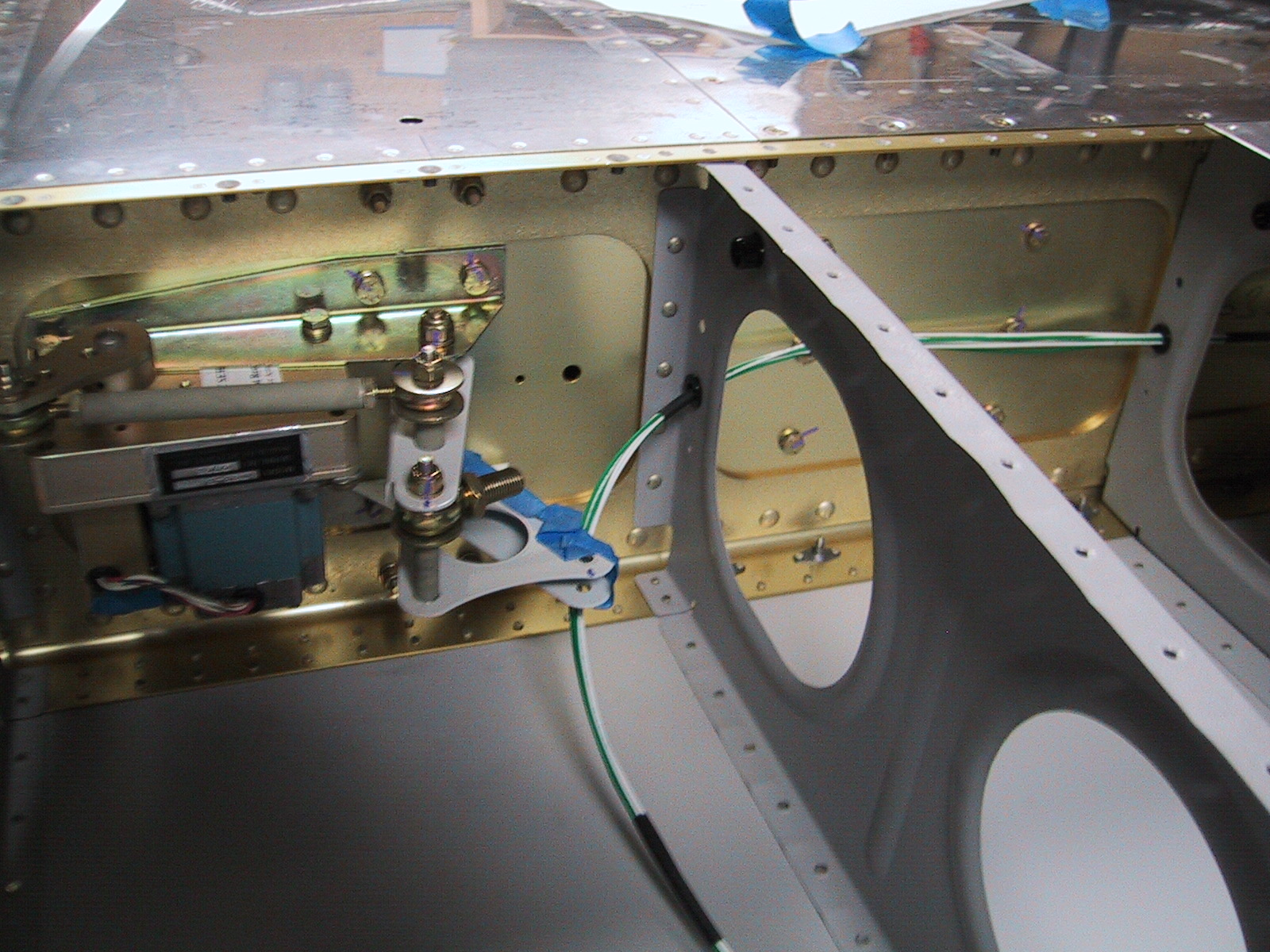

After futzing for a while - I realized there is no good way to attach the servo wires without possiblity of rubbing against the control system. I'll drill a new hole for the wiring closer to the top skin - at least for the rib closest to the right aileron bellcrank.
