Build log date: Sunday, September 28, 2003
-
I started fabricating the roll servo wiring harneess so I can close up the wing.

-

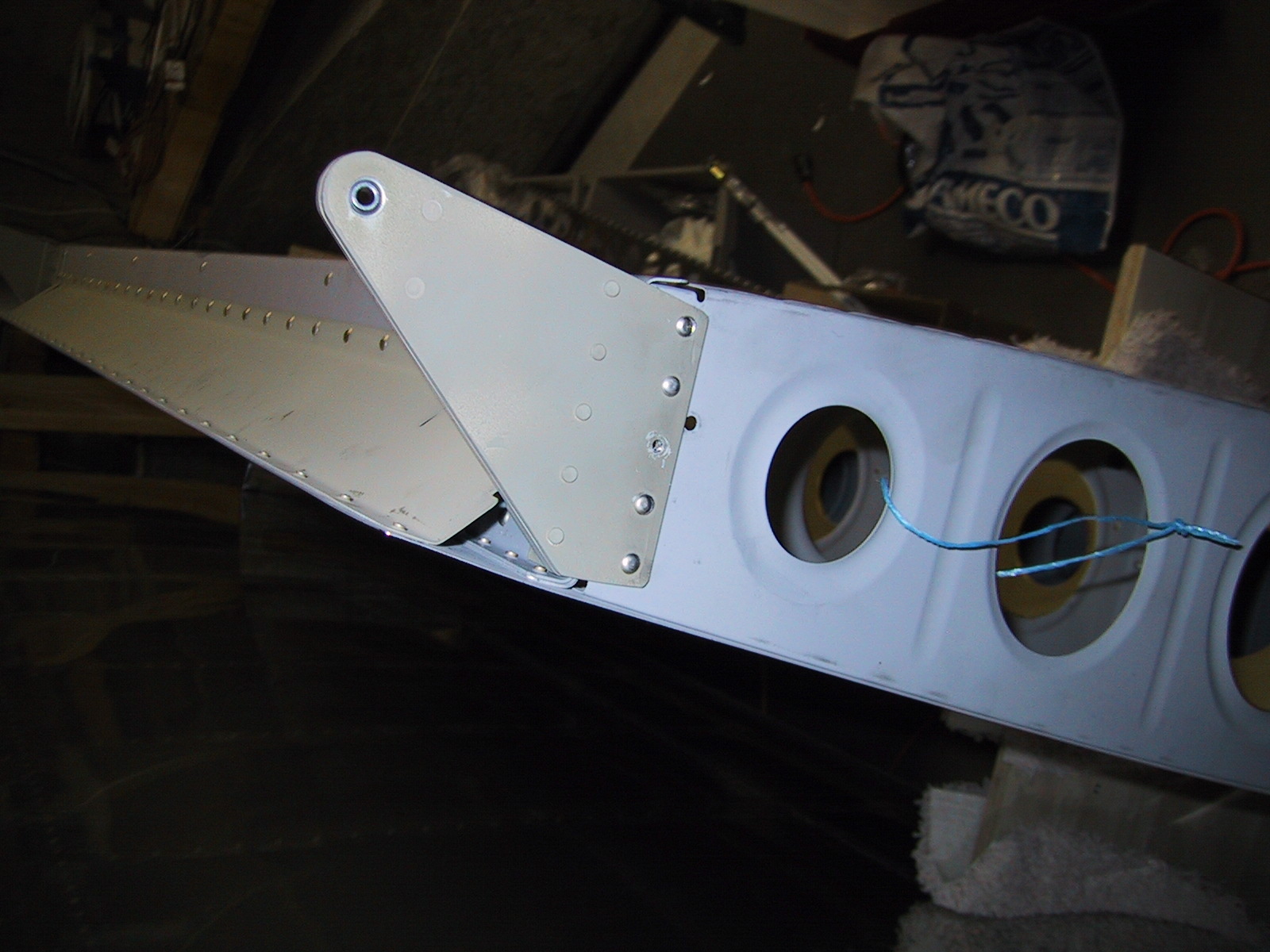

My friend Shannon was over yesterday - she is an A&P and shamed me into fixing a couple of smilies on the aileron bracket rivets. This photo shows me half way through replacing the rivets. I drilled off the heads then punch the shaft out.

-

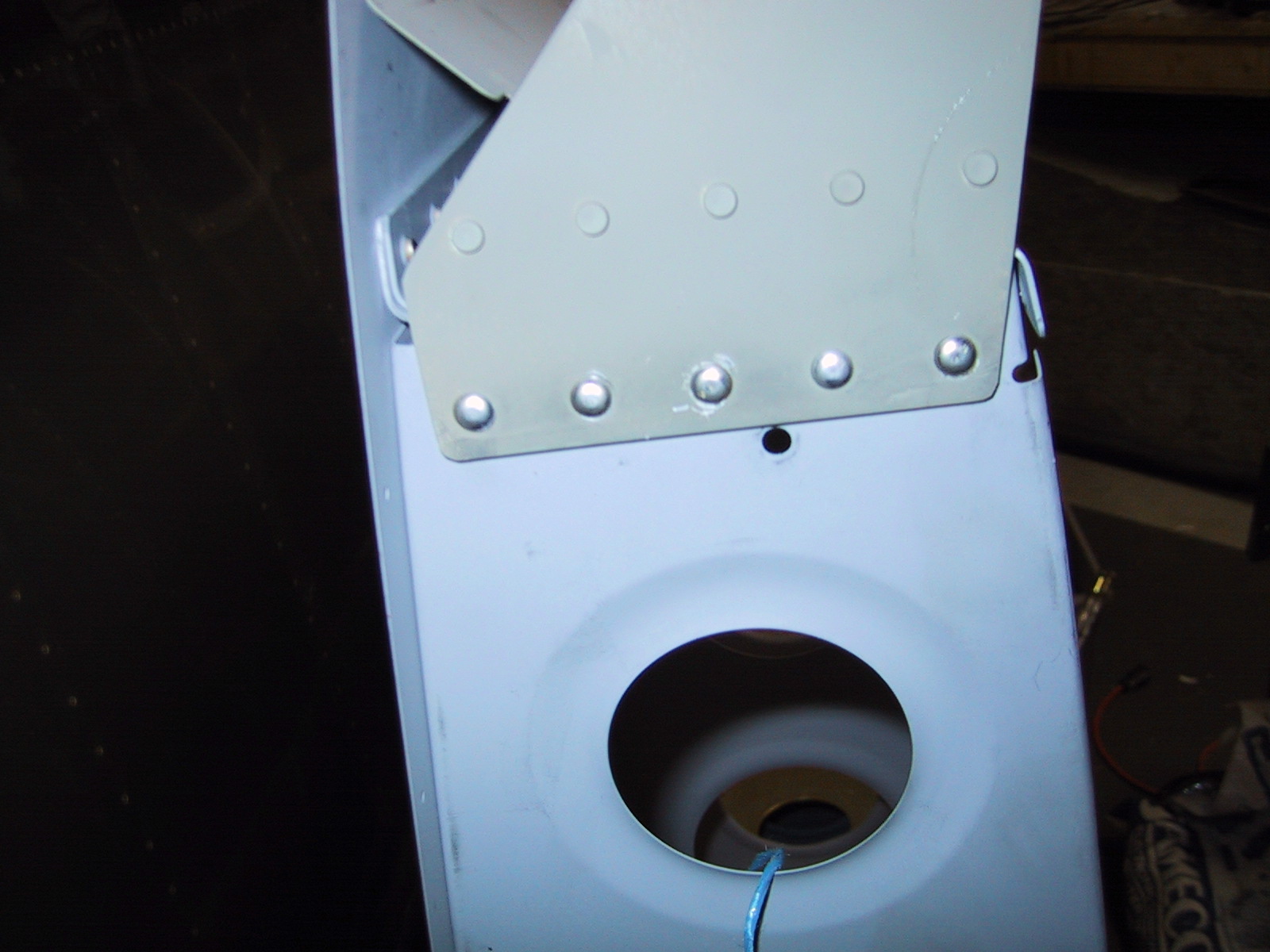

Pretty. I've now repaced three ugly rivets - no hole enlargement involved.

-

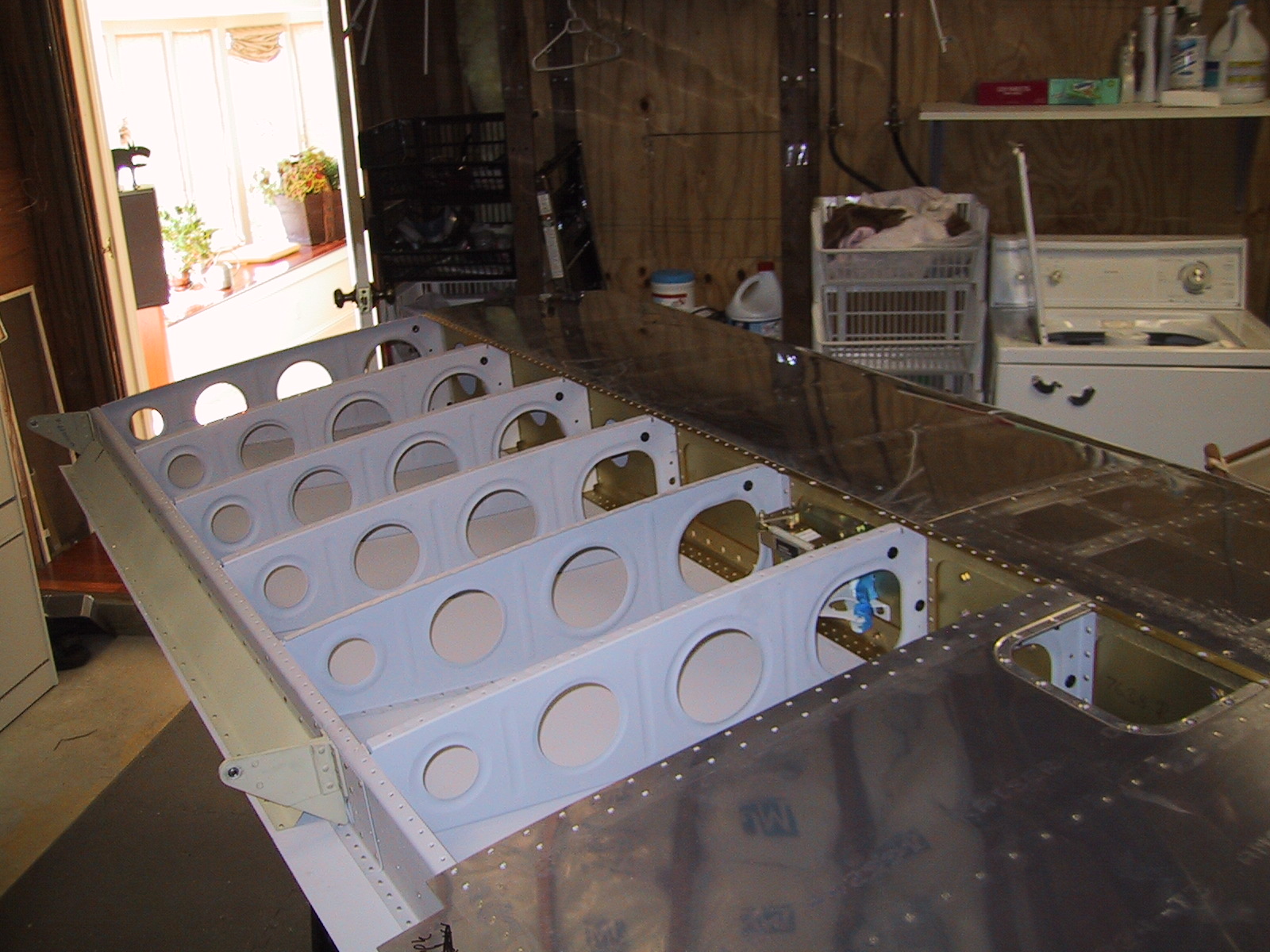

My neighor Joe helped me move the wing rack and left wing down into the garage. This gives me space to do finishing work on the right wing.

-

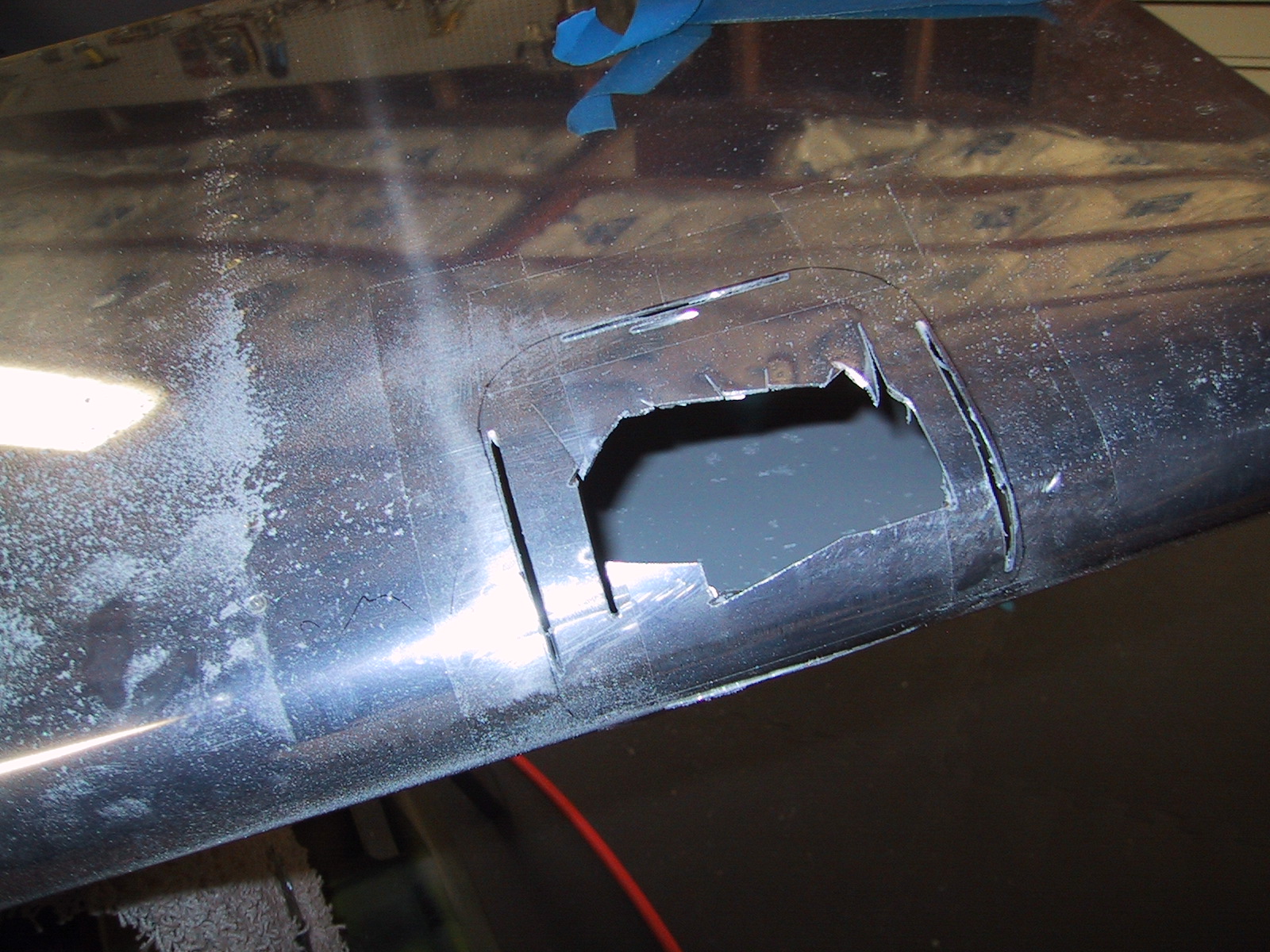

This was scary - cutting into the wing to install the Duckworks leading edge light.
