Build log date: Saturday, May 14, 2005
-

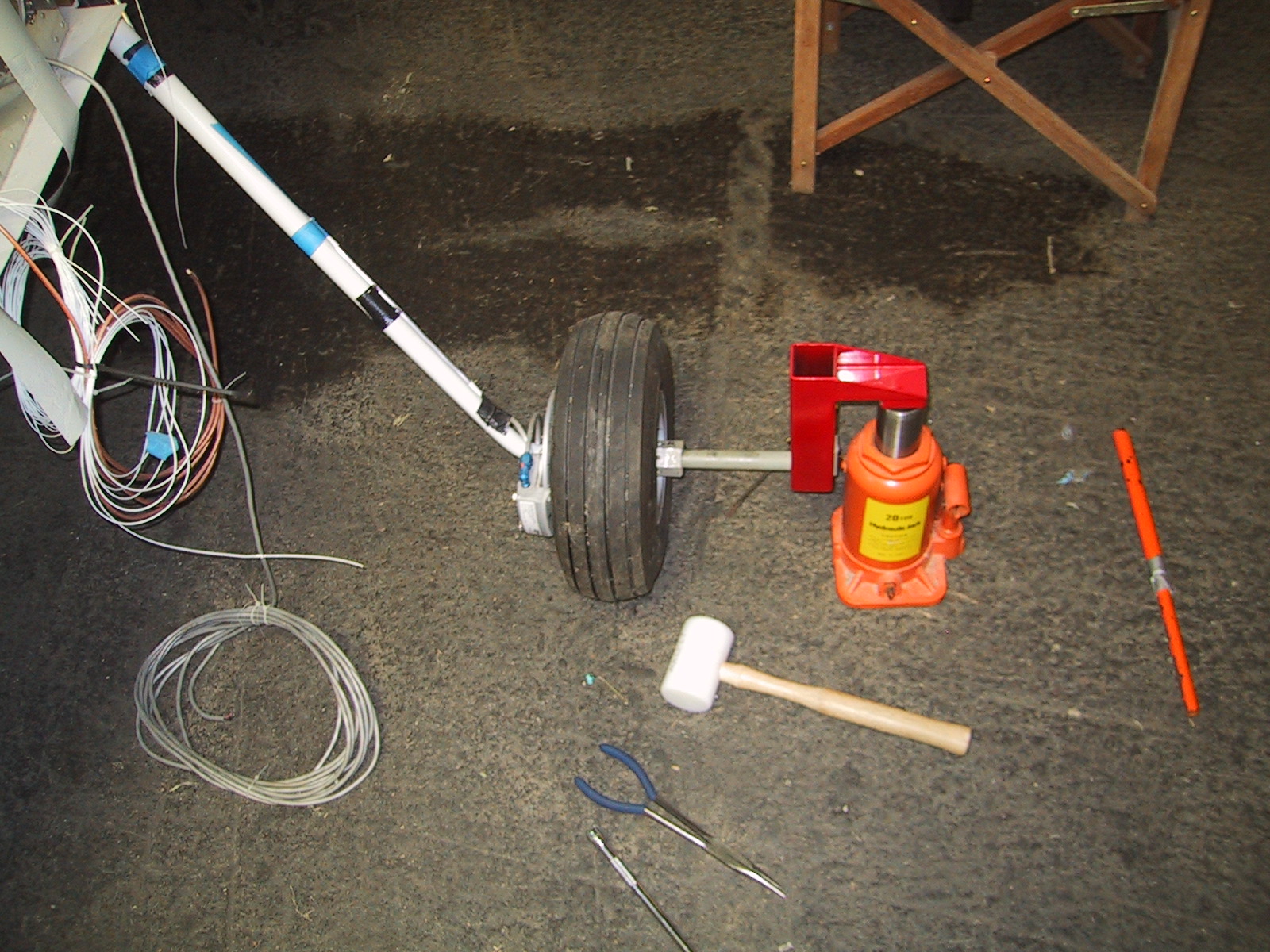

Removing the wheel cotter pins because I was dumb and didn't realize I'd need to be jacking them up again.
-

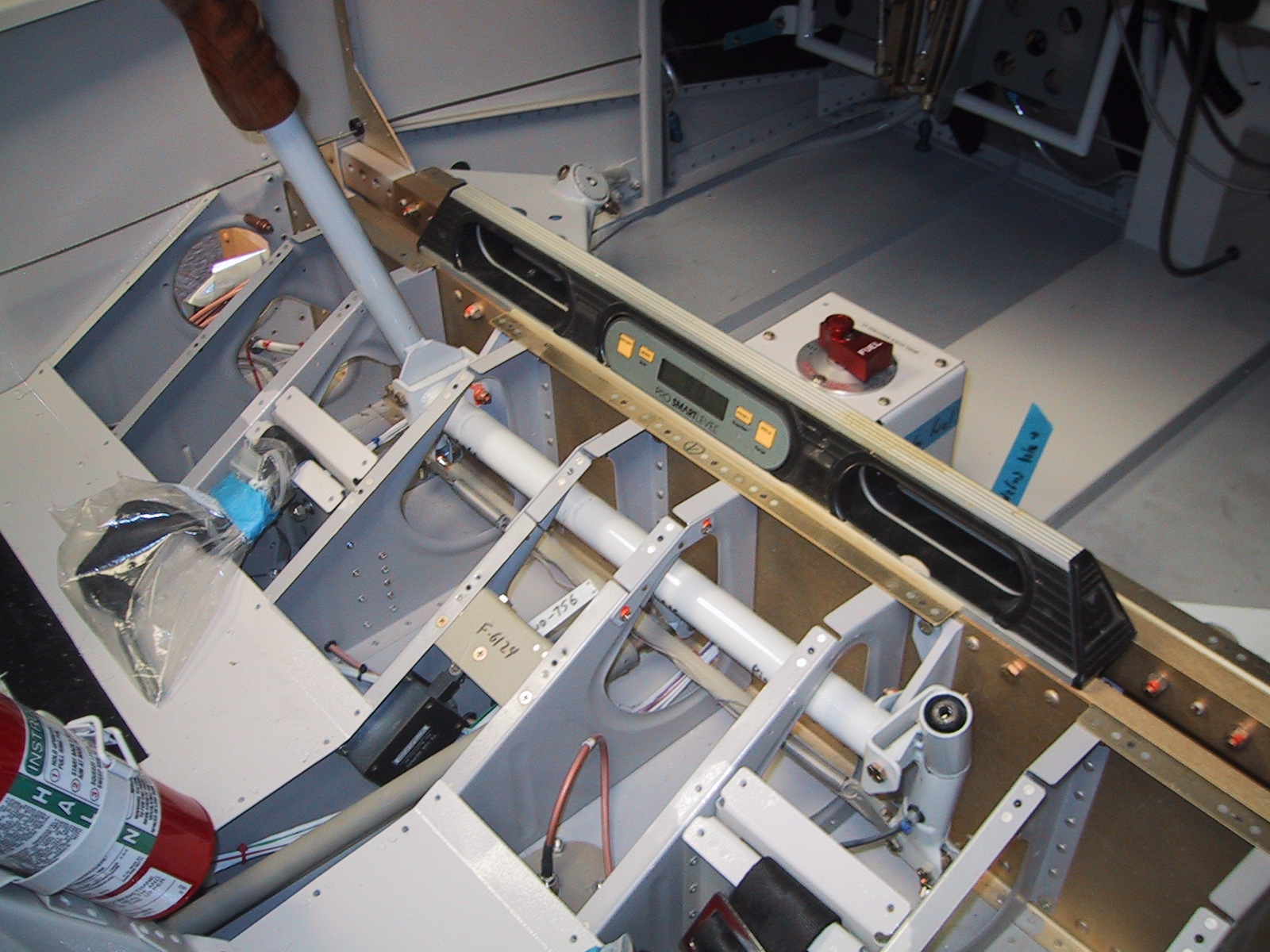

Leveled in roll by using jacks and some wood blocks - my hangar floor is sloped sideways.
-
Becky being annoyed that I took her picture while she was hanging plumb bombs for the wing sweep check.
-

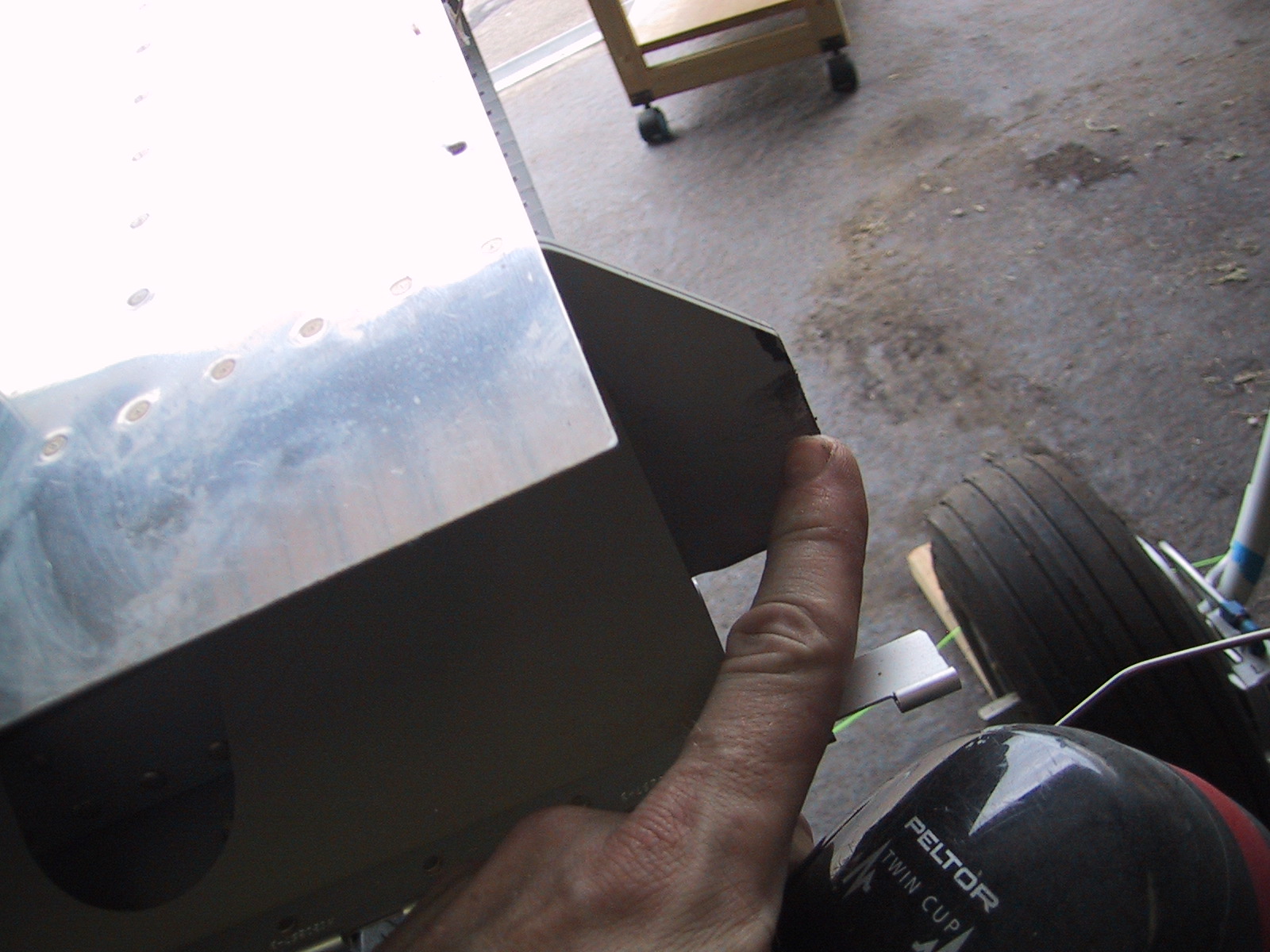

The upper corner of the wing aft spar ear needed a bit of trimming to clear a rivet on the fuse.
-

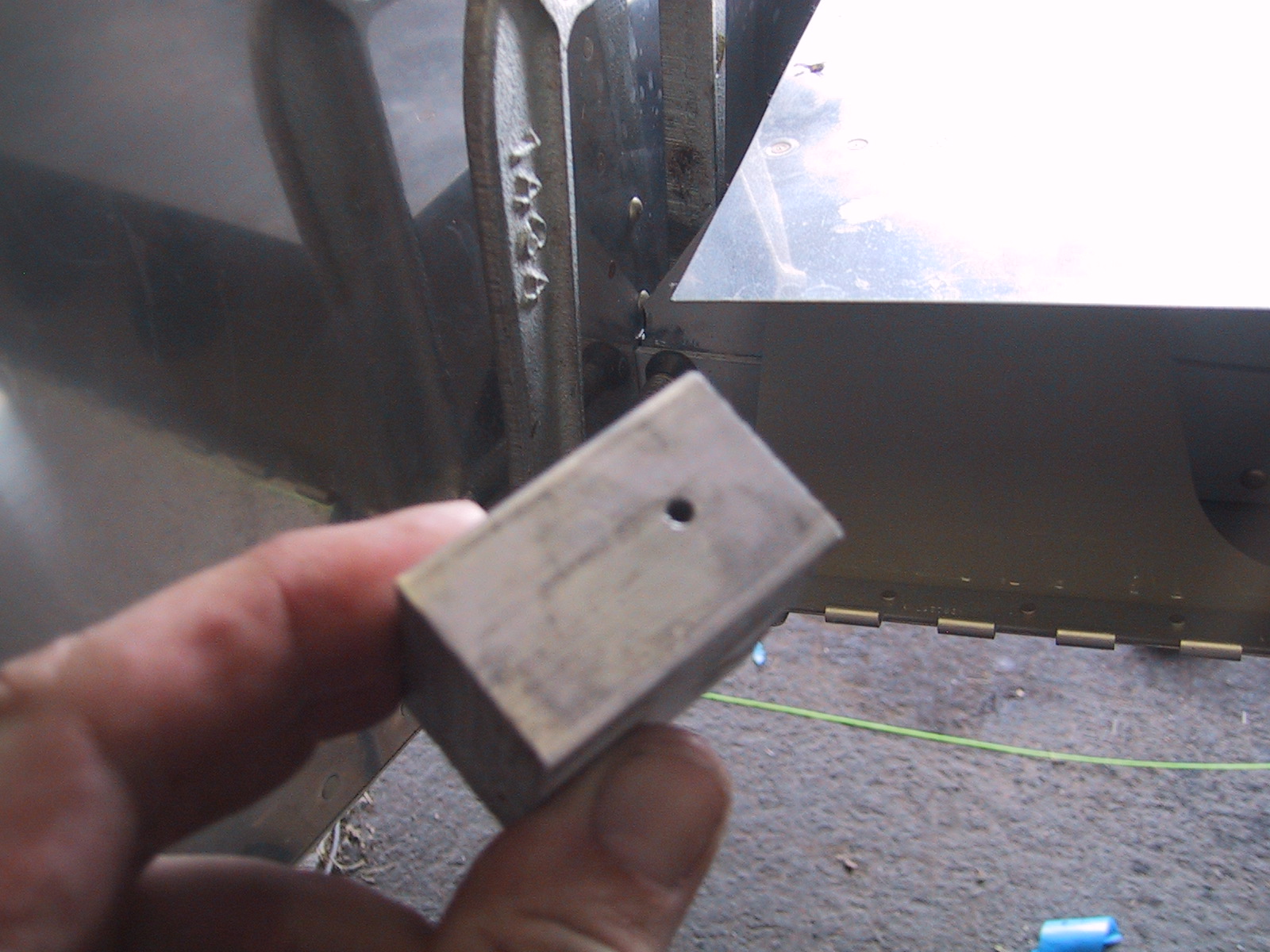

I drilled this 1x2x2 block of aluminum to serve as a drill jig for the aft spar hole.
-

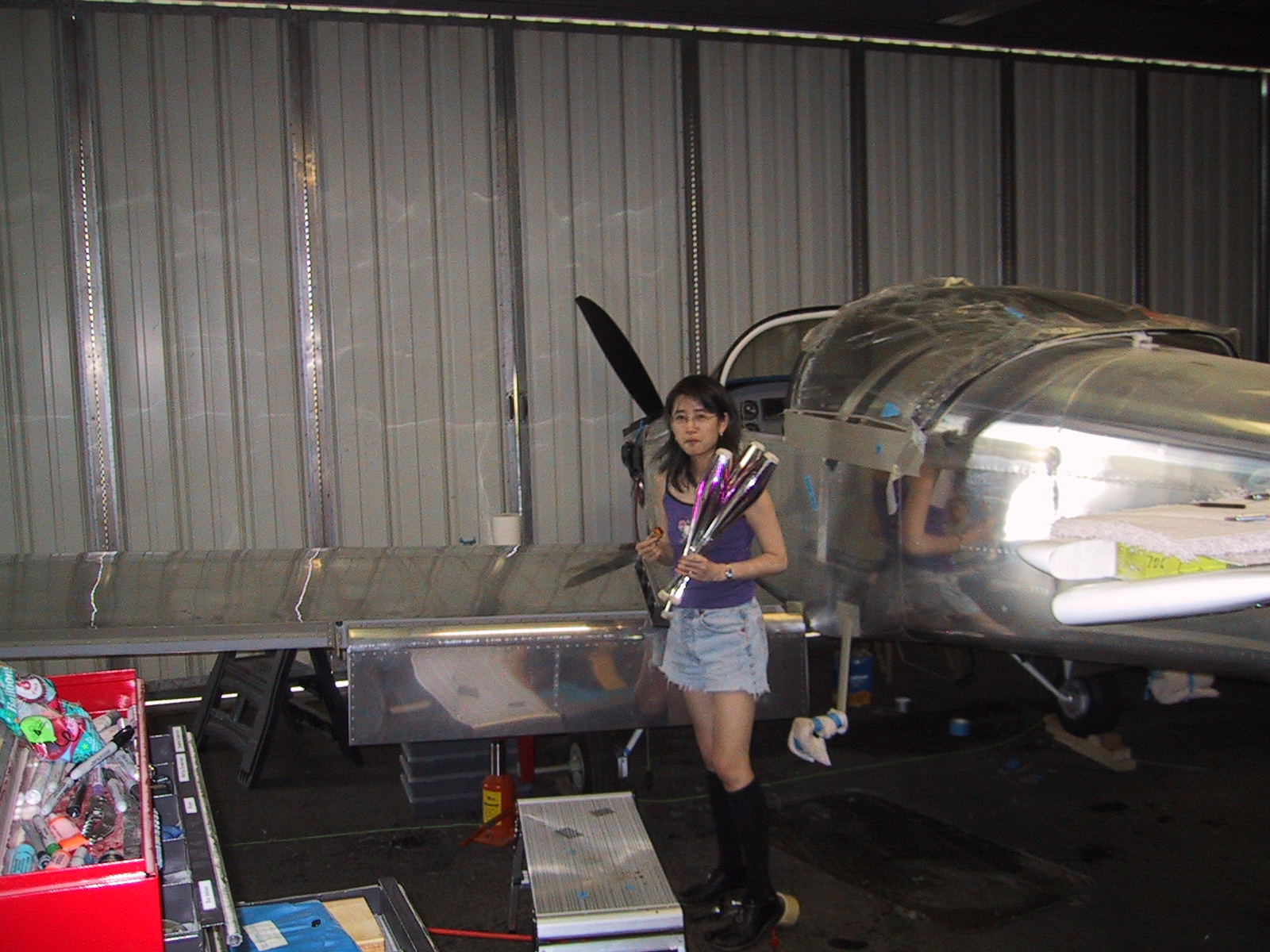

Hell yeah! Wings mated to fuse, incidence good, no twist, fitting/trimming flaps before drilling the aft spar hole. Becky shows off her juggling.
