Build log date: Saturday, October 30, 2004
-

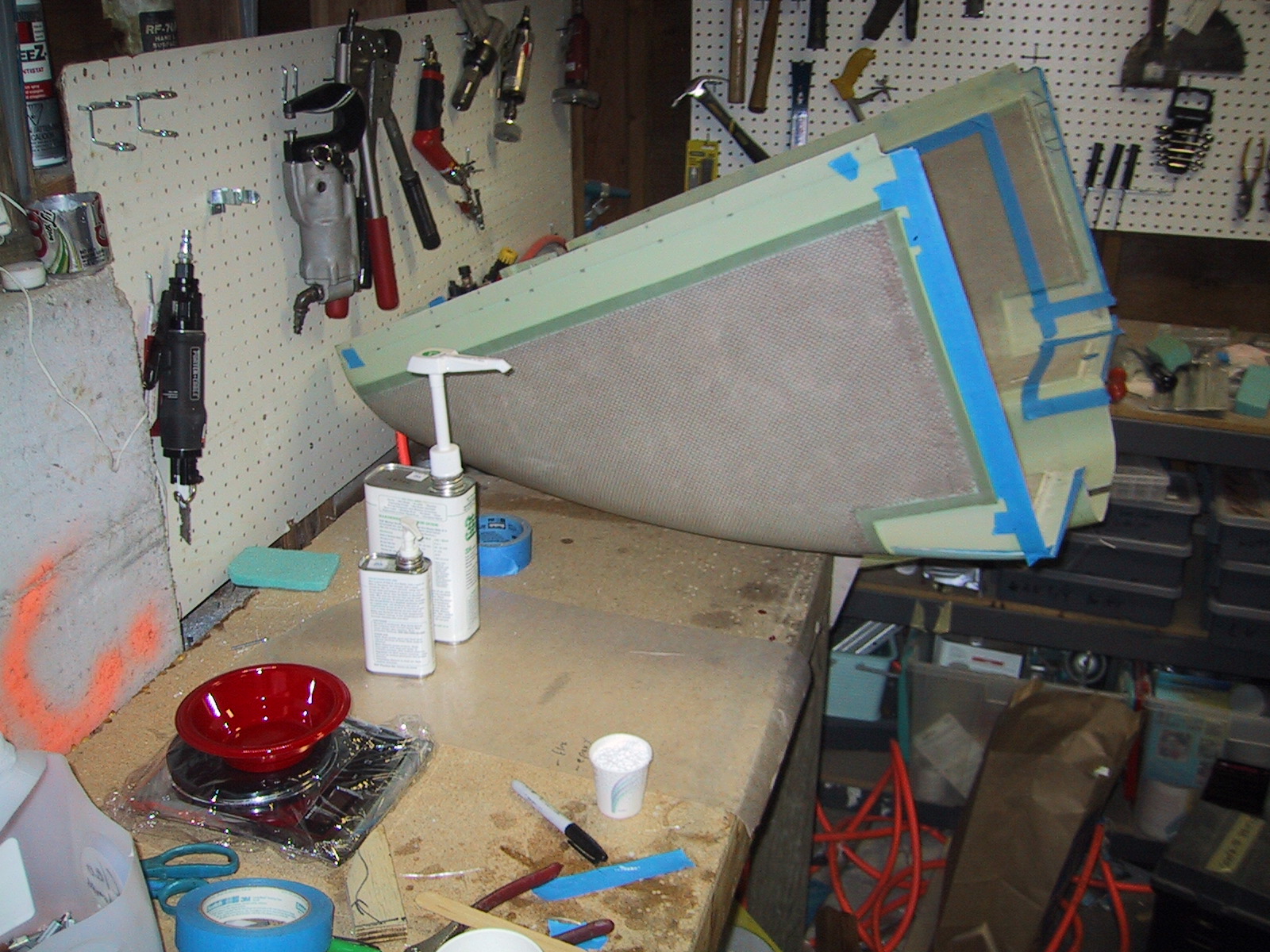

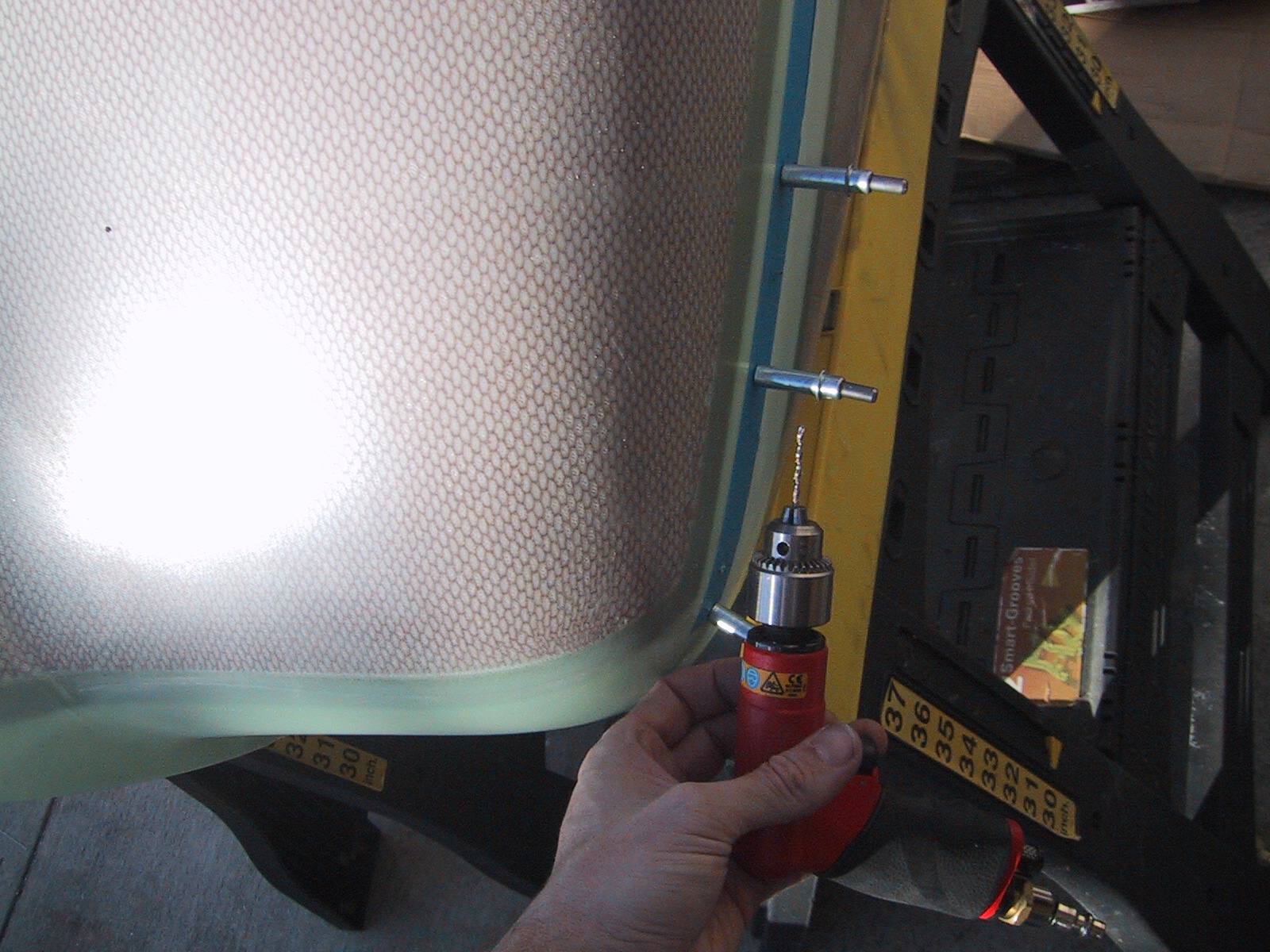

Drilled the side holes in the cowl.

-

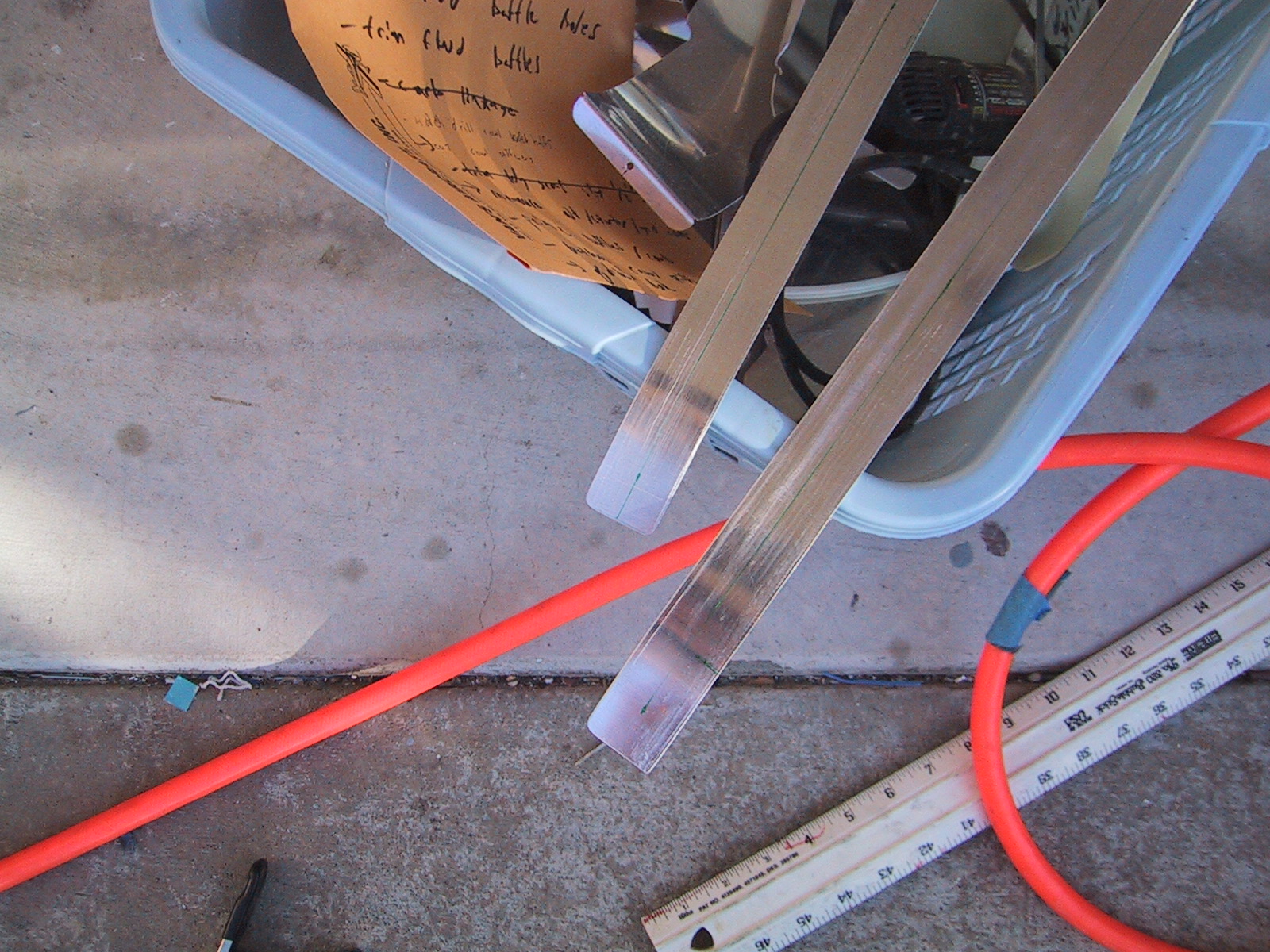

Cut backing plates for the side camlocks from .050 2024.

-

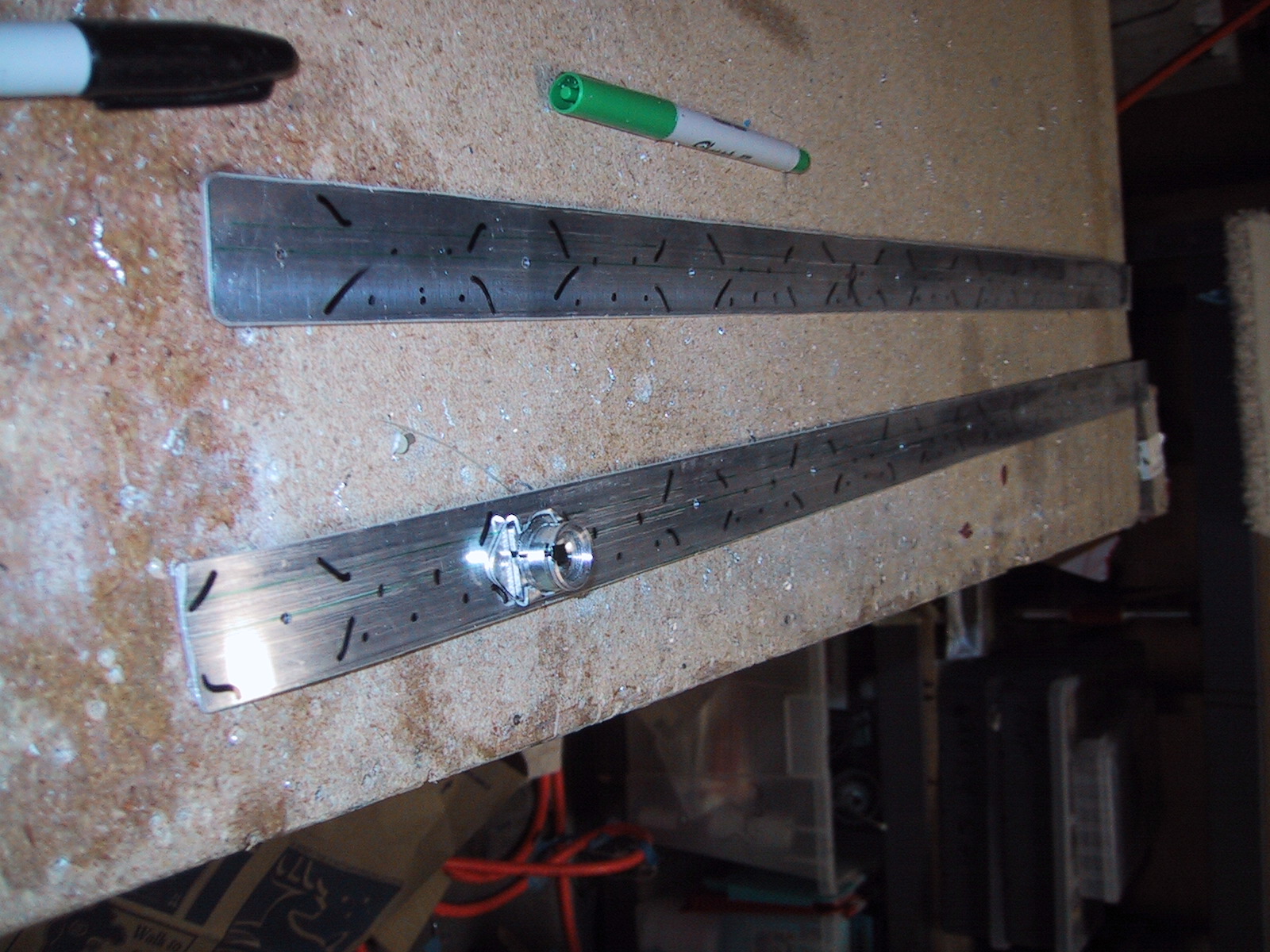

Match drill the camlock plates to the sides.

-
Mark where camlocks will need to go on the side plates - for the remaining area, drill some holes so the flox can get a good bond to the plates.

-

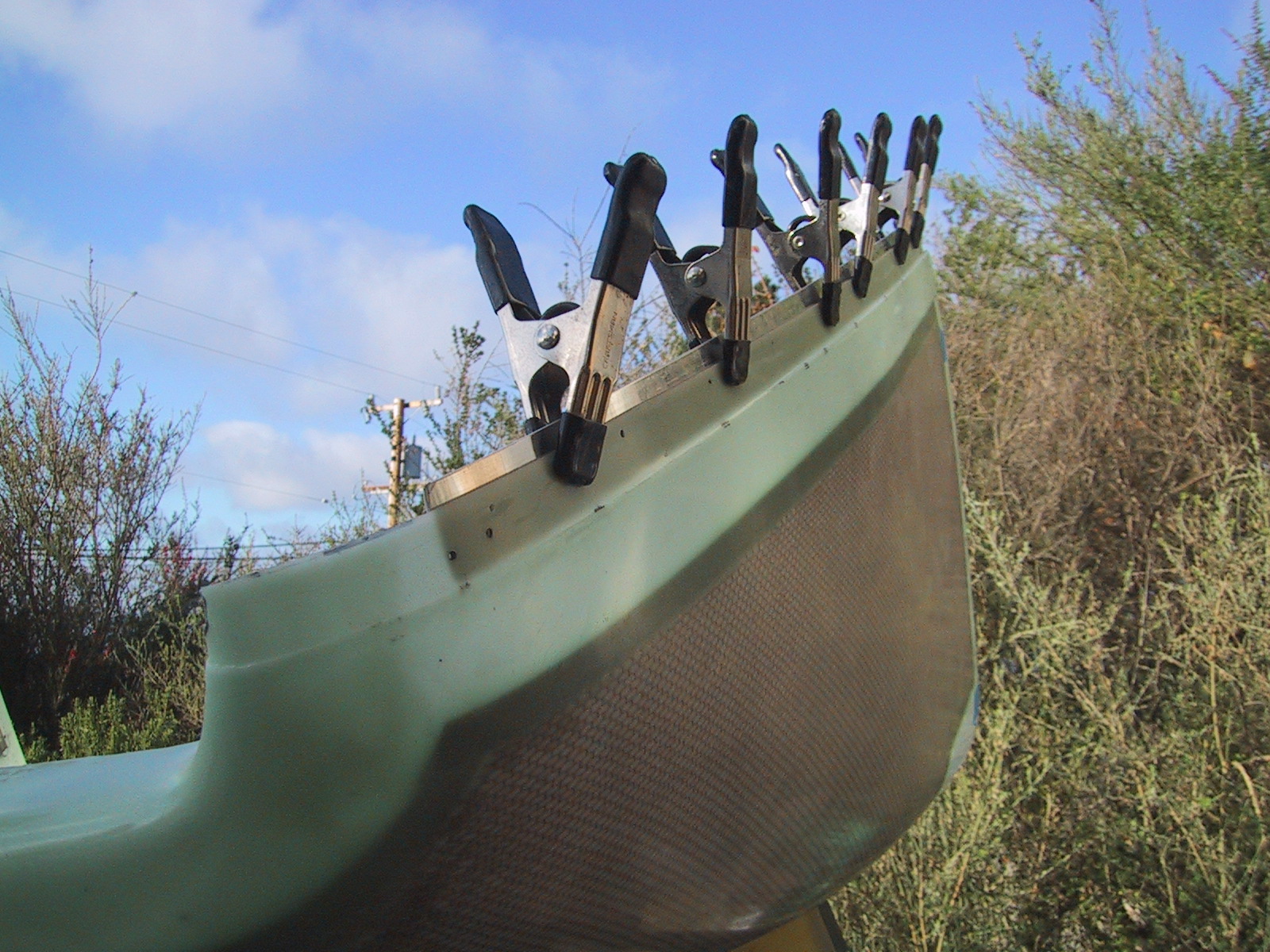

Glassing in the side plates.

-
Becky's so cute - emergency fiberglass asssistance.
