Build log date: Wednesday, October 27, 2004
-

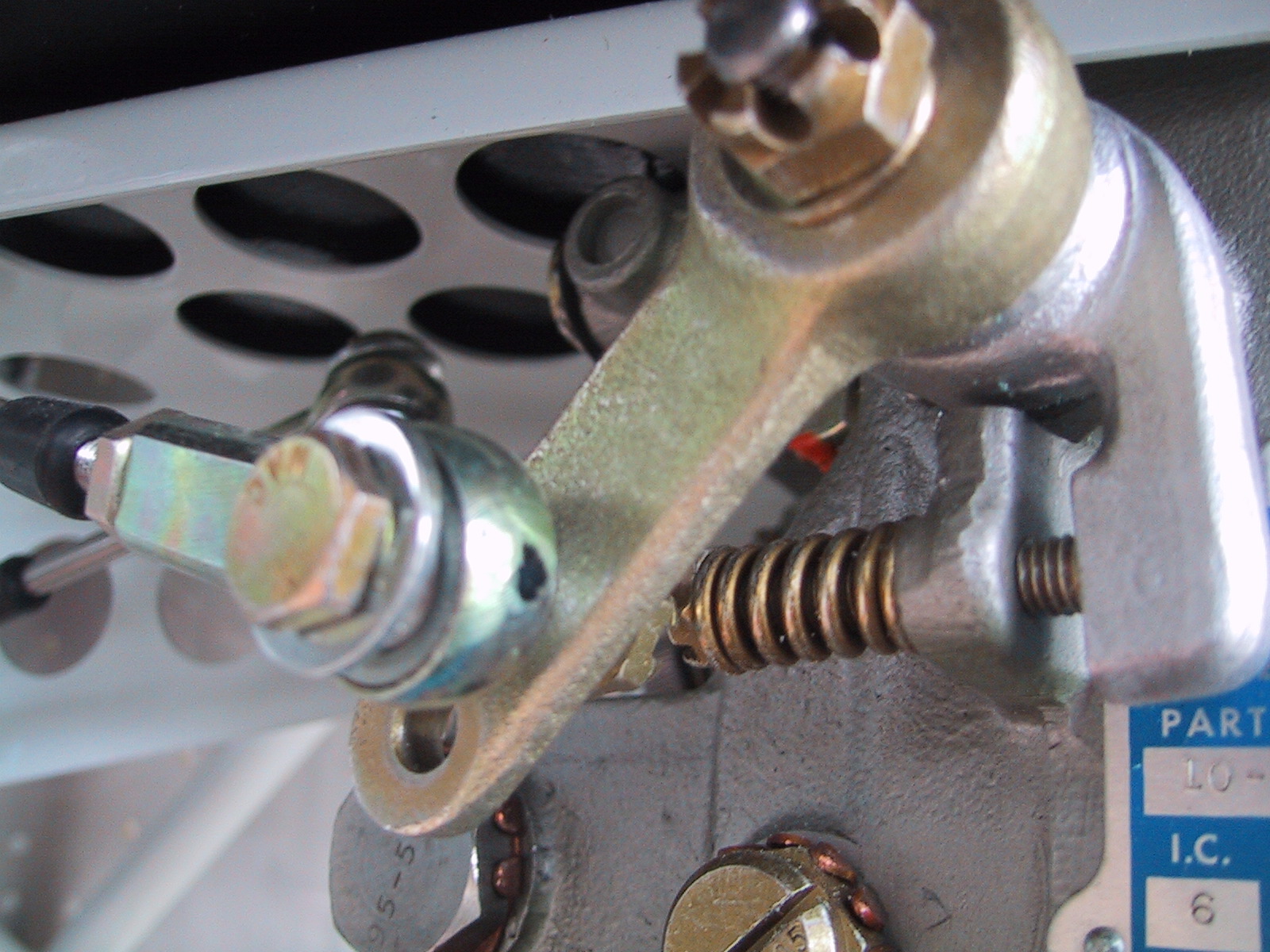

Reinstalled the carb linkage and adjusted travel. After taking this picture I safetied both nuts on the linkage.

-

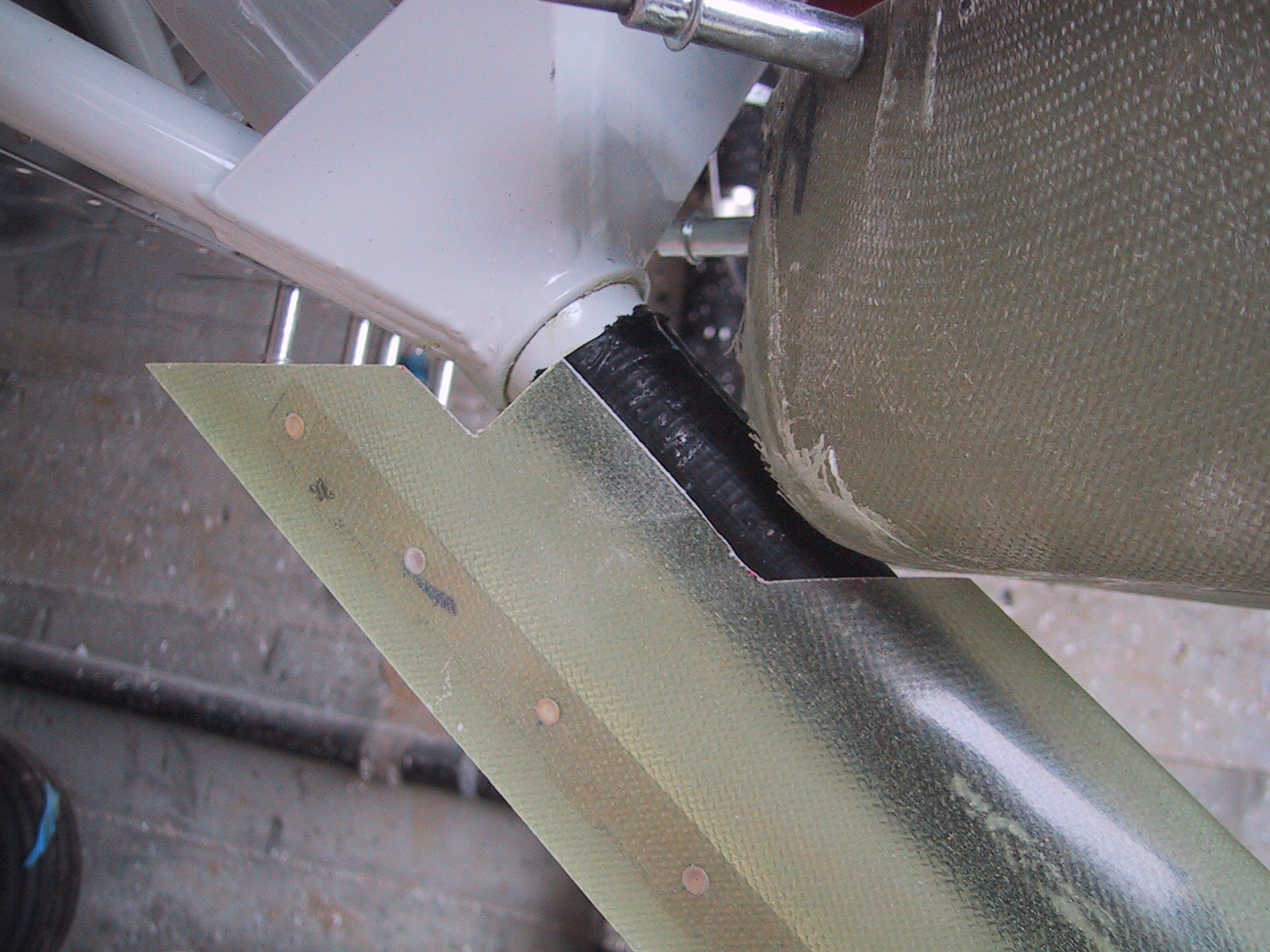

Cut a bit out of the nose leg fairing to clear the FAB.

-

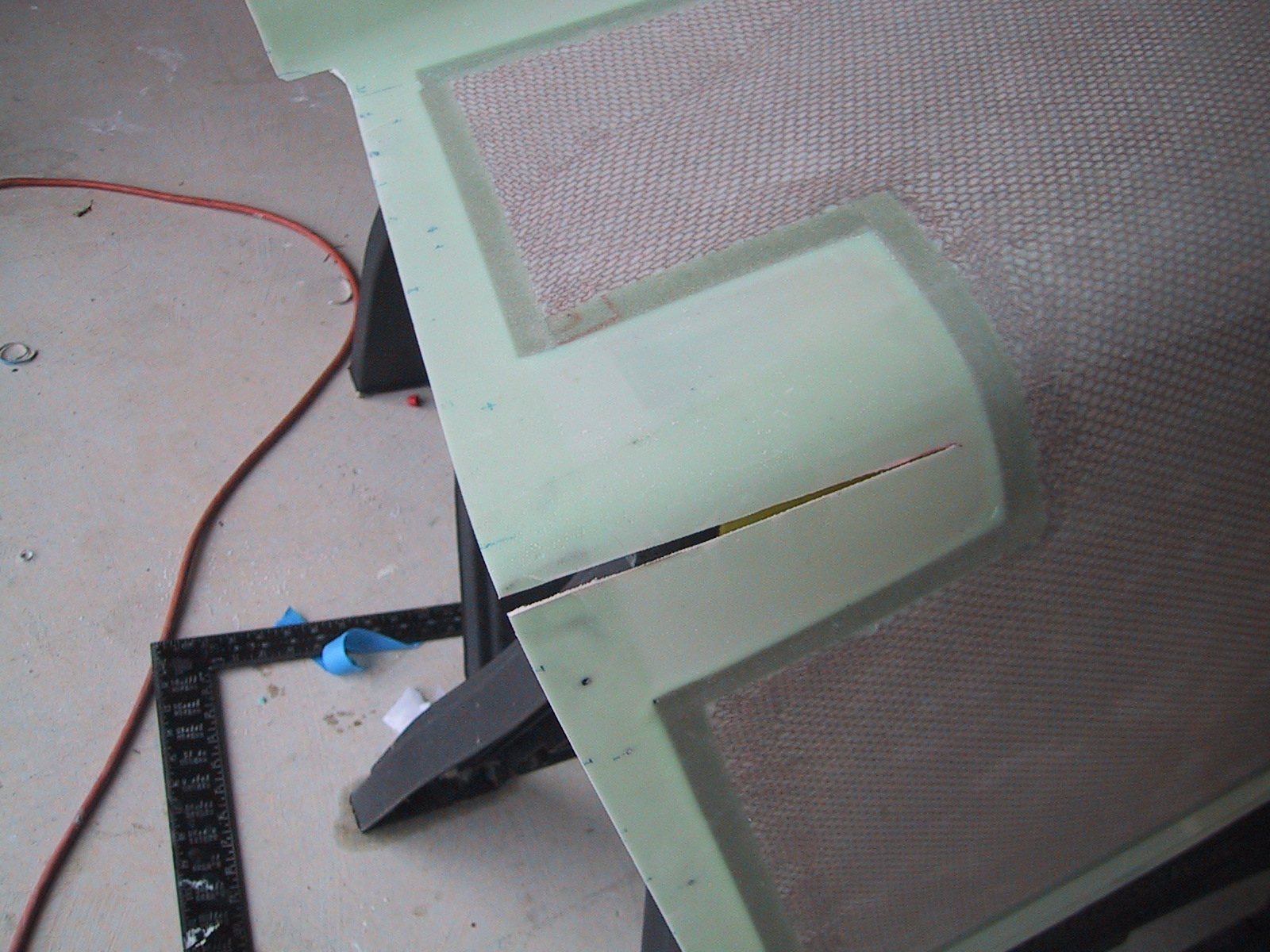

Cut a slot for the left bottom cowl - so I can adjust the shape of the cowl to fit my fuse. I'll glass in a reinforcement after jigging the cowl to the firewall.

-

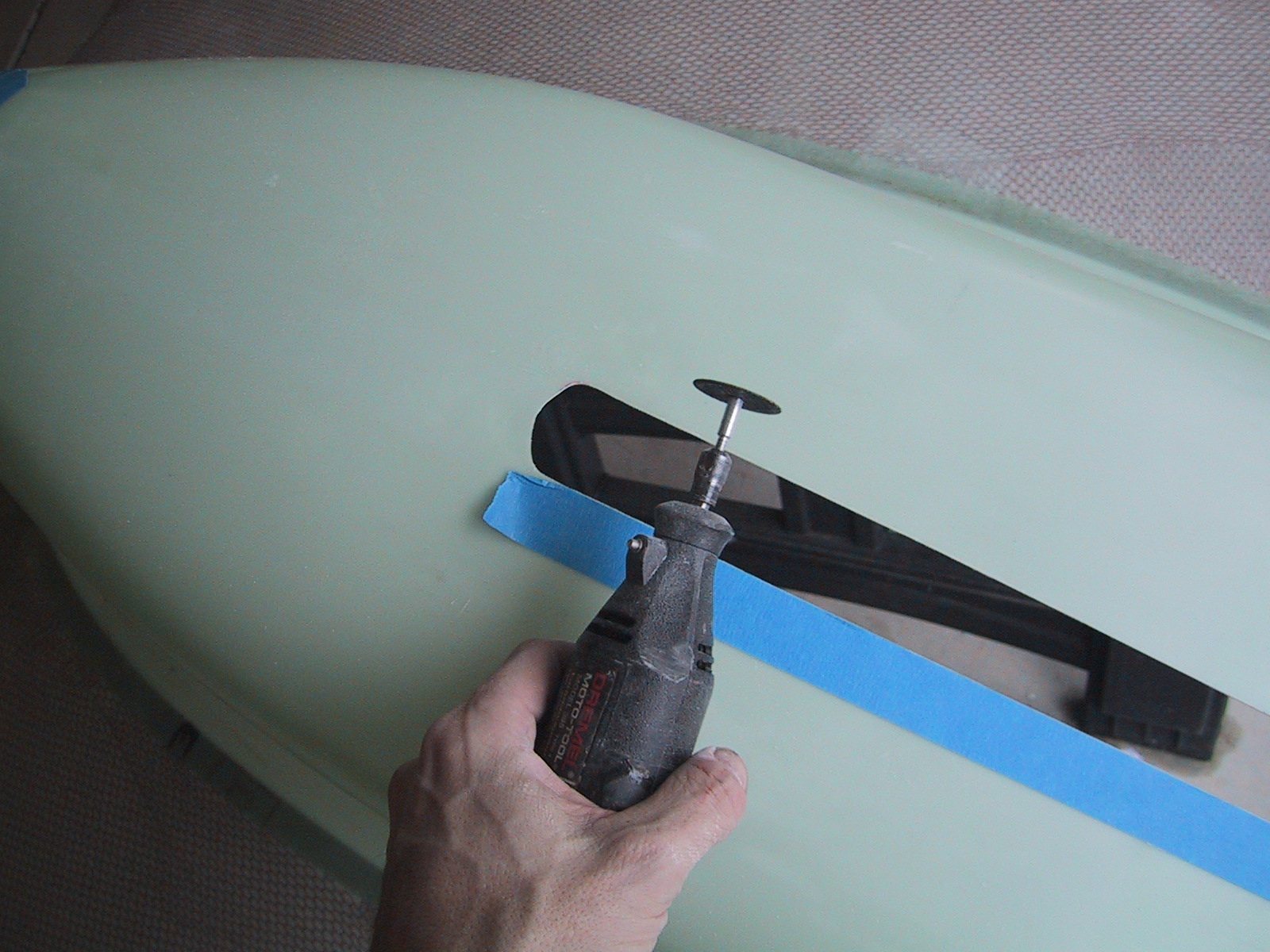

Extend the nose gear slot slightly forward - so I can remove the bottom cowl without removing the leg fairing.

-

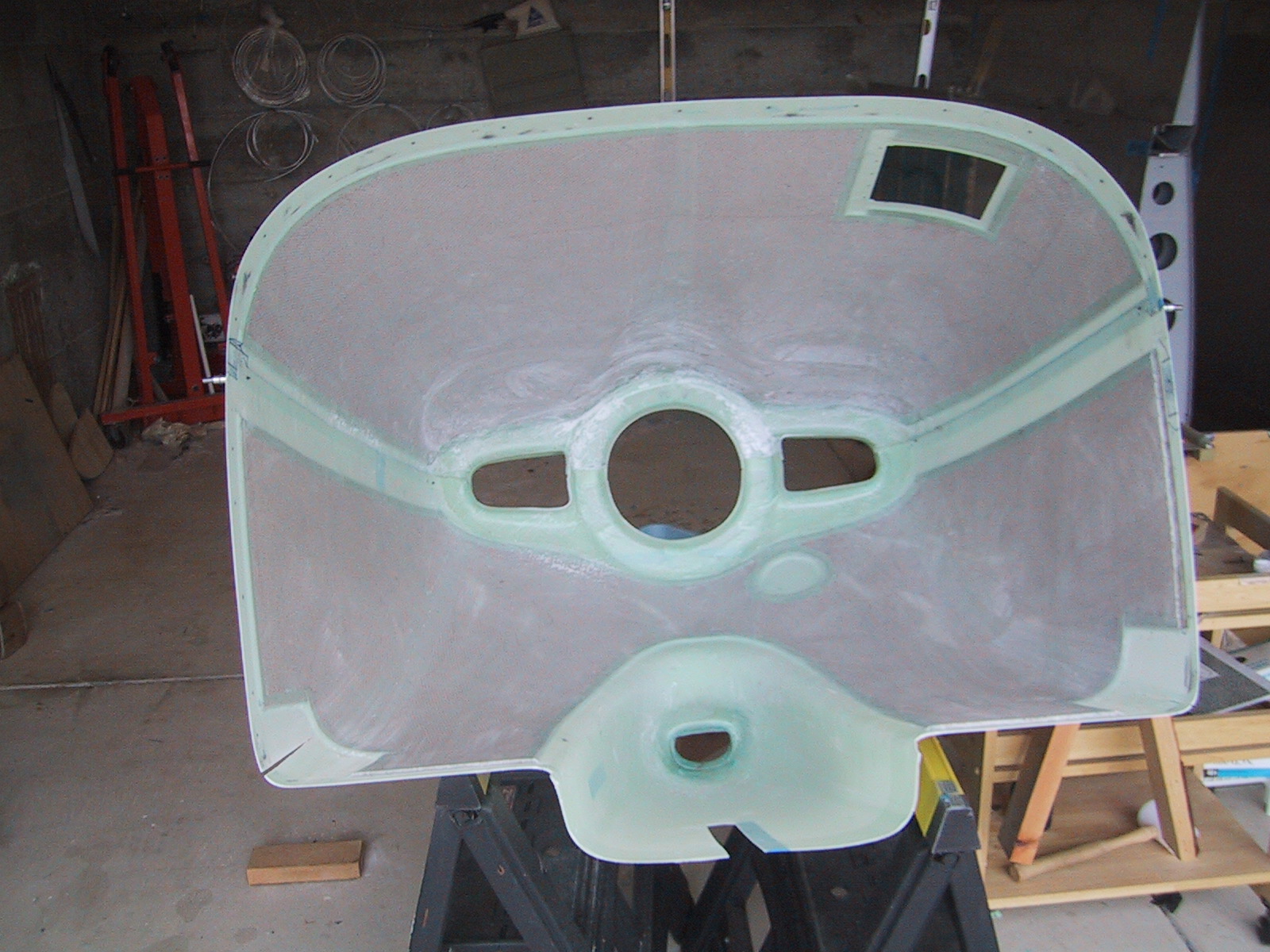

Cool photo.

-

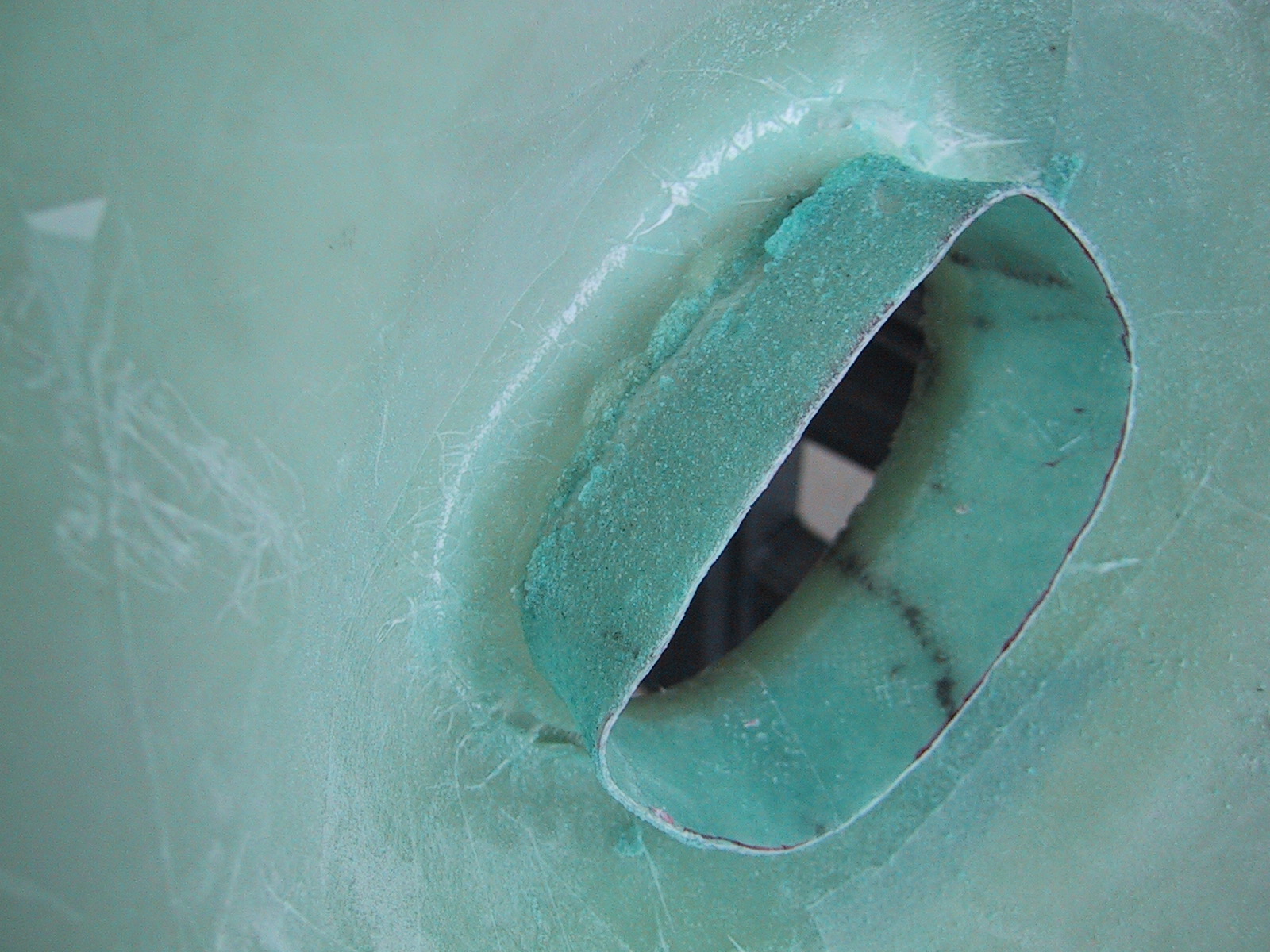

Remove the foam from the air inlet extension.

-

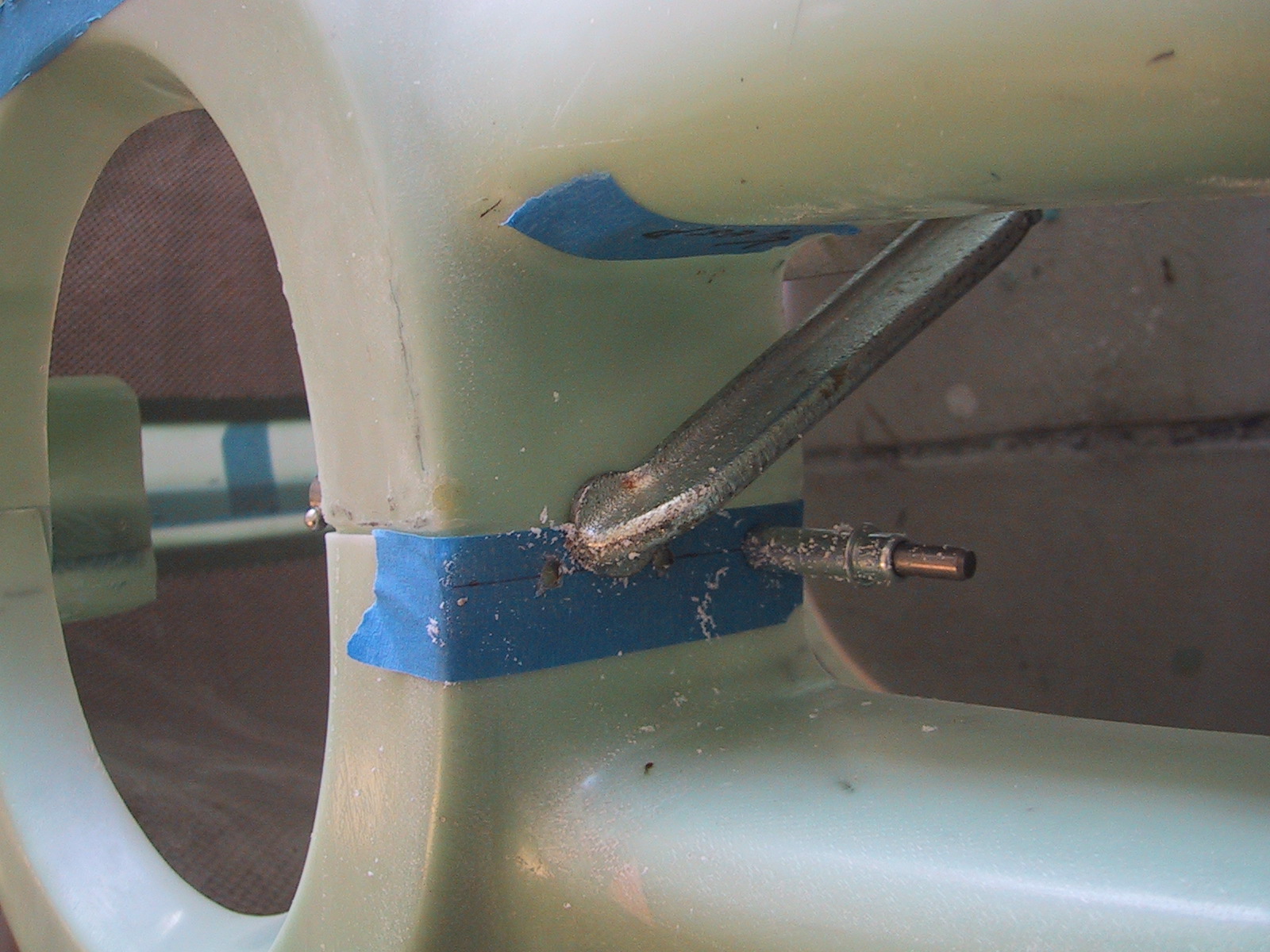

Drill the inner #8 screw holes for the cowl.

-

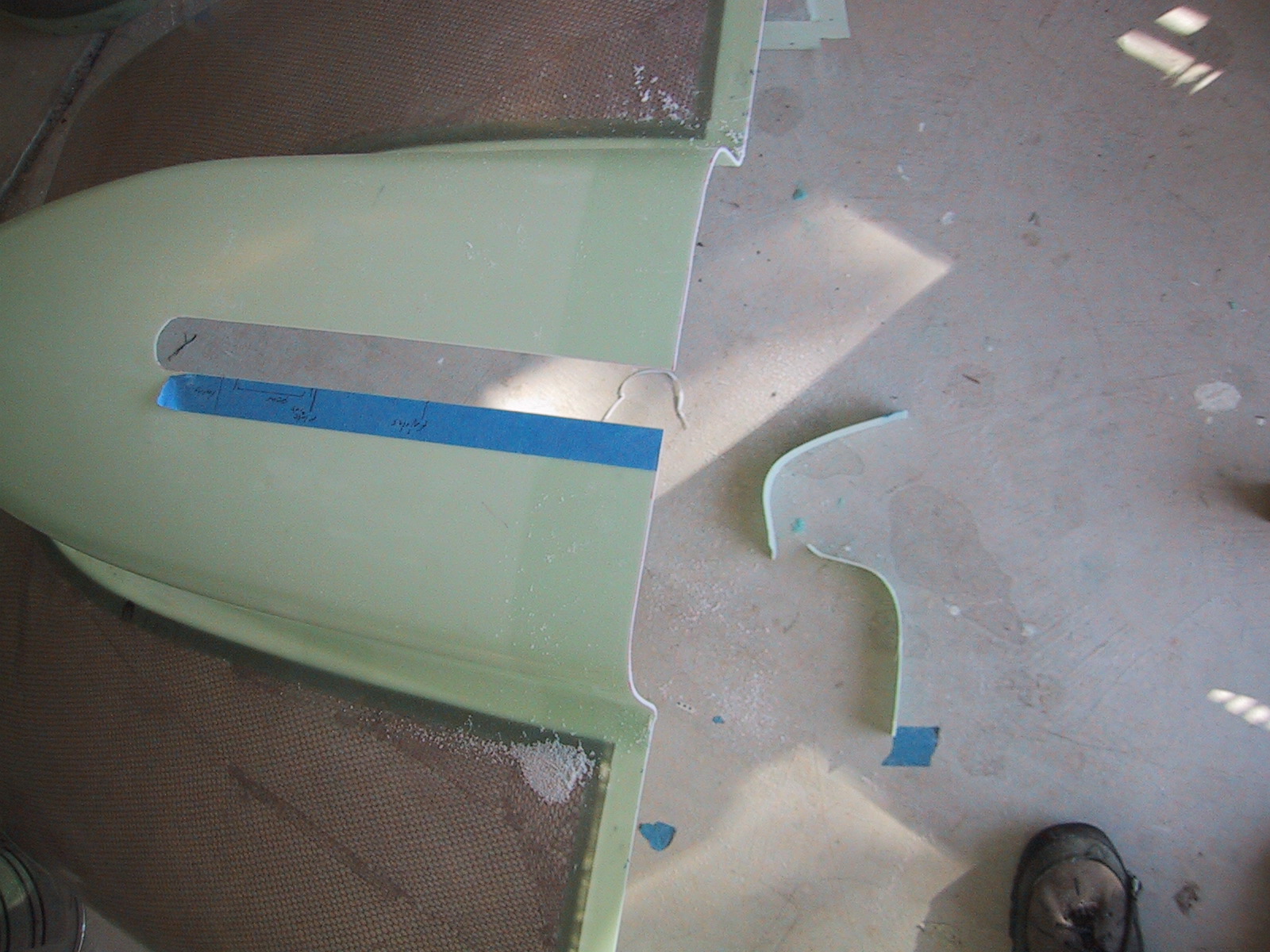

Remove excess material from the center bottom of the cowl - I was keeping it around, but I now see it needs to go.
