Build log date: Tuesday, December 30, 2003
-

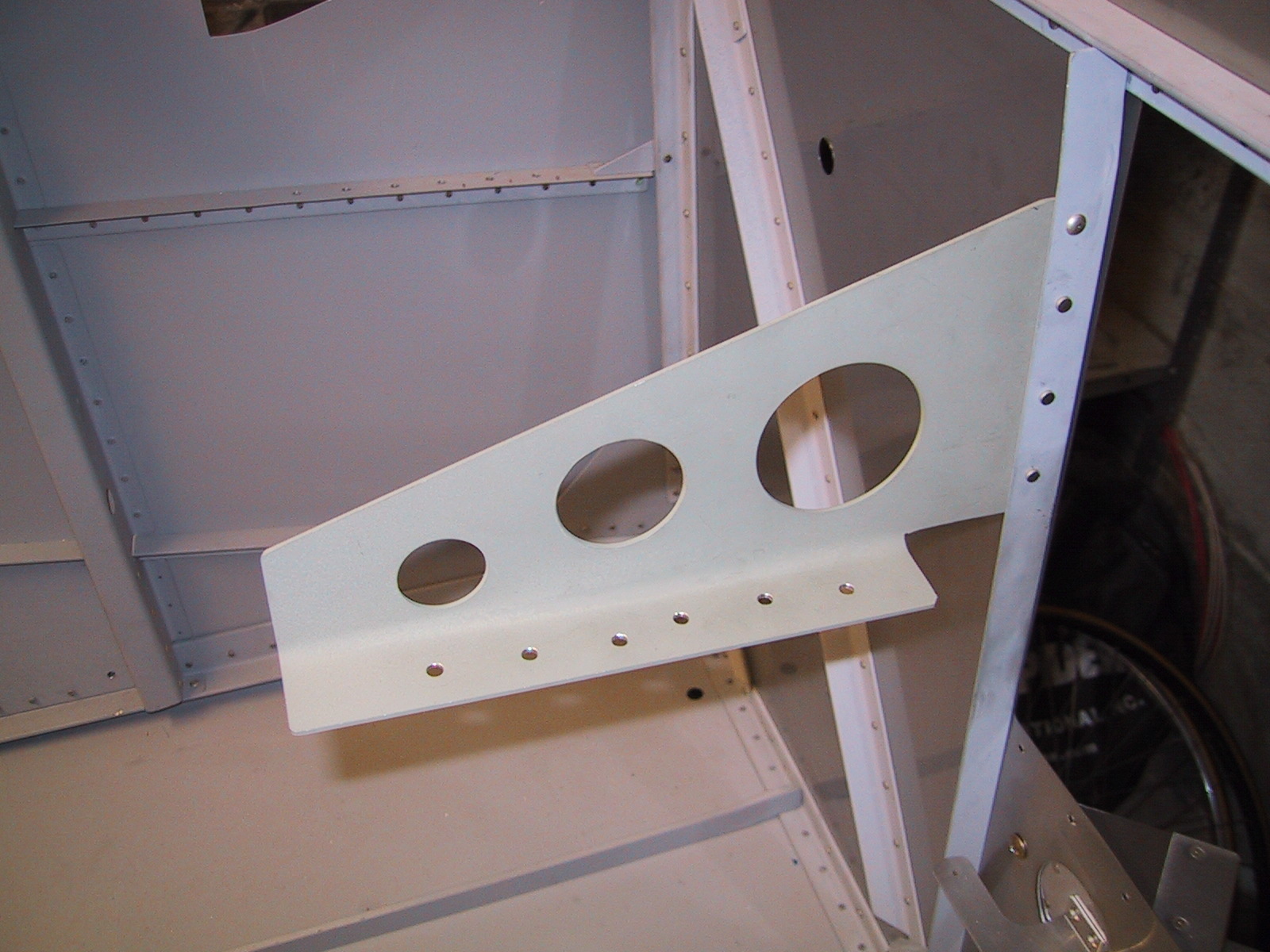

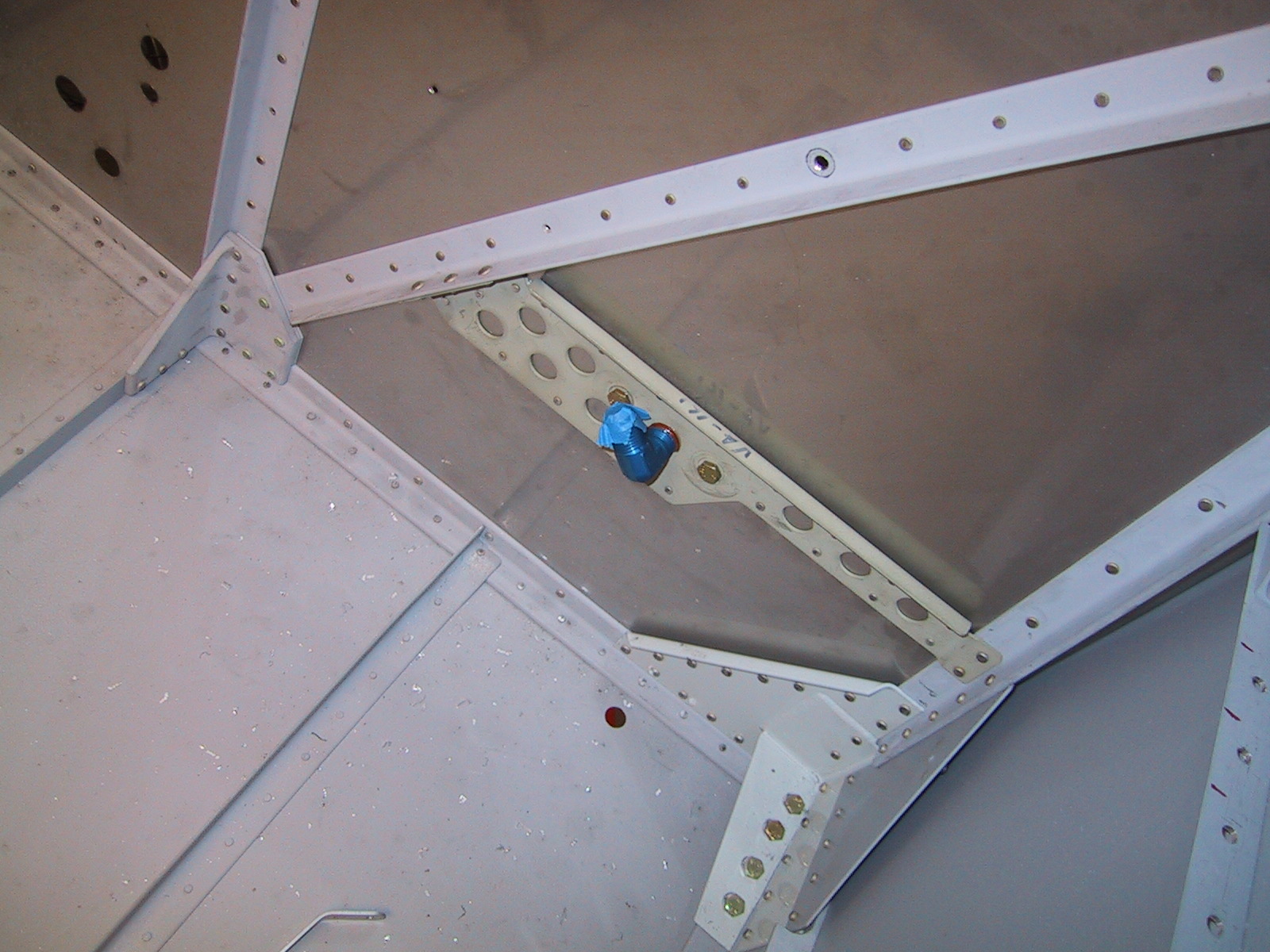

Riveted on the gascolator refinorcement bracket.

-

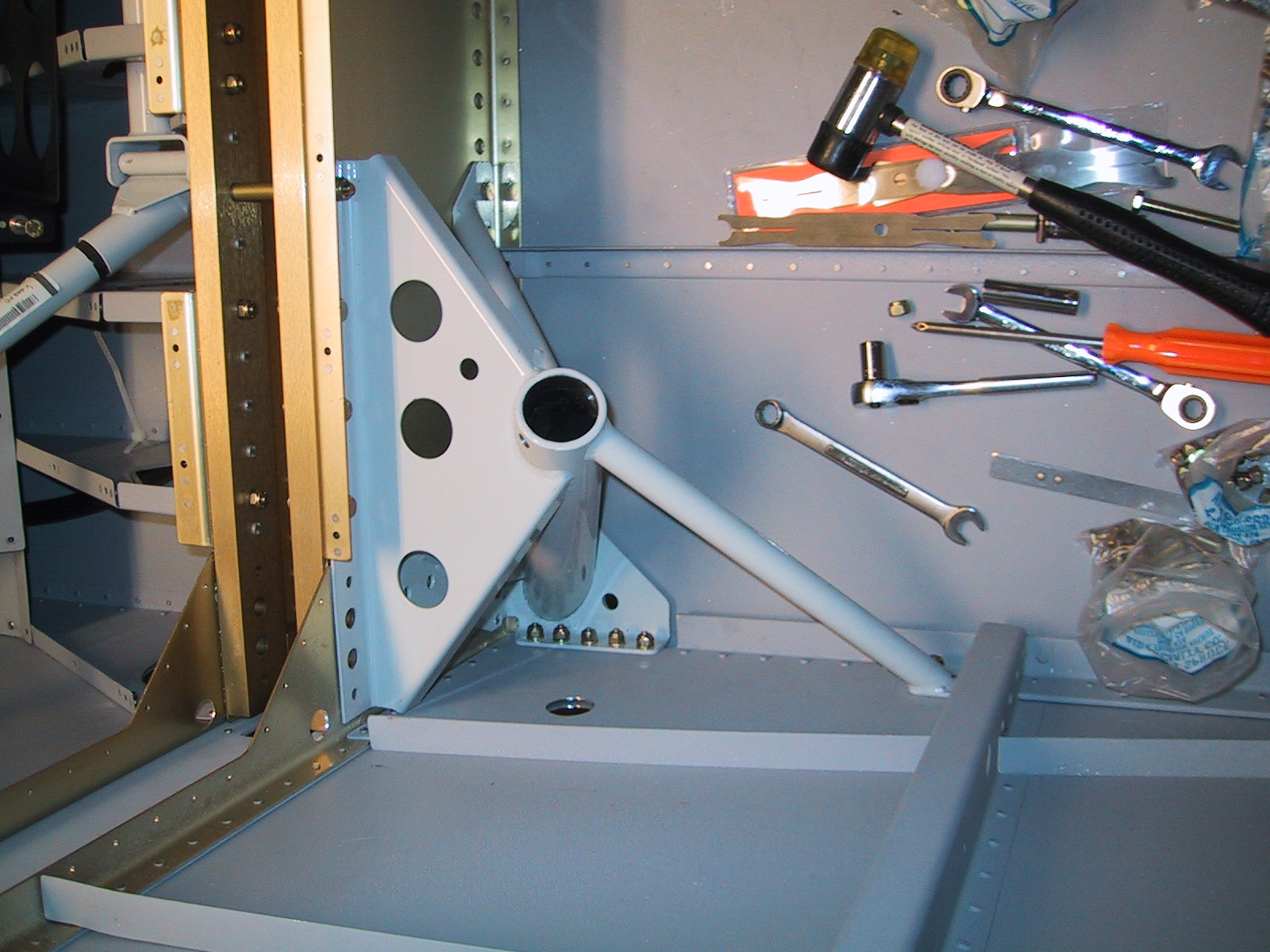

Riveted on the center rudder pedal bracket.

-

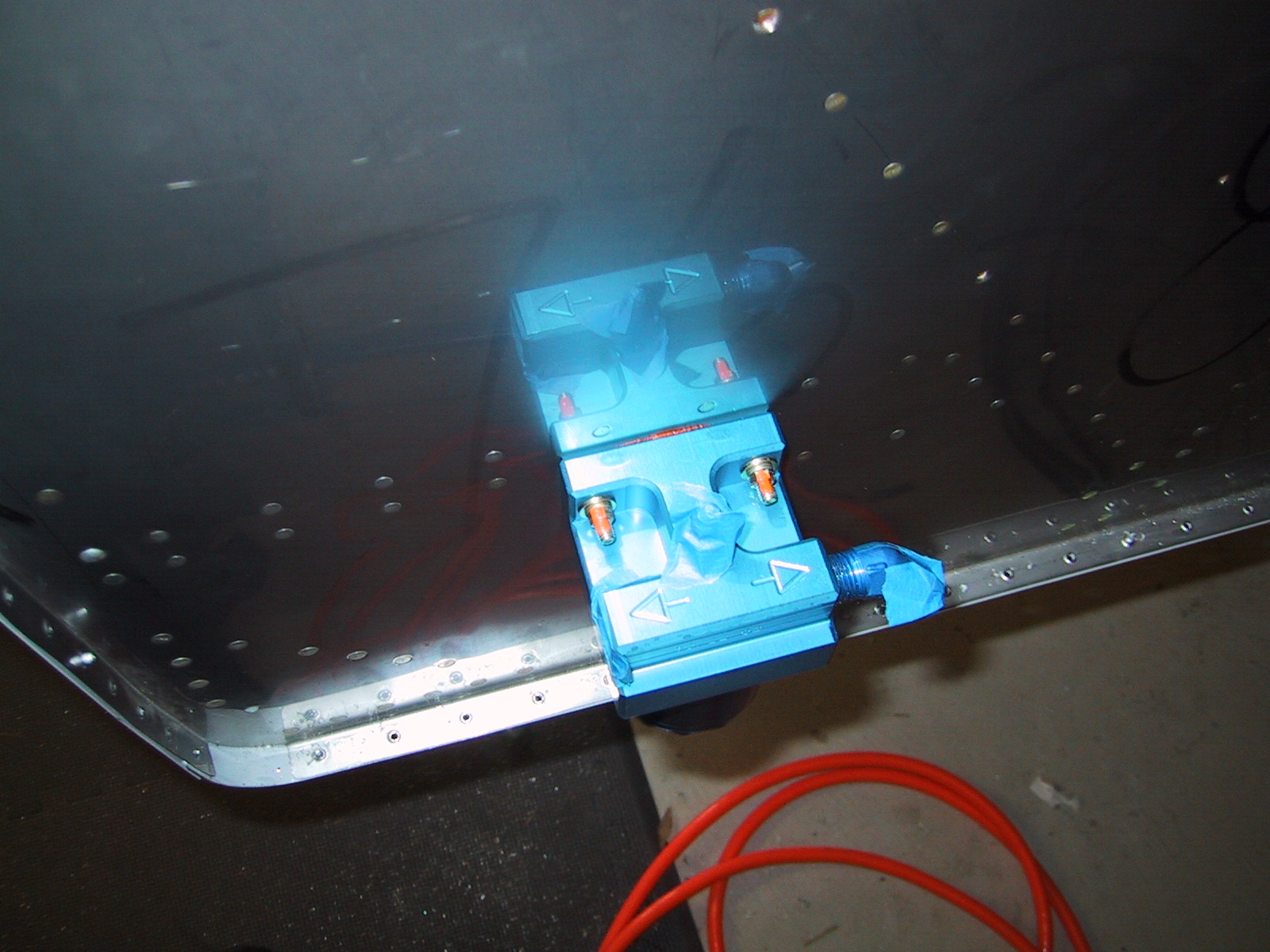

A photo of the installed gascolator - pretty.

-

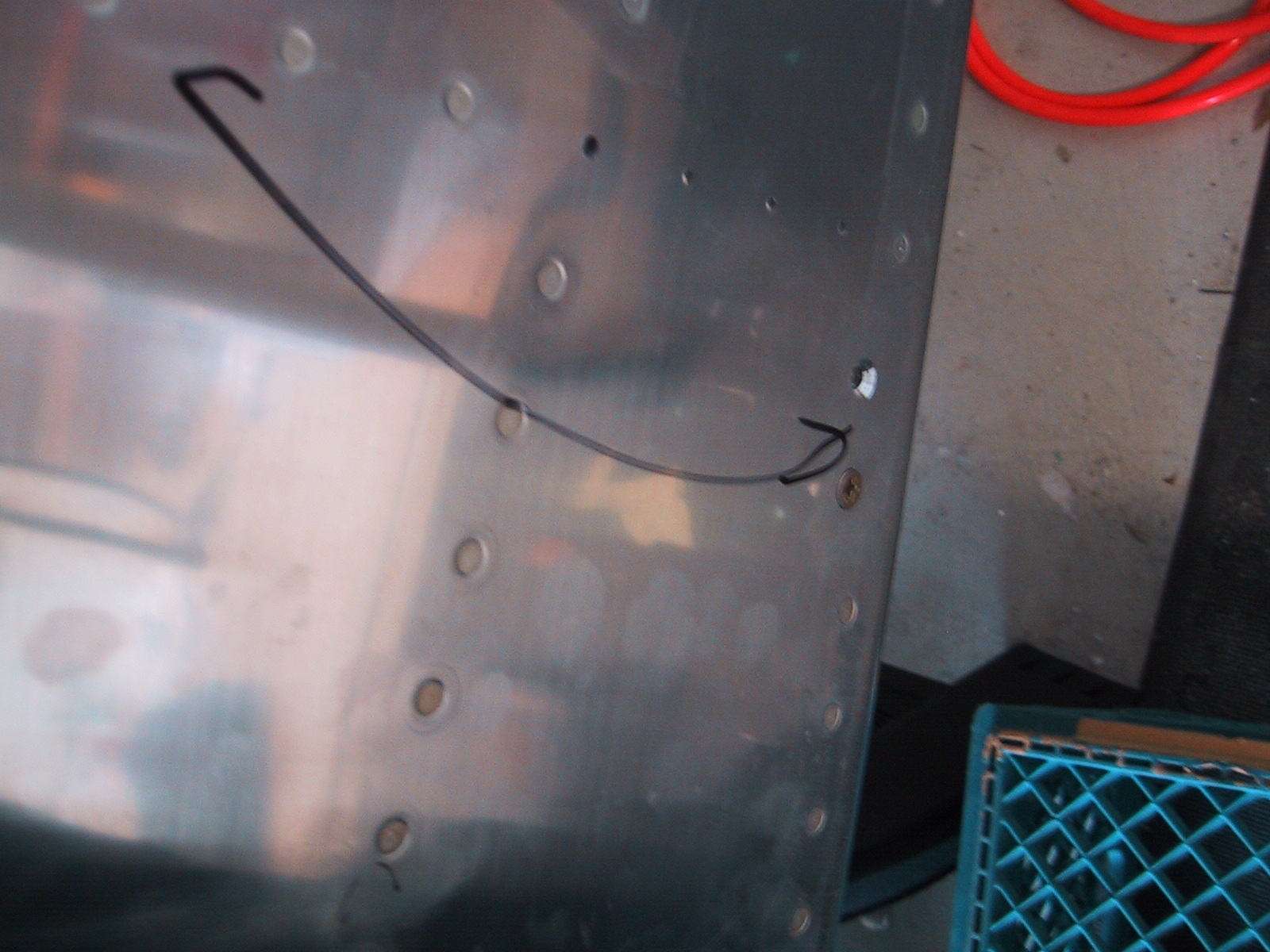

Countersink the front main gear mounting brackets.

-

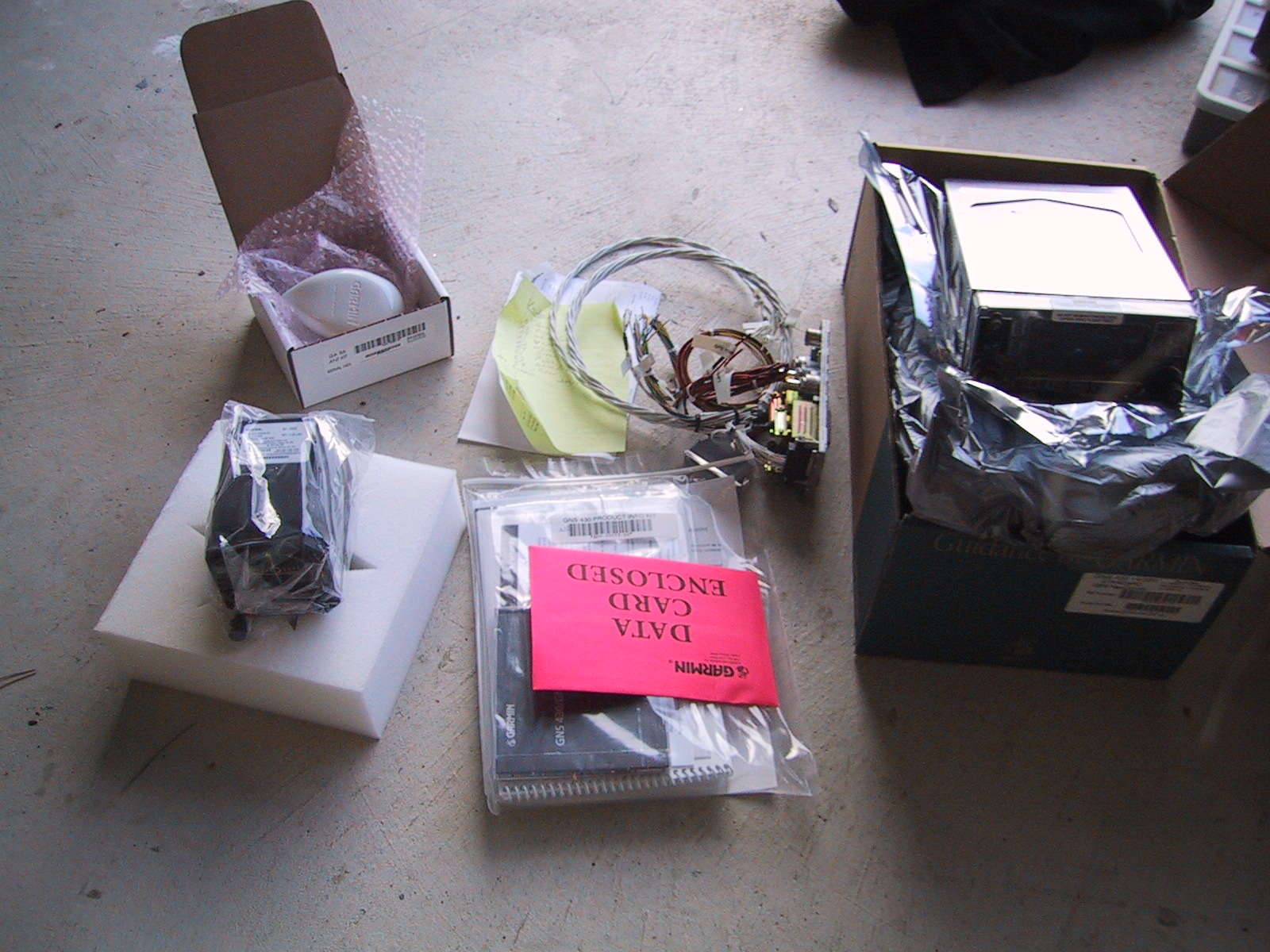

My Garmin GNS-430 and CDI arrived today from John Starck avionics. John did a great job with the harness.

-
The right gear is bolted in place, however I need crows feet before I can torque where the gear attaches to the spar.

-

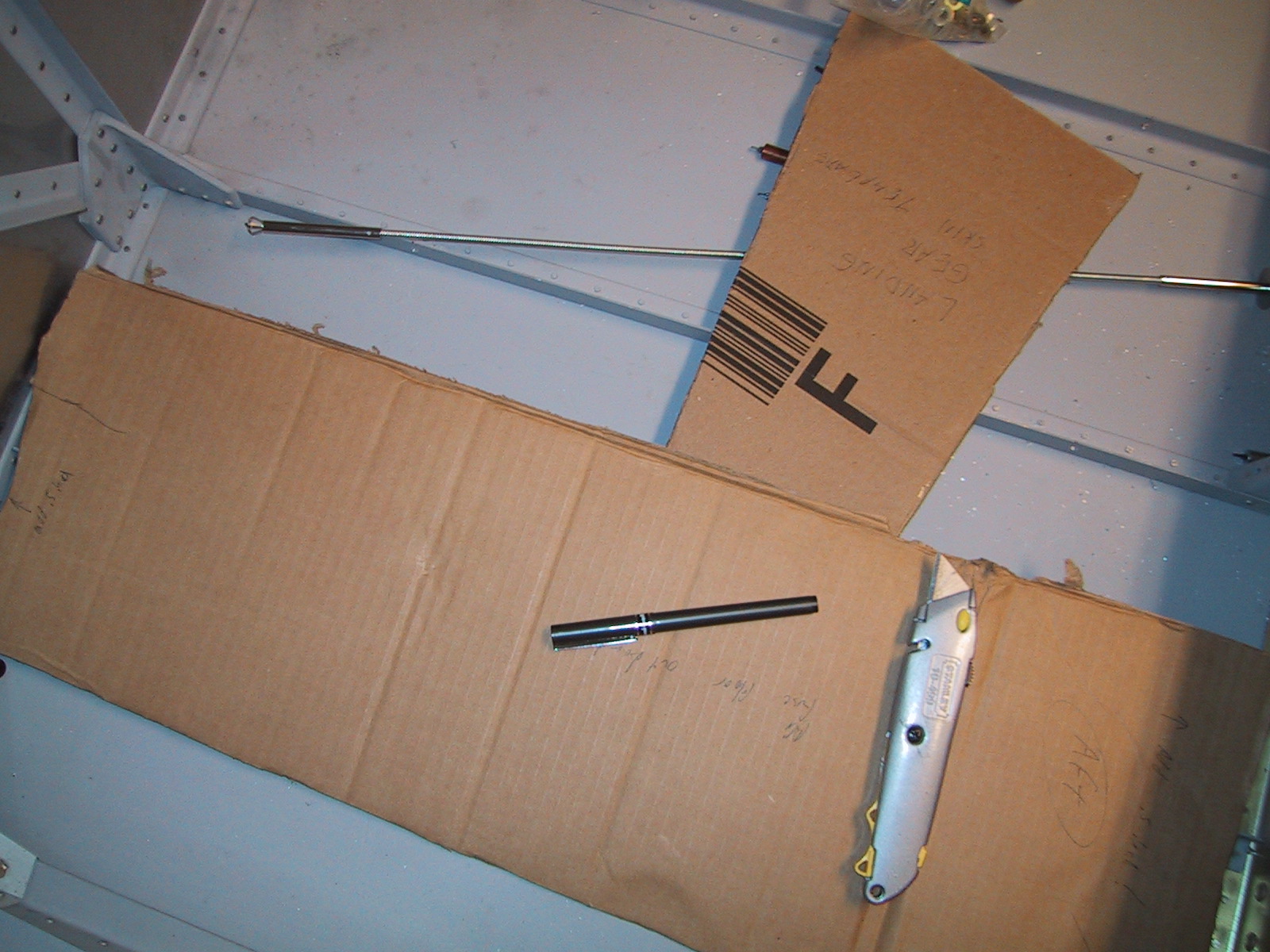

I've made cardboard templates for the areas on the floor and side where I'll lose access once the gear is installed - this should make cutting sound proofing easier in the future.
