Build log date: Sunday, December 14, 2003
-

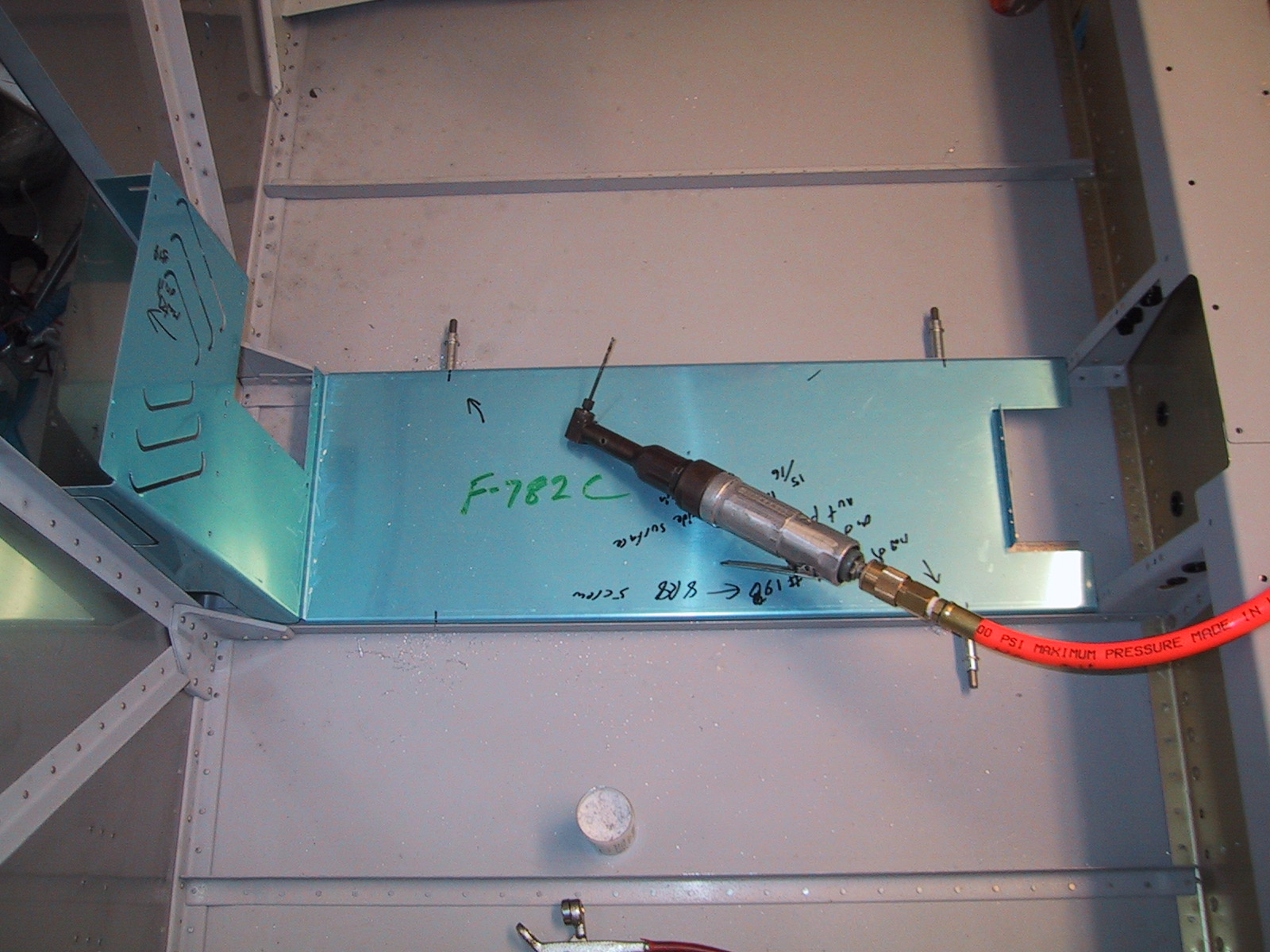

Drilling the F-782C floor cover to the stiffeners - per plans. Btw: I love this eBay drill!

-

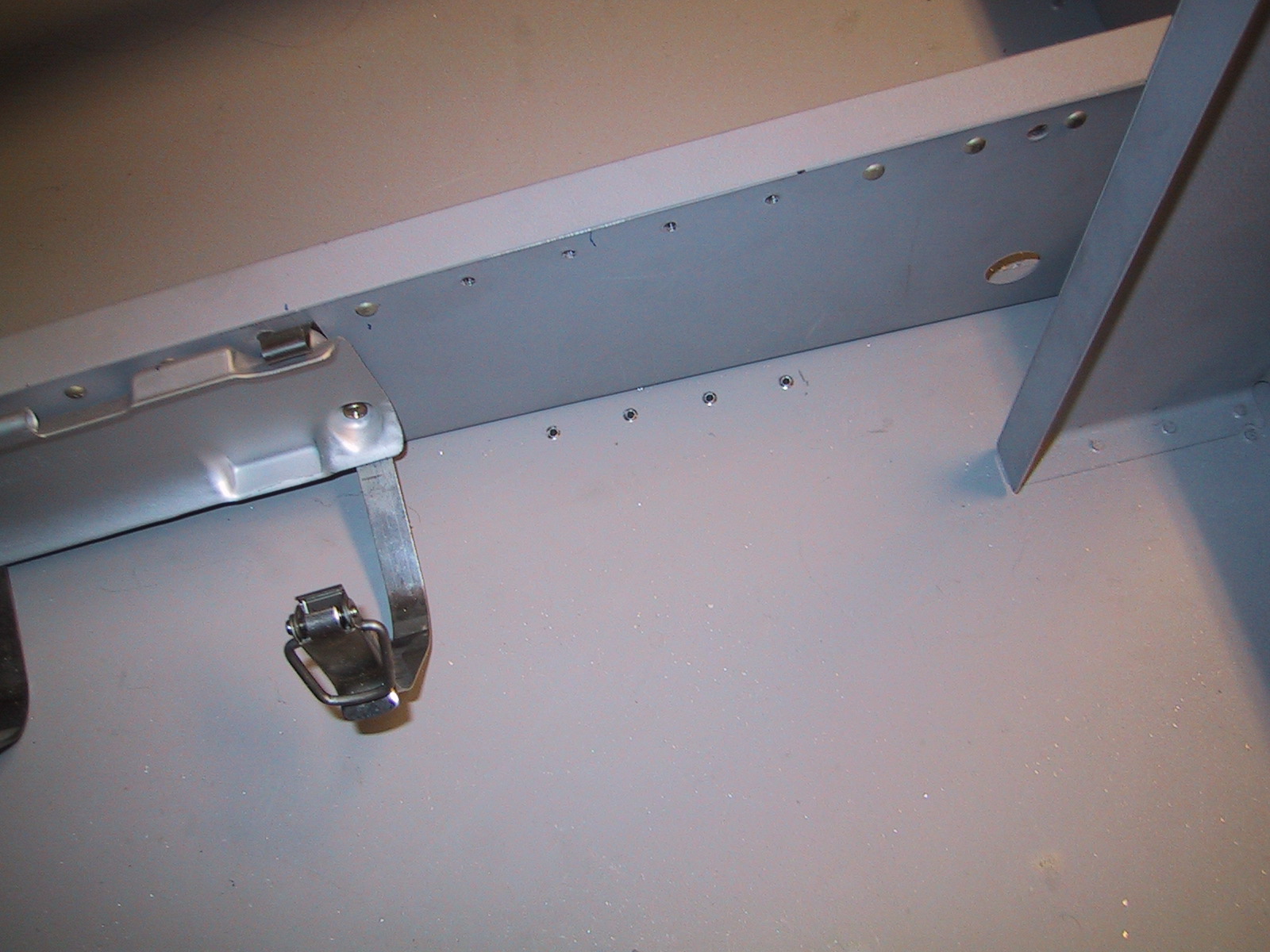

Match drill the firewall recess so I can install nutplates to F-782C. I was sloppy and let the rightmost drill hole 'wander' but I think my boo-boo will be covered by the screw head.

-
Using a 2 1/8" hole saw to drill the heat vent opeing. The plans call for 2", but I don't have a hole saw of that size - but it will fit the heater box just fine.

-

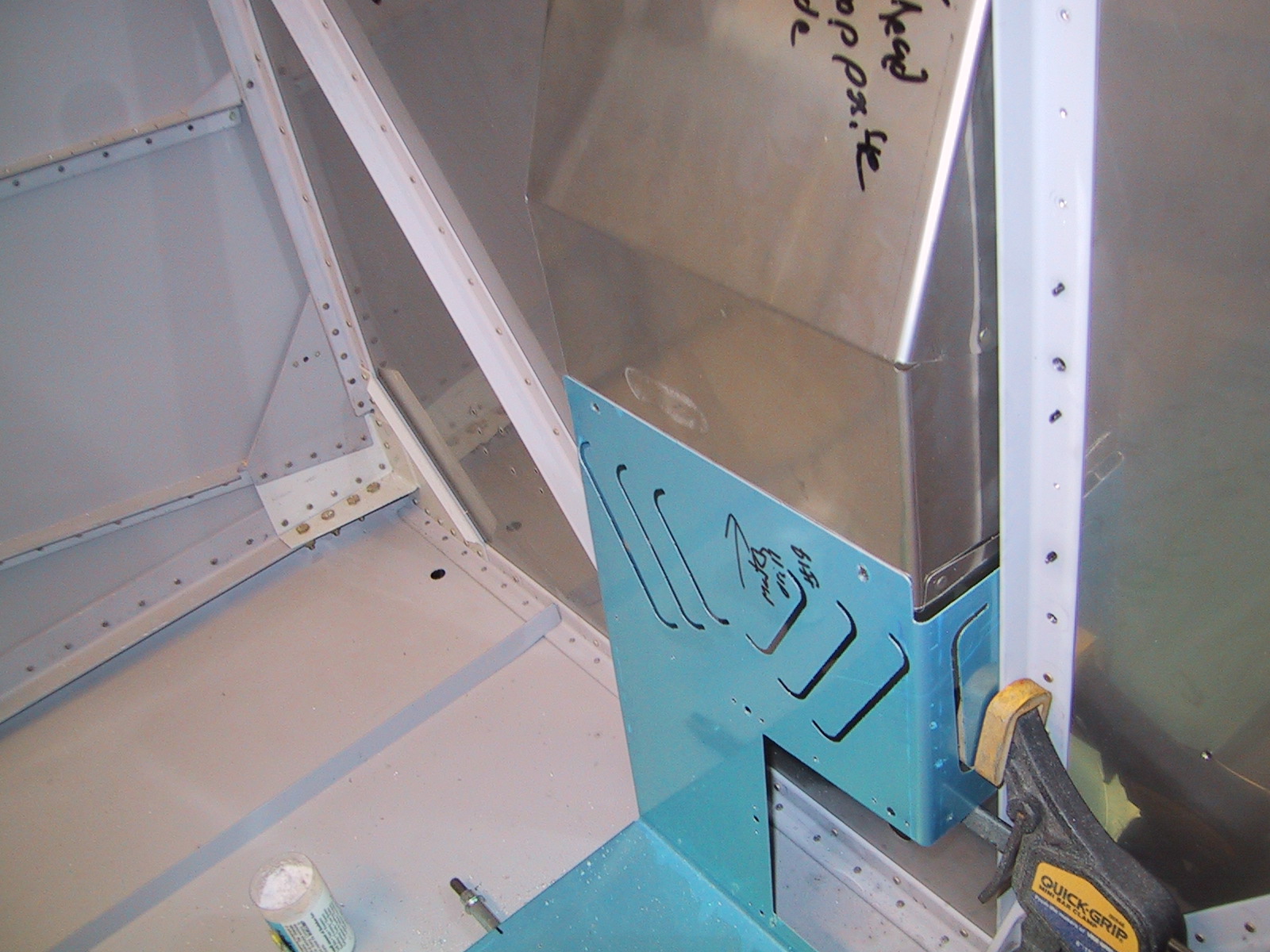

Temporarily bolting the heat box in place. Before final assembly I'll add some high temp RTV, but this will need to wait for the recess riveting.

-
Dimpling the bottom skin for the auto pilot servo bracket.

-

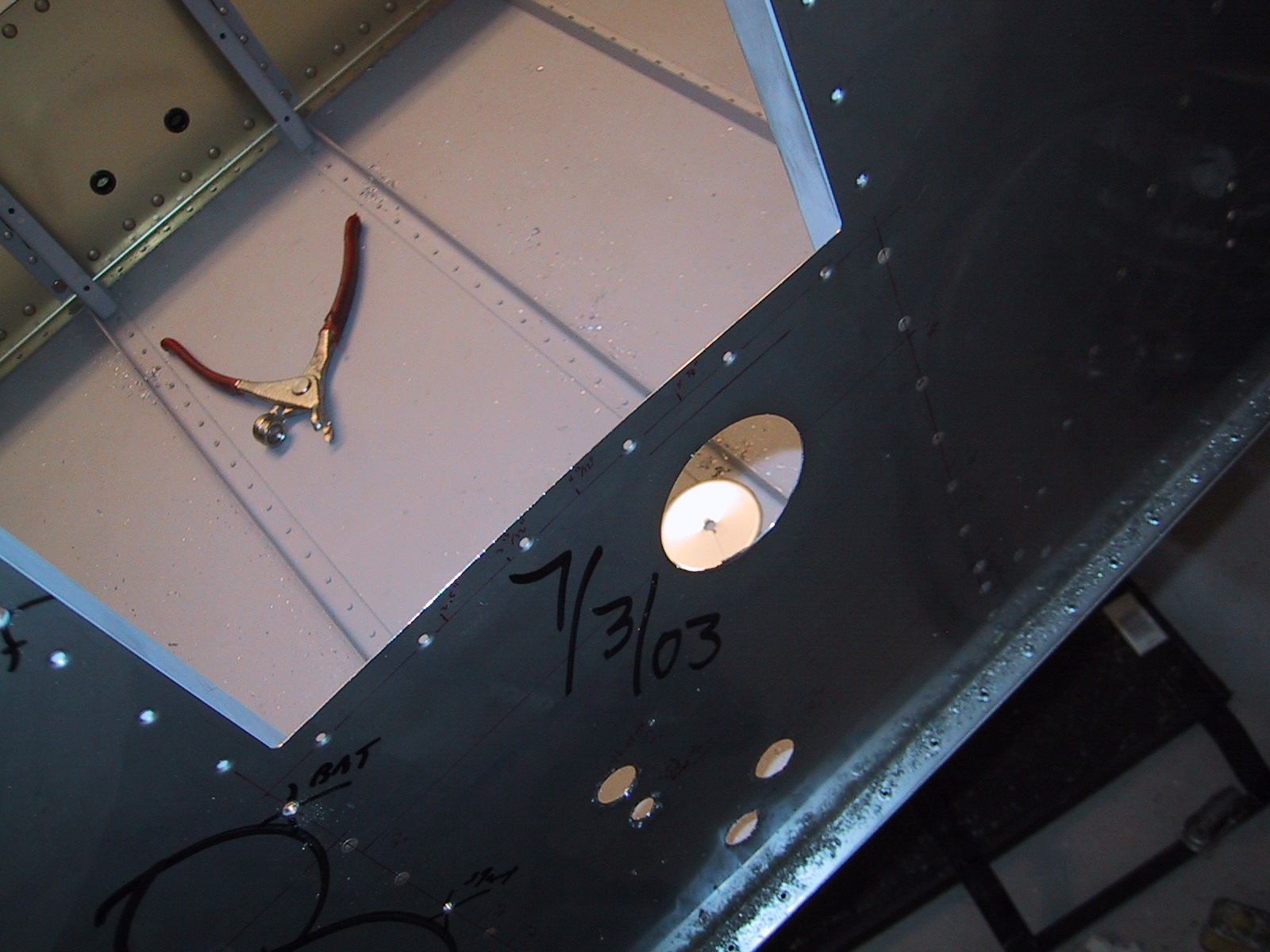

This is my 'art' photo - from the bottom of the skin after riveting the four auto pilot bracket rivets. Beck was bucking from the other side.

-

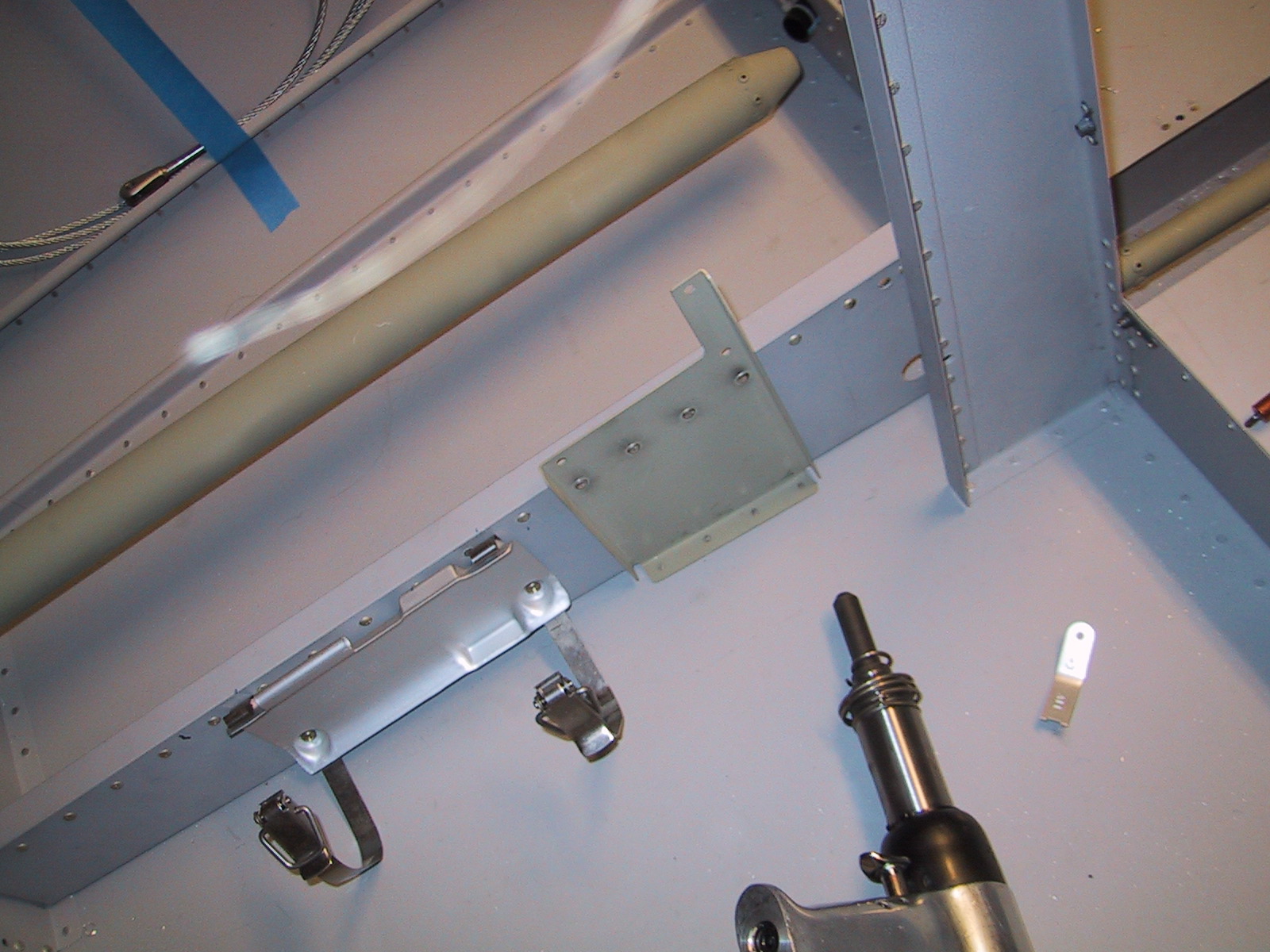

Done riveting the autopiliot bracket.

-

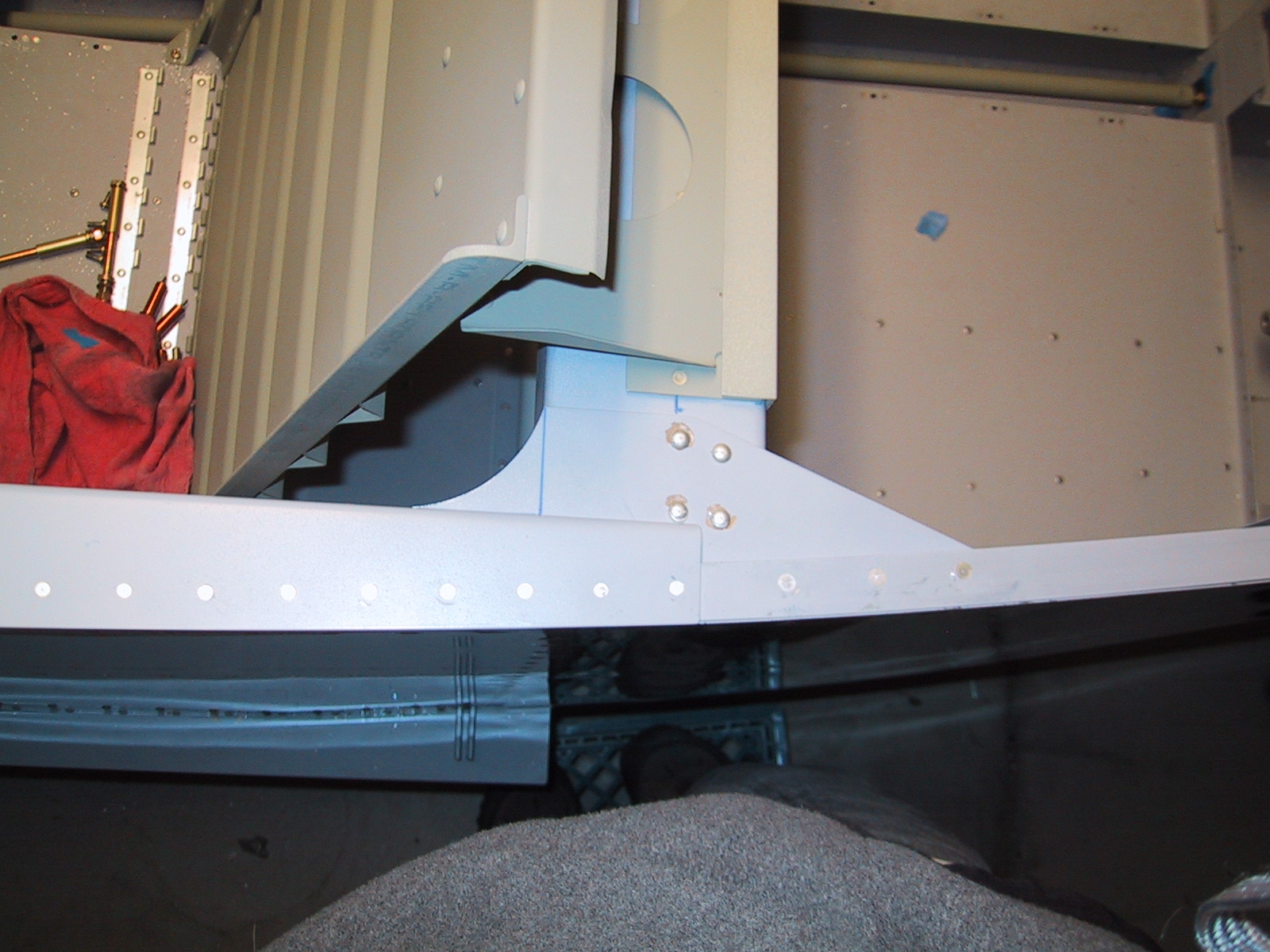

The last two rivets on this longeron had to wait a couple of weeks ago - cause I didn't have the correct sized rivets. The correct rivets arrived from Van's - so I could finish up the riveting today.

-

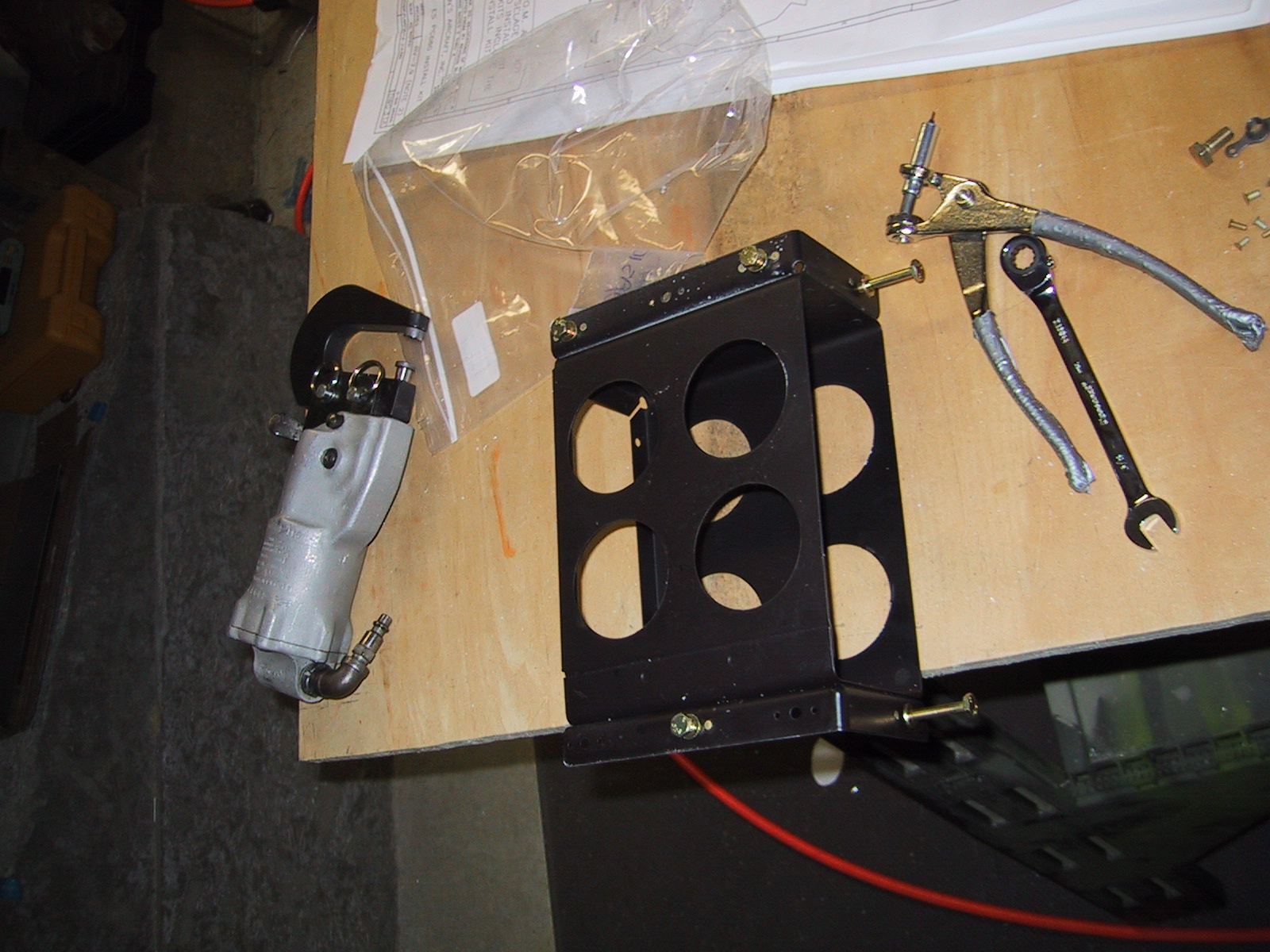

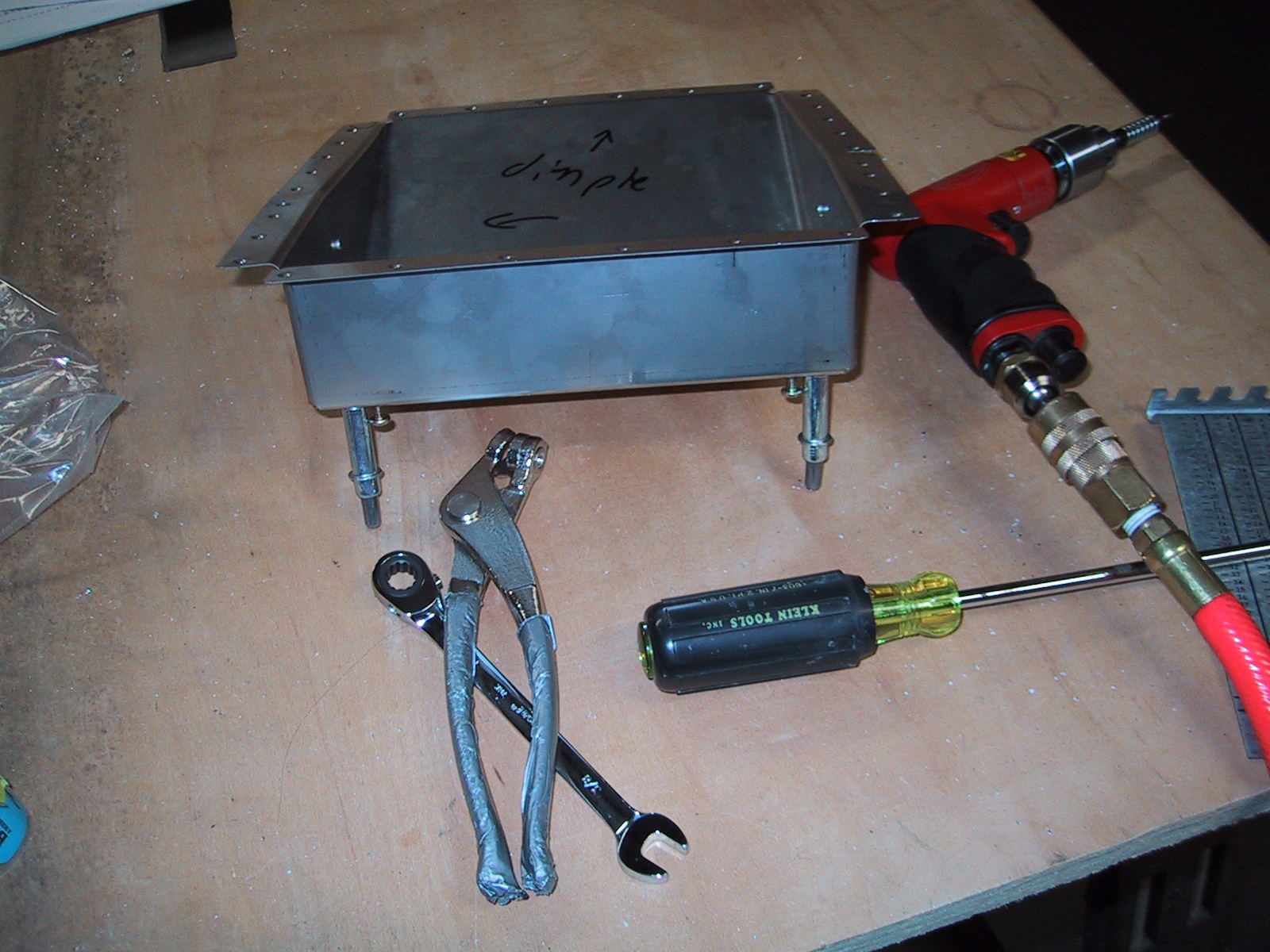

The battery box is totally finished now - i.e. I just installed the nutplates.

-

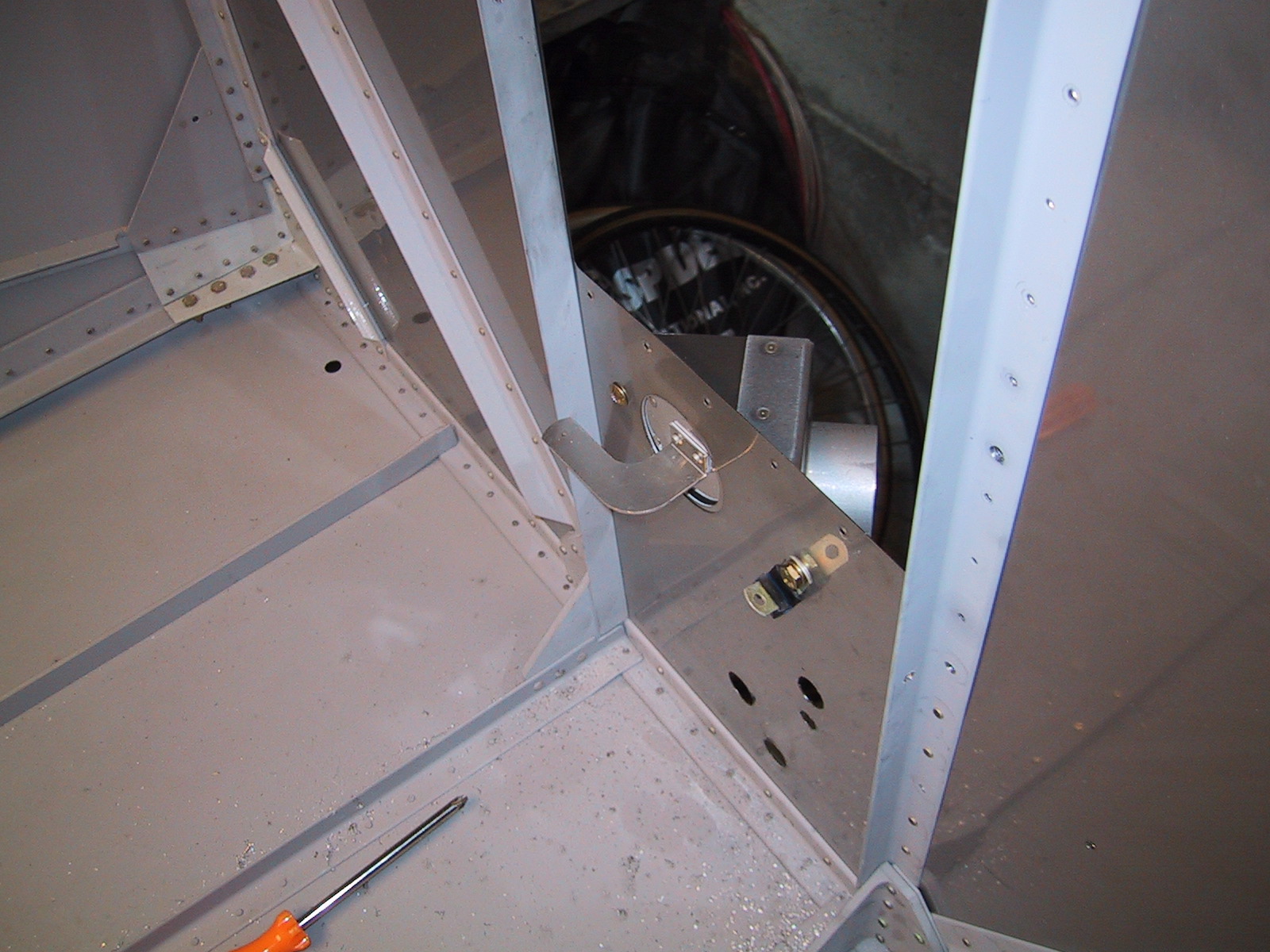

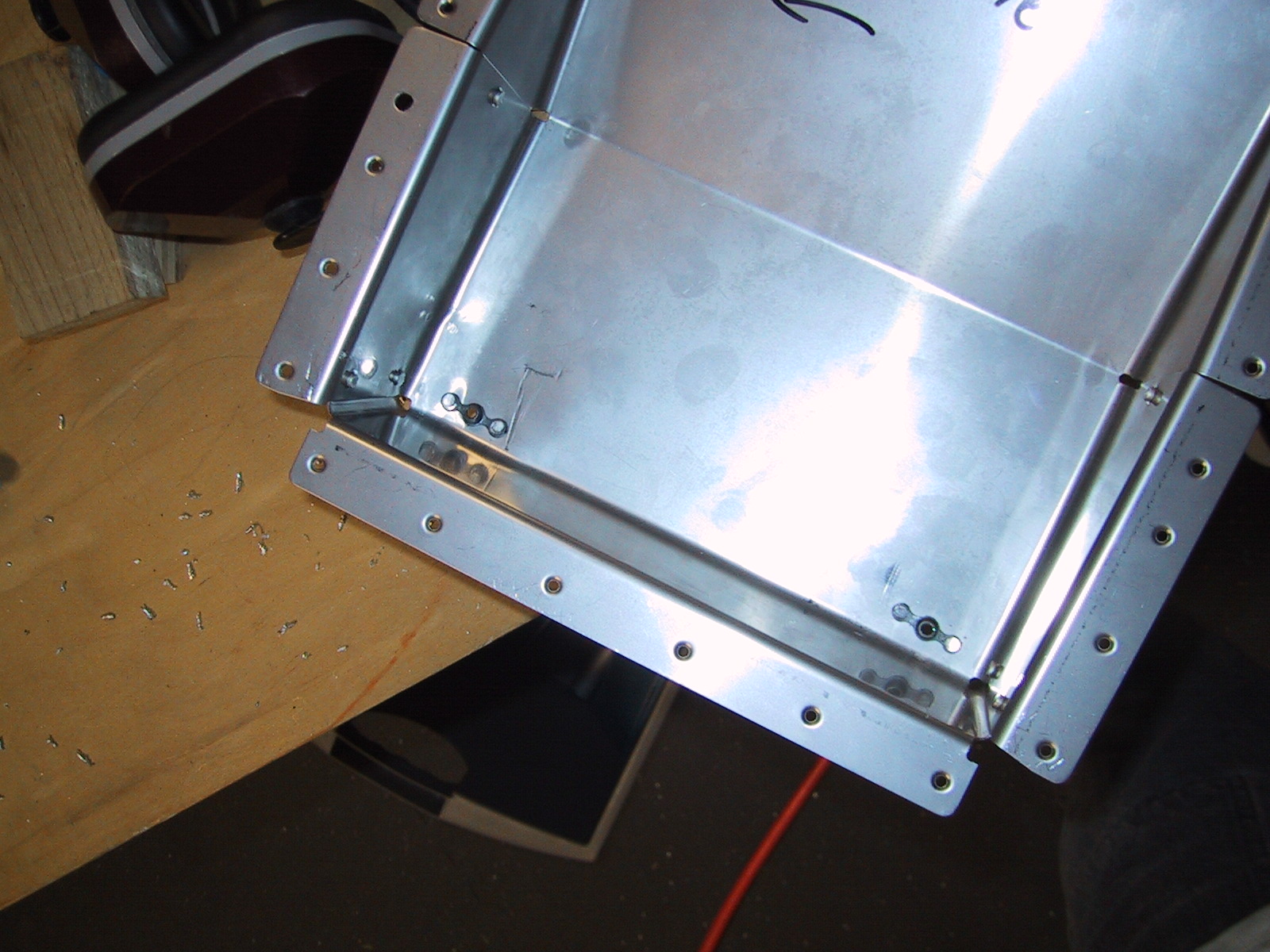

The nutplates for F-782C are now installed in the firewall recess.

-

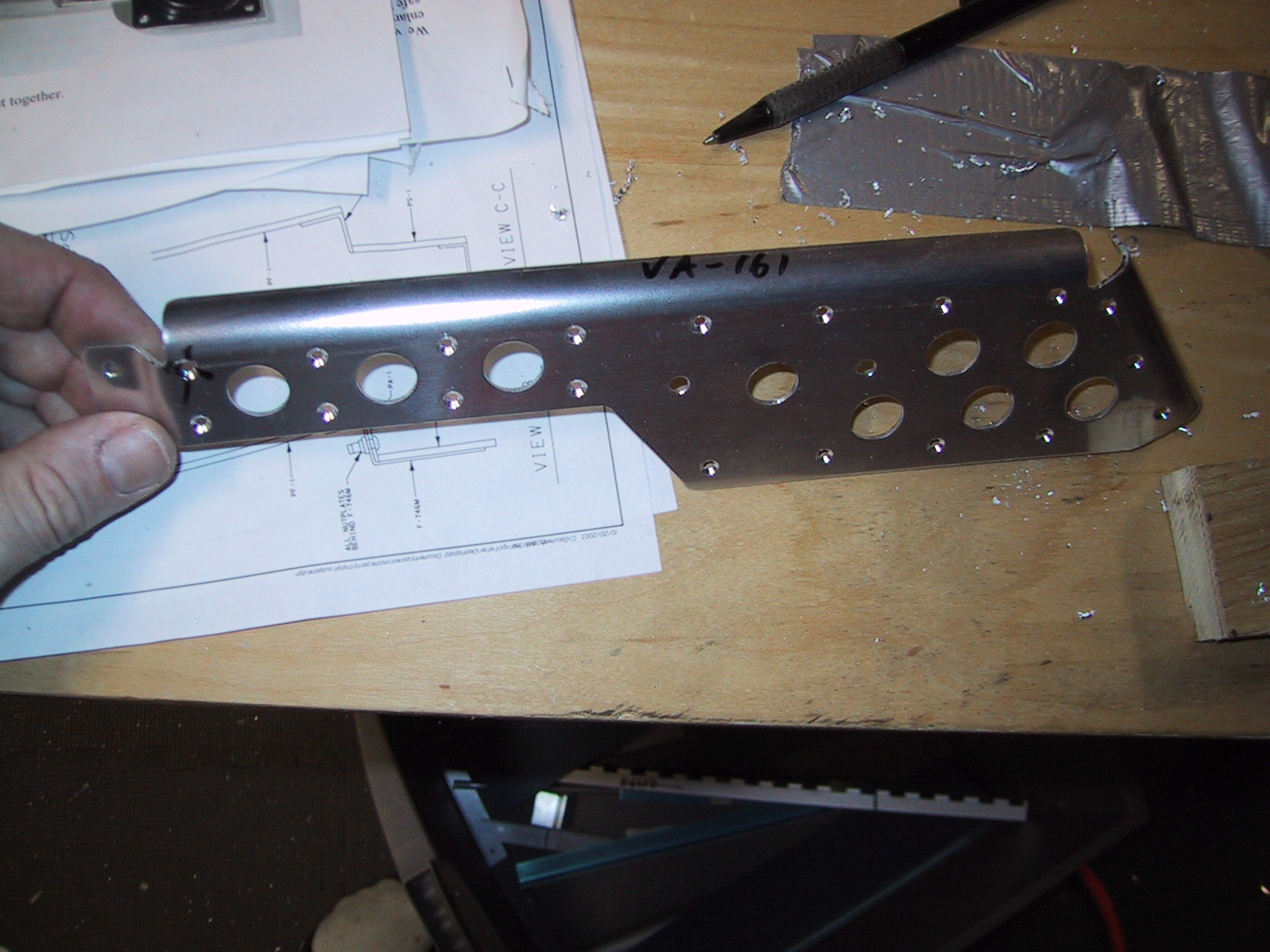

I've countersunk all the holes in the VA-161 gascolator reinforcement.

-

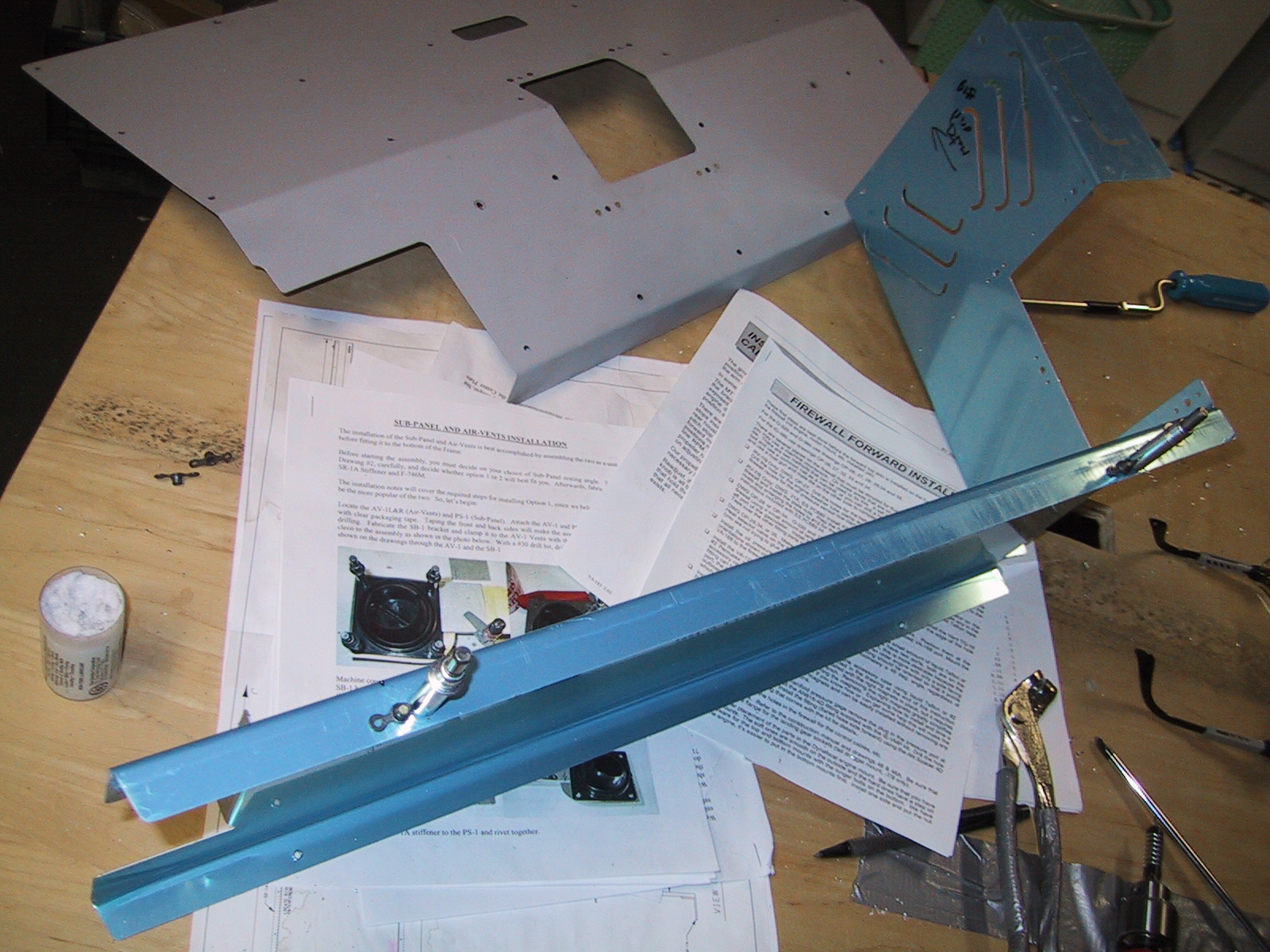

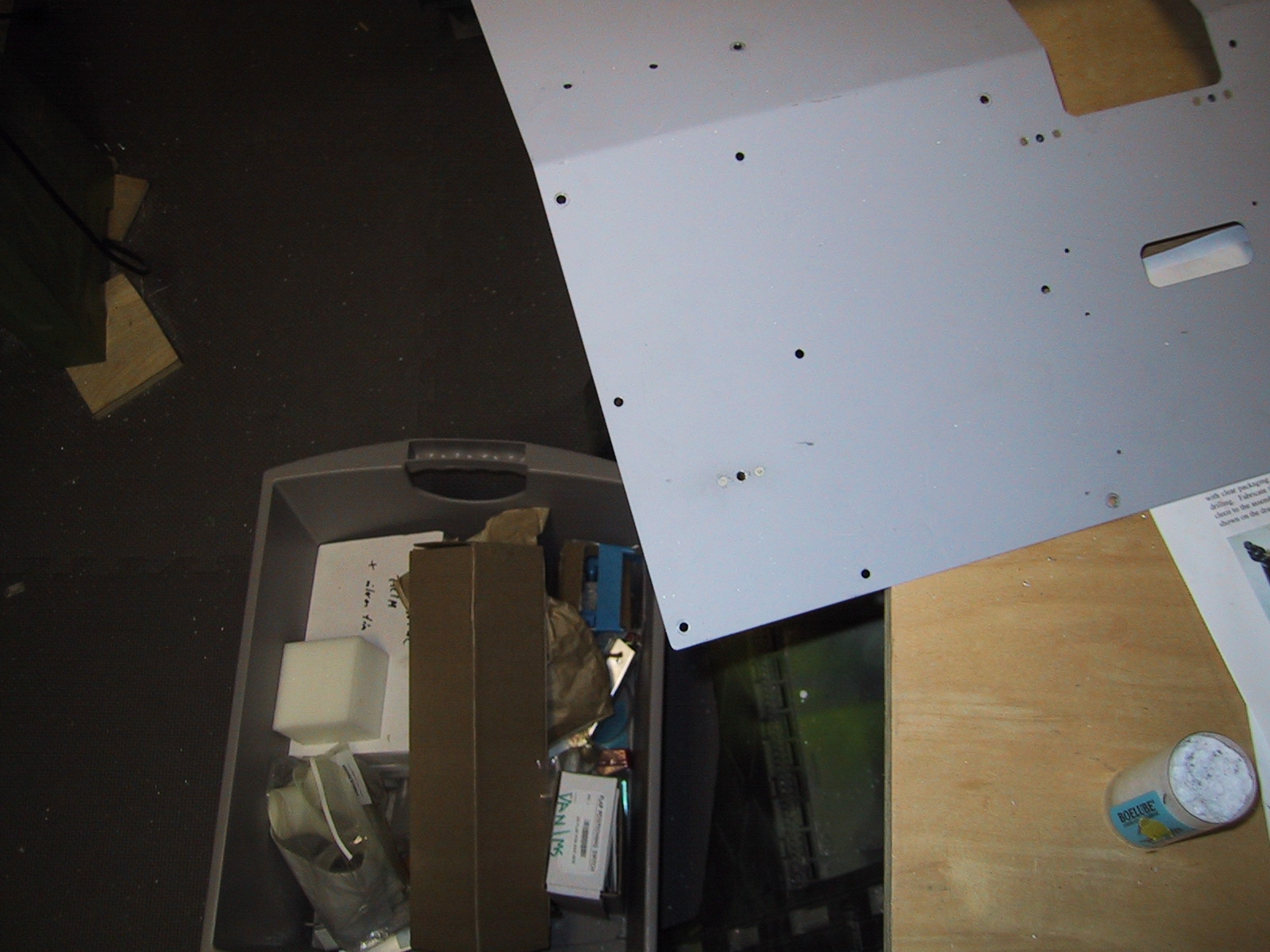

Drilled the remaining nutplate holes in F-782C - now this goes to priming.

-

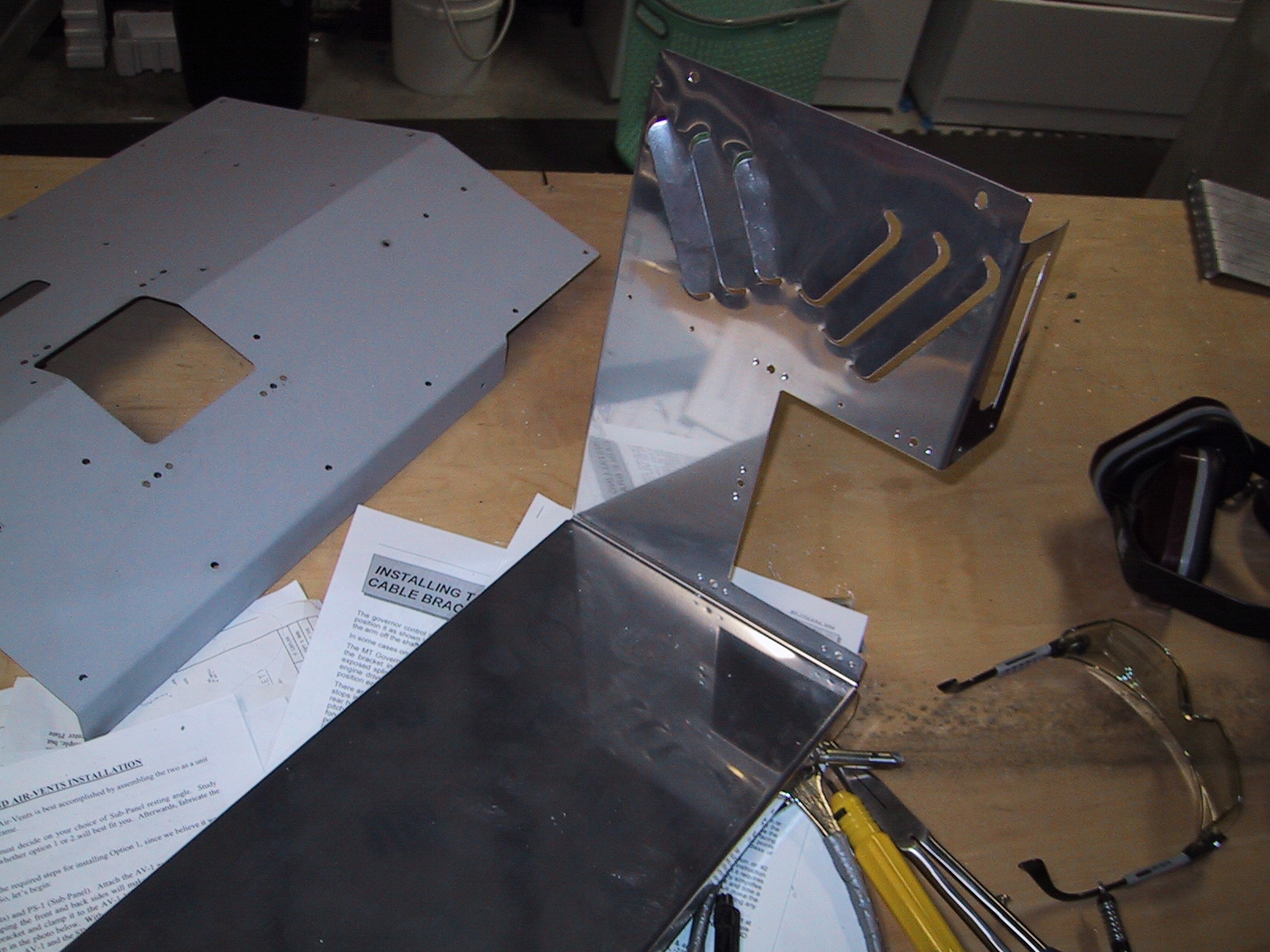

Bent the heat baffle openings.

-
Drilled the right forward seat cover to #19 and installed a nutplate for the forward tunnel cover to attach.

-
I did a pretty crummy job riveting these nutplates into the firewall recess, but stainless is such a pain in the ass - I'm not going to replace them.
