Build log date: Friday, June 17, 2005
-

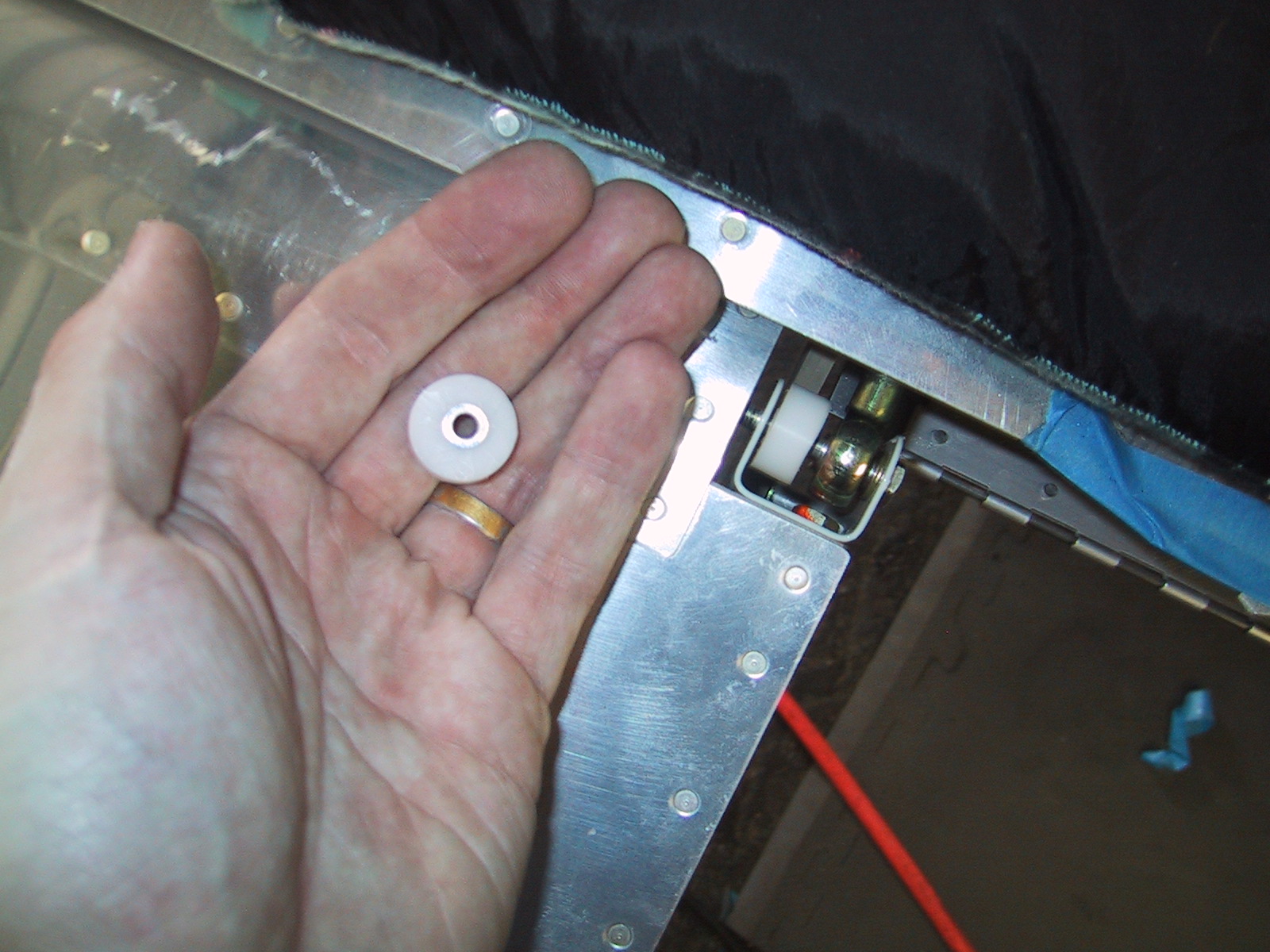

Sweet. These aileron stops work out perfectly.
-
Um - I forget.
-

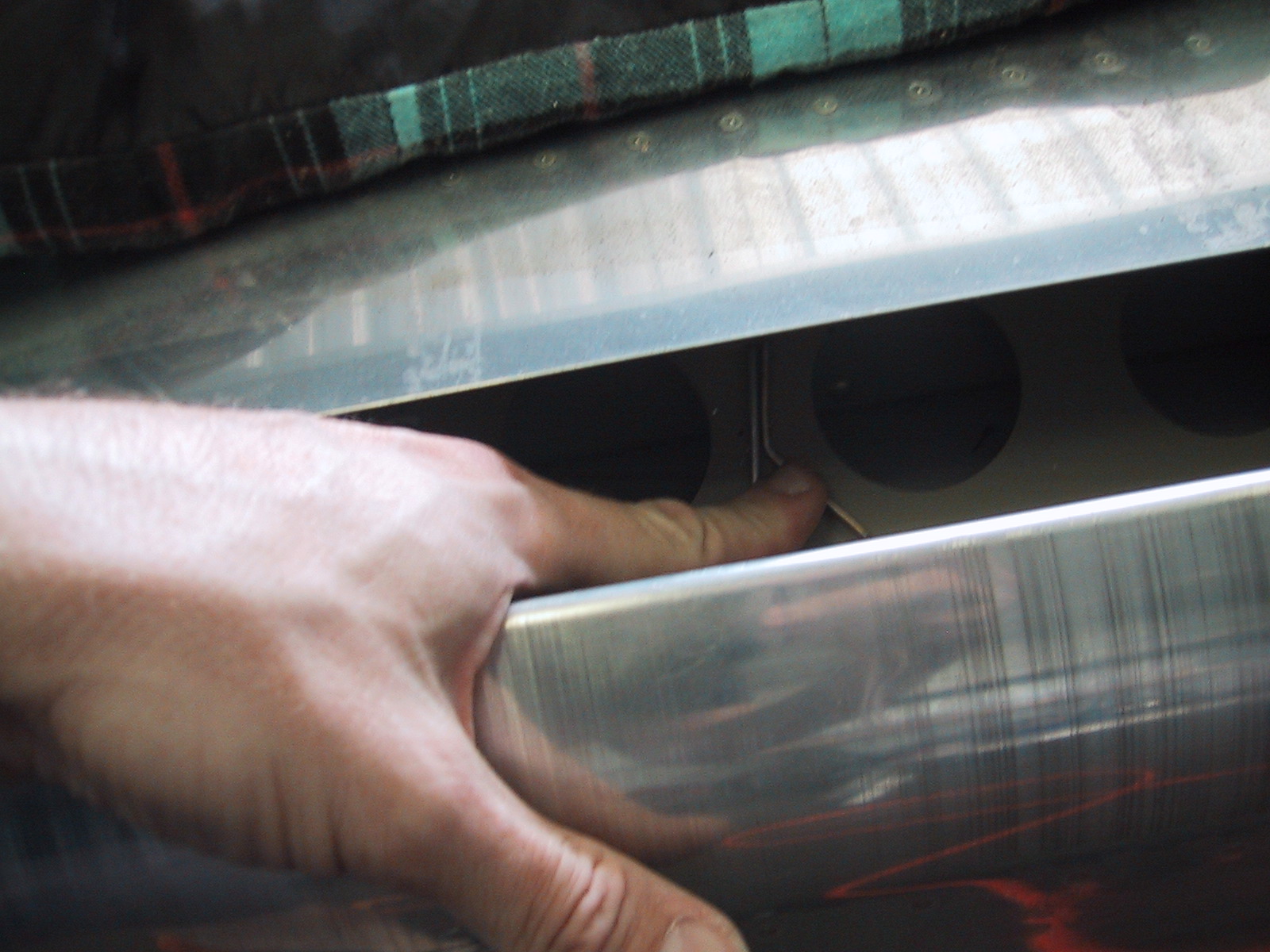

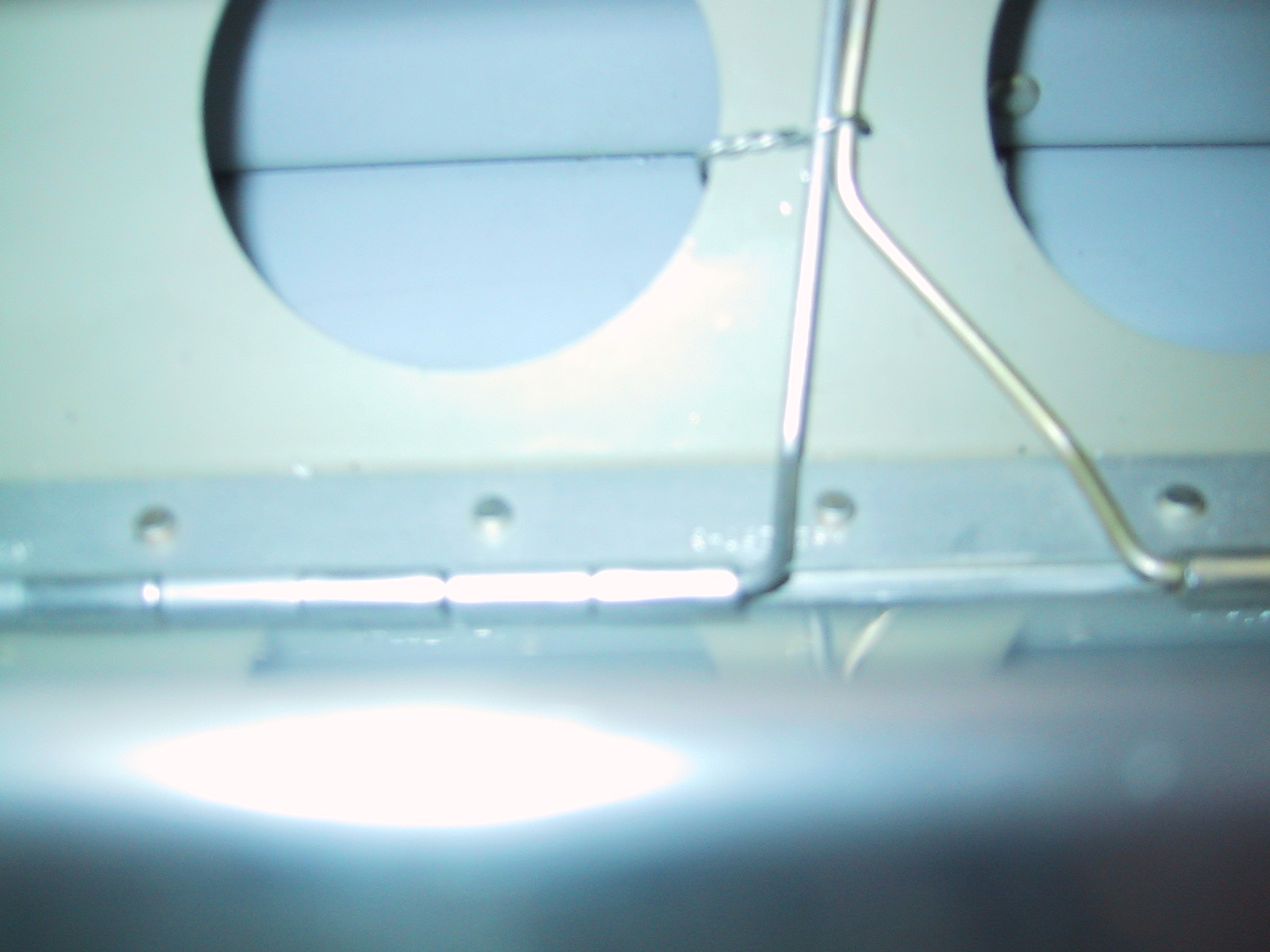

Safety wiring the flap hinges in place.
-
More photos.
-

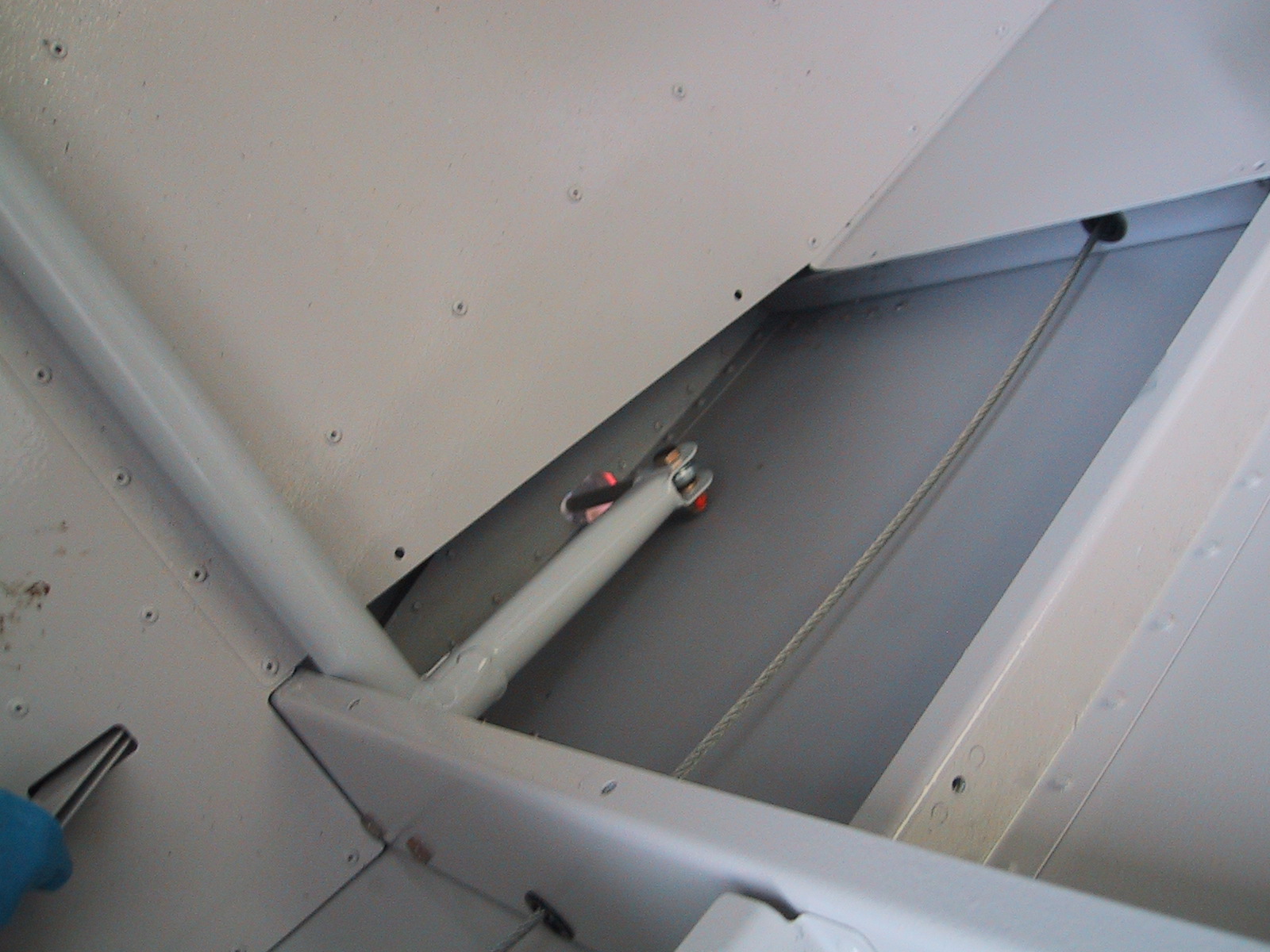

Install the flap pushrods for good.
-

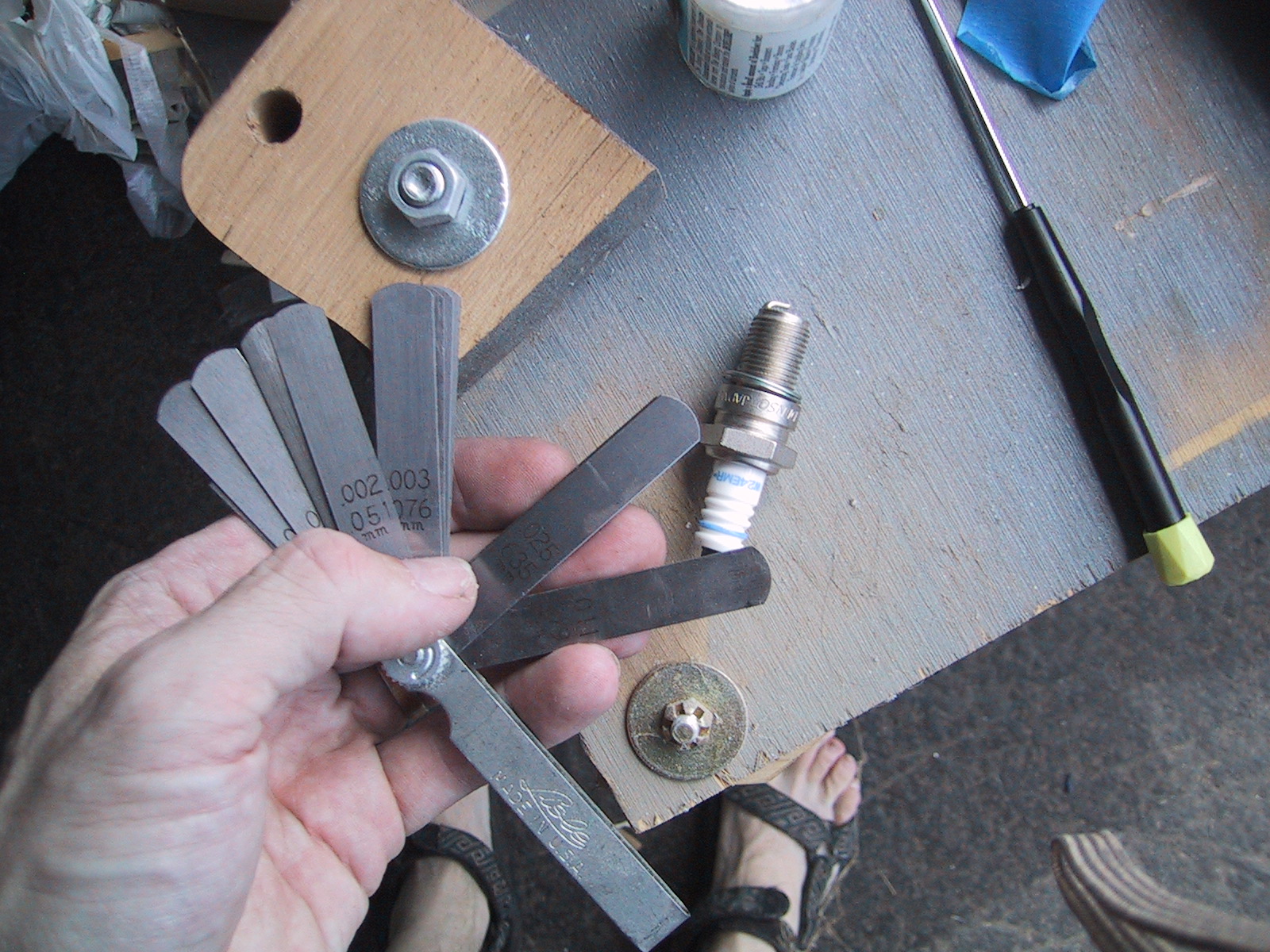

Gap the LSE plugs at .038"
-

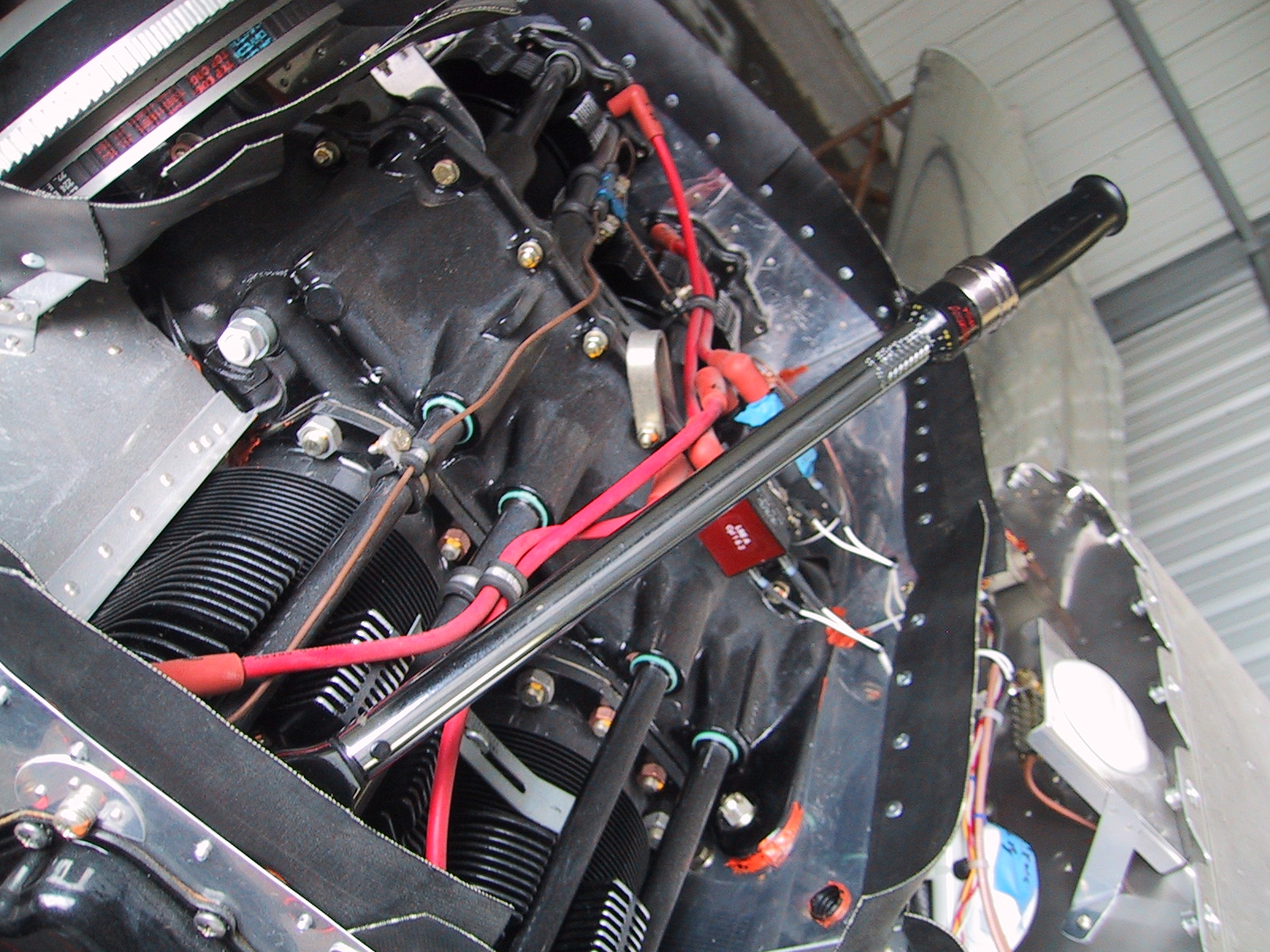

Torque the plug inserts to 25 ft/lbs.
-

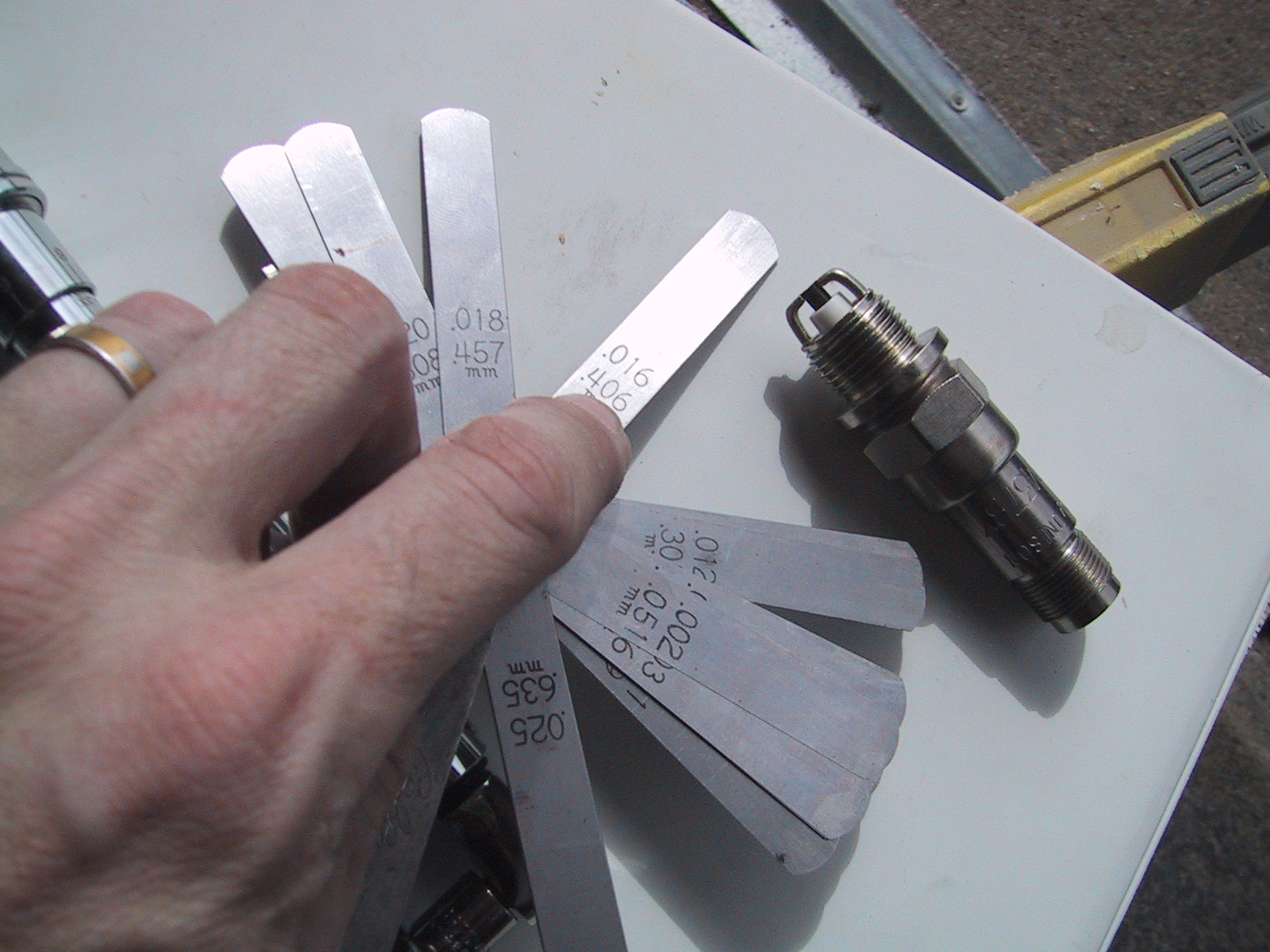

Verify the mag plugs are .016" gap
-

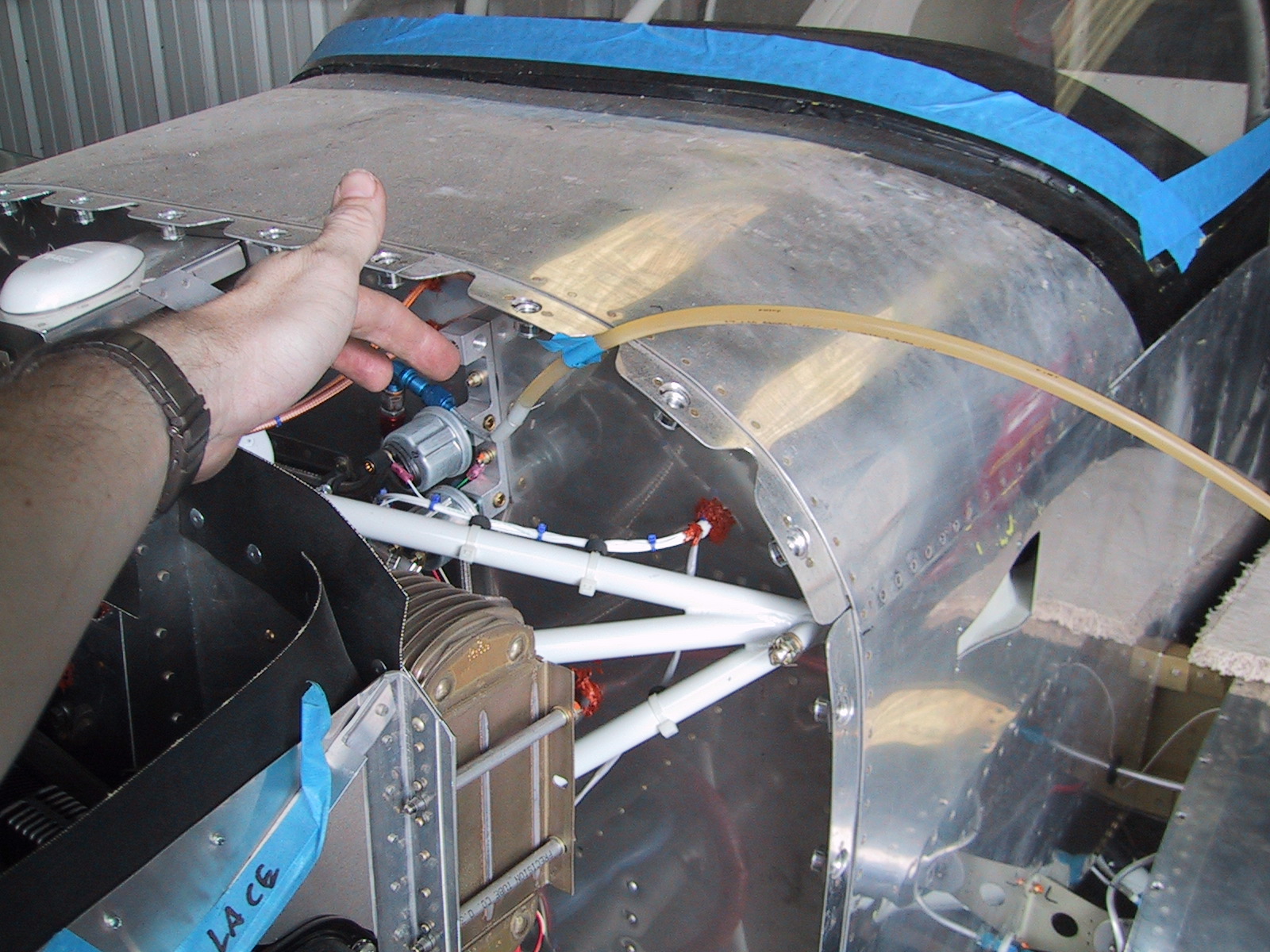

Use the starter to pump up the oil till it flows out of the oil pressure line.
-

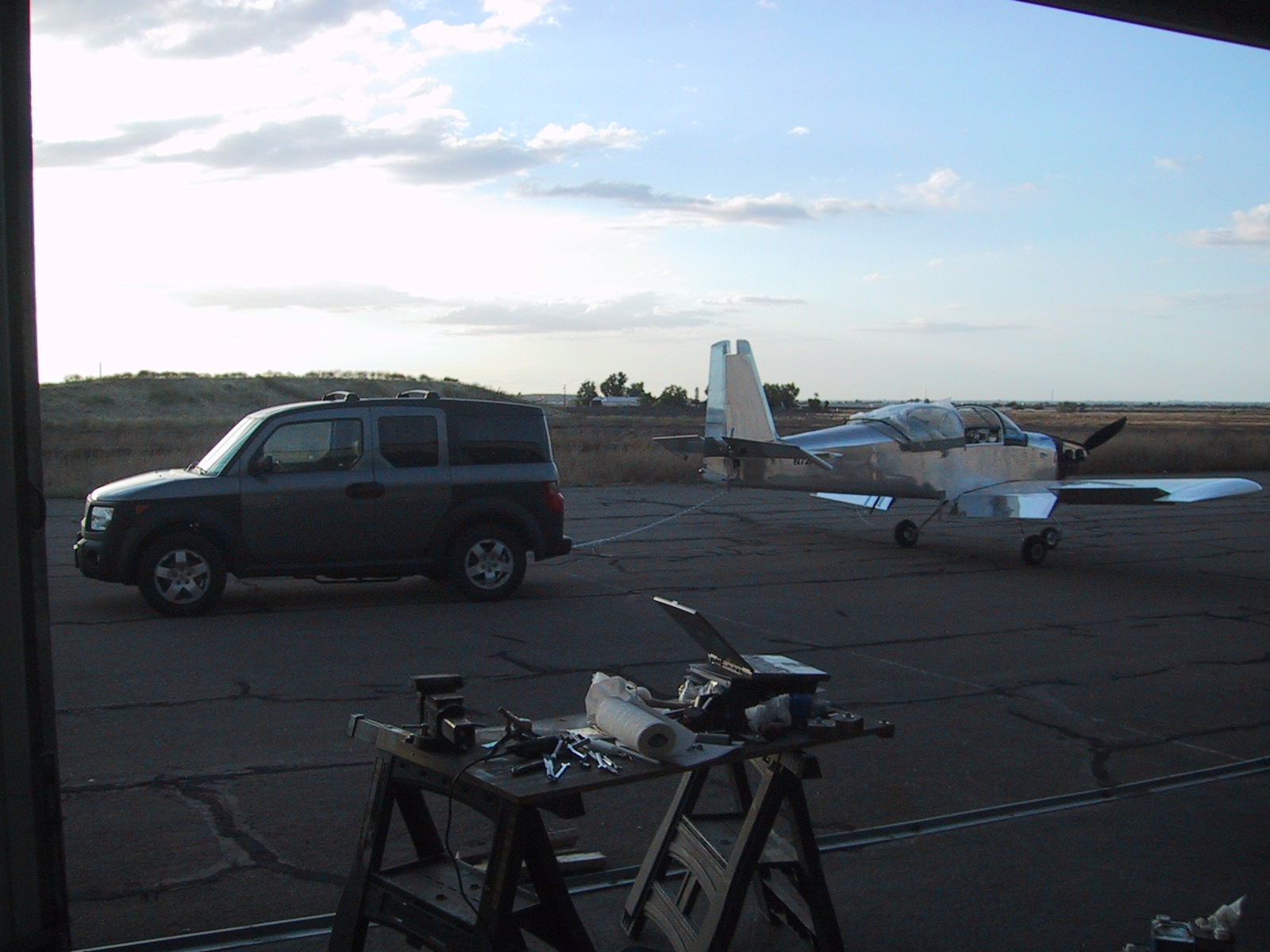

Getting ready to test run the engine. Nice picture. Note the chain to the Element...
-

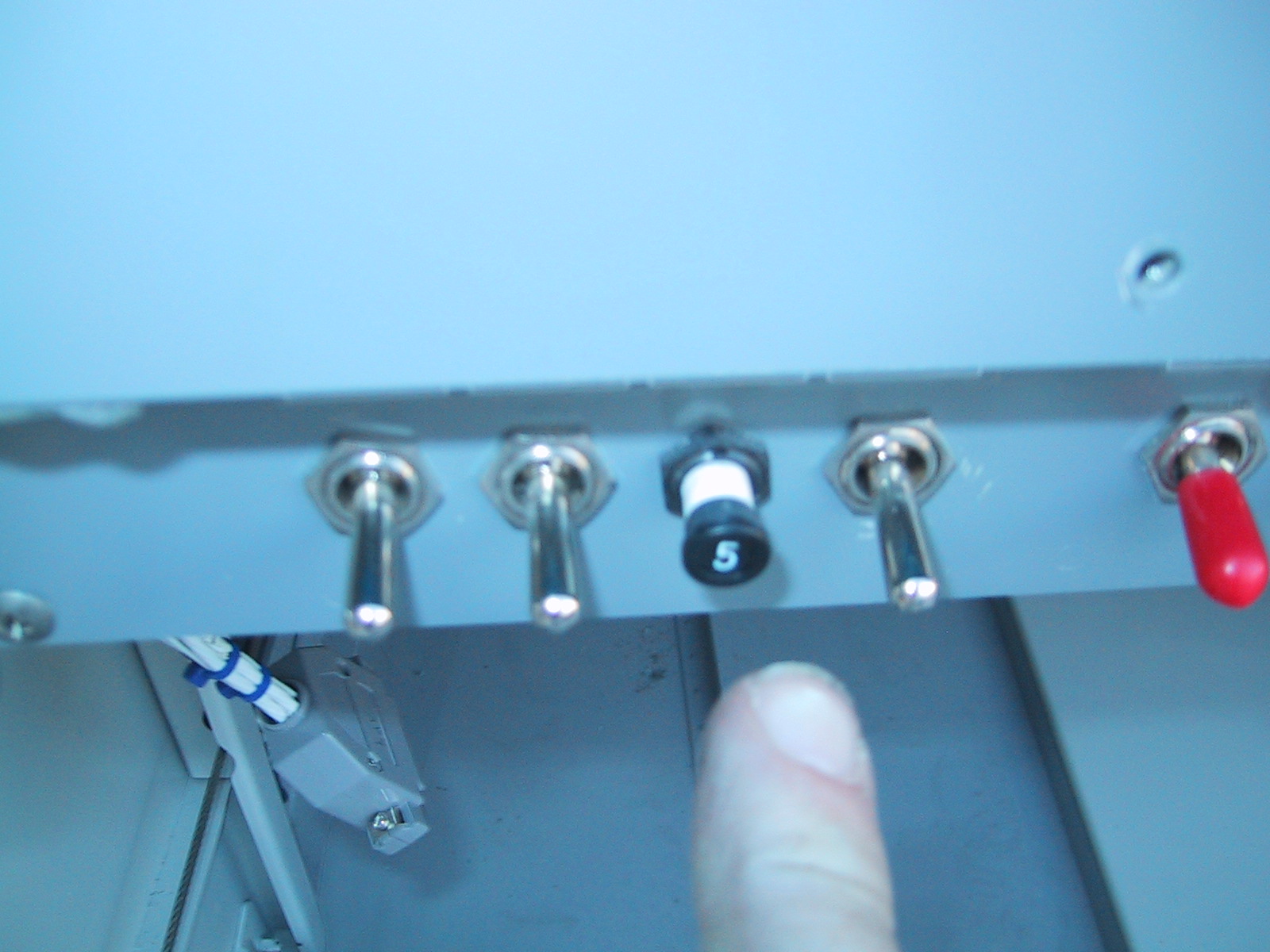

The alt breaker blew due to inrush current on the field coil (I think - will investigate more when I return to the airport)
