Build log date: Monday, January 31, 2005
-

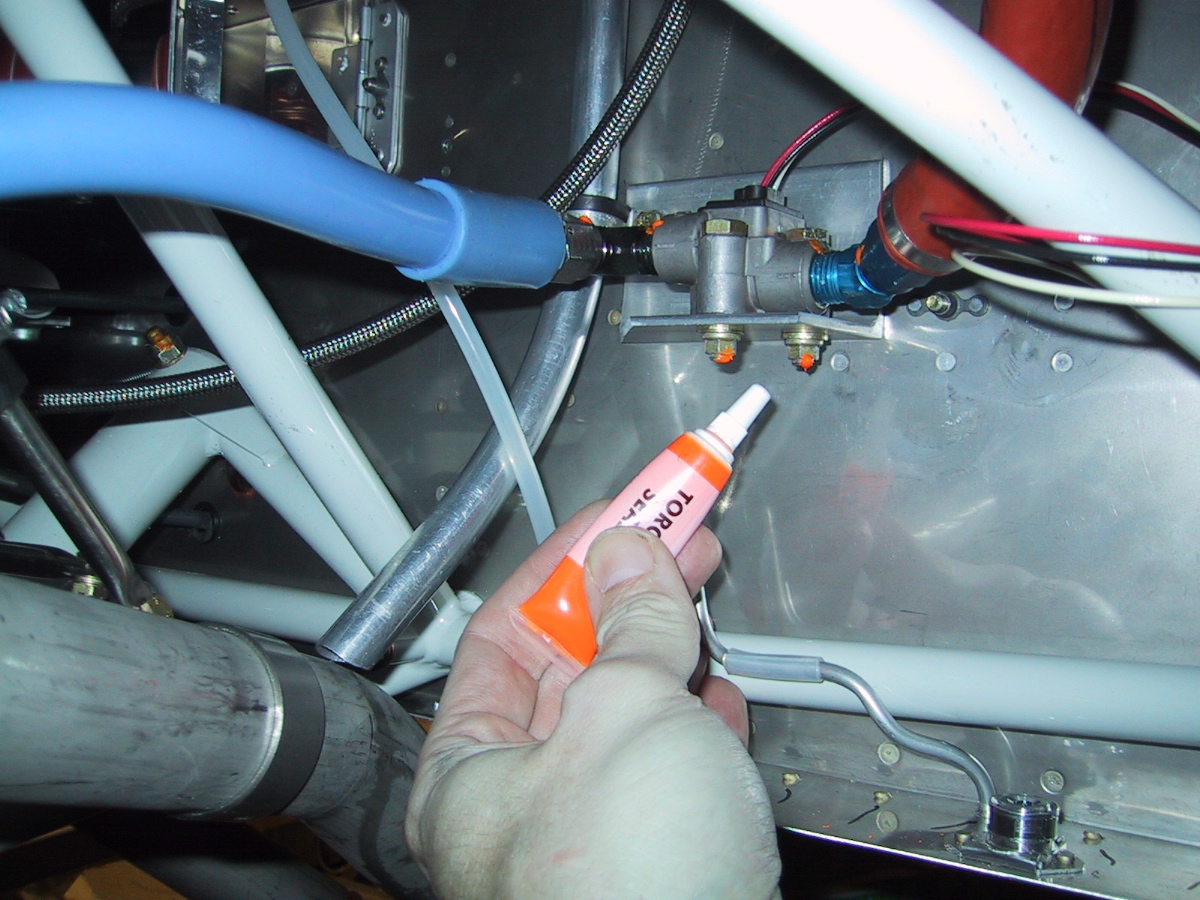

Now that my new hoses (the blue one on the left) have arrived from aircraft $pruce, bolt in the fuel flow sensor for good.

-

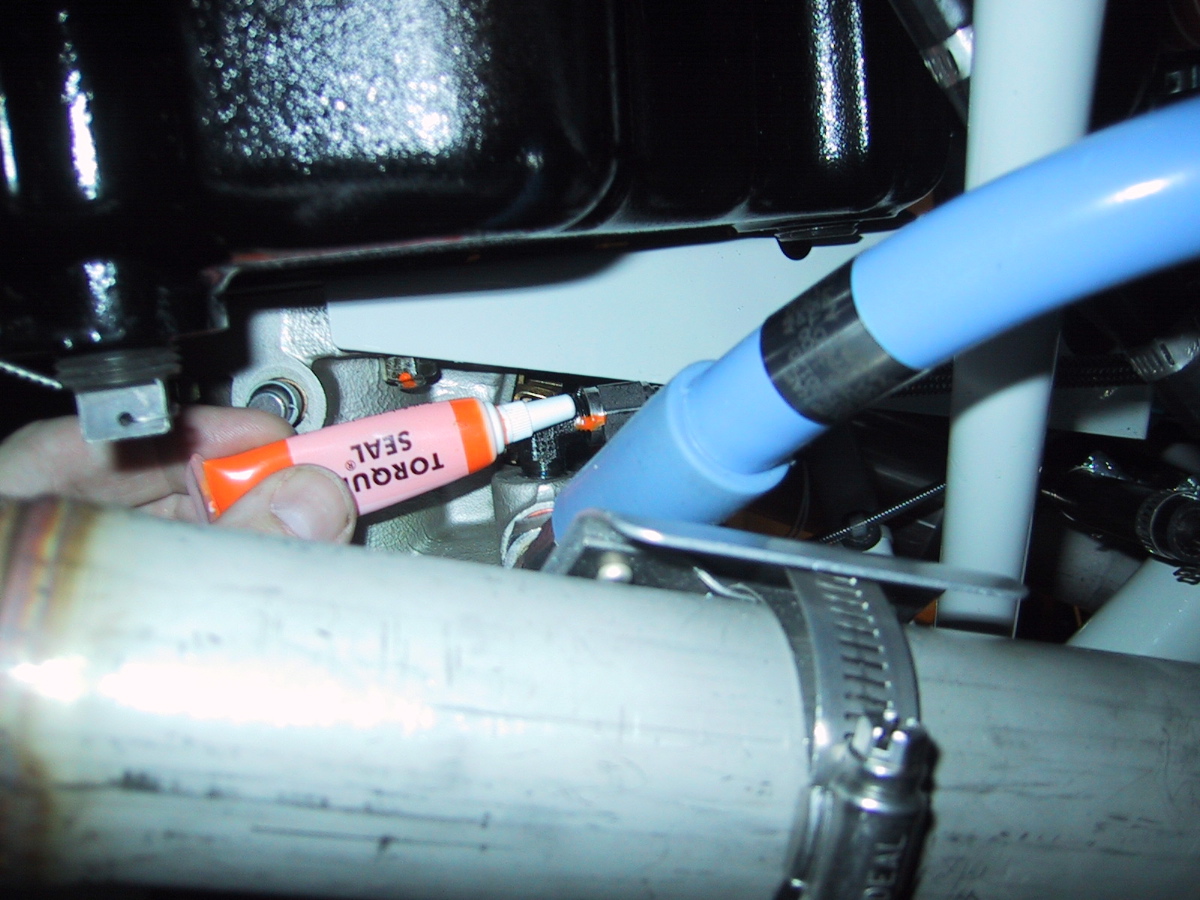

Torque down all fuel lines forward of the firewall.

-

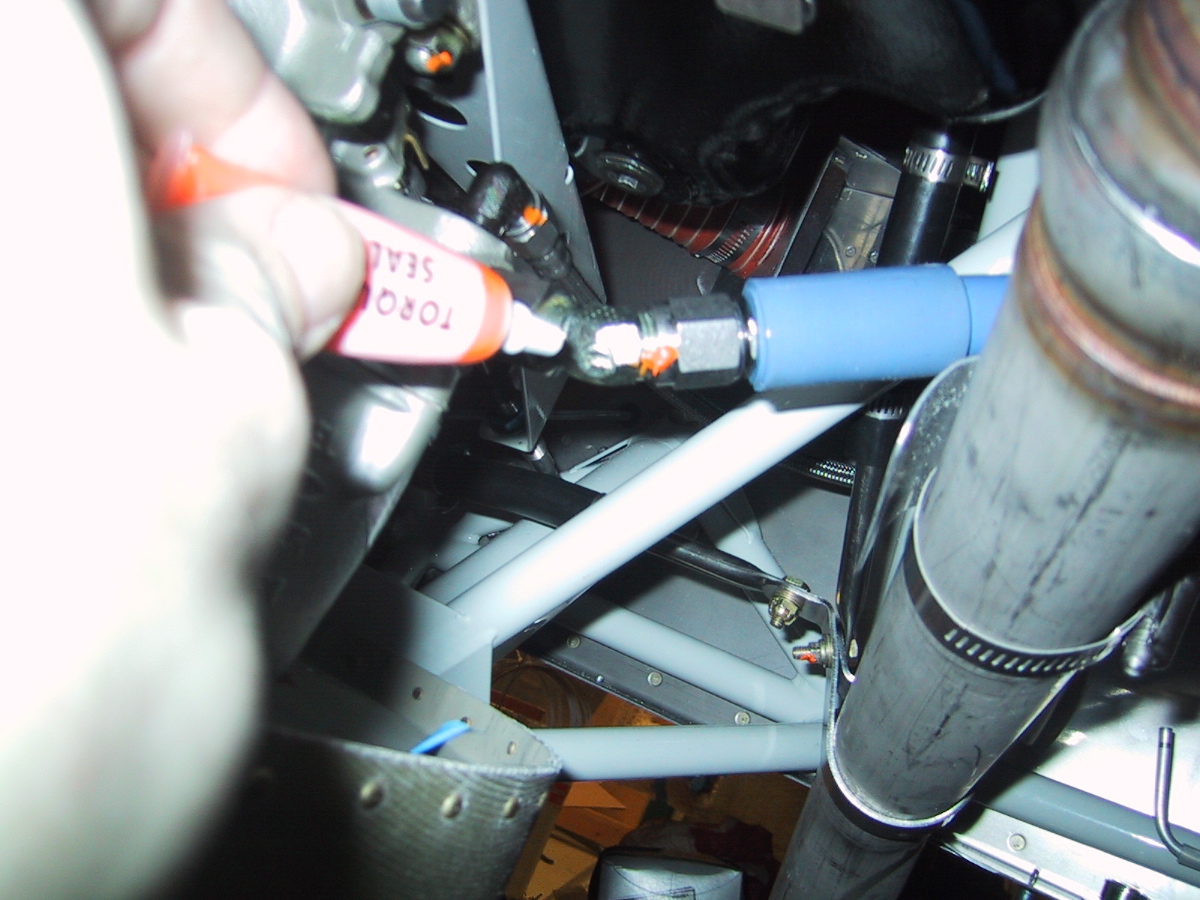

Torque the fuel pressure line to the carb.

-

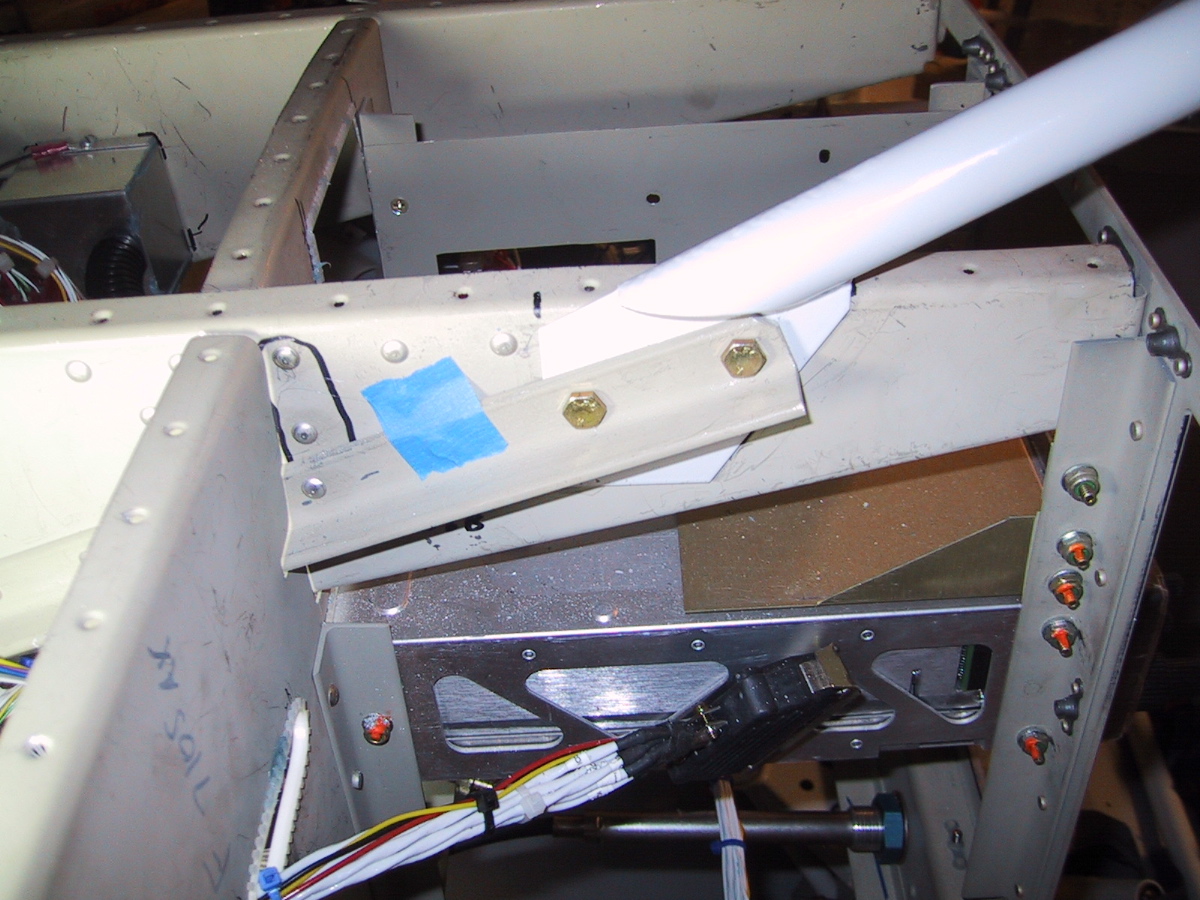

Match drill the center roll bar support to the center bulkhead - I used a bit of al sheet as a spacer to make sure the bar would clear the glare shield.

-

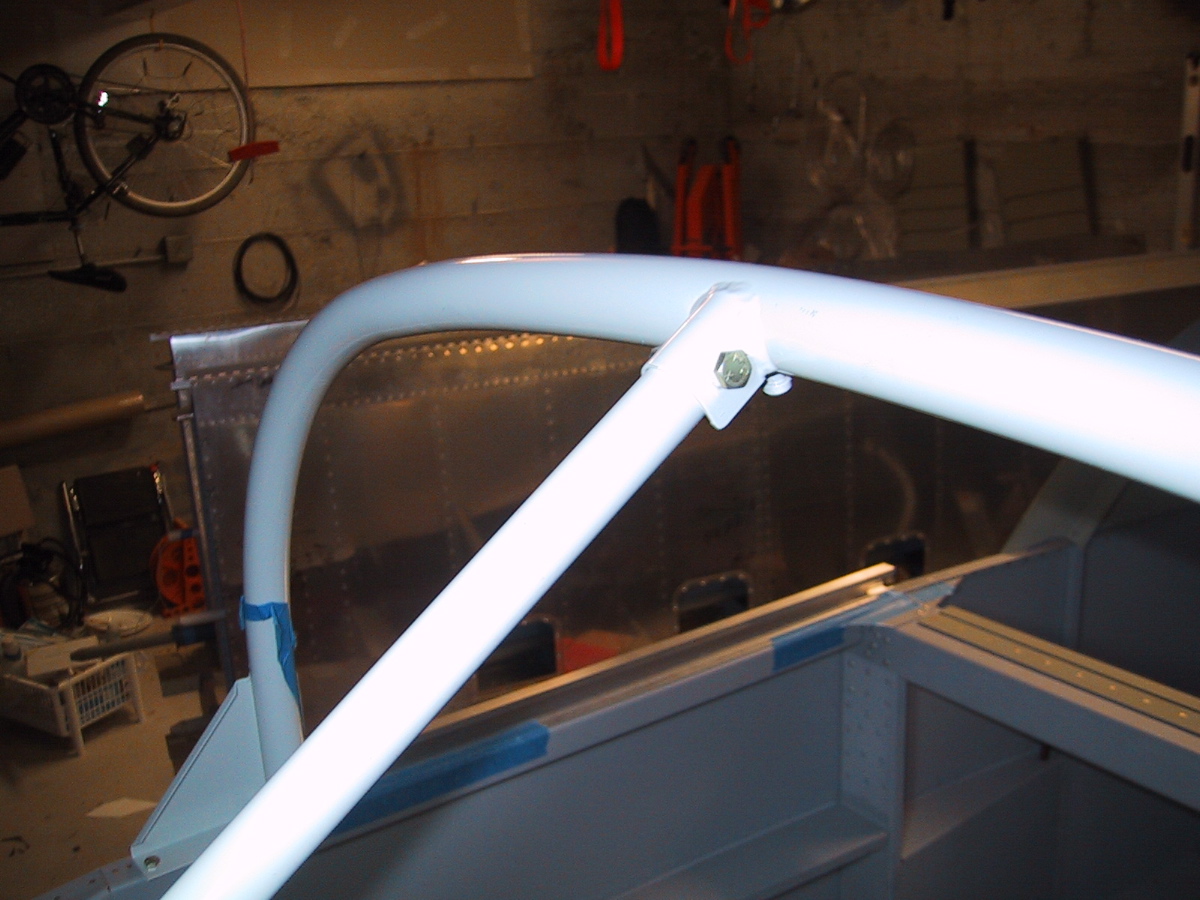

Bolt in the center roll bar support (temporarily).
