Build log date: Sunday, January 23, 2005
-

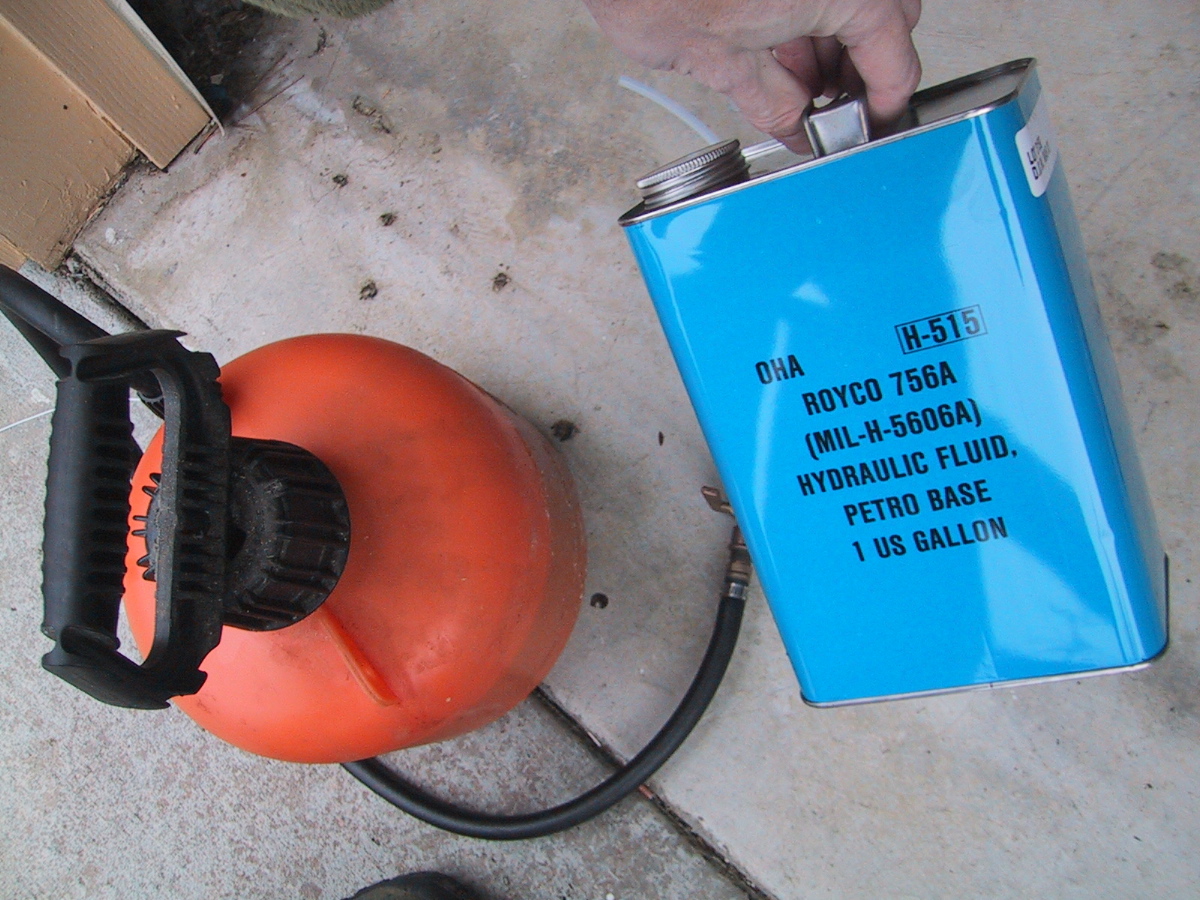

Adding brake fluid

-

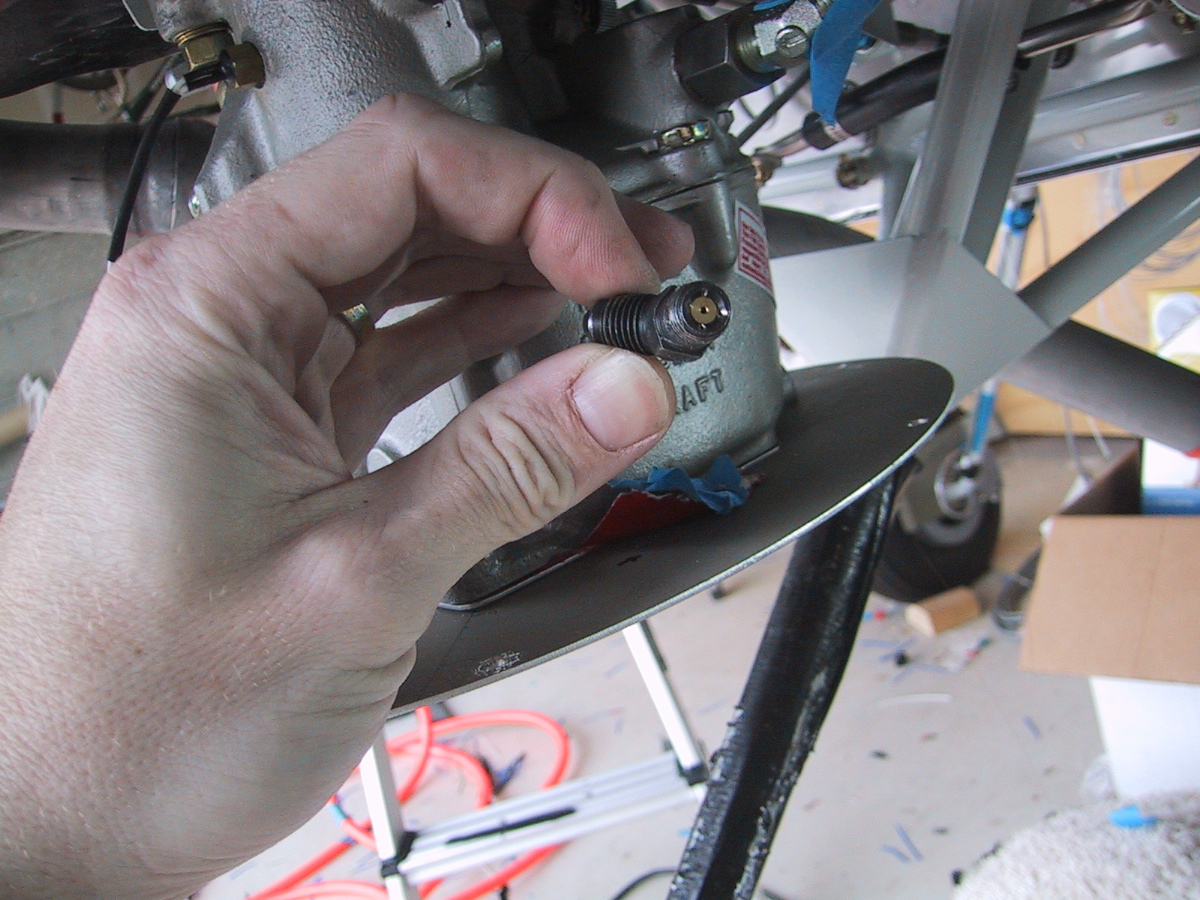

Try moving the fuel pressure port onto the carb, unfortunately the angle isn't quite right. I'll need to buy a 90 deg fitting.

-

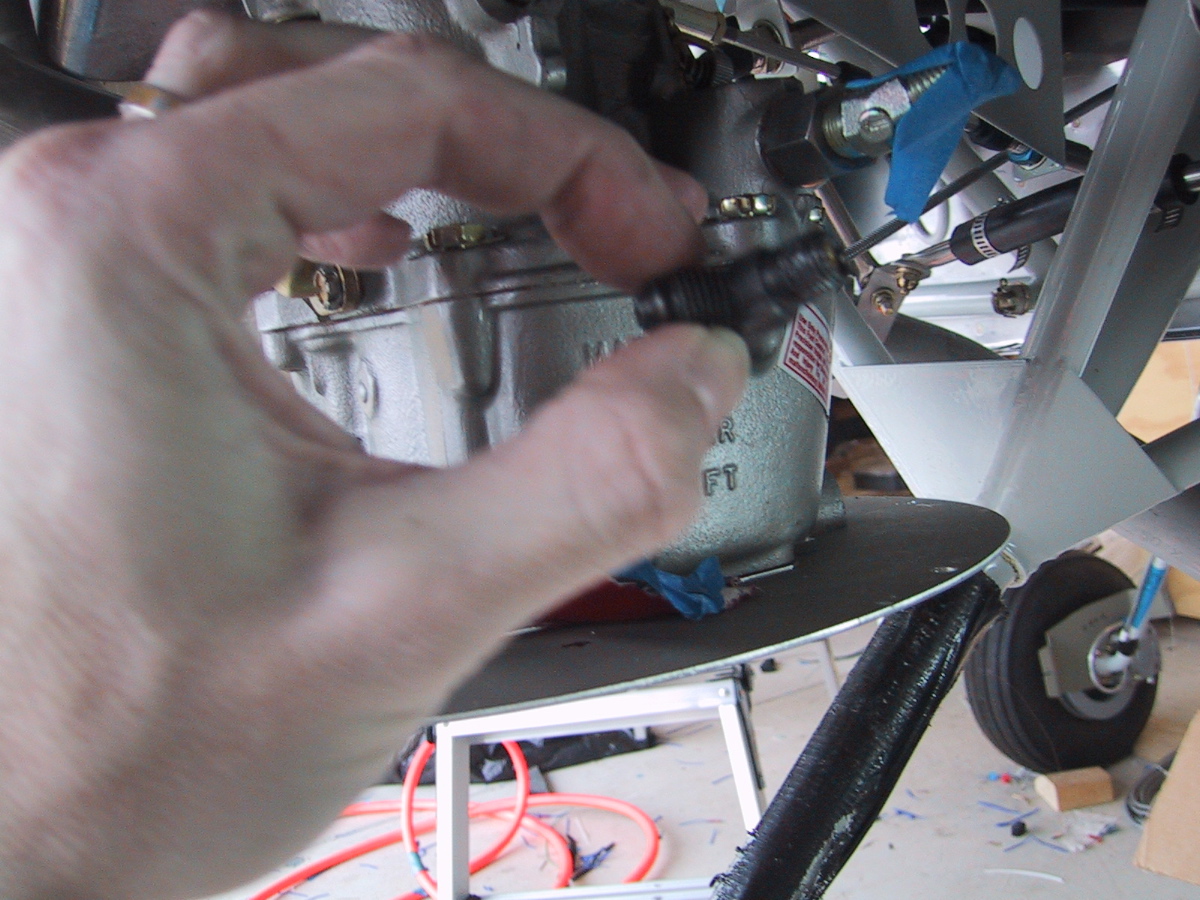

This fitting isn't quite right, but I tried it.

-

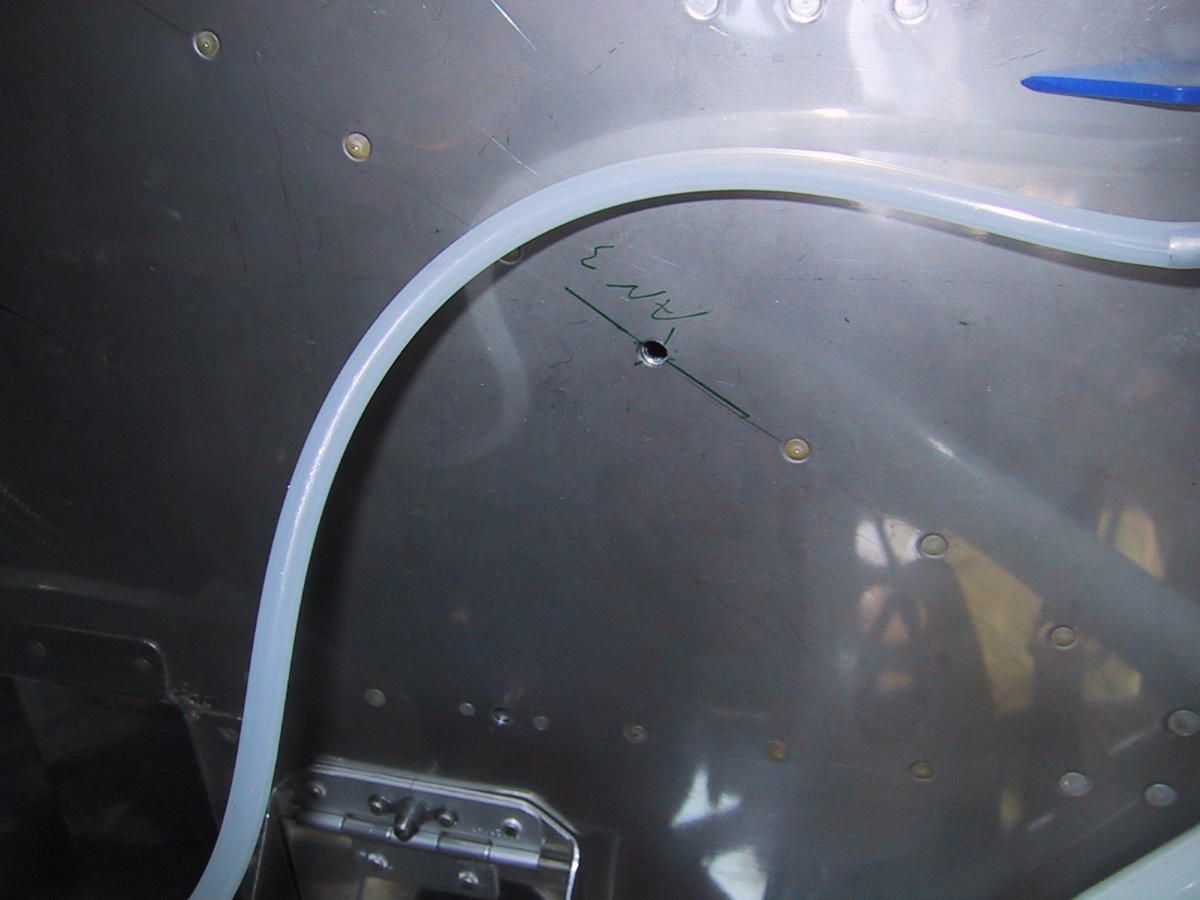

Drill an AN3 hole to bolt on the oil breather line.

-

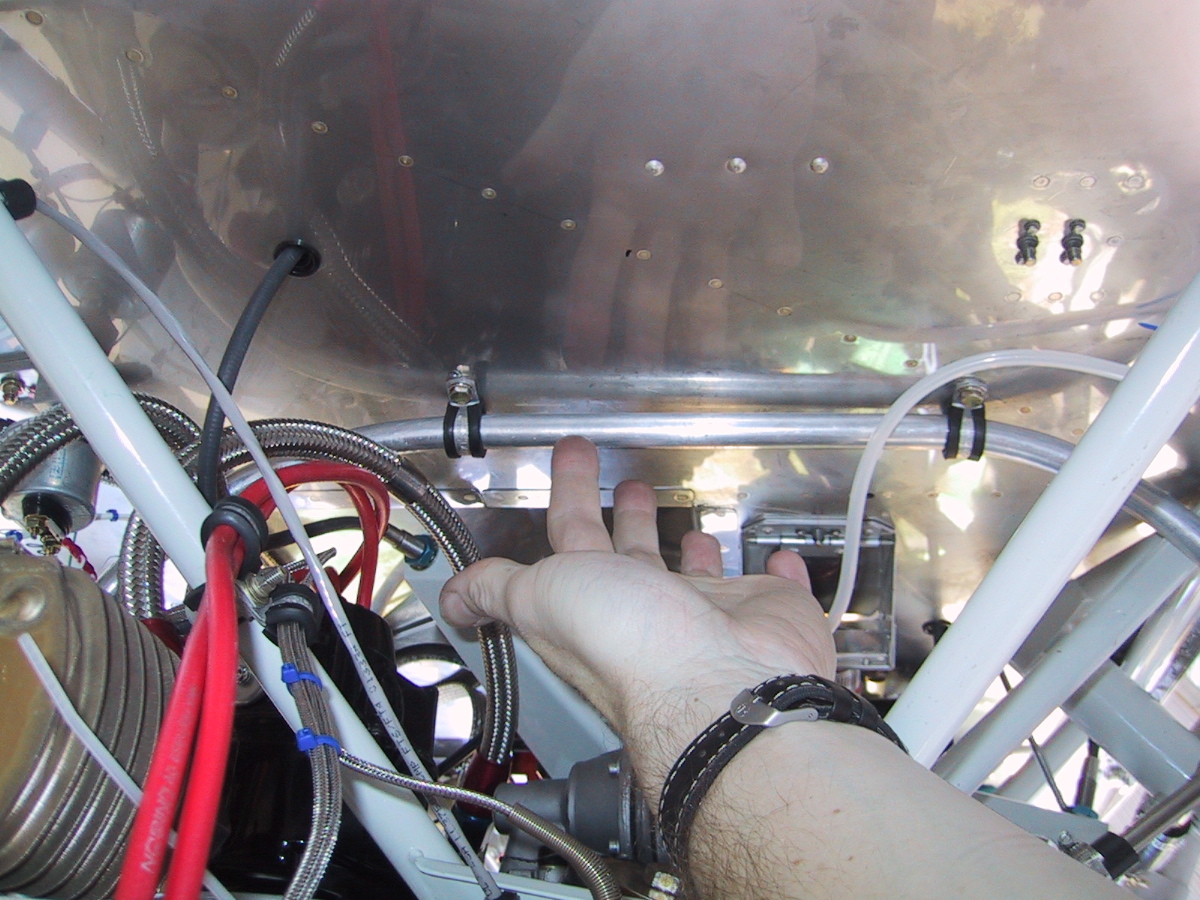

Oil breather now installed.

-

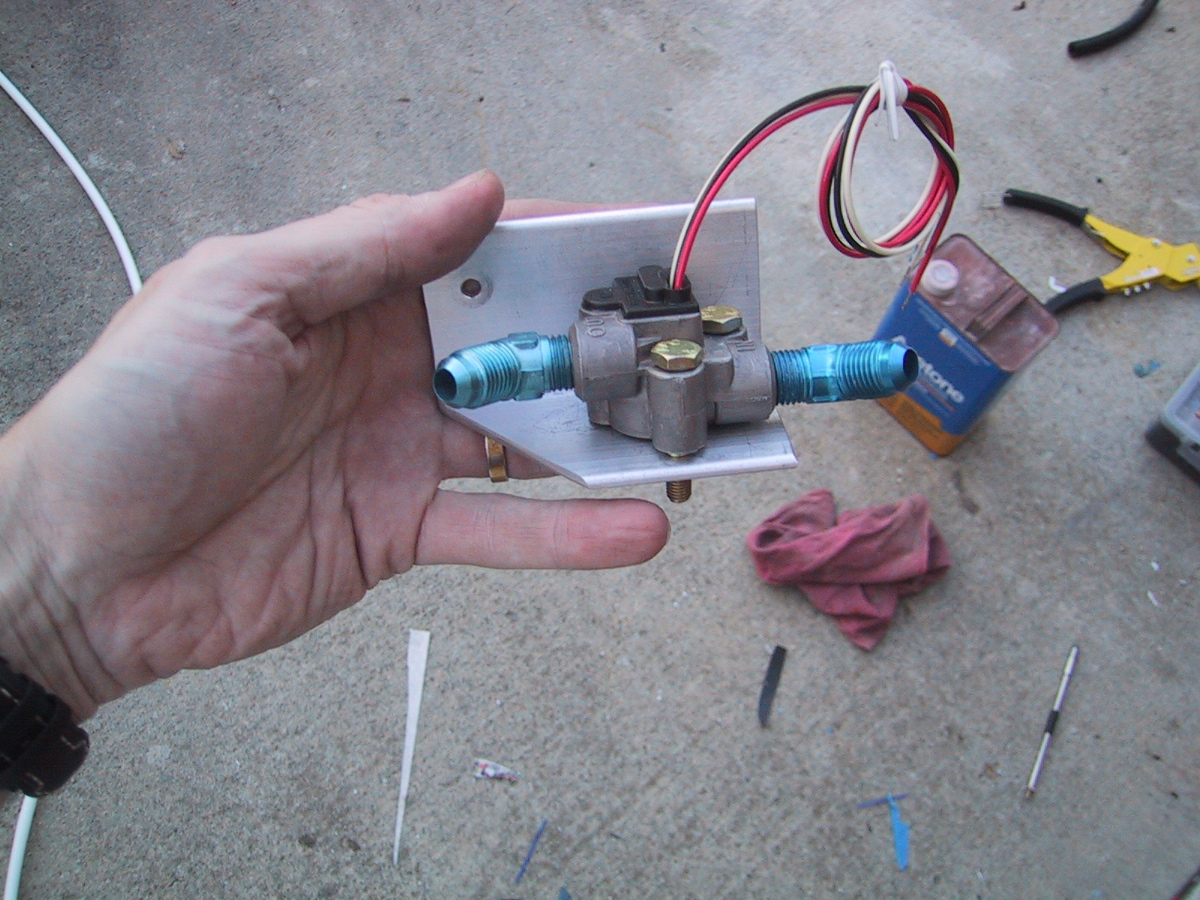

Make a nice bracket for the fuel flow sensor.

-

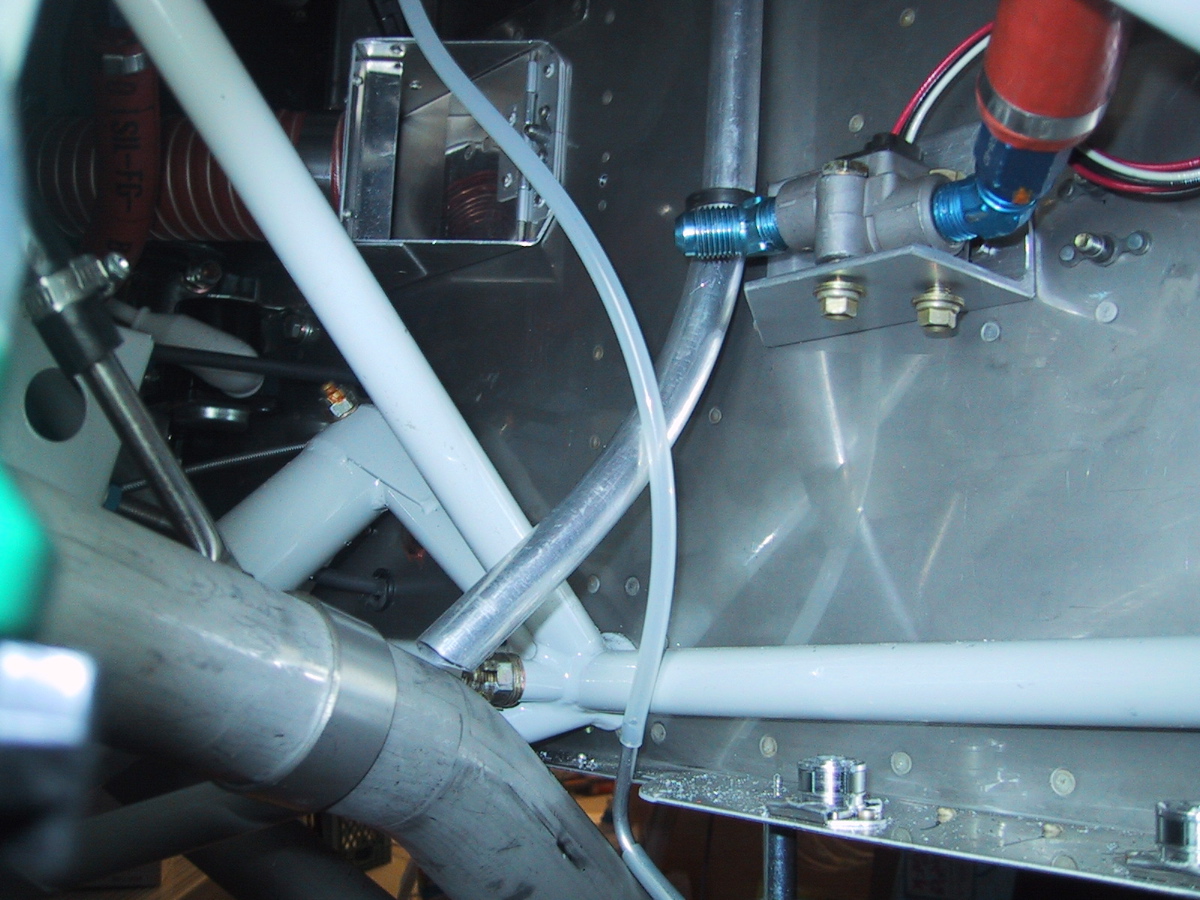

Testing the fit of the fuel flow bracket - looks good.
