Build log date: Saturday, December 18, 2004
-

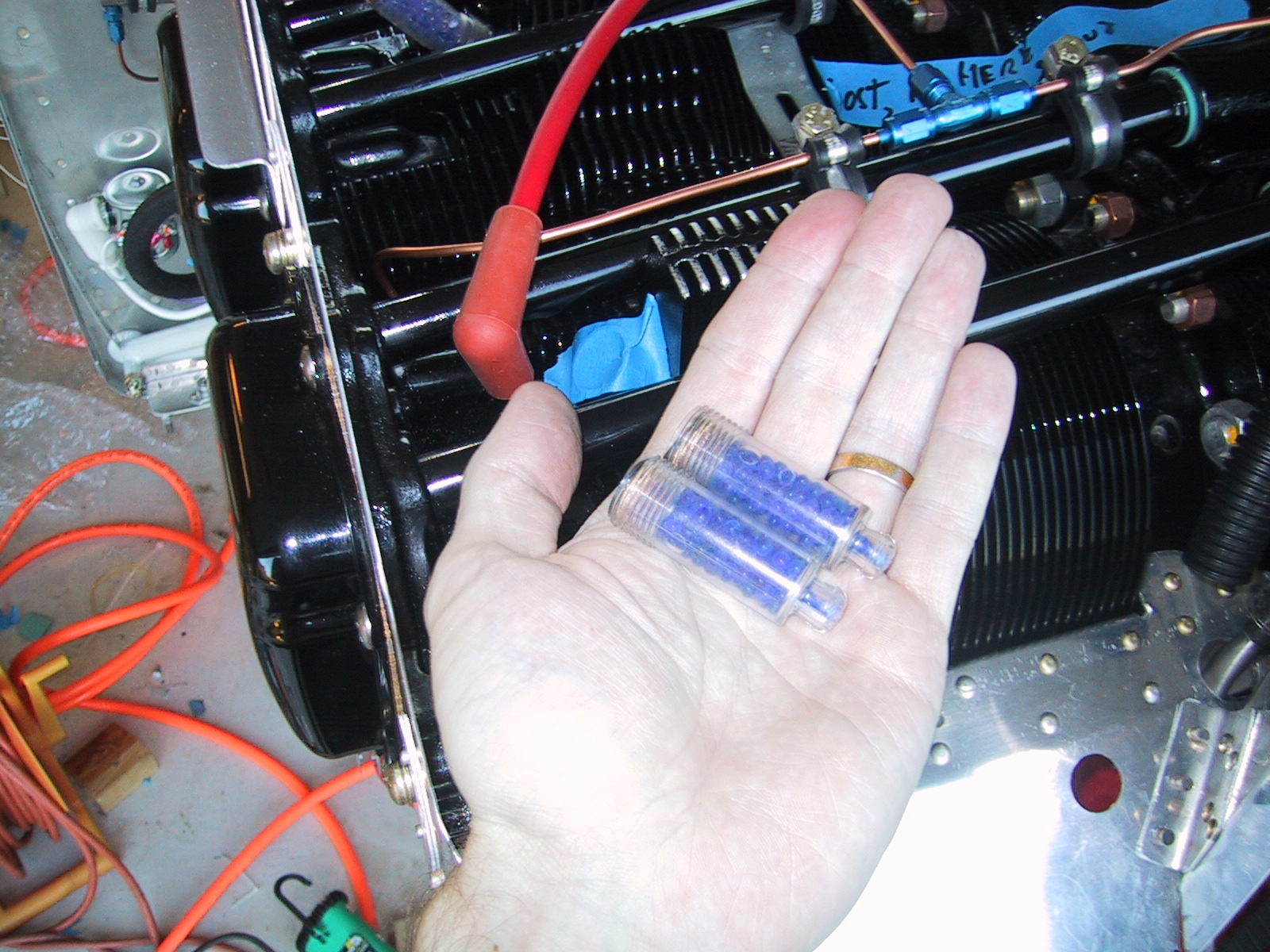

Recharged the dessicant plugs.

-

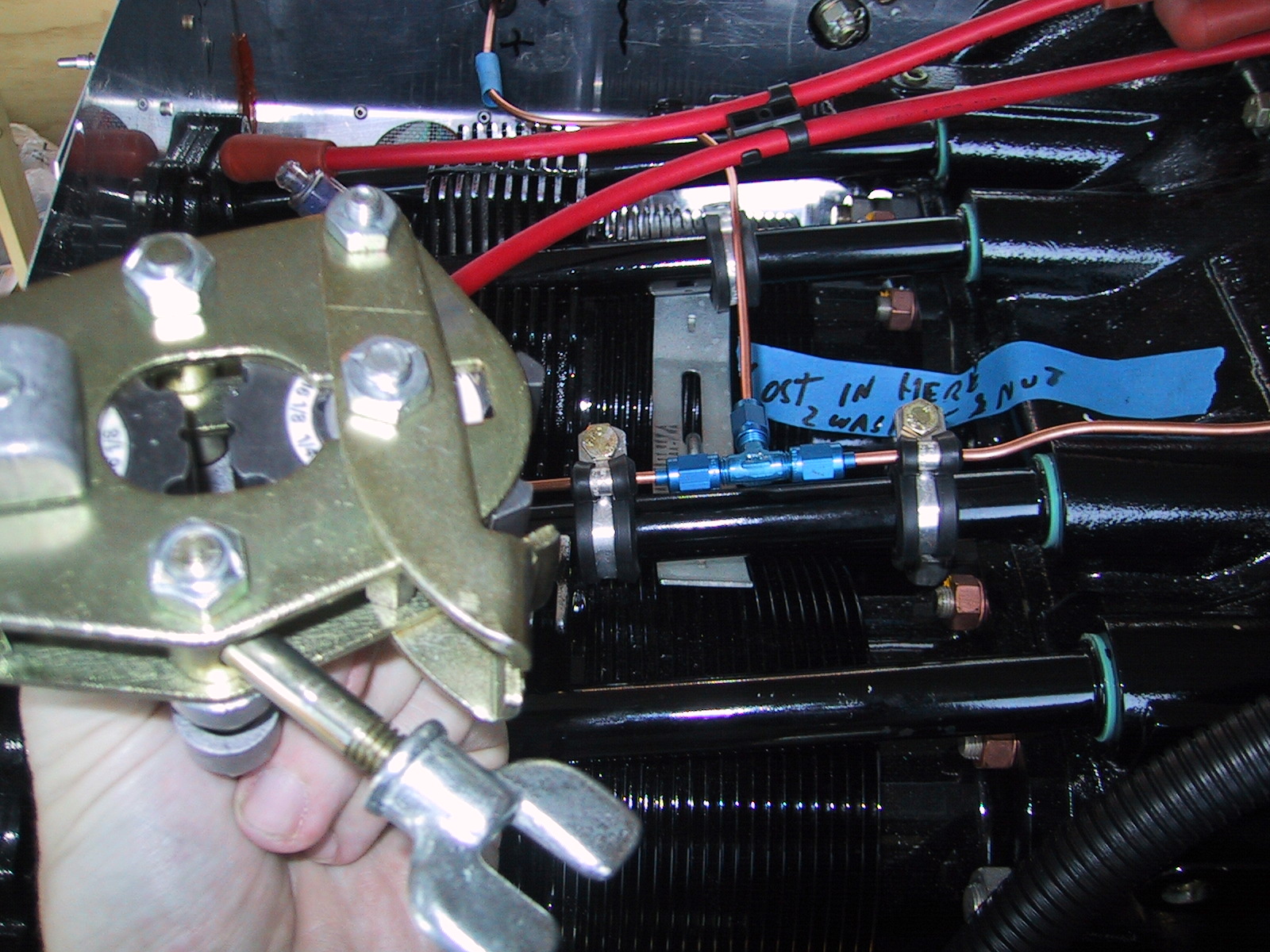

Fabricated and installed primer lines to cylinders 1 and 2.

-

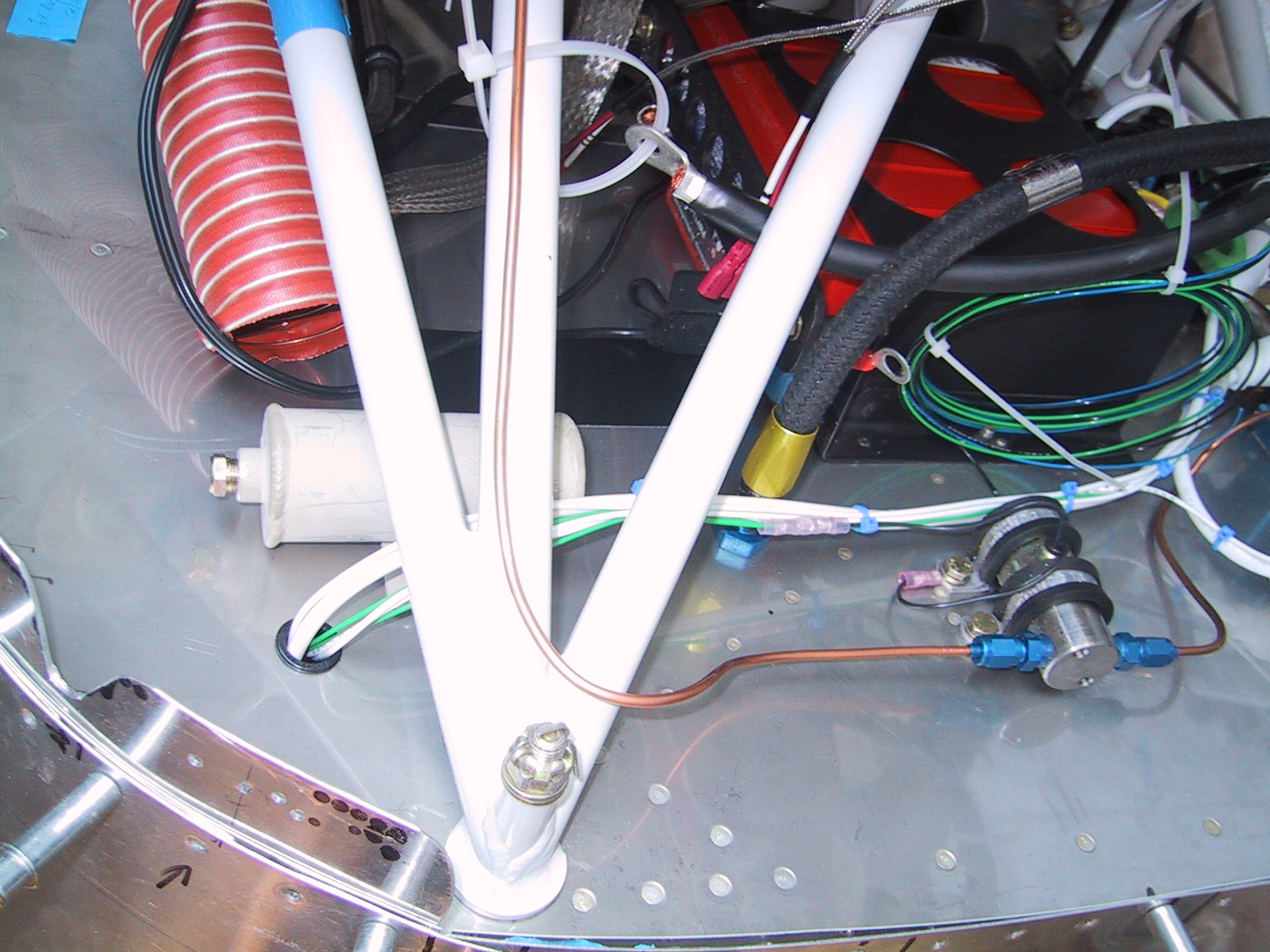

Pretty. Torqued primer line to the solinoid.

-

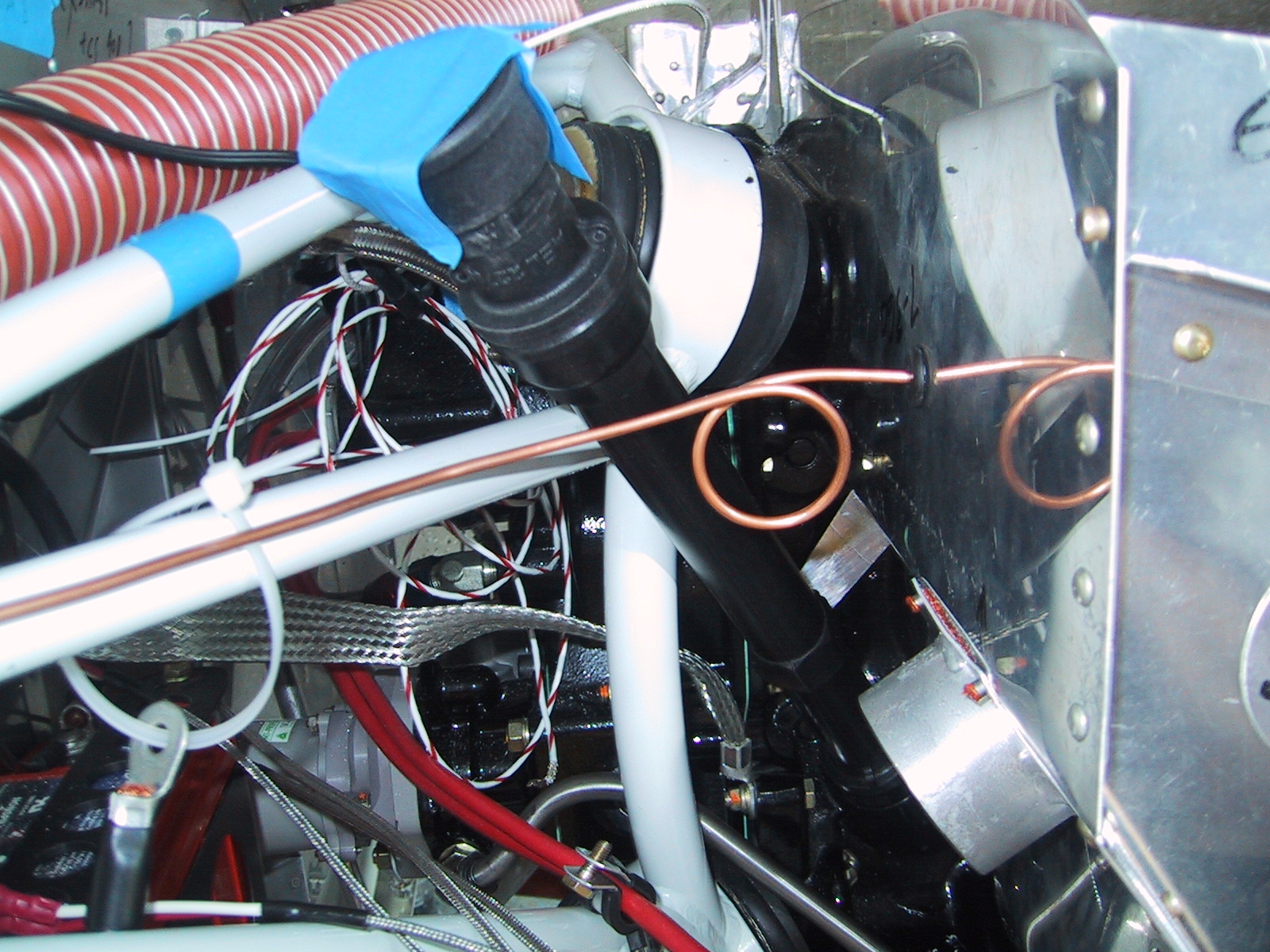

The primer line has a vibration loop because it goes between engine and plane.

-
Move the electronic ignition coils forward by one bolt - to prevent interfering with the aft baffle. Because of this I needed to move the engine hook to a nonstandard location. I've folded the hook forward for clearance with the cowl. If the engine needs to be hoisted at some point, it will need to be folded back up.

-
Completed moving the coils.

-

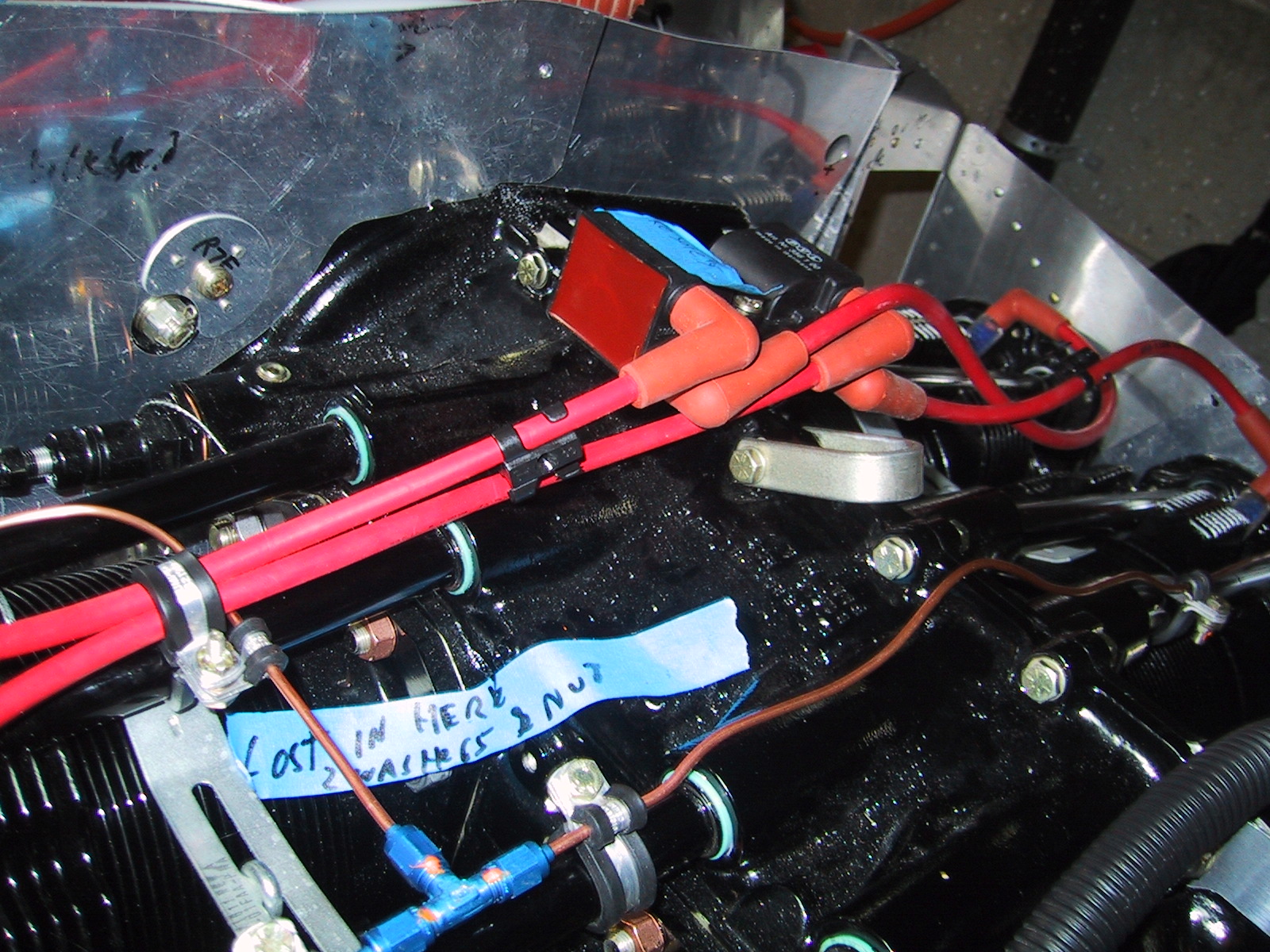

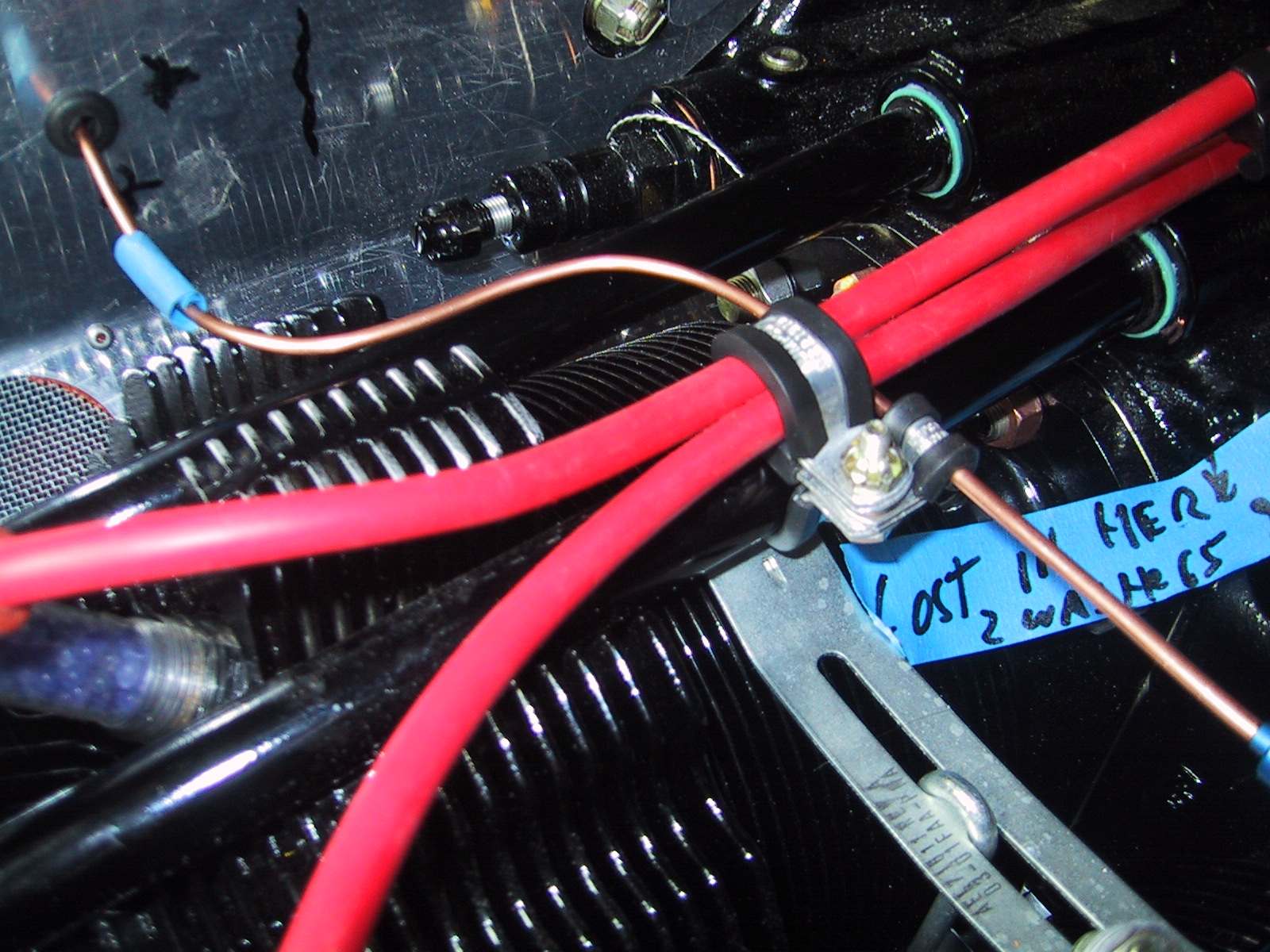

Used some DG12 sized adel clamps to hold the upper sparkplug wires.
