Build log date: Wednesday, September 22, 2004
-

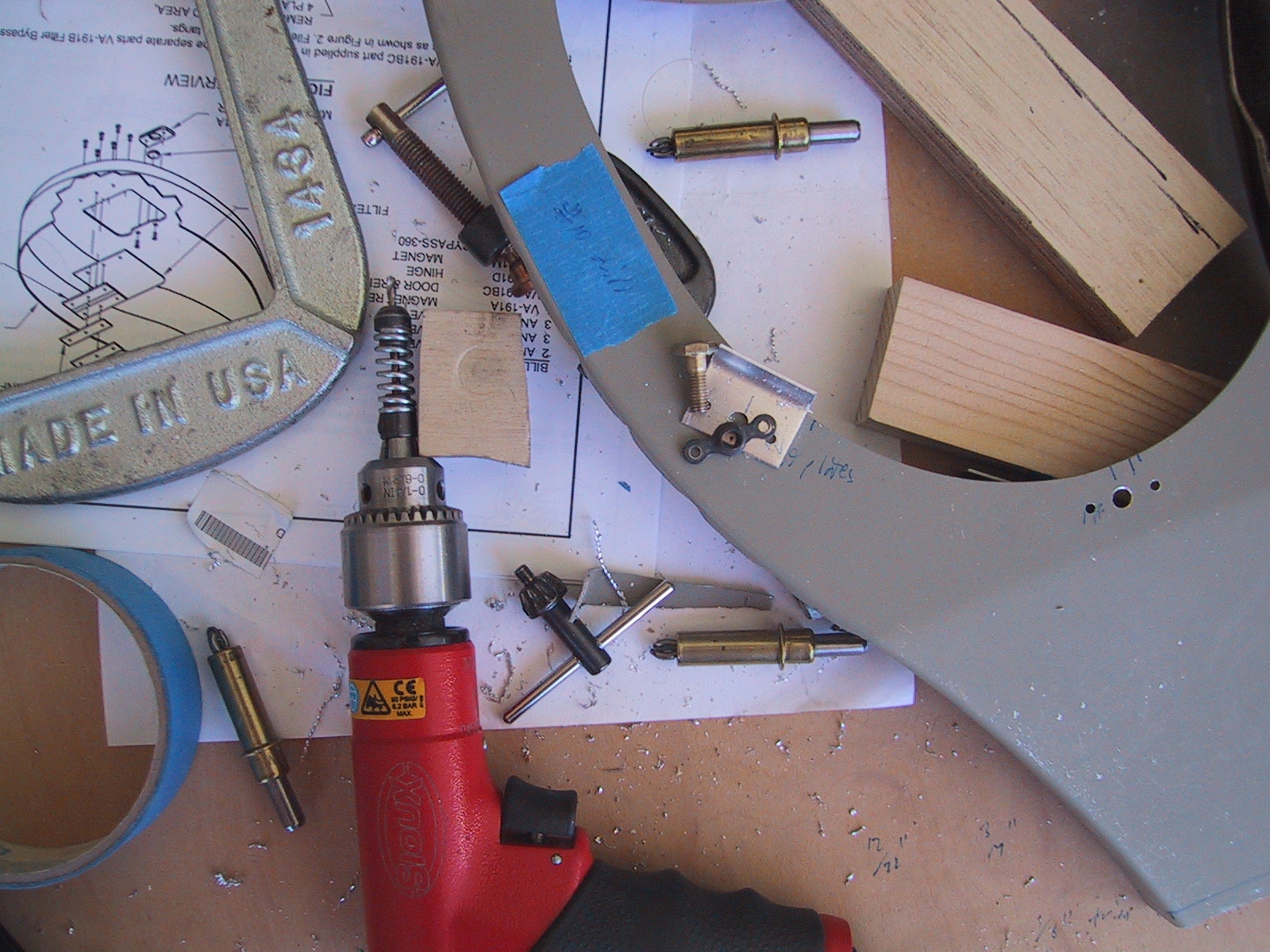

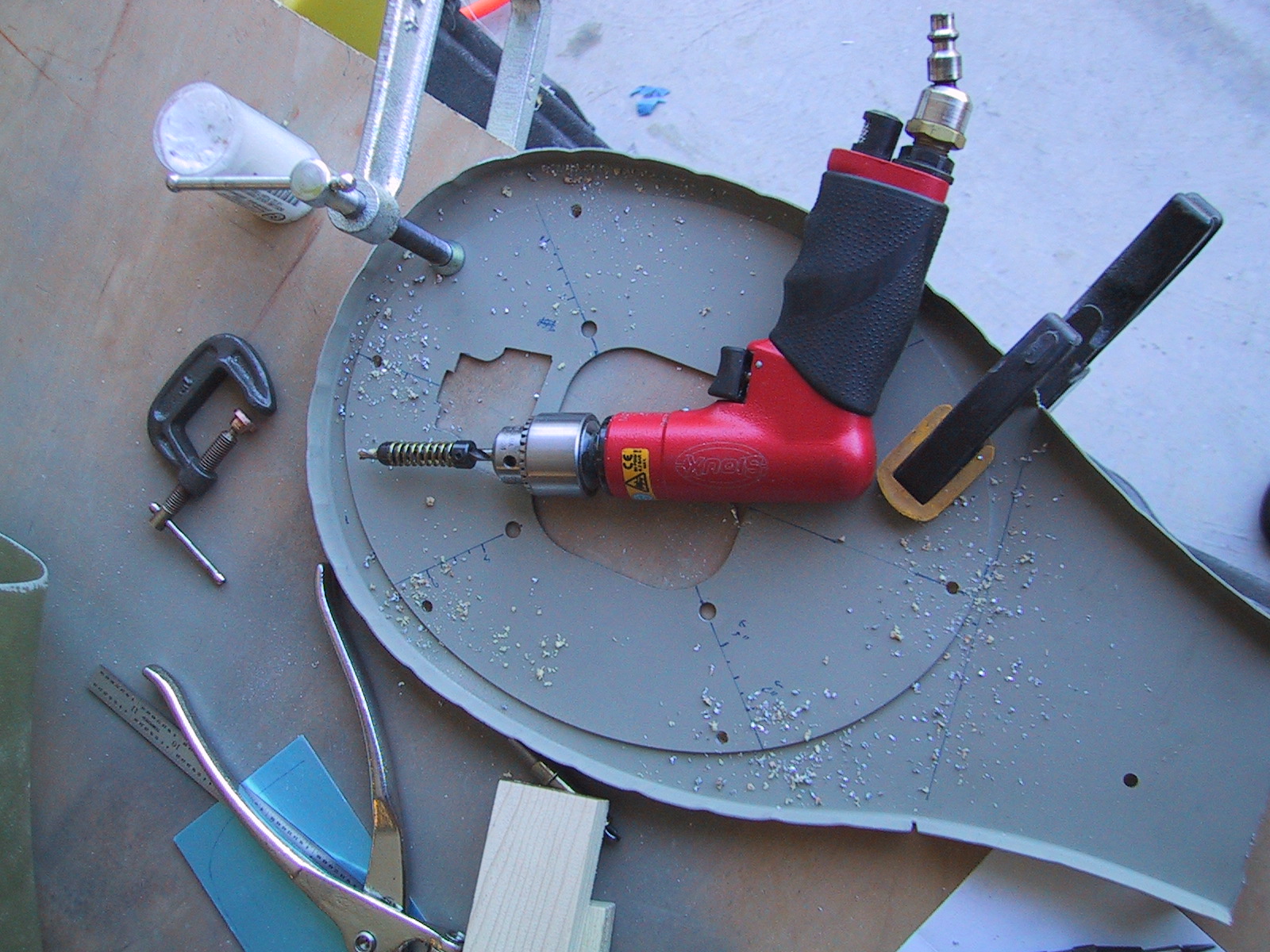

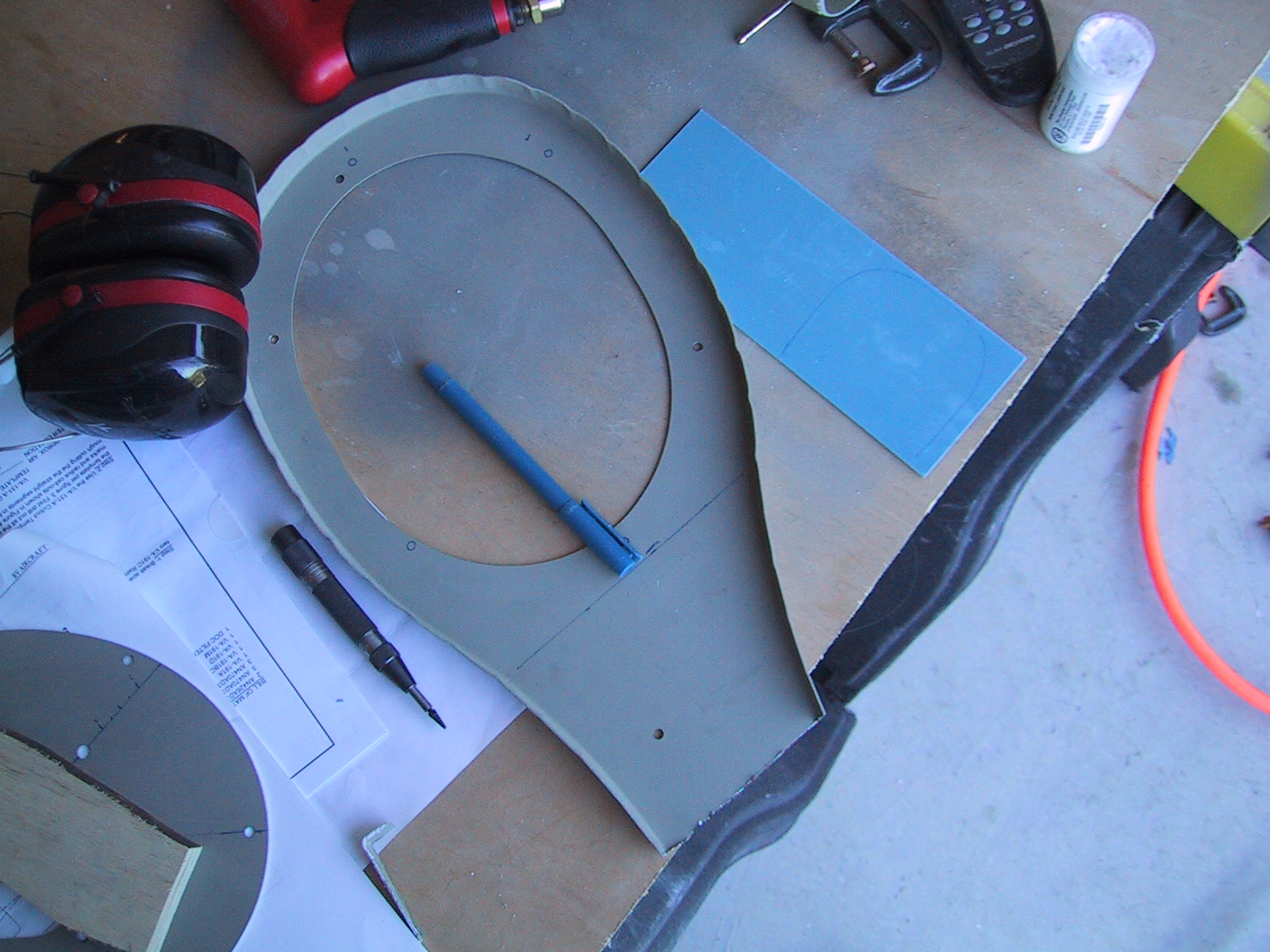

Match drill the FAB top plate to the carb plate.

-

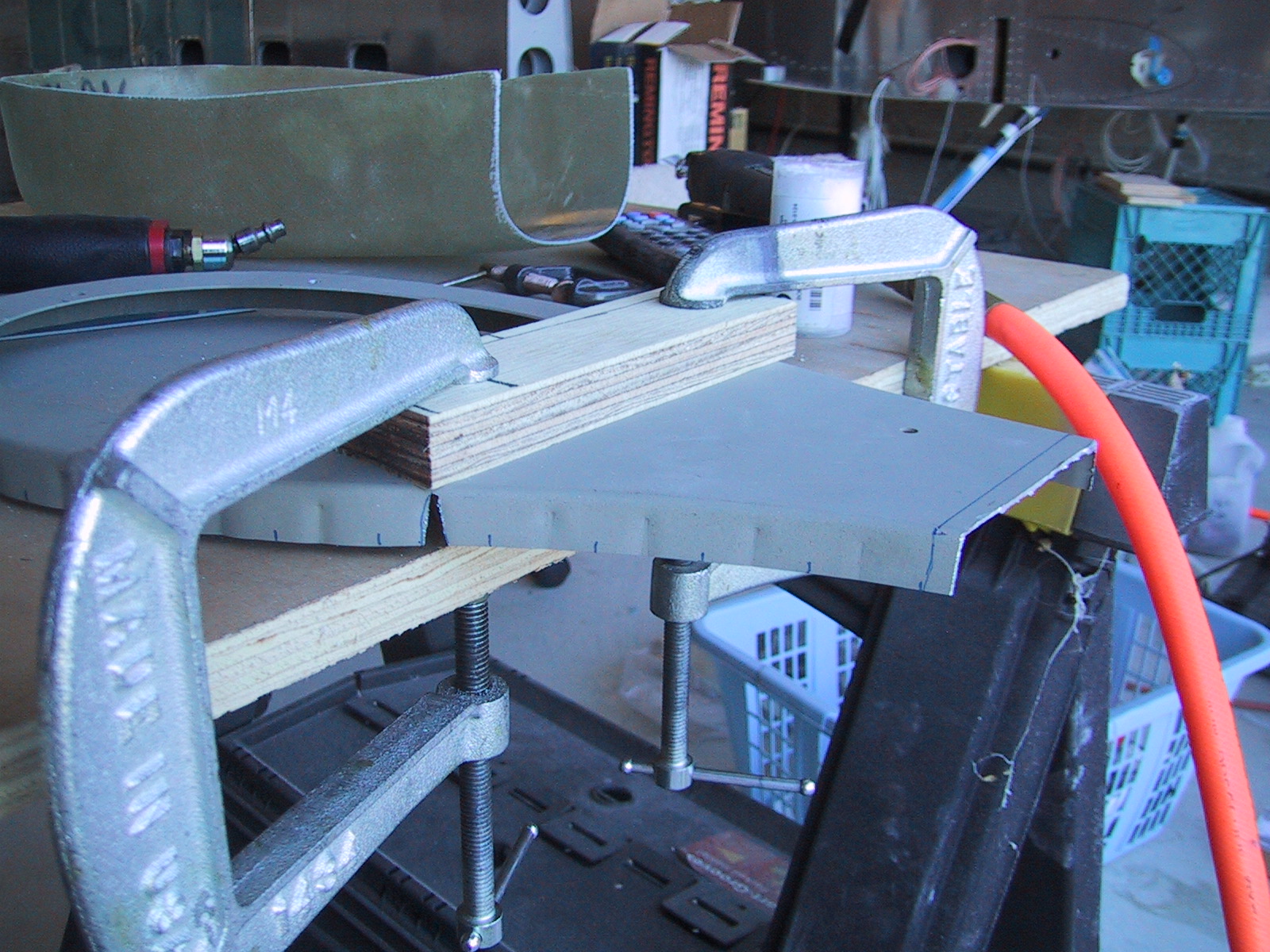

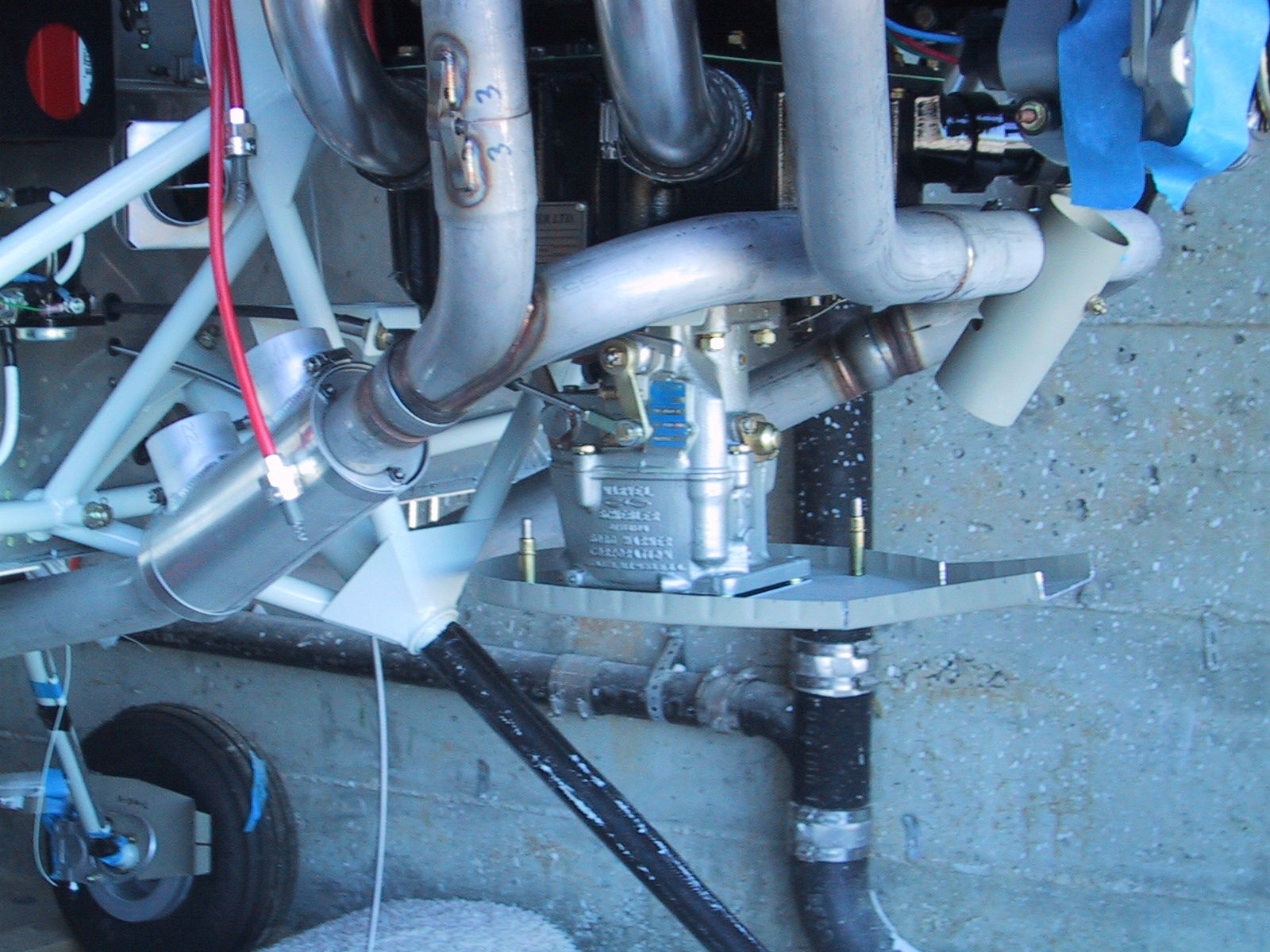

Bend the FAB plate to match the location of the intake in the cowl.

-
Test the bend in the FAB box.

-

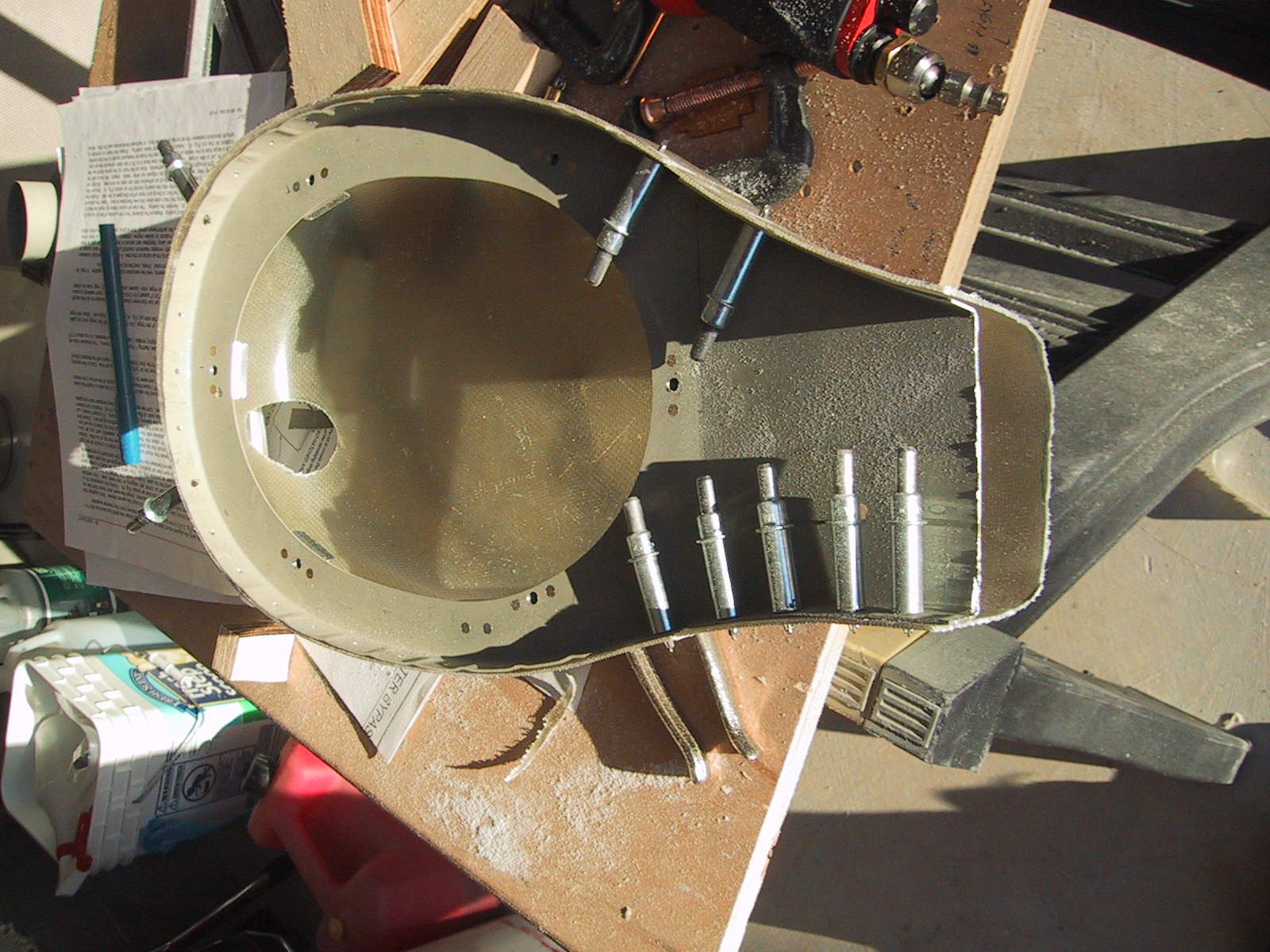

Match drill the FAB box.

-

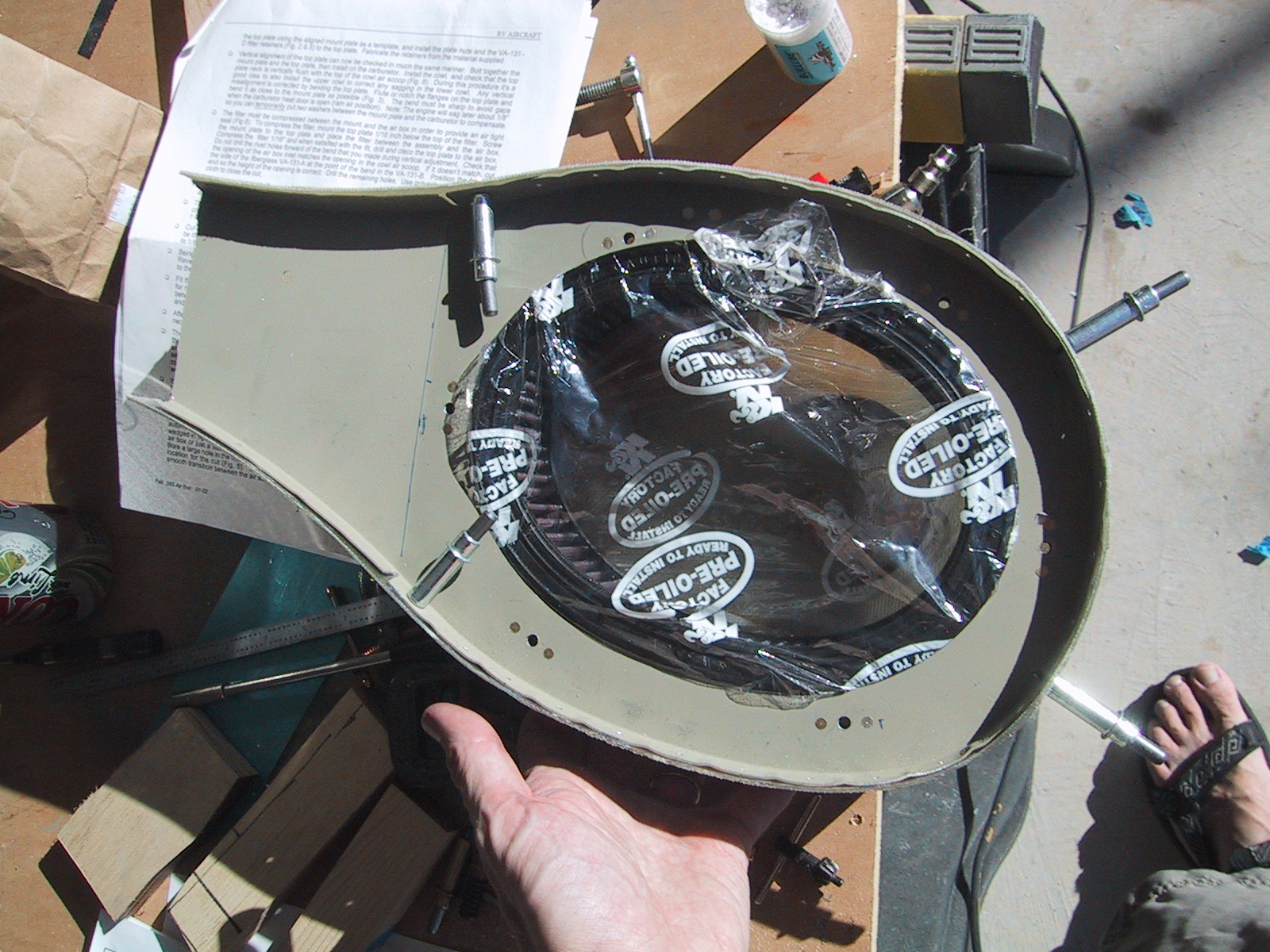

Drill the FAB for nutplates and the filter retainer.

-

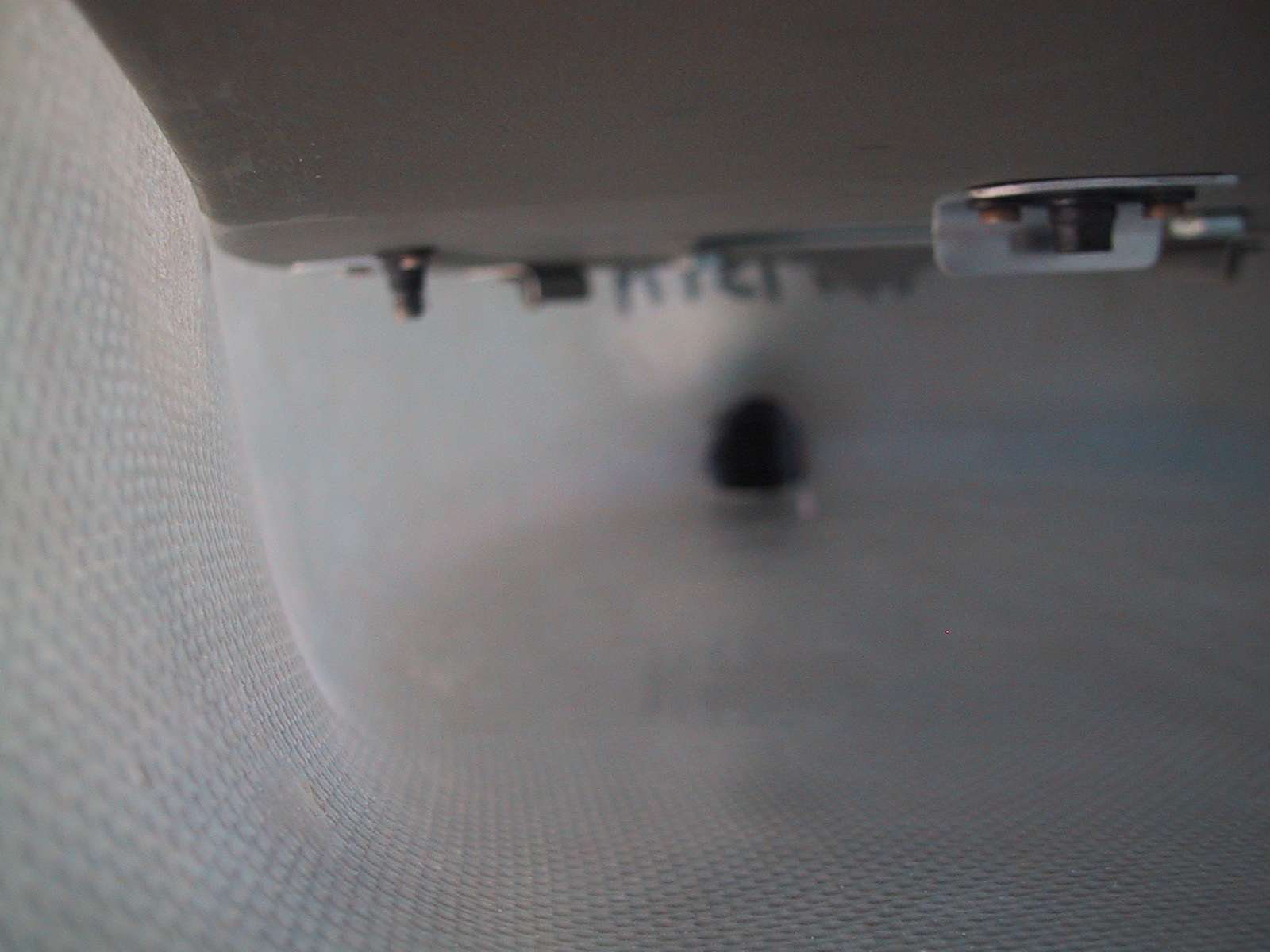

A nice self portrait of my FAB airbox.

-
The FAB box gets trimmed for the nose gear.

-

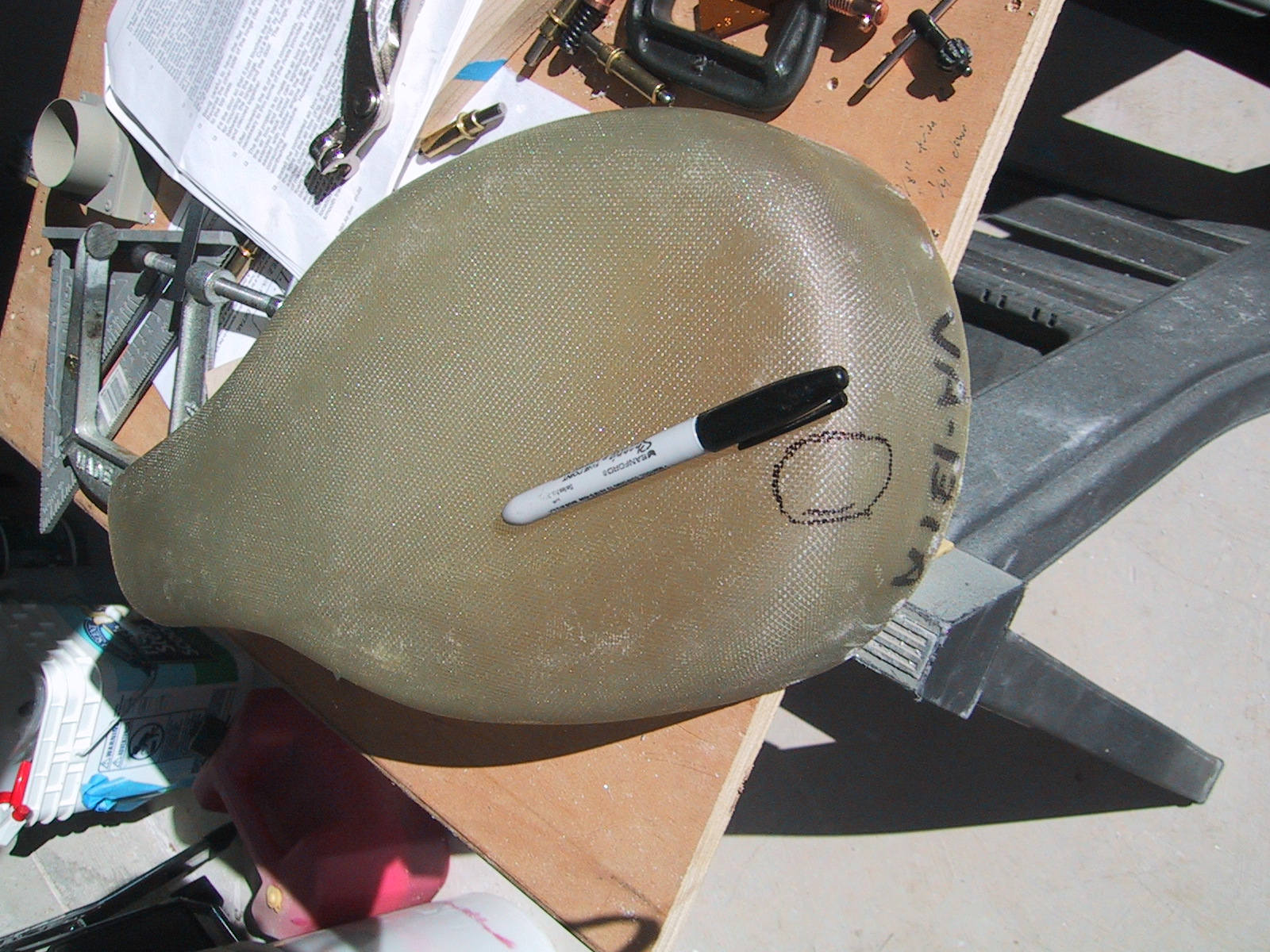

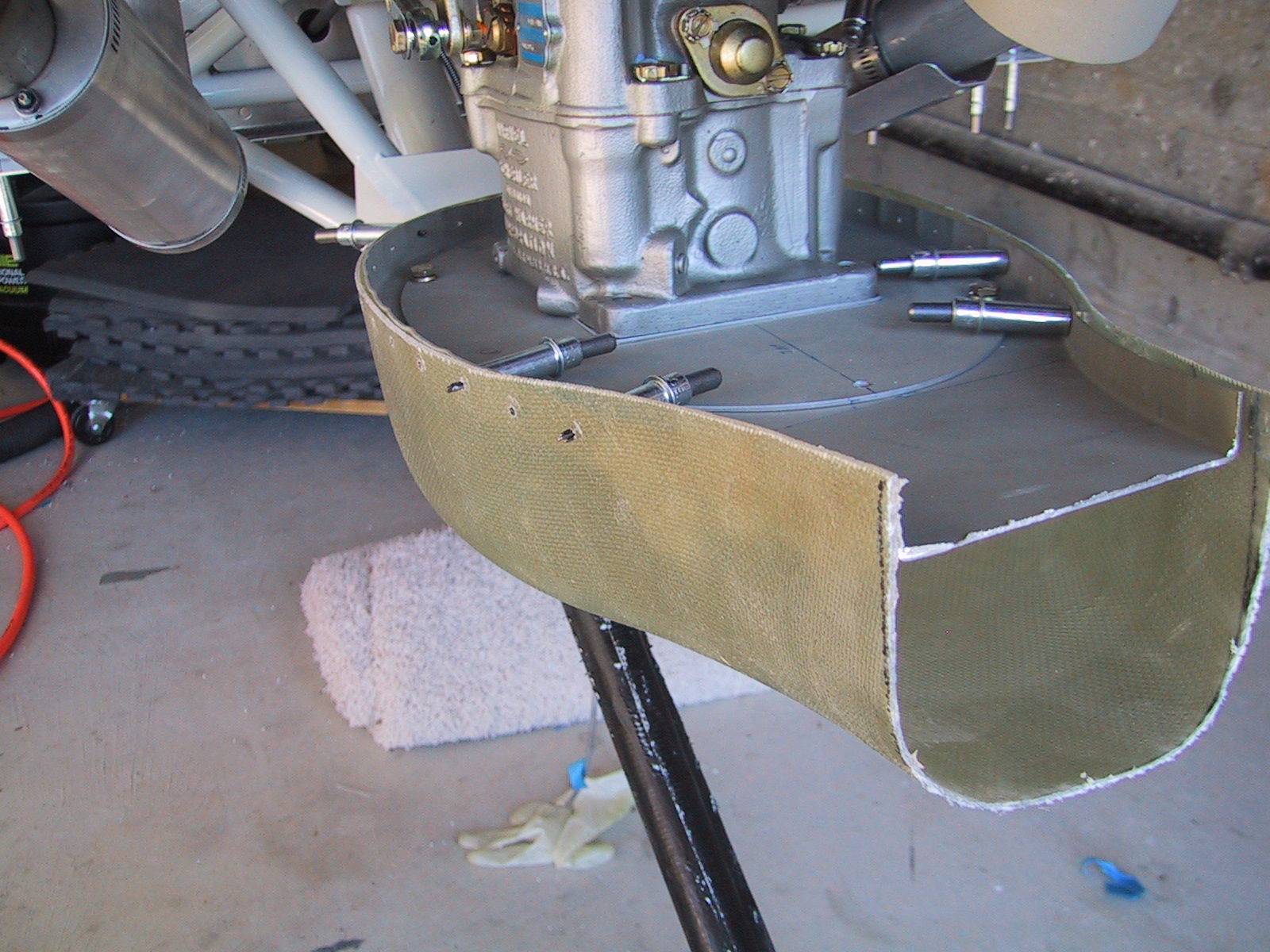

Working on the bottom lip of the FAB box and its match to the cowl.

-
Crummy photo of the airbox.

-
Pretty.

-
Trying to lock in the correct angle for the bottom of the airbox.
