Build log date: Wednesday, September 01, 2004
-

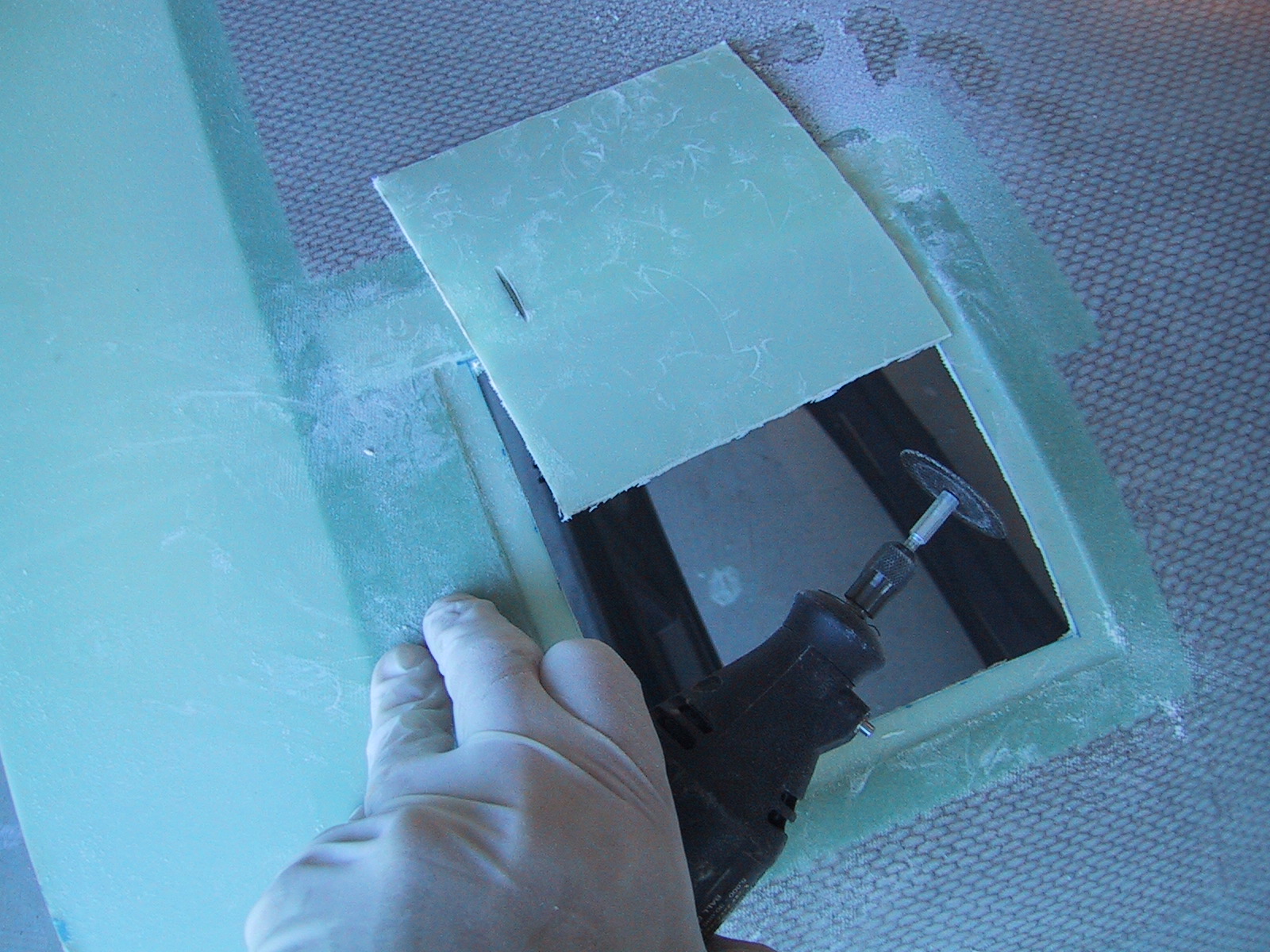

Rough cut the cowl oil door.
-

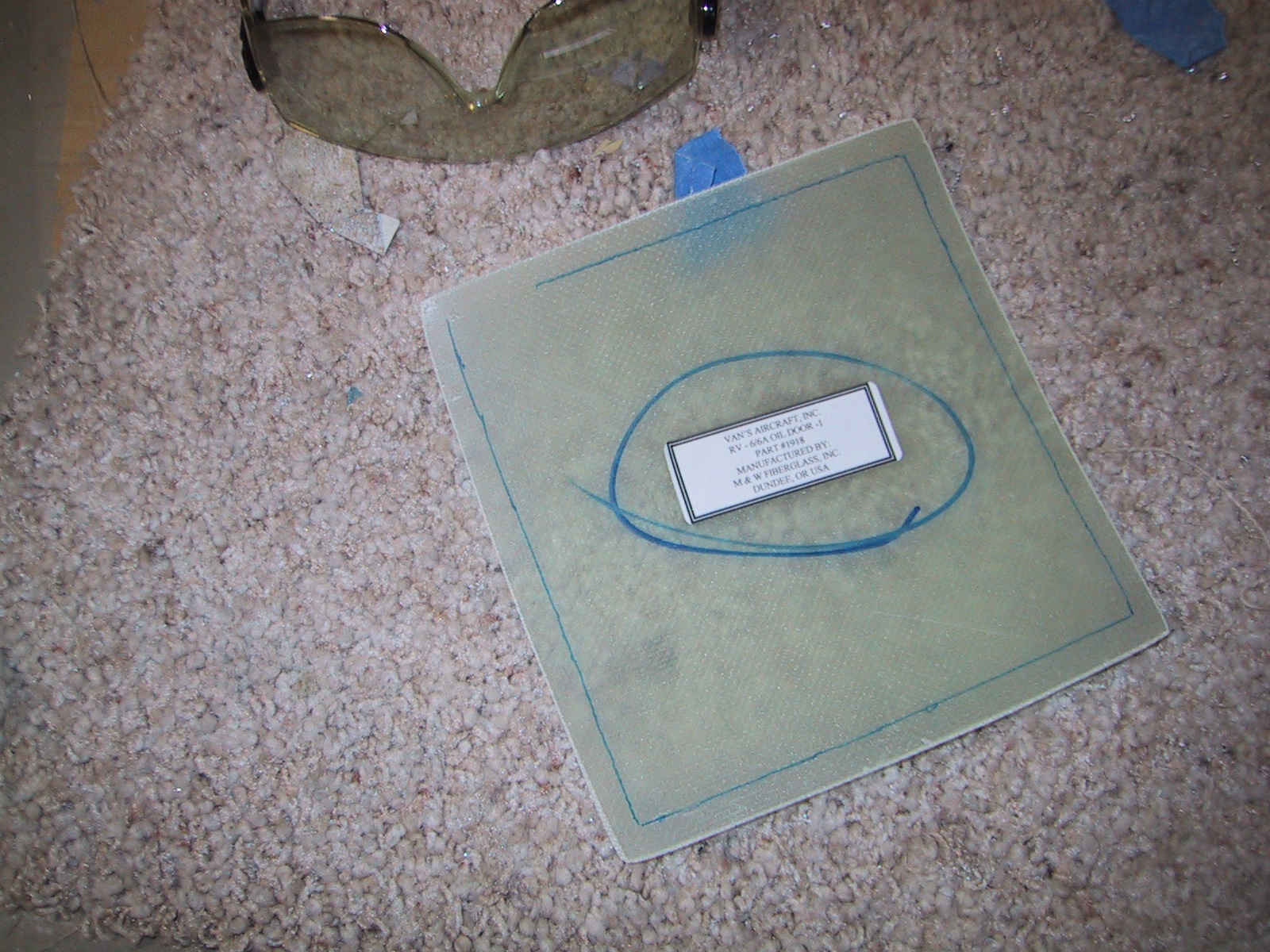

Marking the initial cut lines on the oil door.
-

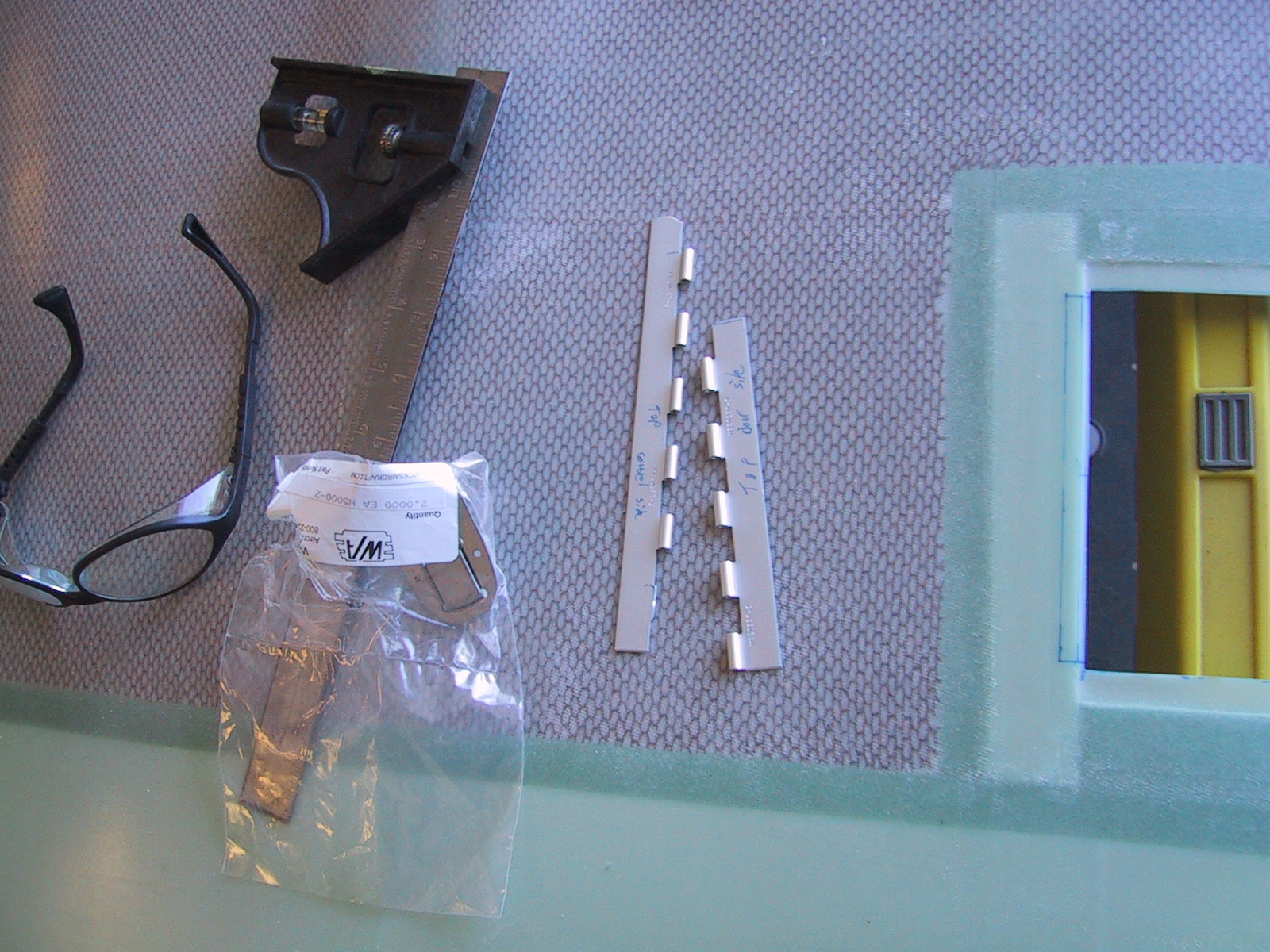

Fabbed the oil door hinge - test fitting for the cut.
-

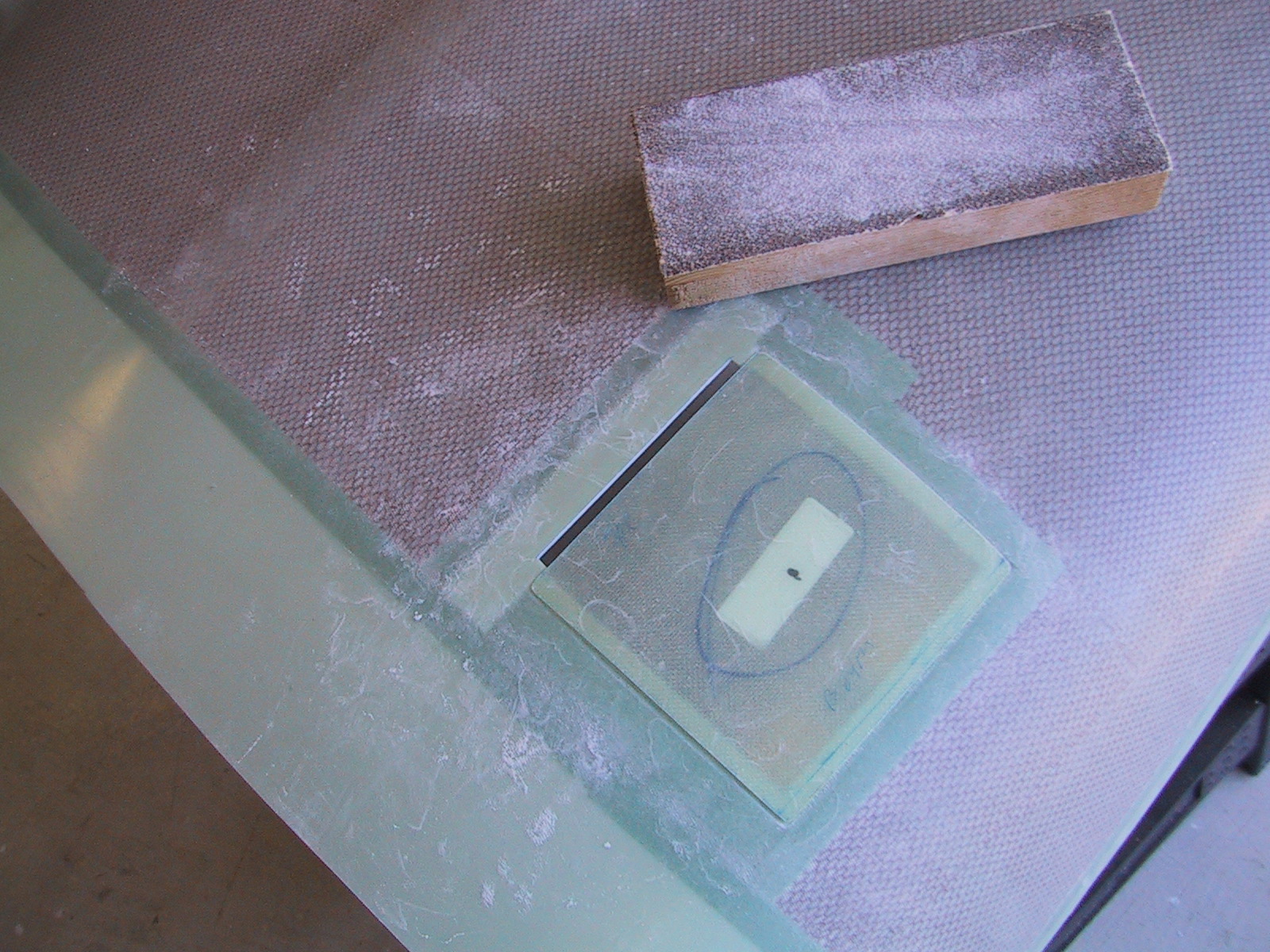

The oil door is now sanded to size.
-
Test fit of the oil door hinge - spacers will be needed.
-

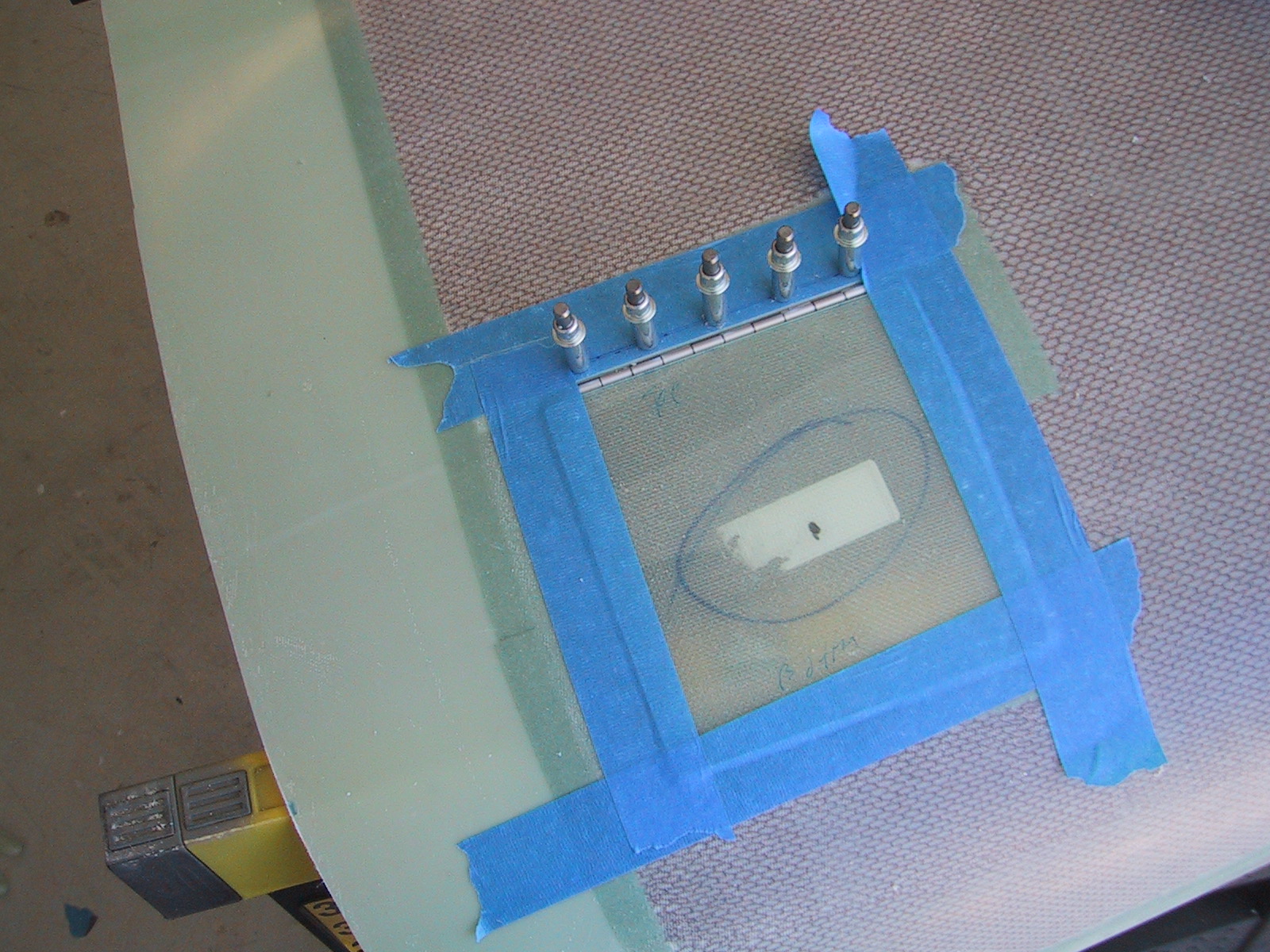

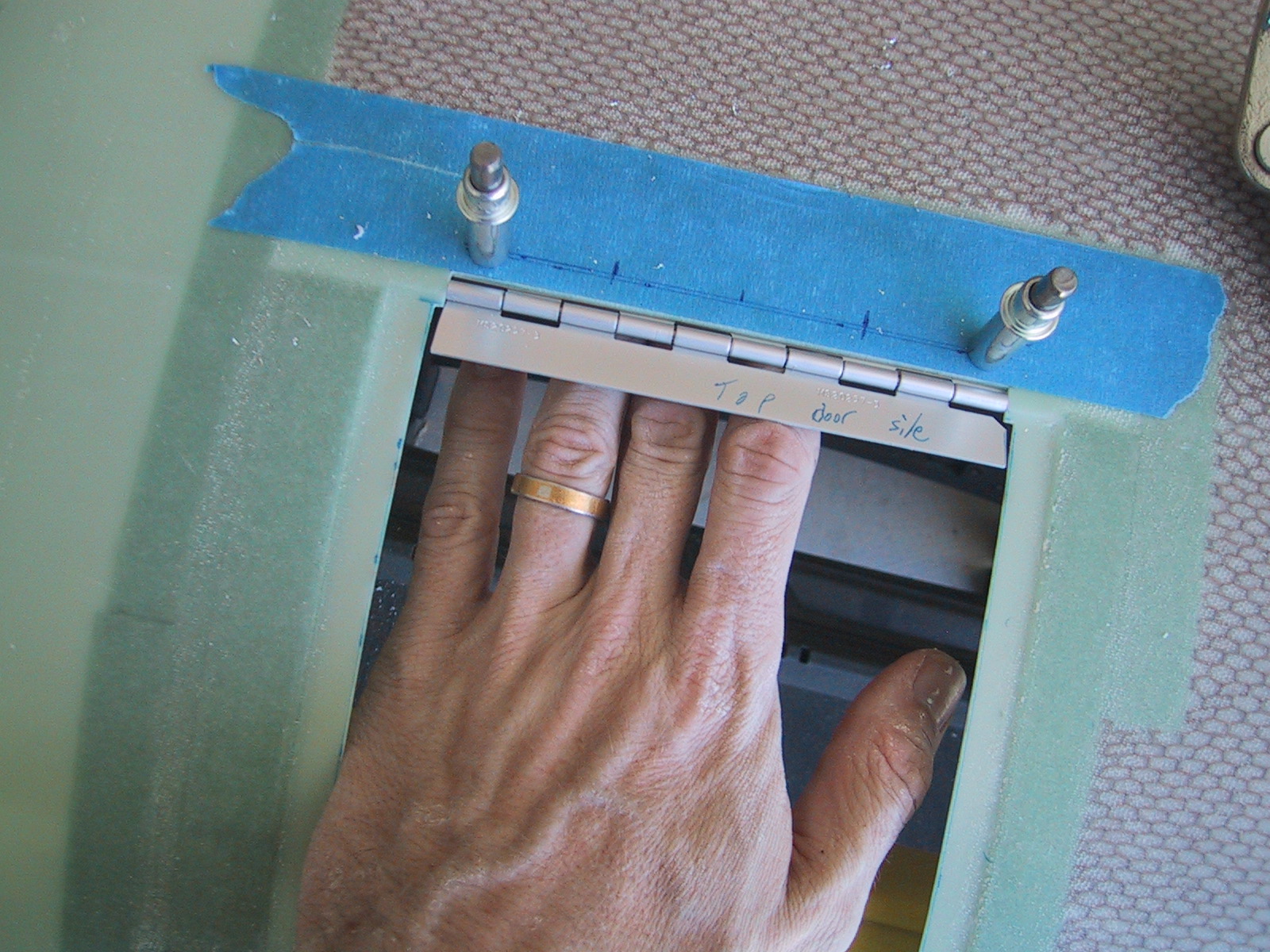

The hinge is drilled to the cowl, about to drill to the door.
-
A scary picture of me to keep the FAA happy. Notice the spacers on the oil door.
-

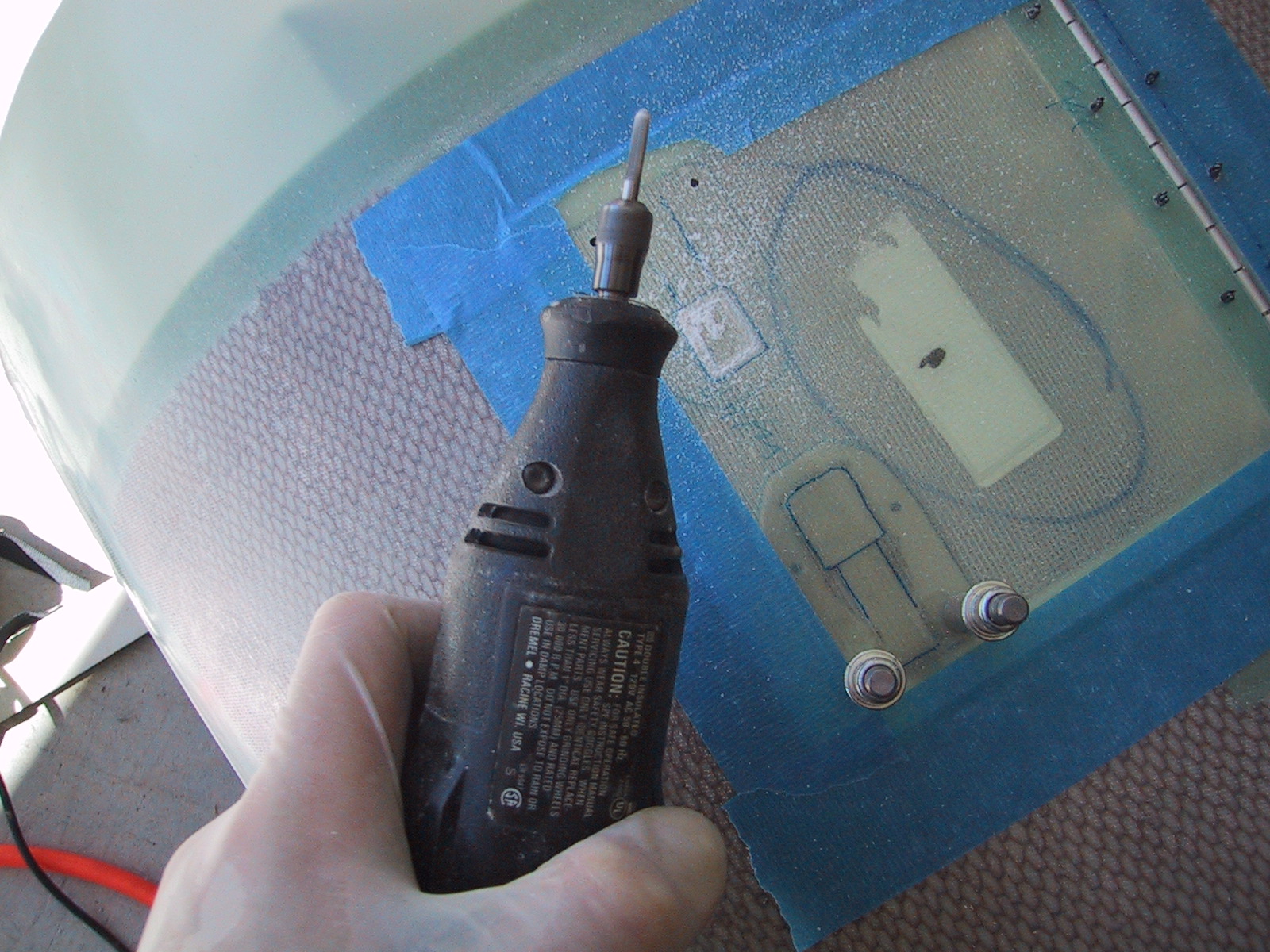

Begin cutting the hartwell latches in the oil door.
-

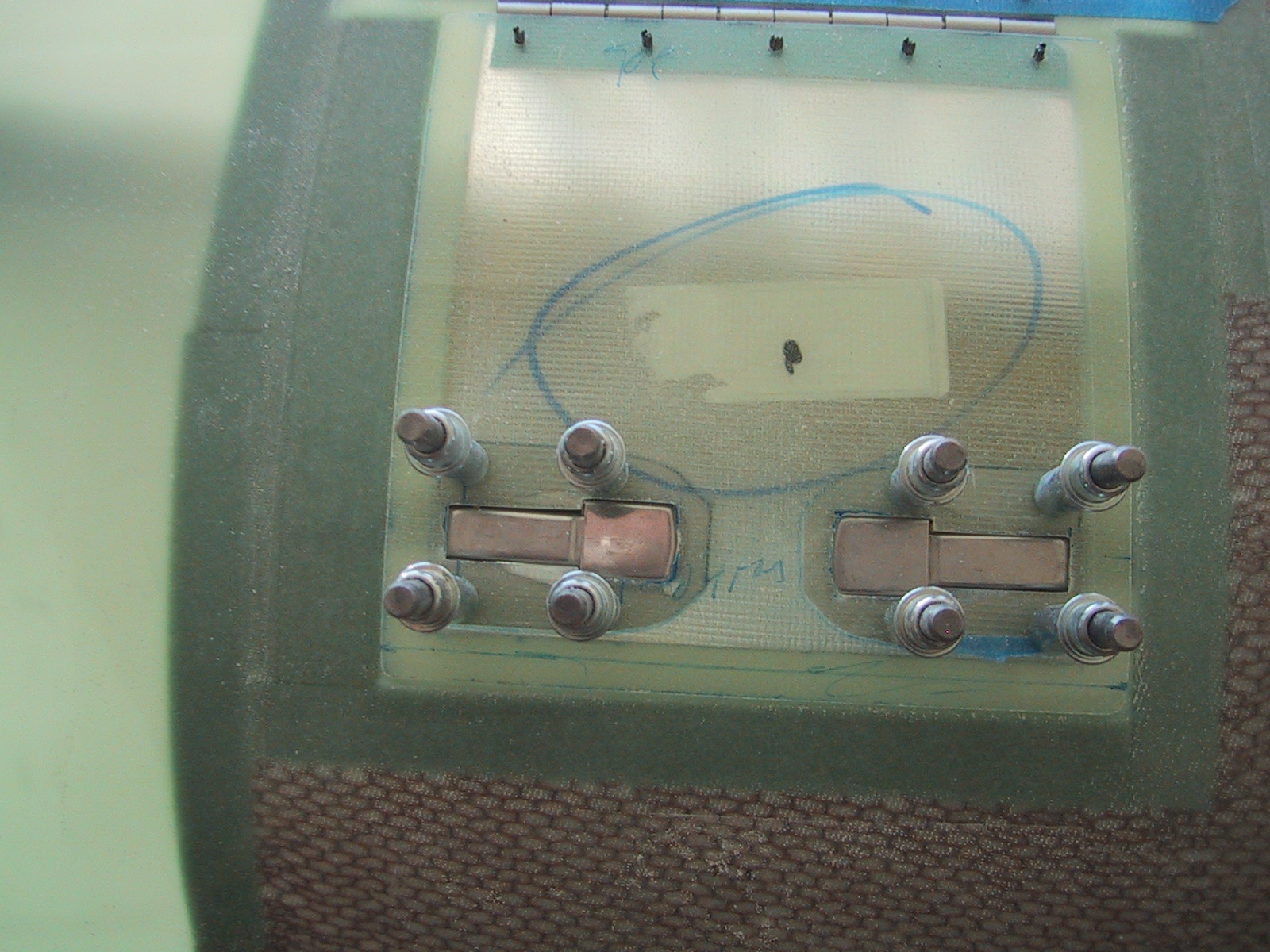

The latches are mostly done - a little bit more trimming.
-

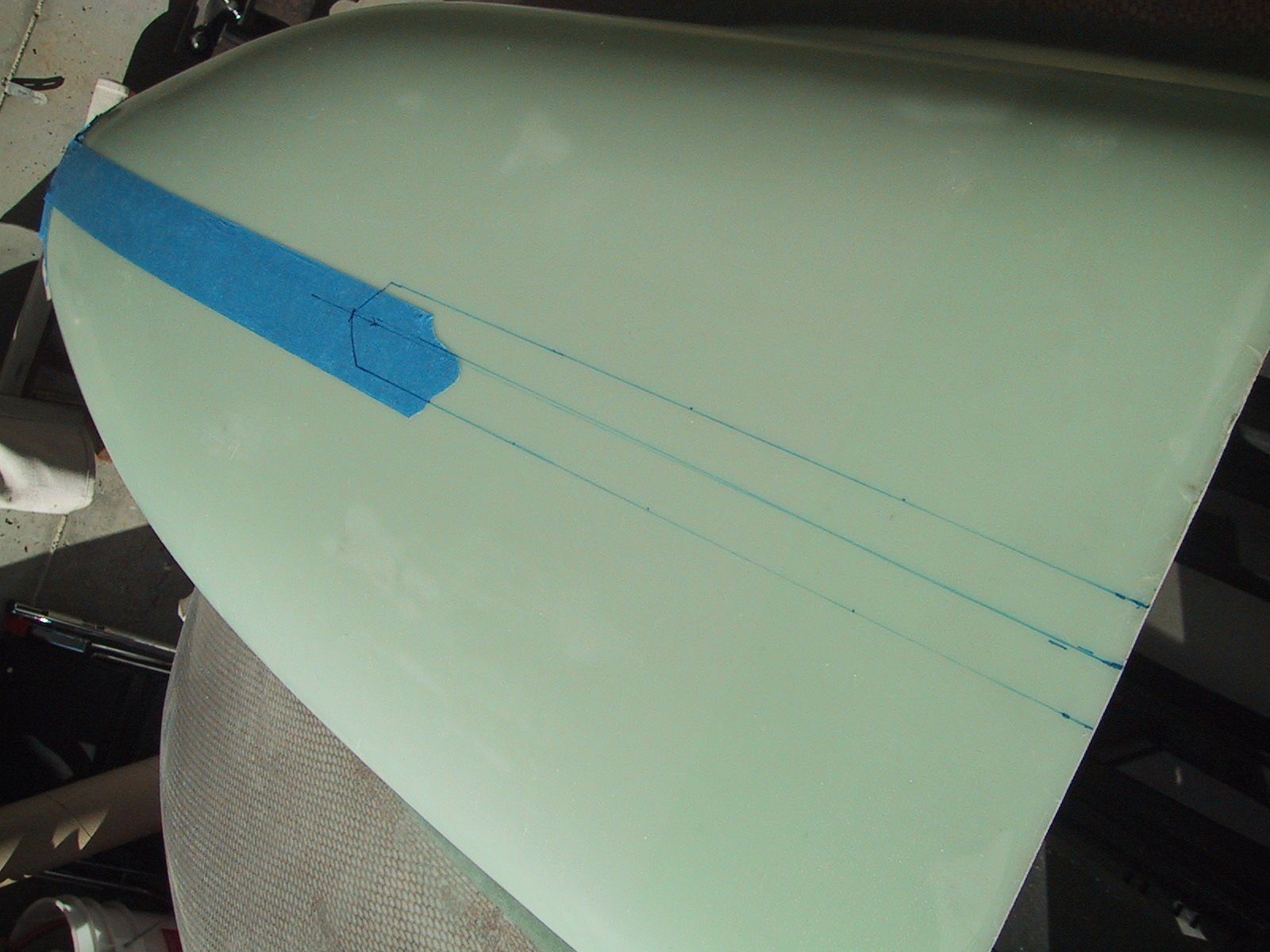

Making the initial cut in the cowl for the nose gear leg.
-
The bottom cowl can now slide on far enough to mark trim lines
