Build log date: Wednesday, August 25, 2004
-
More nutplate rivets.

-

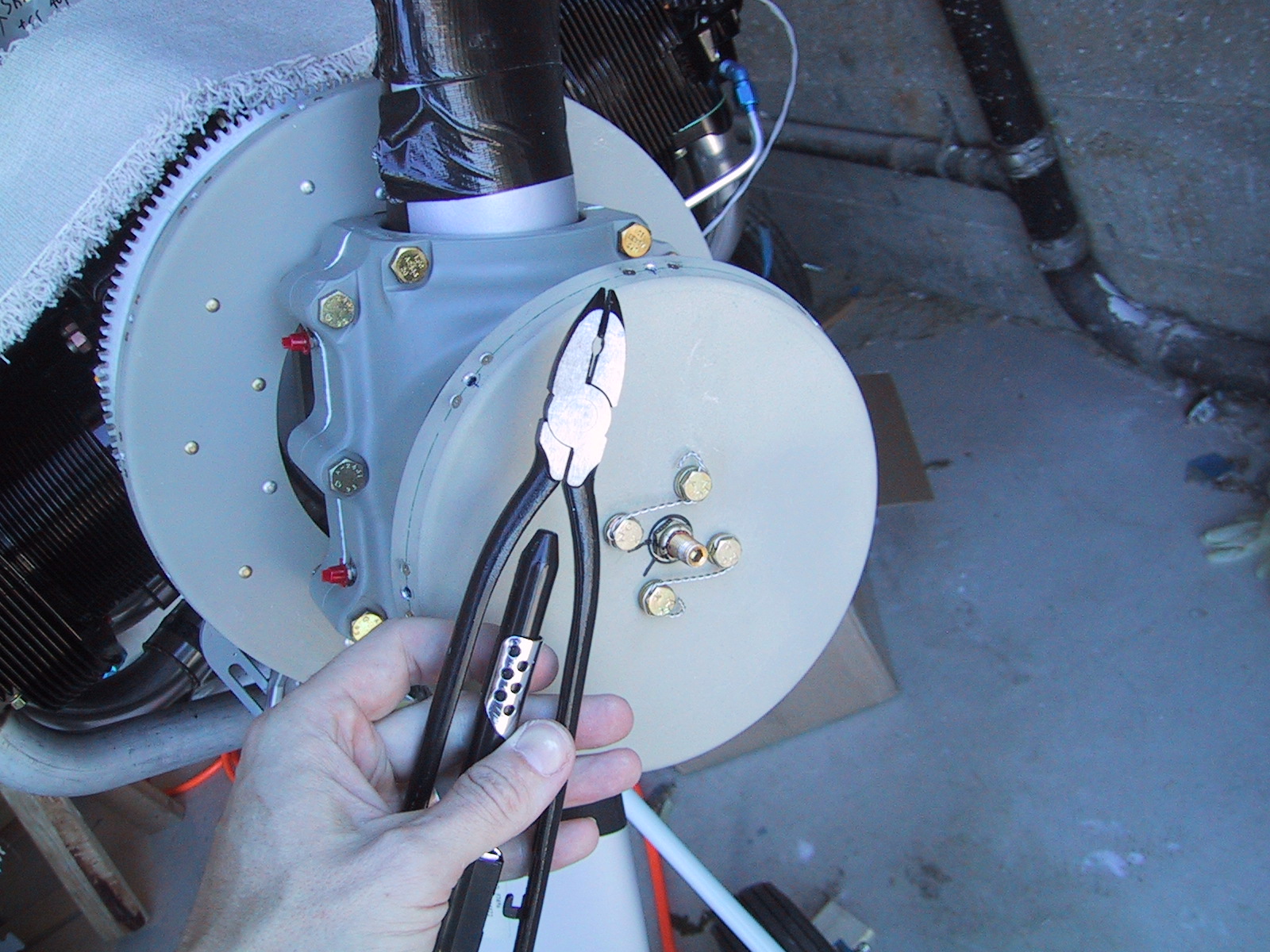

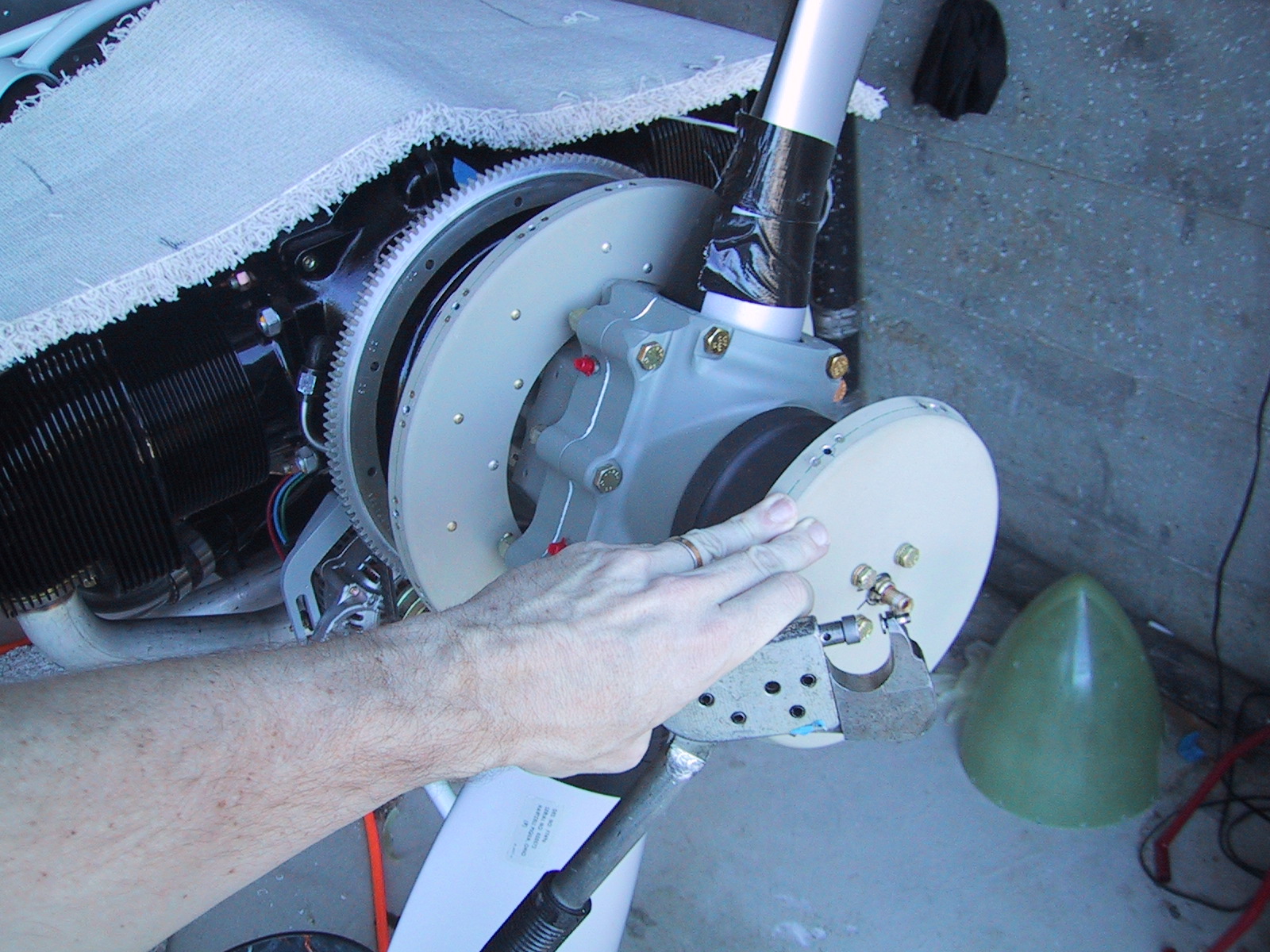

Torque and safety the forward spinner bulkhead.

-

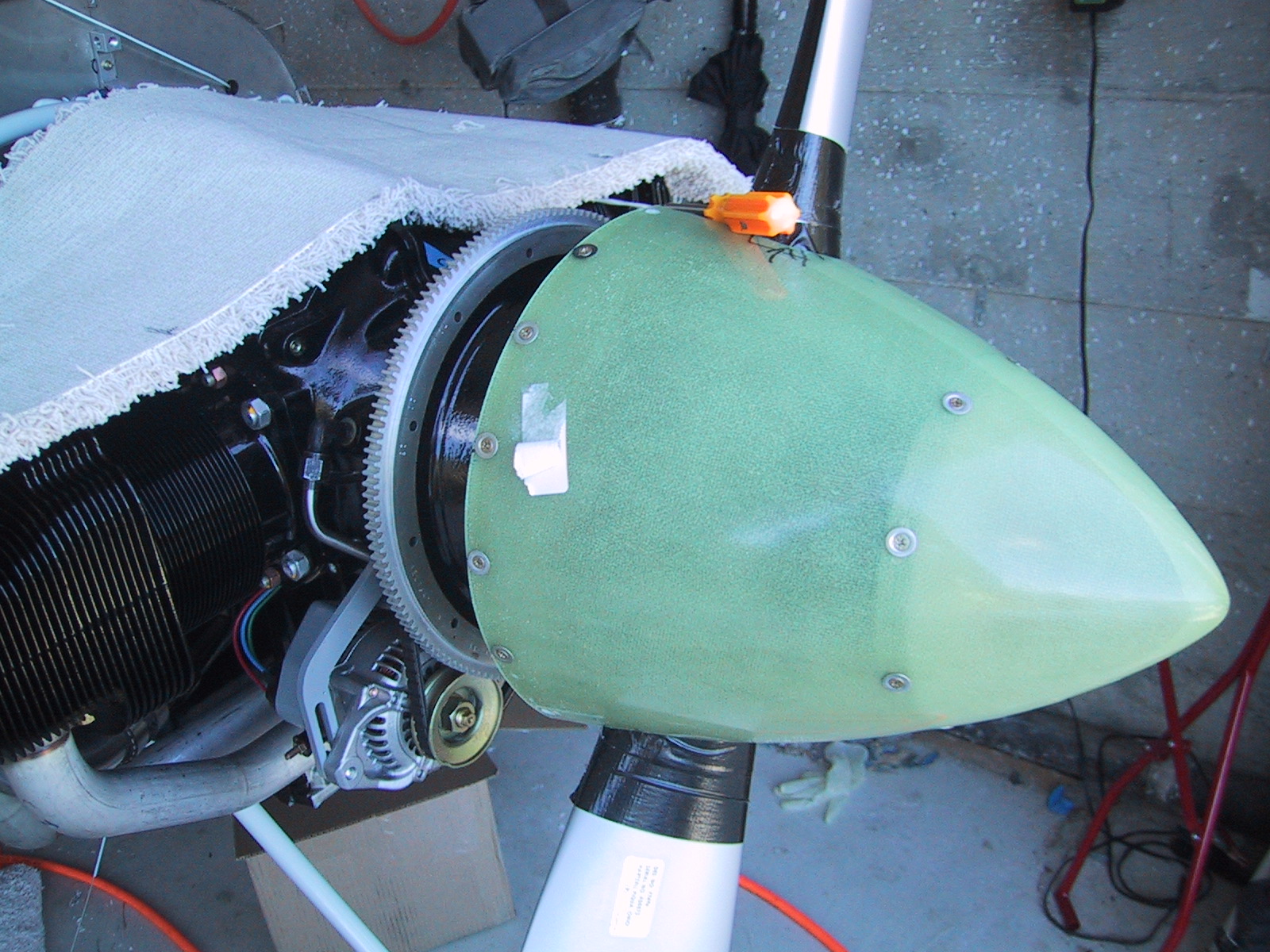

Test out all the nutplates by torquing all the screws.

-

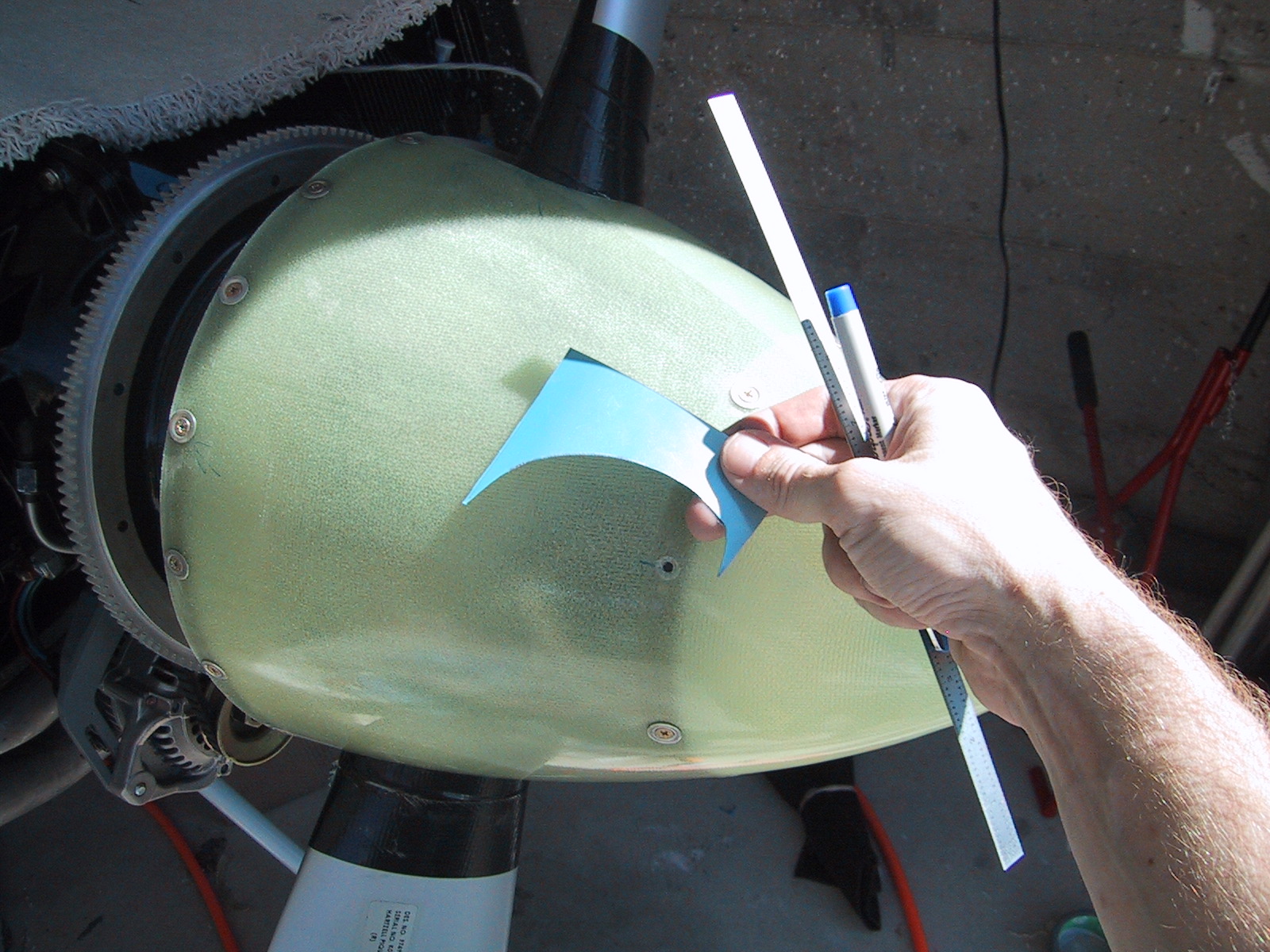

I started with a cardboard template then moved up to this .016 aluminum template for the aft cutout fill piece. Eventually I'll transfer this to .040.

-

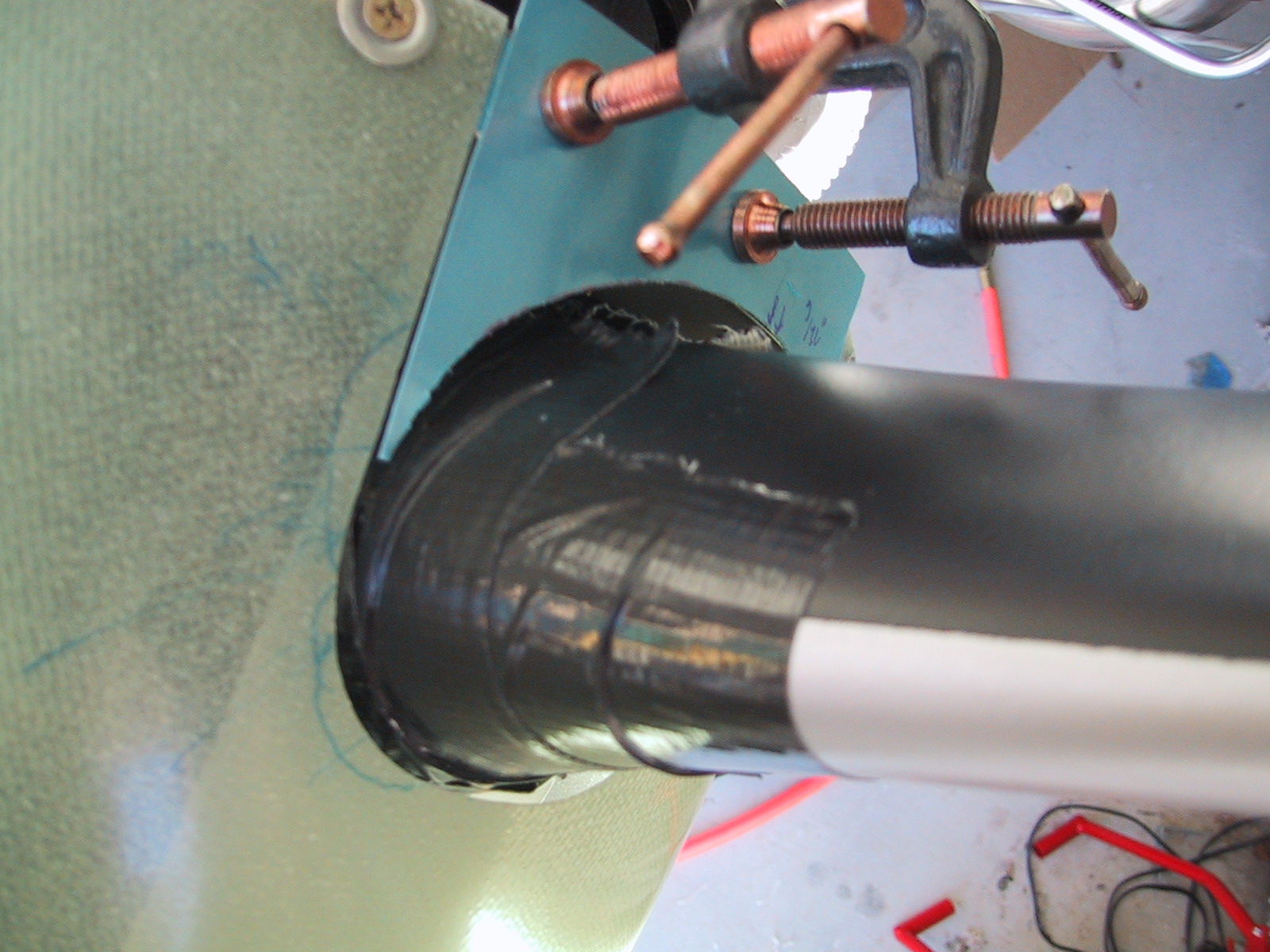

I slid the aft filler back a bit to get an idea of how much trimming is needed for the fine pitch condition.
