Build log date: Wednesday, August 18, 2004
-

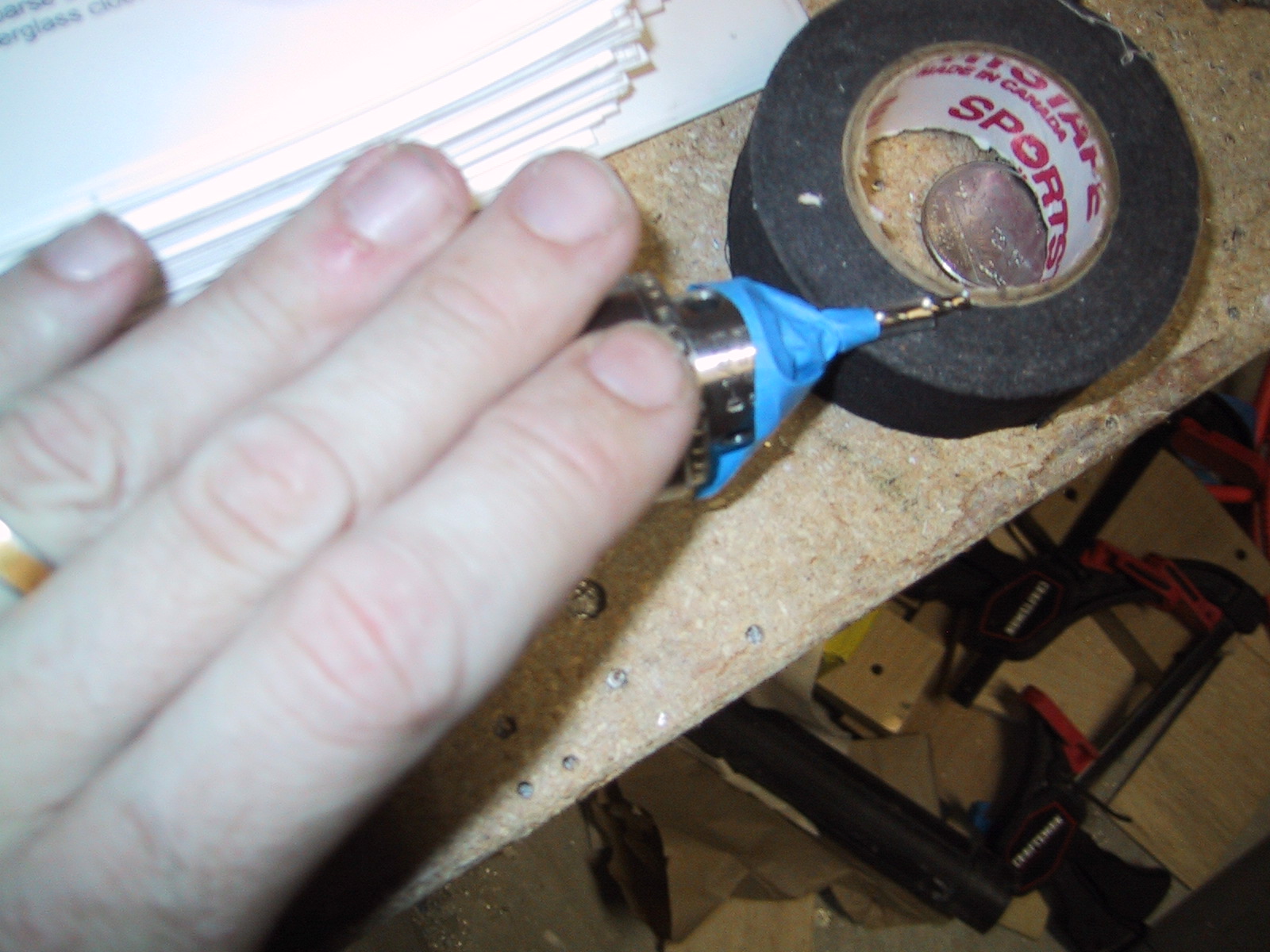

Using a bit of plastic tube as a drill spacer for the #42 bit when drilling the fiberglass.

-

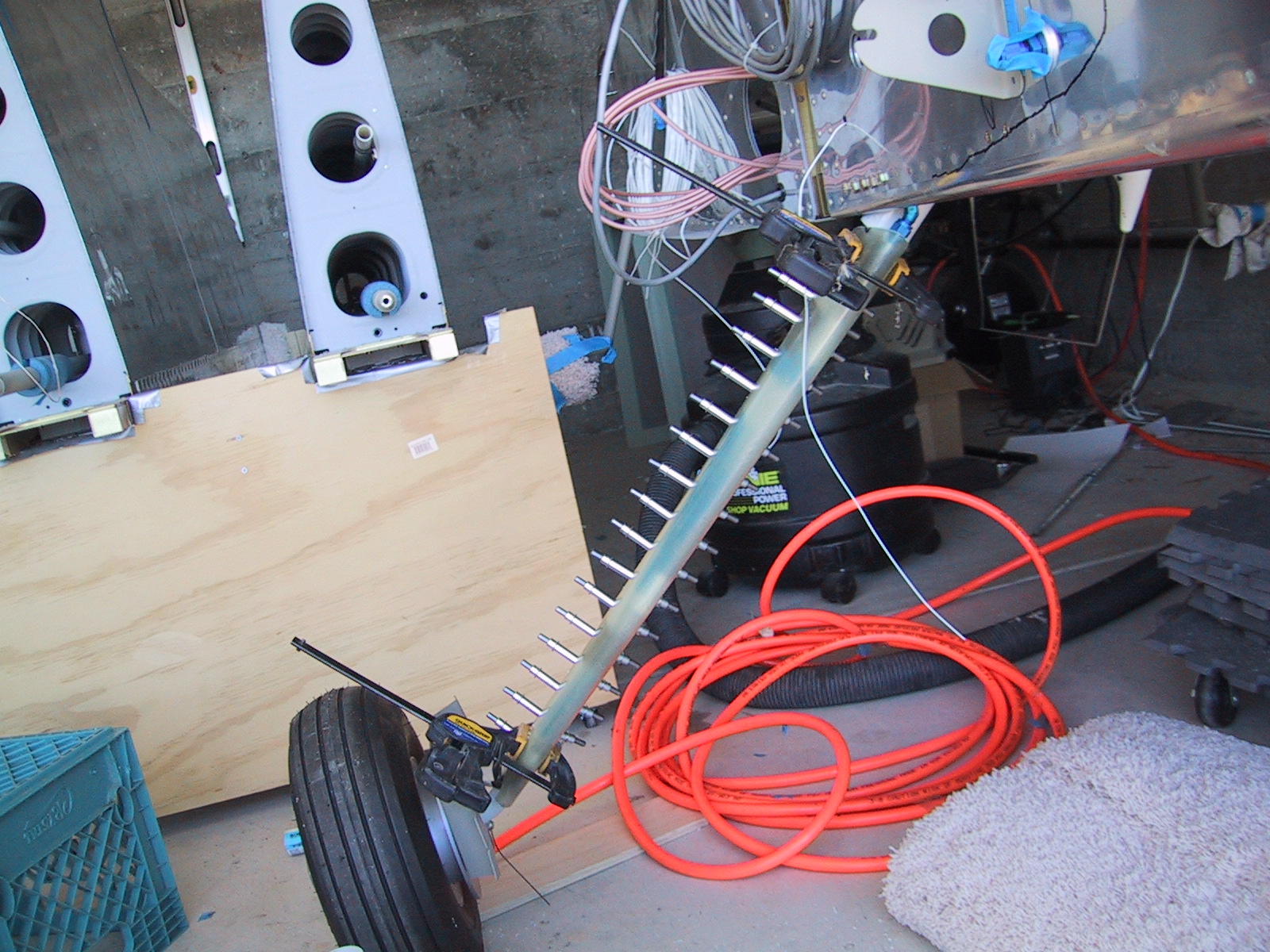

Pretty - the fairing is now drilled to the hinges.

-

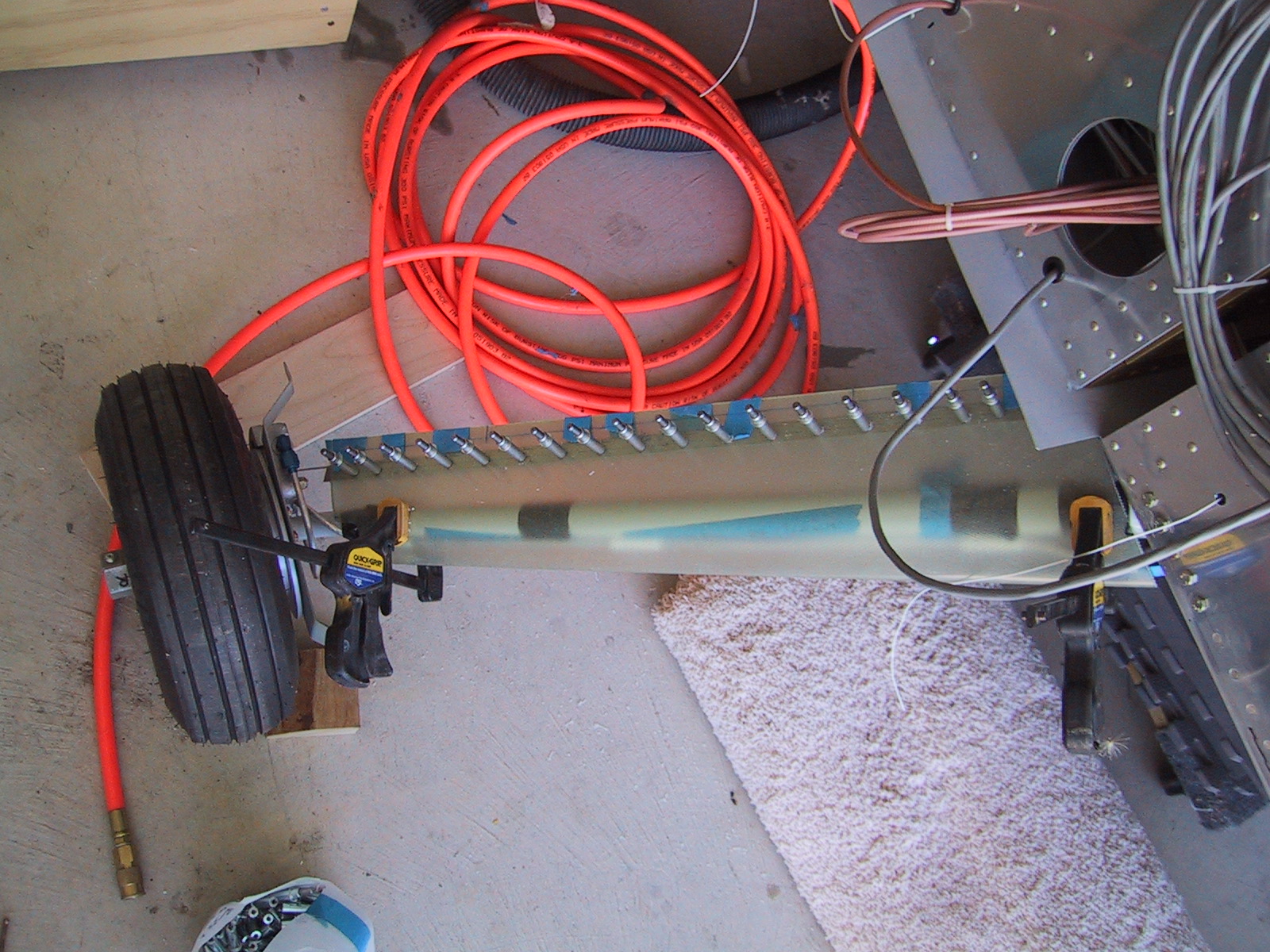

Photo from above.

-

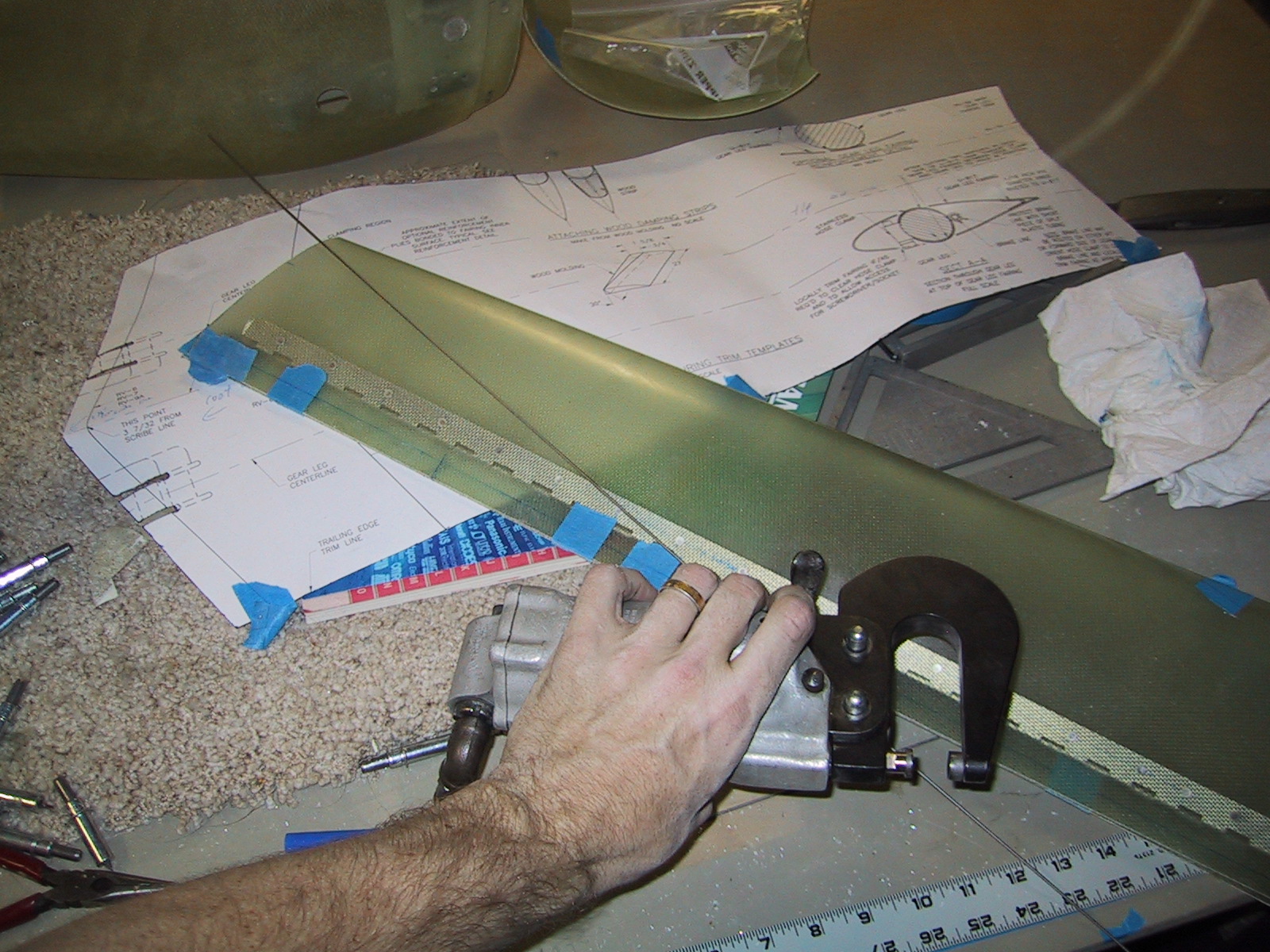

Riveting the hinges to the fairings (after upping the sizes to #40).

-

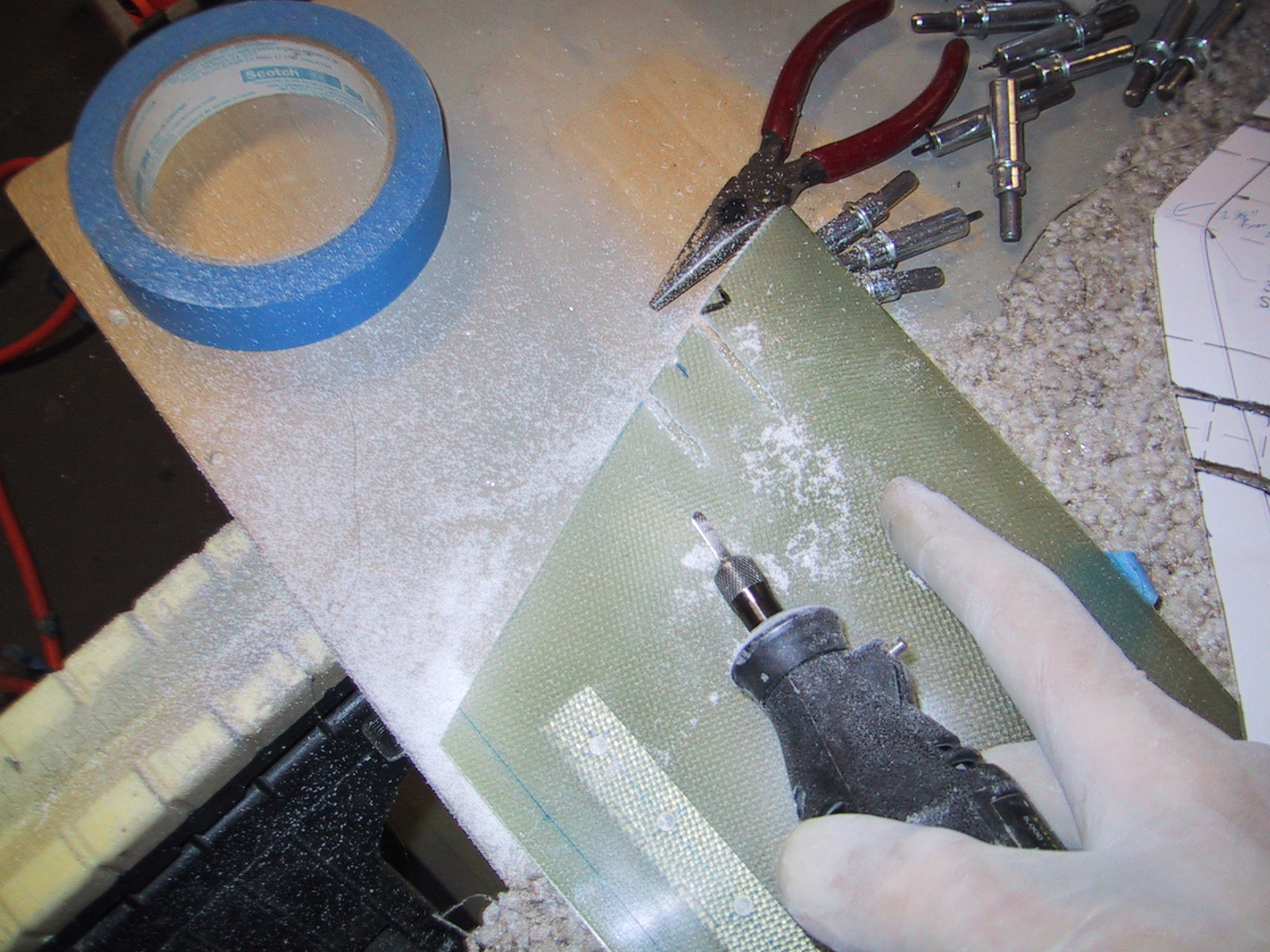

Cutting the slots so the fairing can get clamped to the gear leg.

-

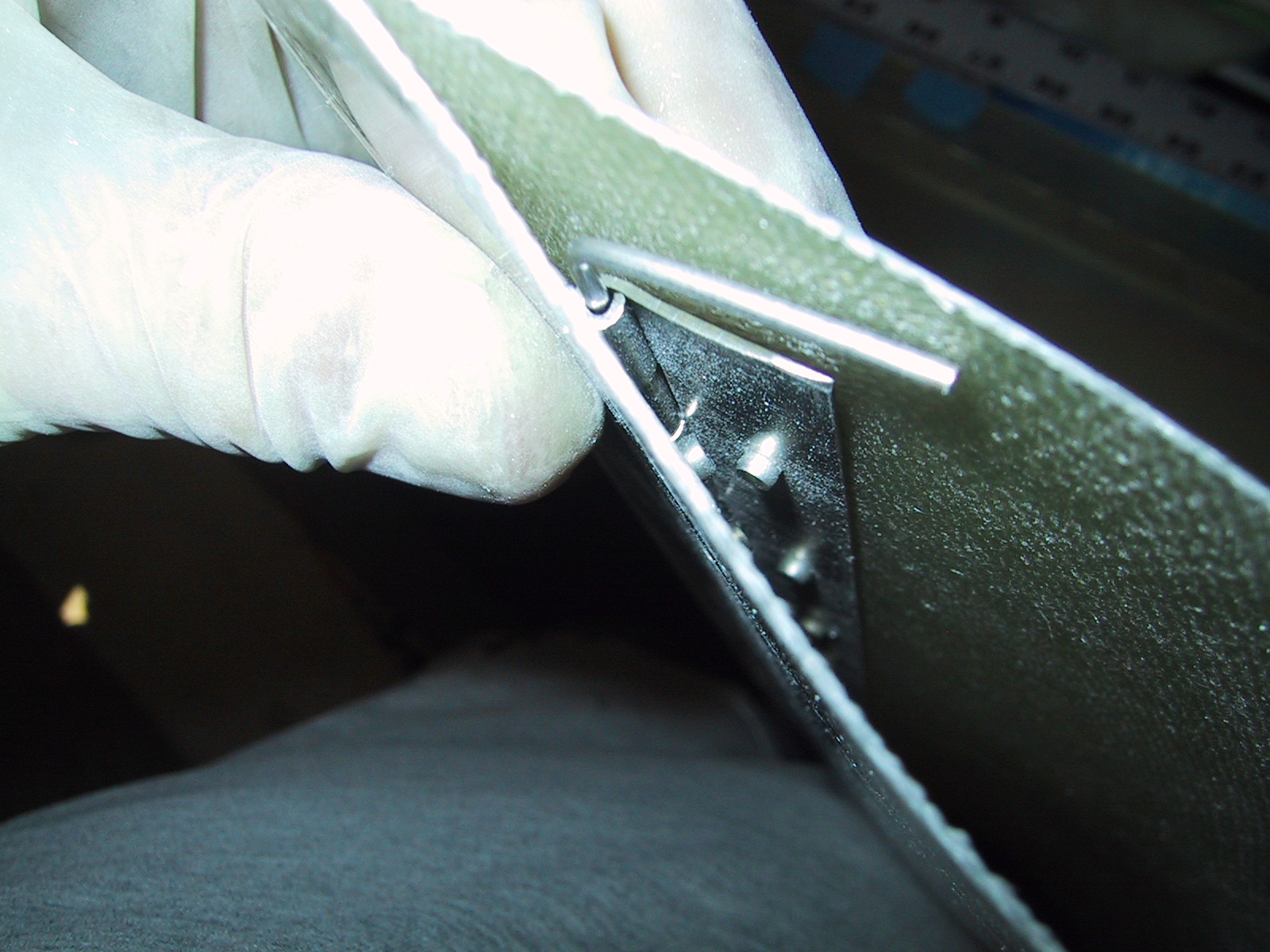

Bent and installed the hinge pins.

-

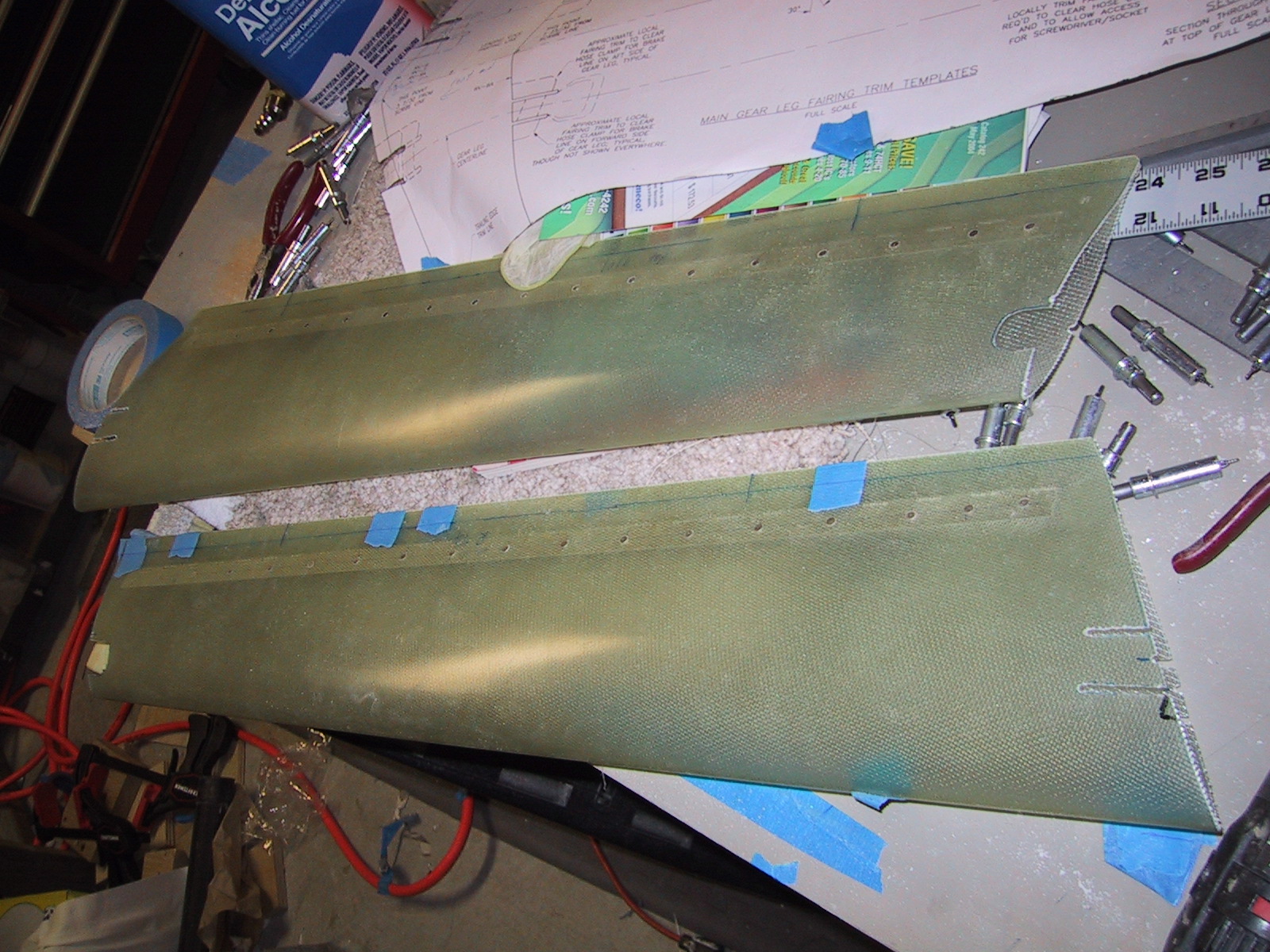

The fairings are virtually done.

-

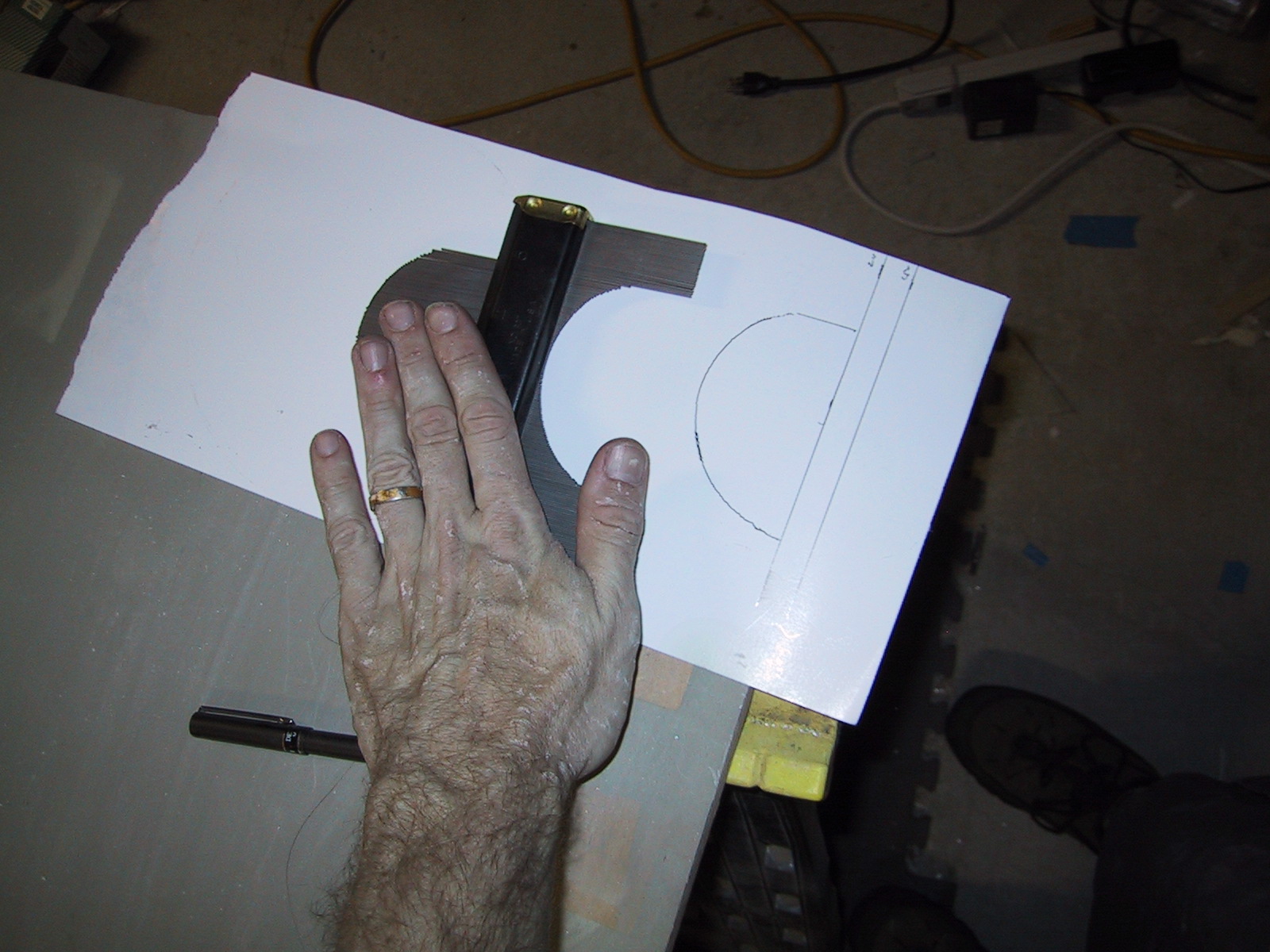

Using a copycat tool to get an initial idea of the cutout needed on the spinner.
