Build log date: Sunday, August 01, 2004
-

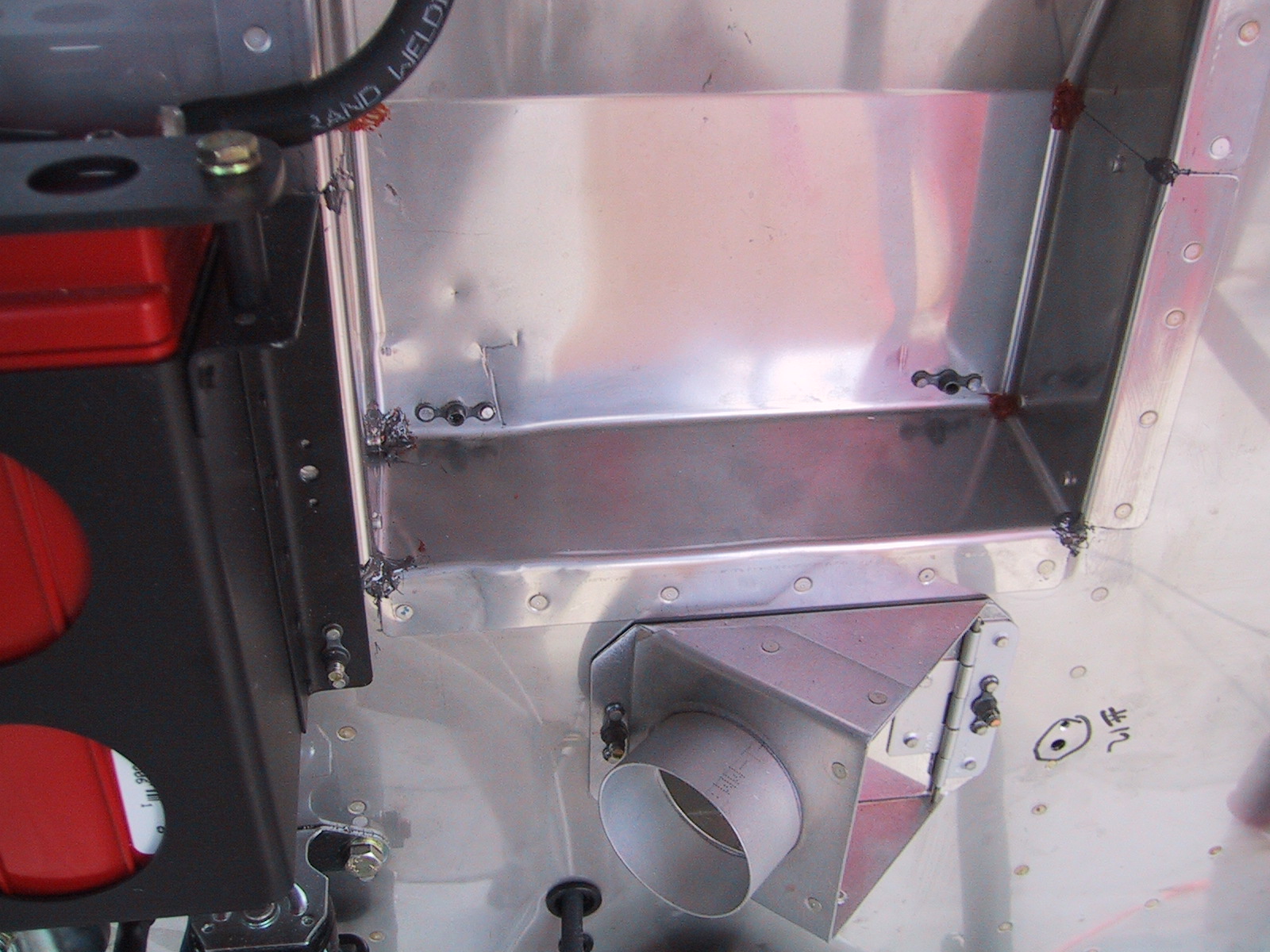

Yuck - the proseal returns - for sealing a few gaps in the firewall recess.

-

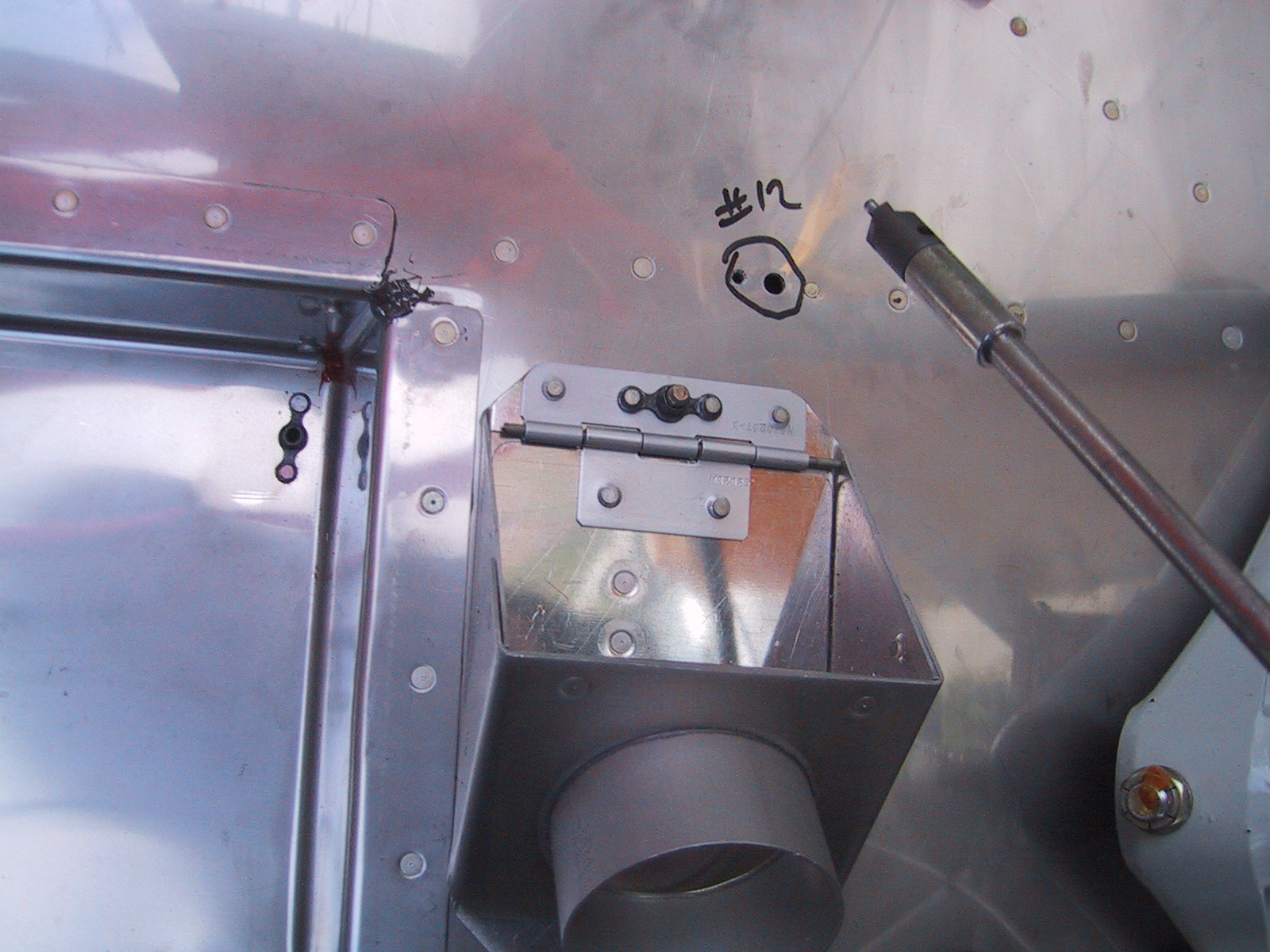

Drill/countersink and install a #12 nutplate for the vent hose.

-
Proseal in these corners.

-

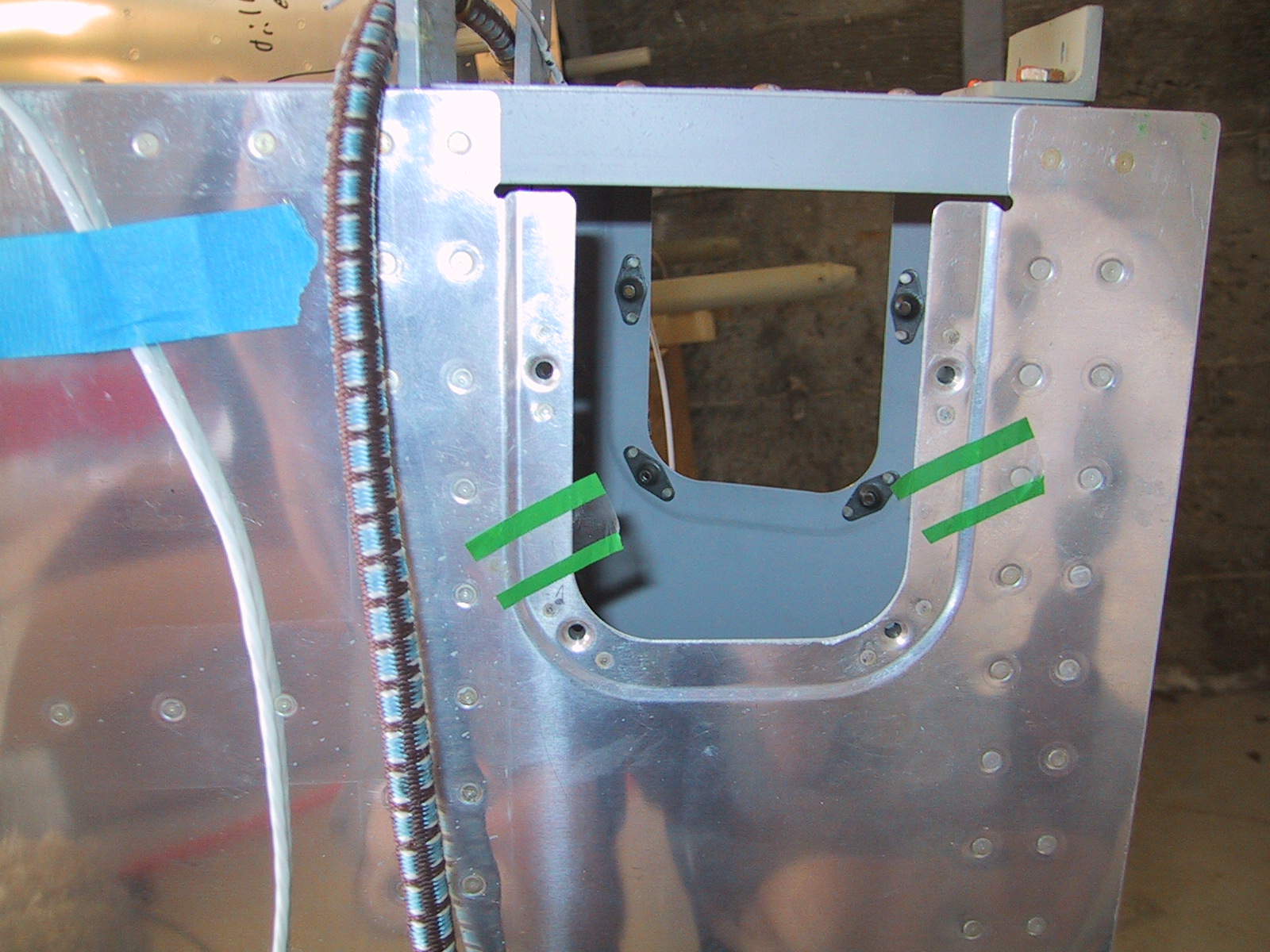

Using my new (cheap Boeing surplus) hand squeezer, finally installed these aft nutplates.

-

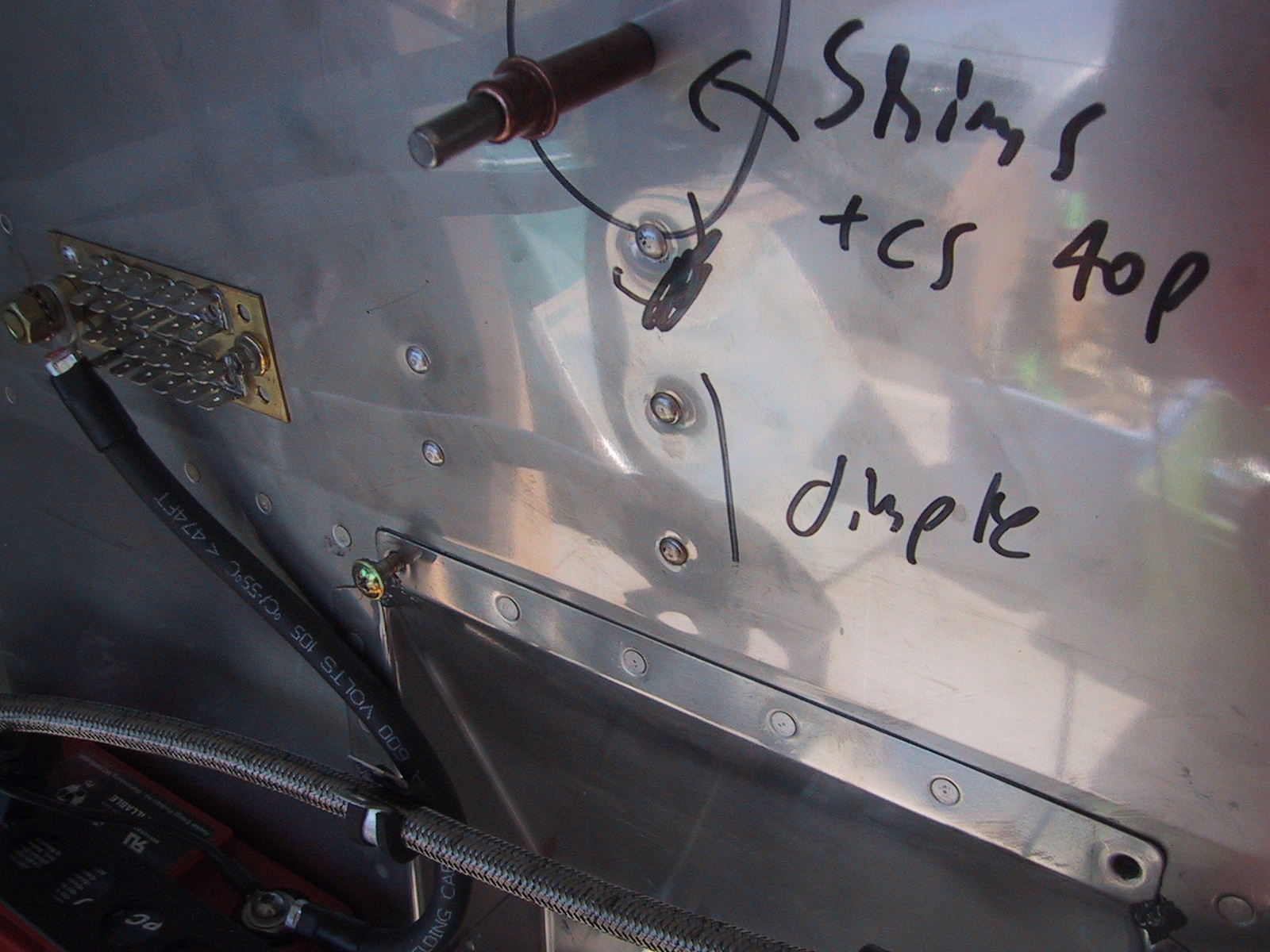

Install a few rivets that will be inaccessable once the engine is in.

-

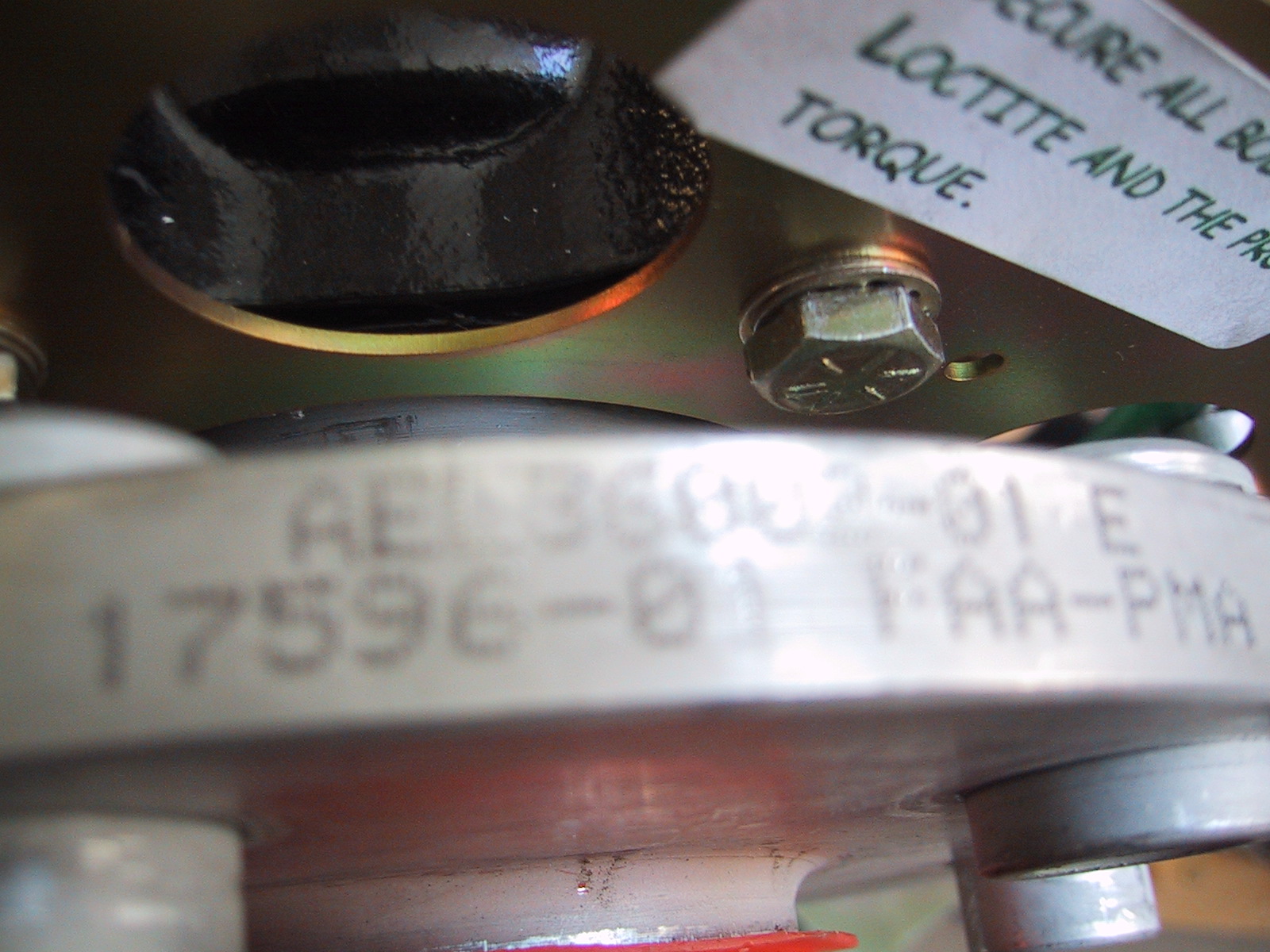

Take a picture of this crank part number - because it will be hard to see once the prop is on.

-

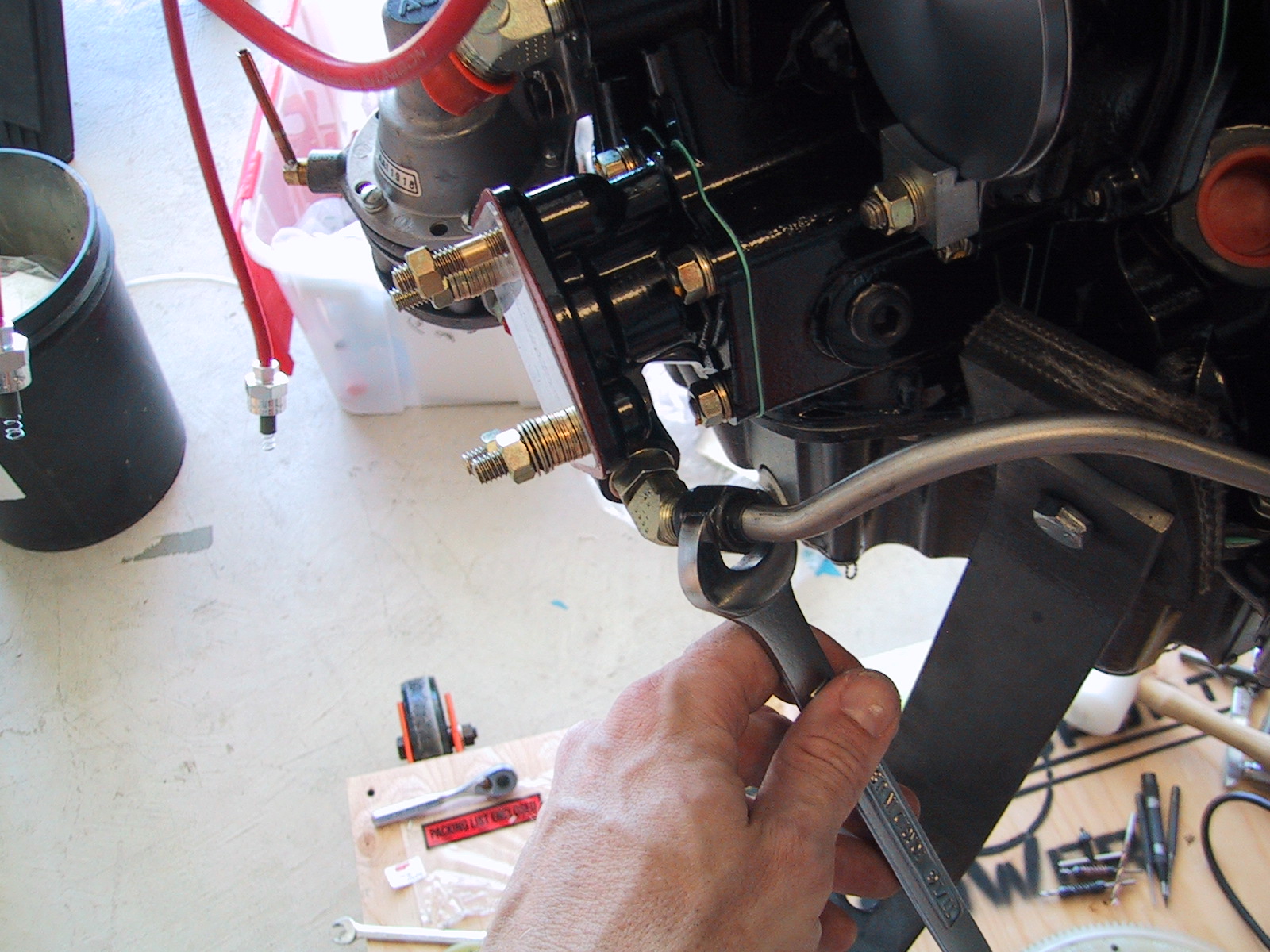

Remove the governor oil line temporarily - so I have access to bolt in the engine to mount bolts.

-

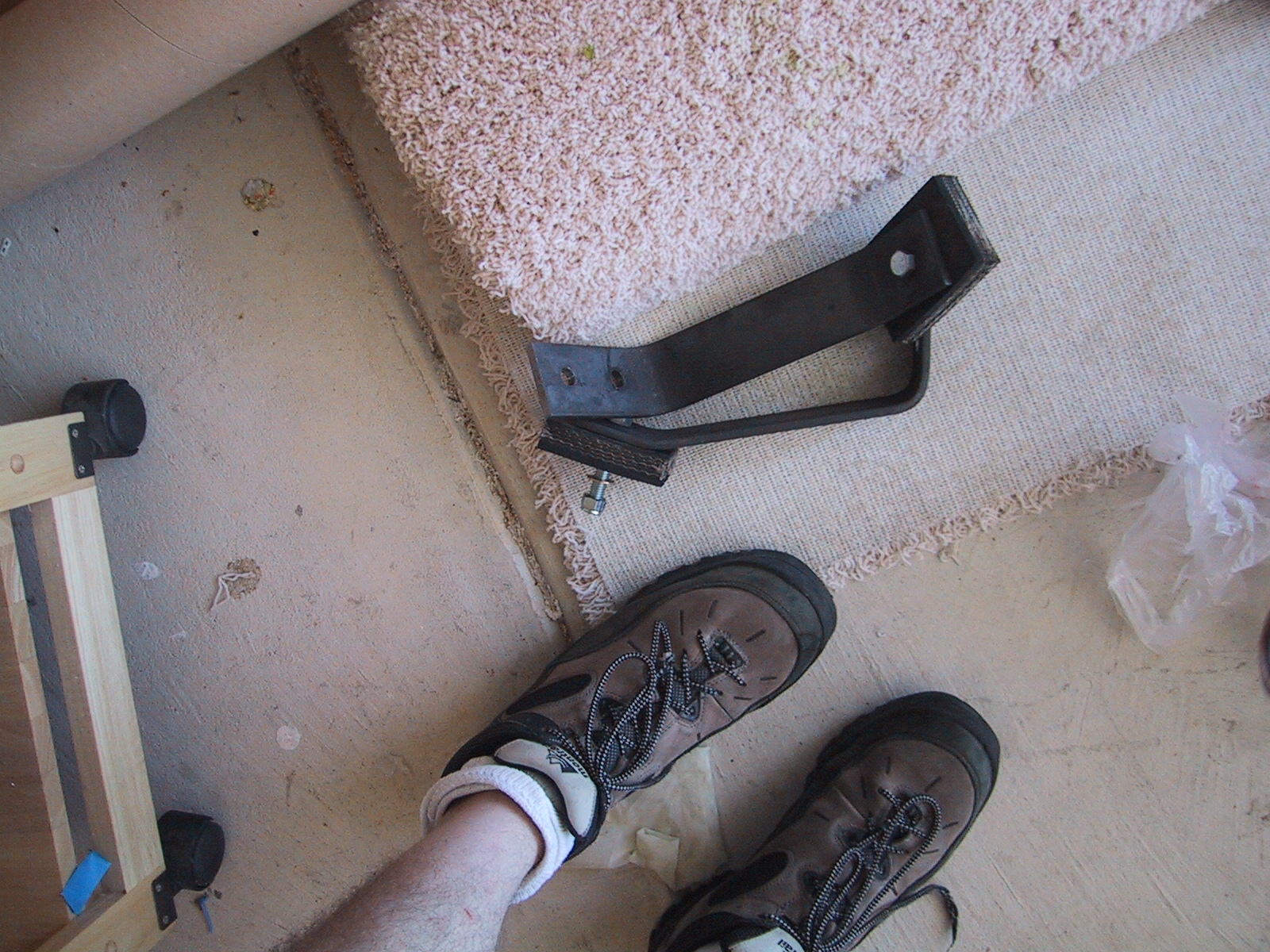

Remove the steel shipping supports from the engine.

-

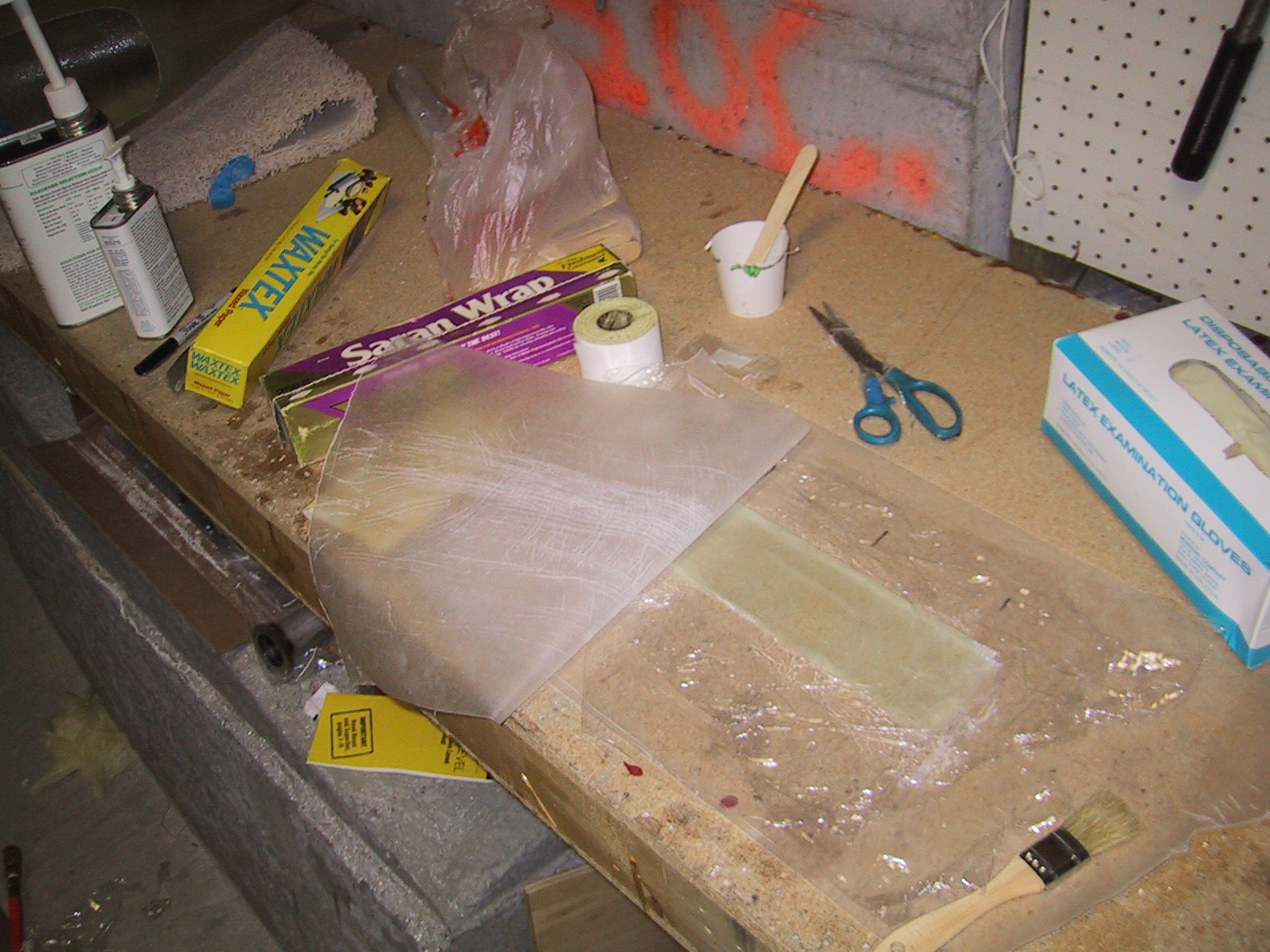

Make some fiberglass tapes to fill in the nose gear fairing. Kinda fun.

-

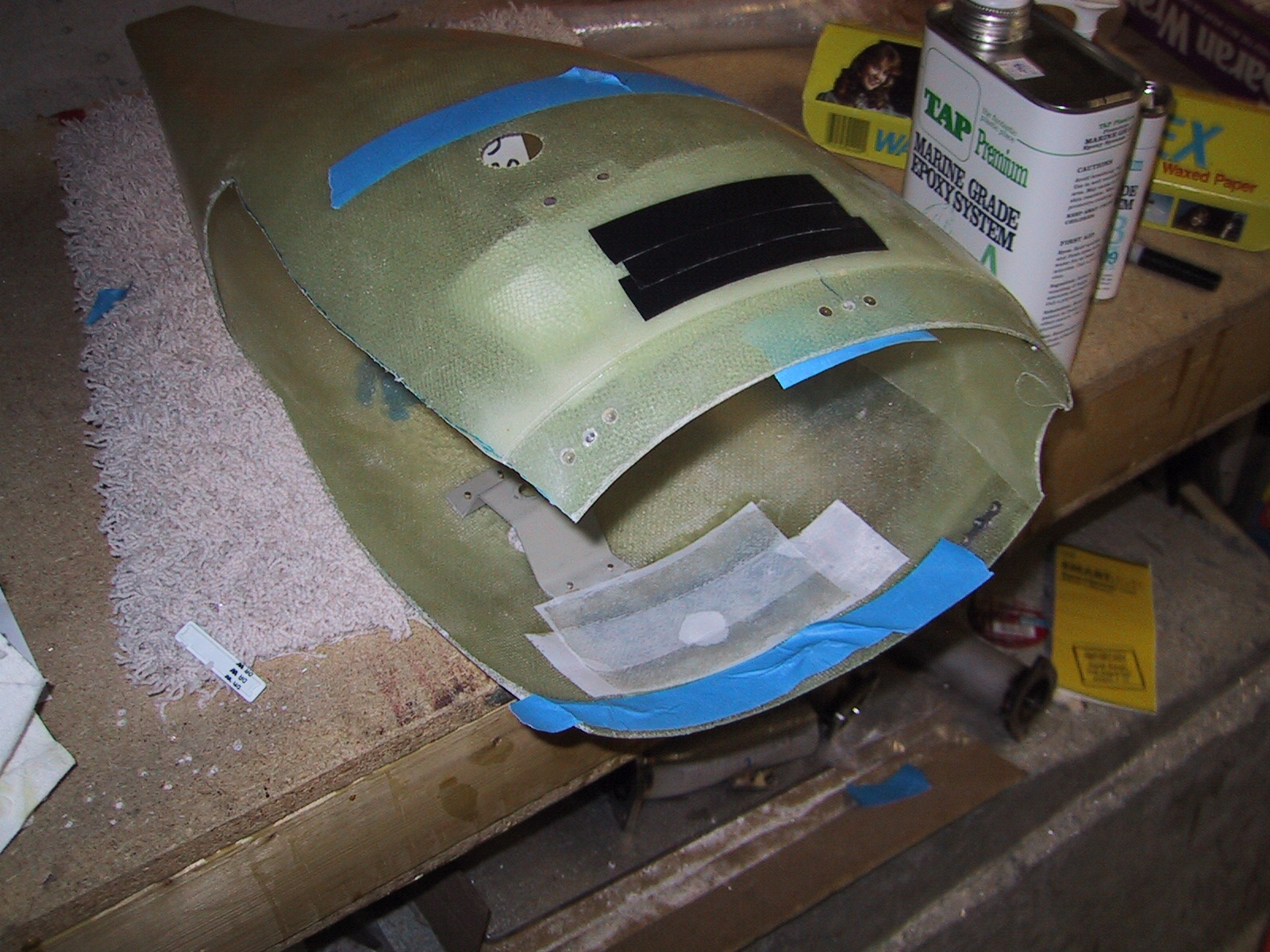

Install the tapes I made - with a bit of peel ply for a nice/bondable finish.
