Build log date: Tuesday, April 20, 2004
-

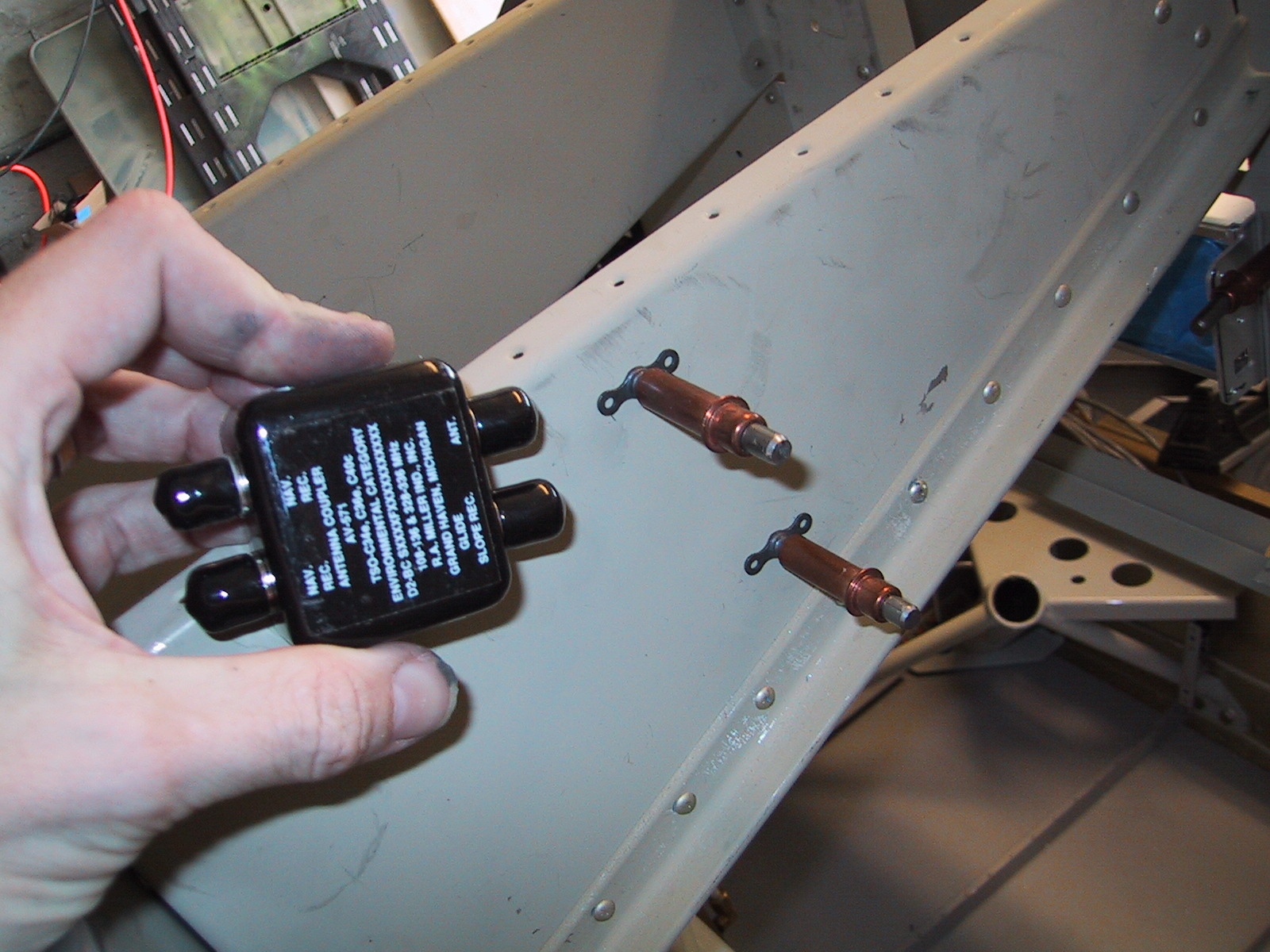

Installing nutplates to hold the nav antenna triplexer.
-
Installing the marker beacon receiver - however reading an IFR newsgroup makes me realize that my GPS can replace this. I'm also real tight for space in the spar wire passthroughs, so I don't want more RG-400. I'm not going to install this initially.
-

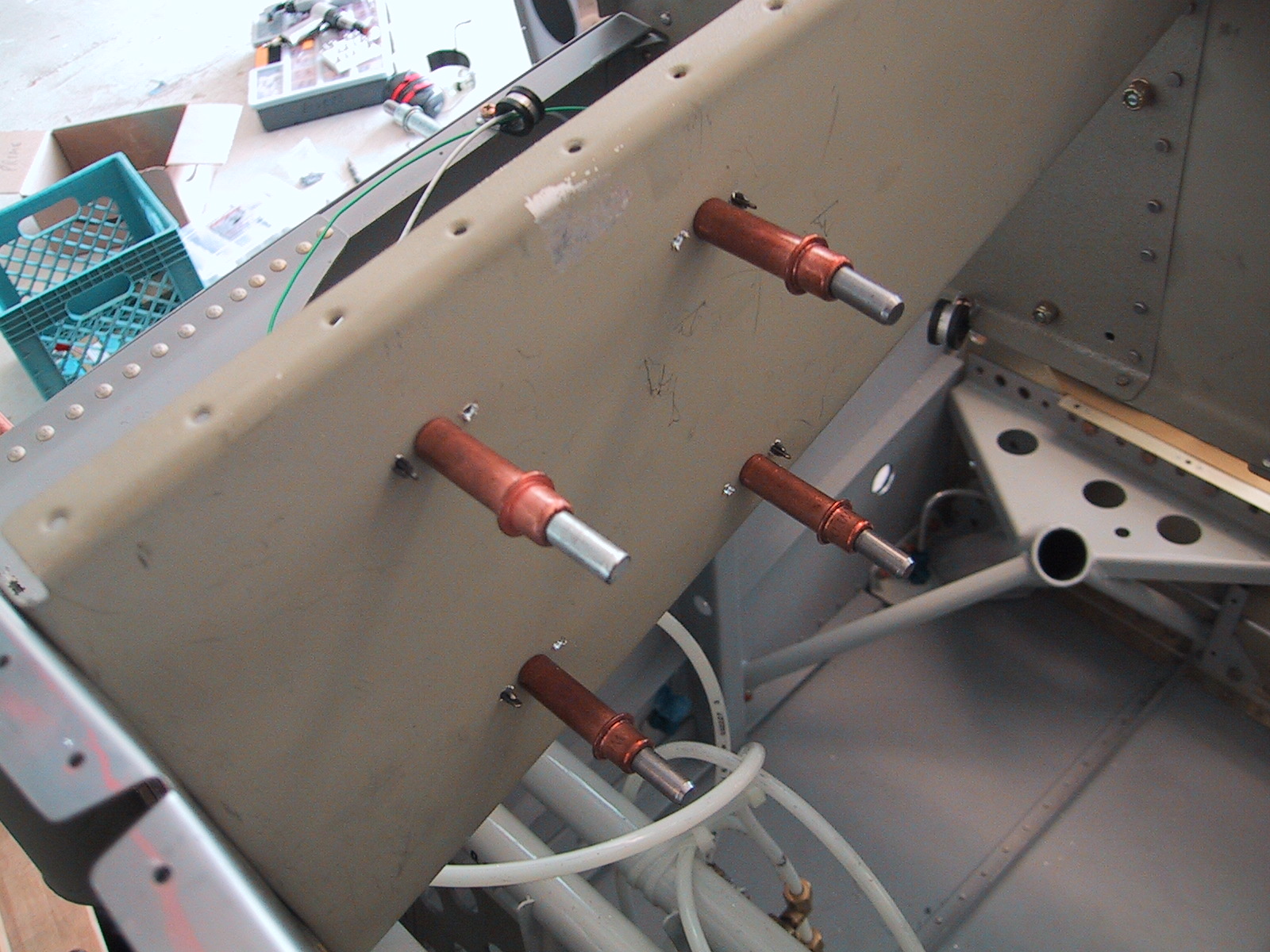

Nutplates for the soon to be unused receiver.
-

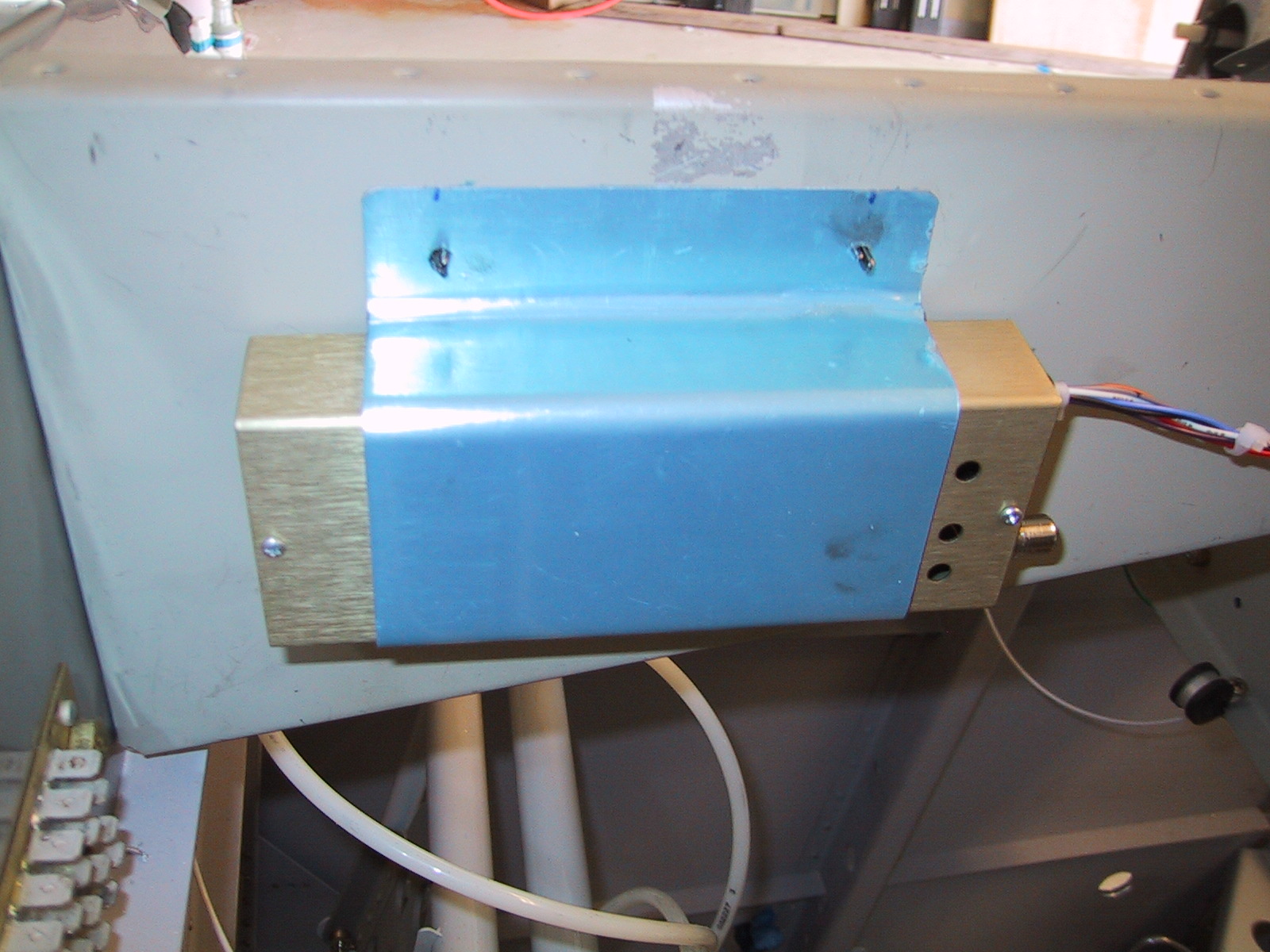

Install the Altrak under the left instrument panel deck.
-

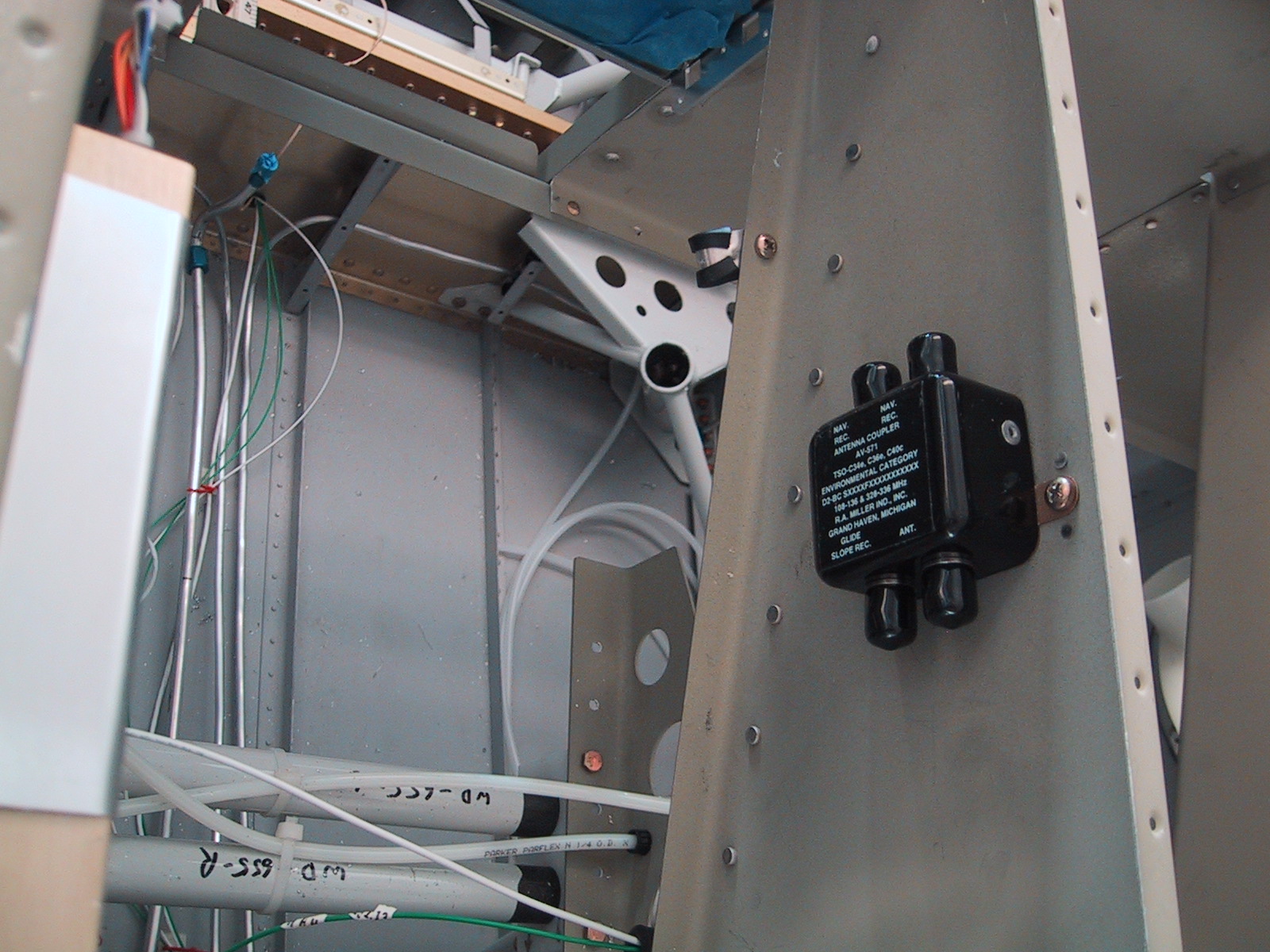

Triplexer installed.
-

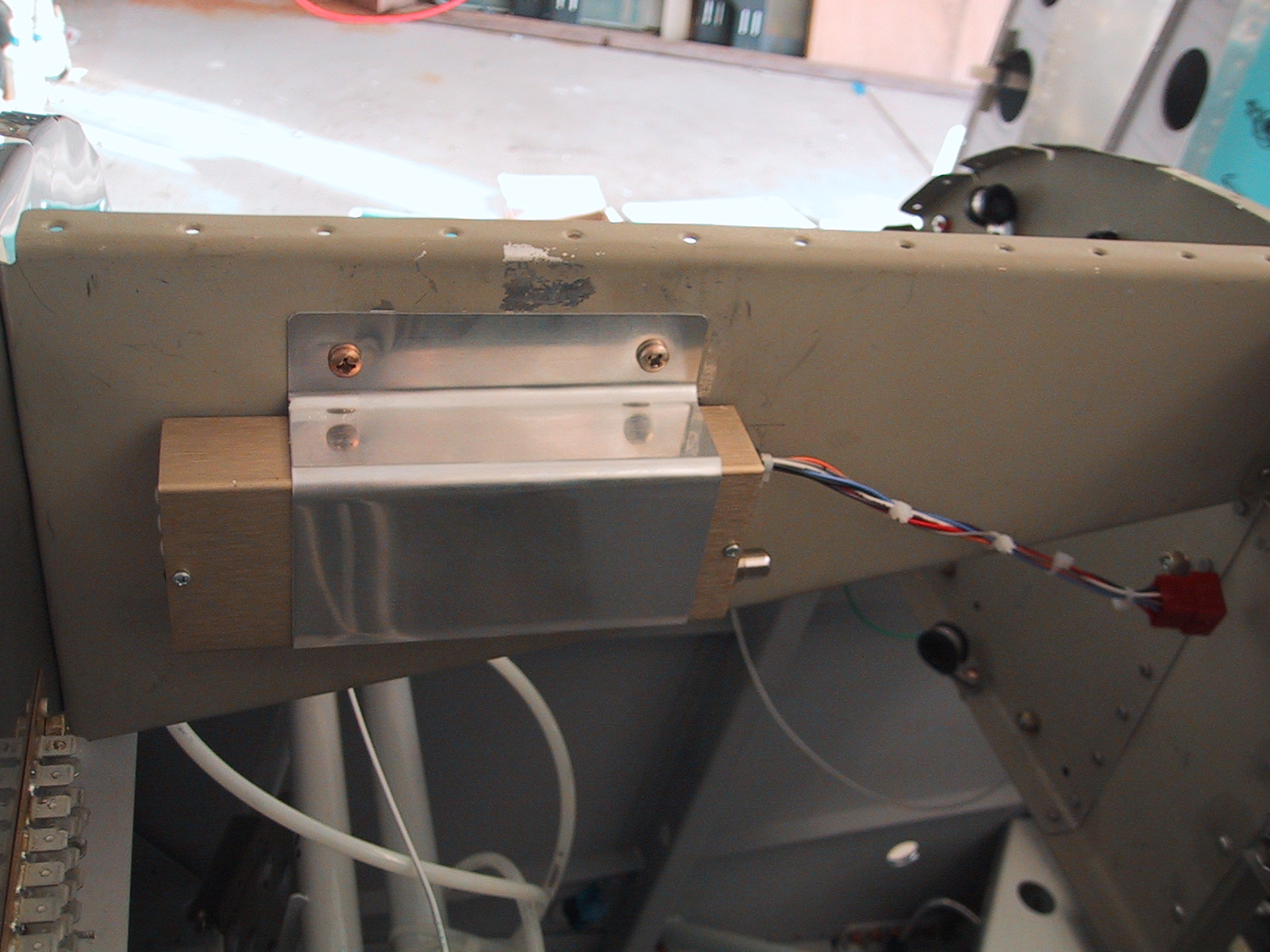

Marker beacon receiver installed.
-

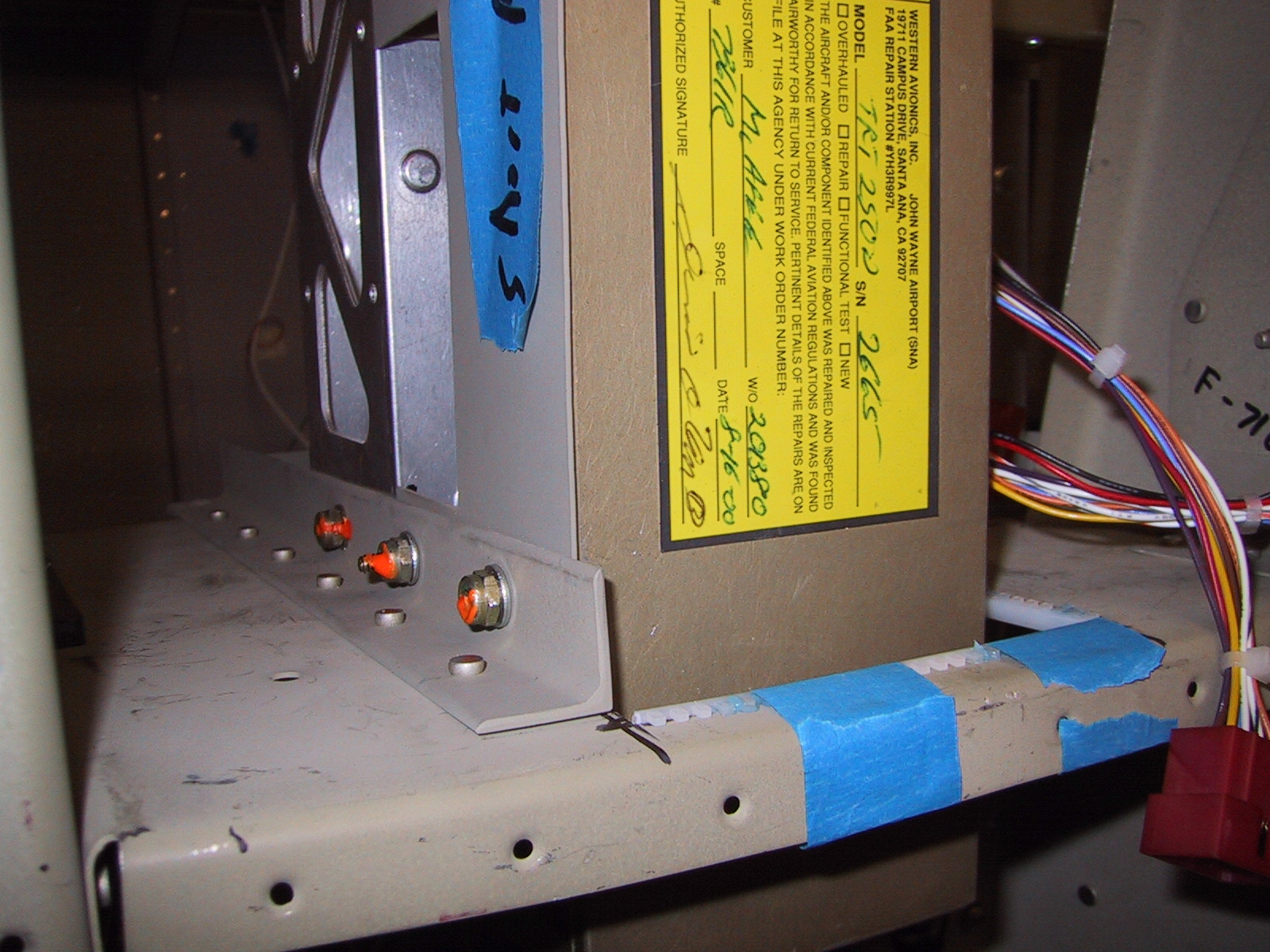

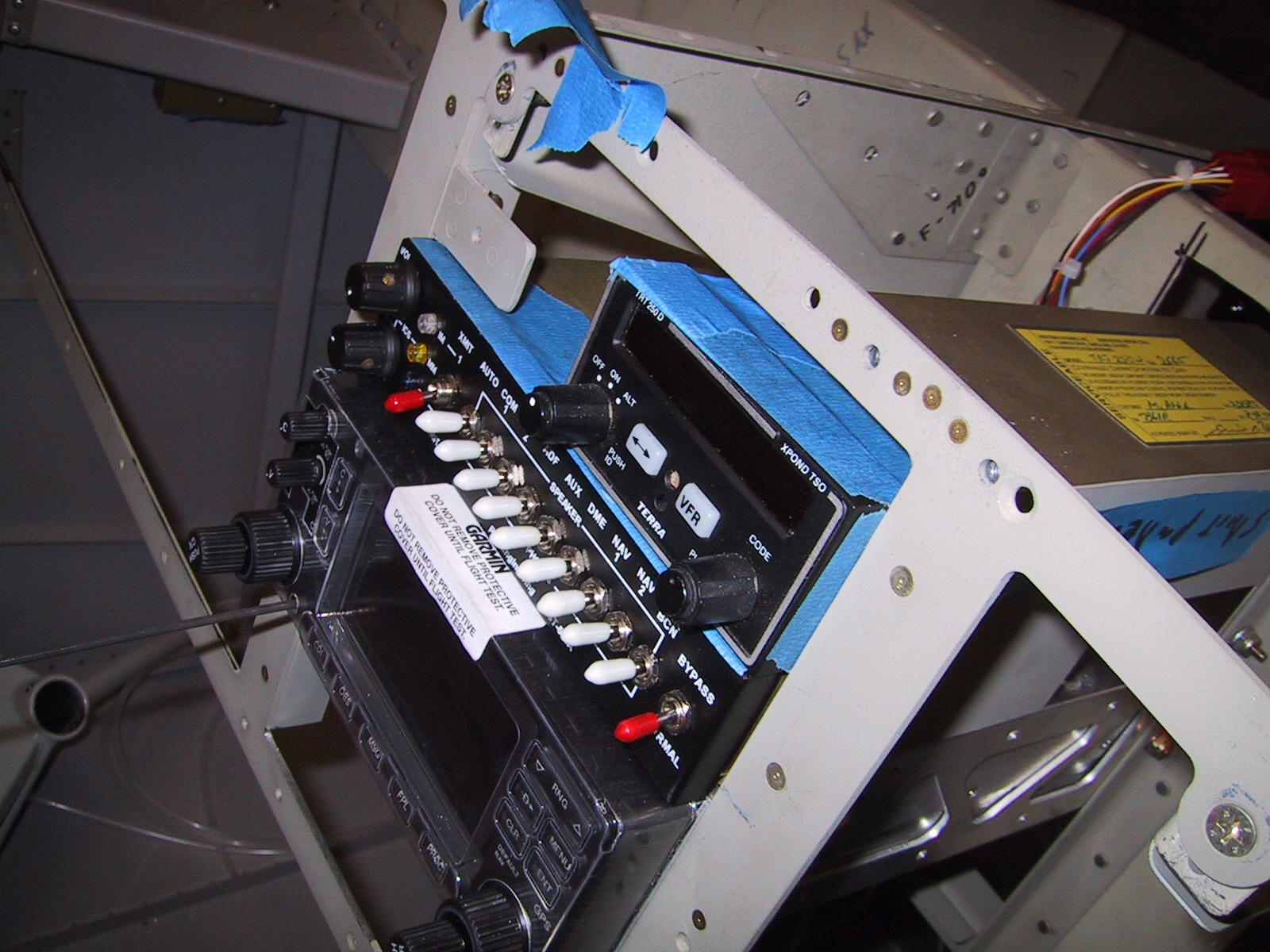

Radios installed again as a prelude to wiring.
-
Installed a bit of nylon edge guard on places cables will pass through.
