Build log date: Sunday, February 15, 2004
-
My neighbor Joe helped me use a hammer (yuck!) to dimple the rudder cable hold downs.

-

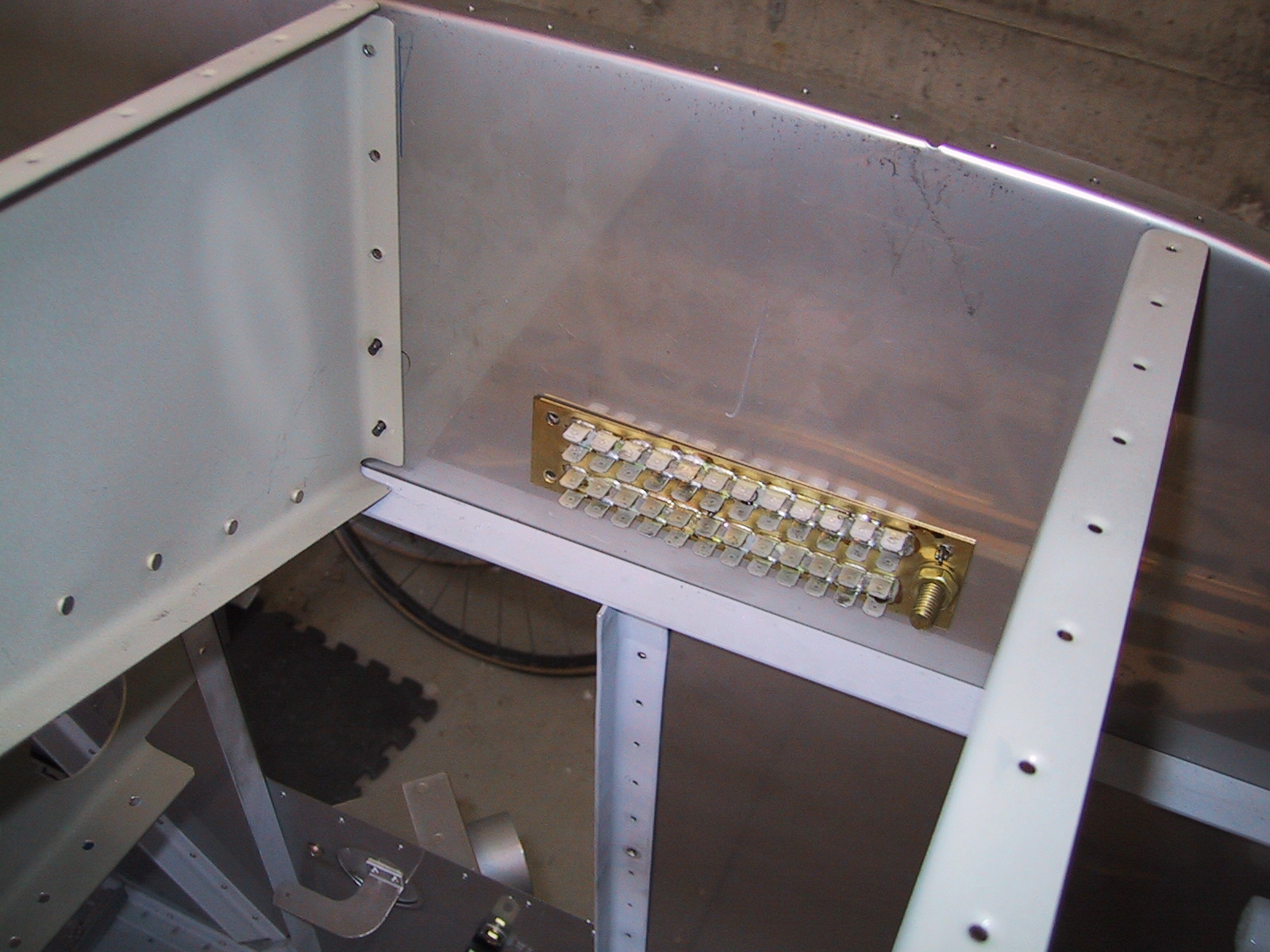

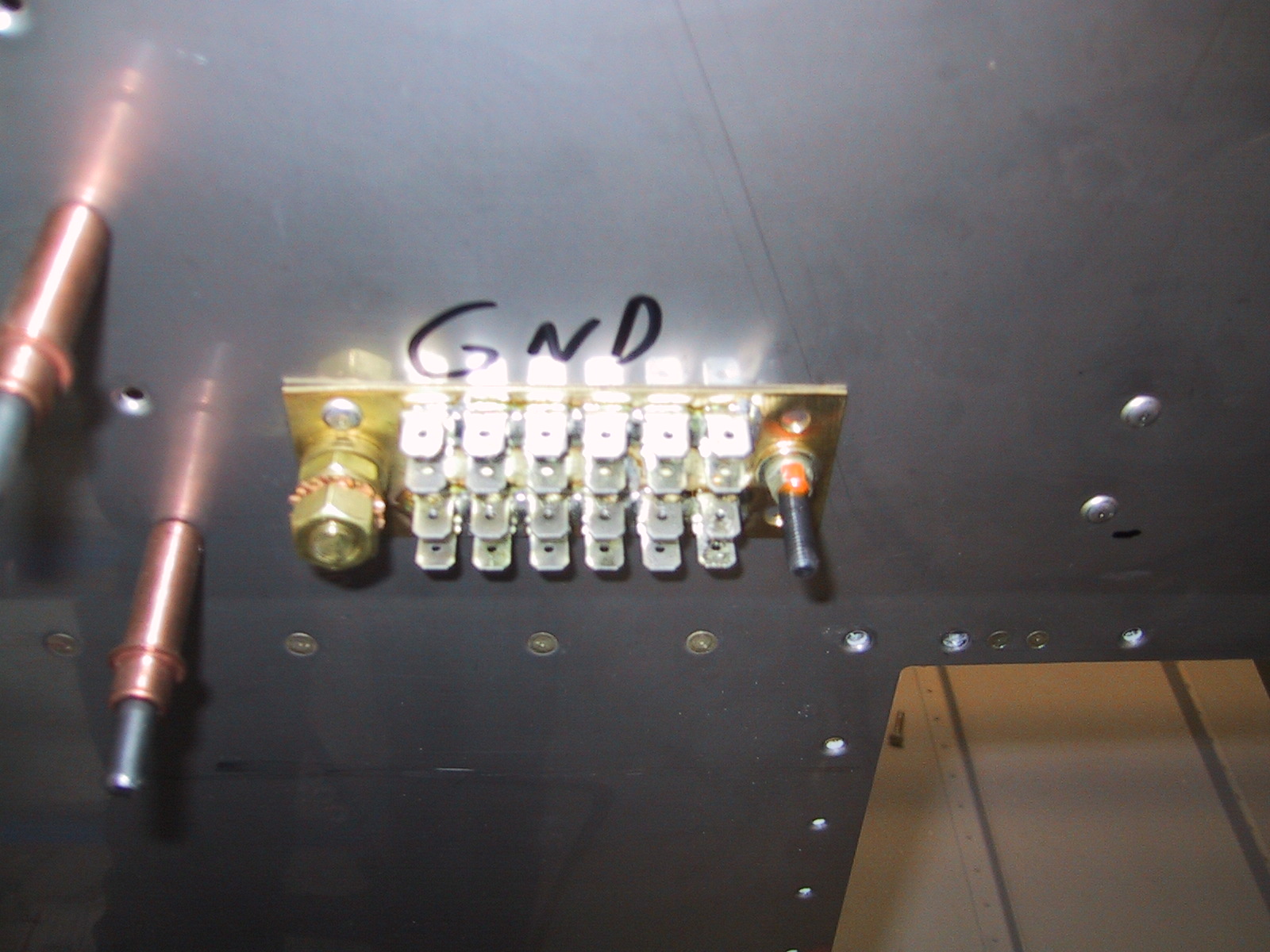

Fitting the ground terminal plate in position.

-
Post riveting on the firewall side.

-

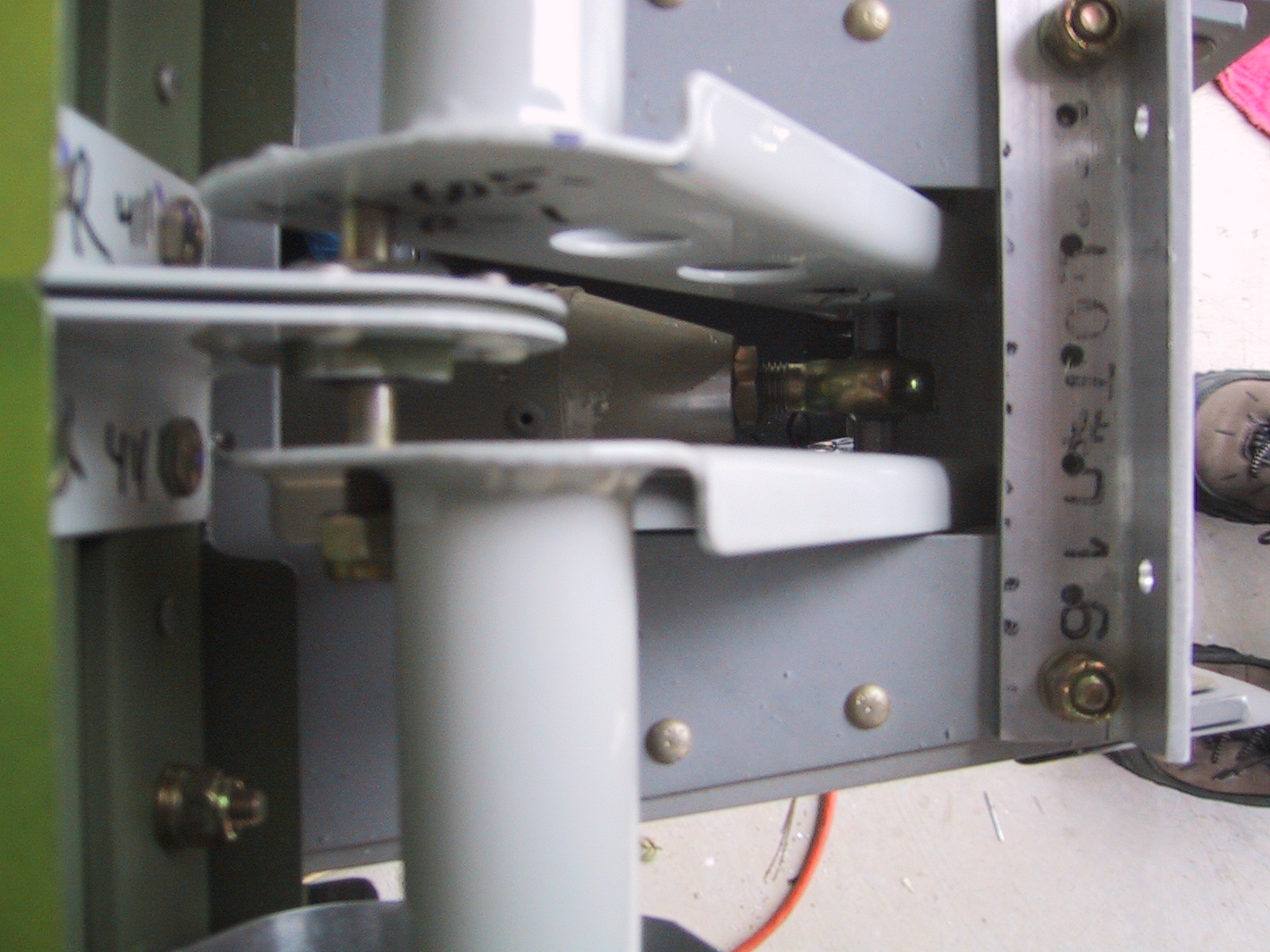

I fabricated aluminum spacers for the elevator horn/pushrod bolt. The washers would have been a nightmare to deal with. (Done per plans)

-

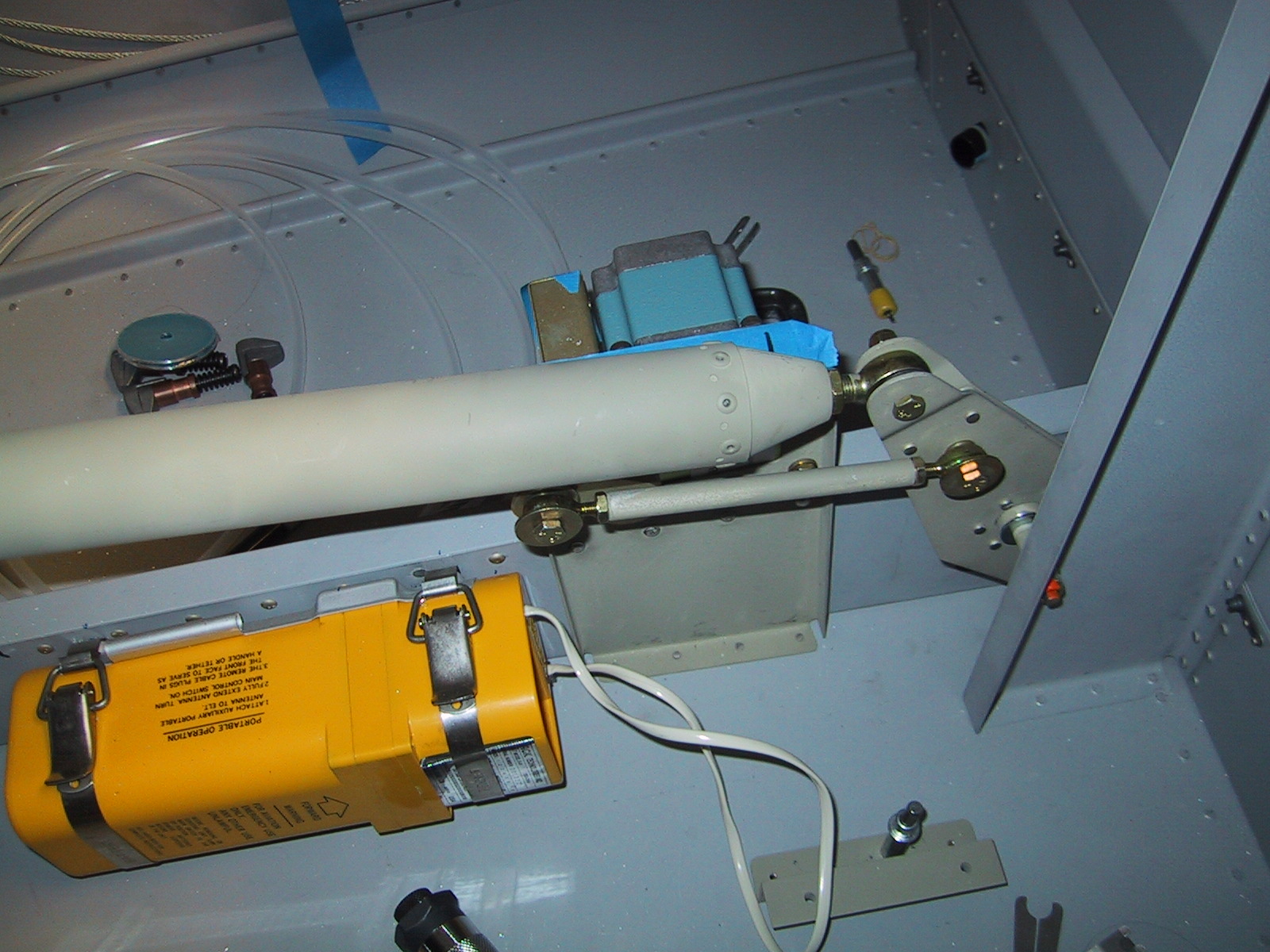

Adjusted the length on the pitch servo pushrod - I think this is good for flight, except for torquing jam nuts.

-
Drill holes for the brake lines between the passenger and pilot peddals.

-

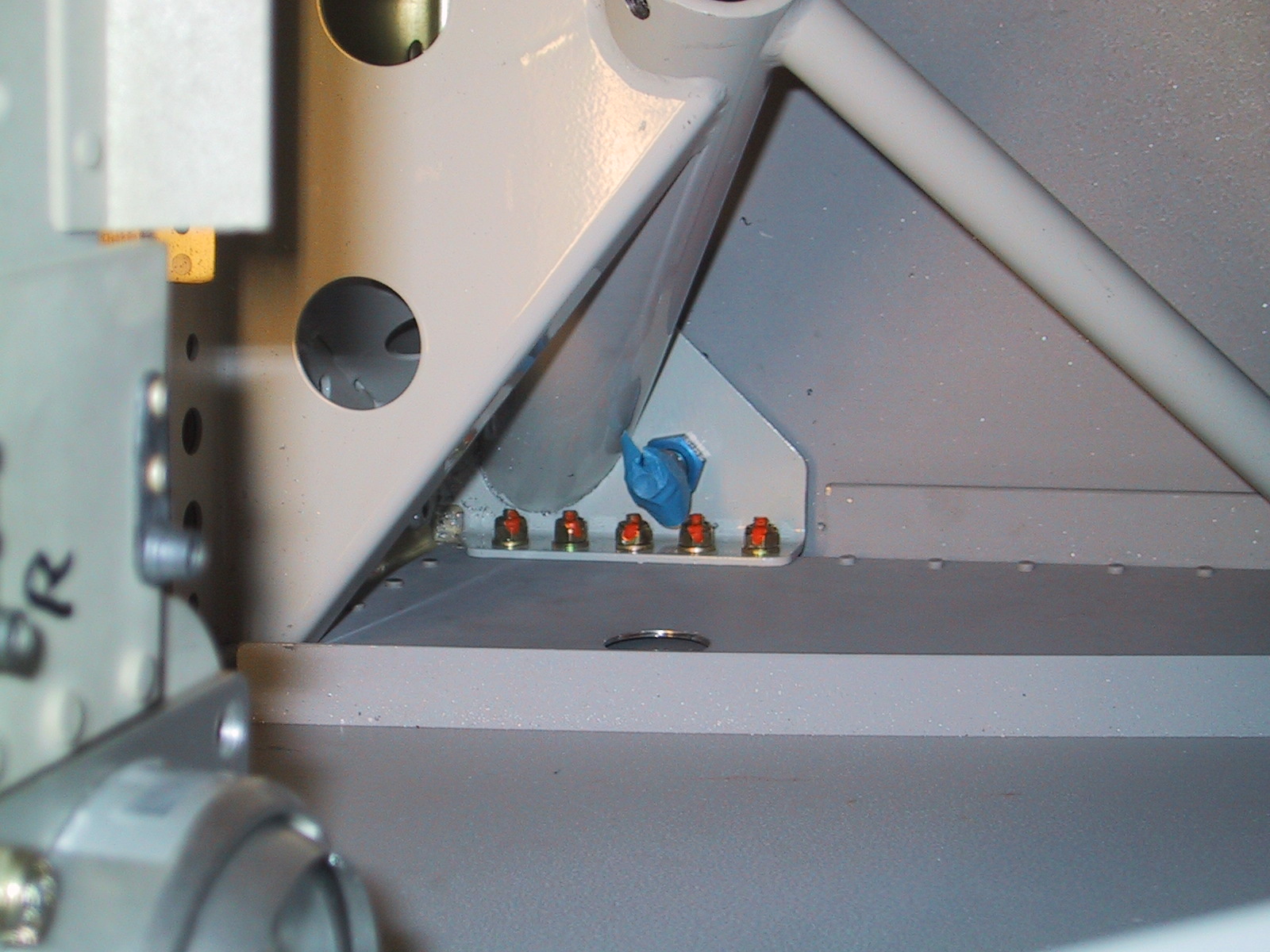

Installed the bulkhead fittings where the brake lines go to the wheels.
