Build log date: Thursday, December 11, 2003
-

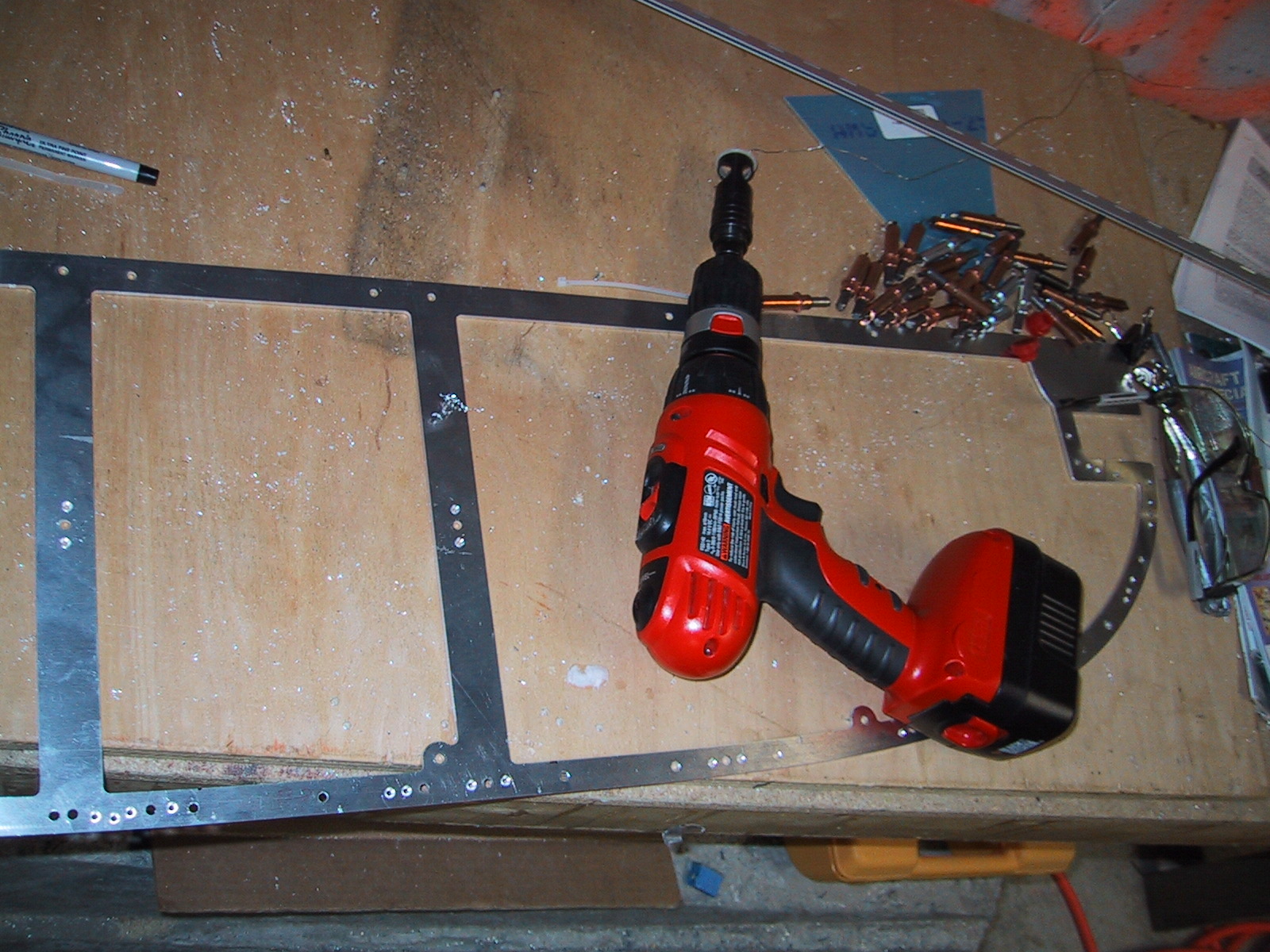

For some reason I don't really enjoy countersinking. However, the panel needs a bunch of countersinks for various 5 and 3 size rivets.

-

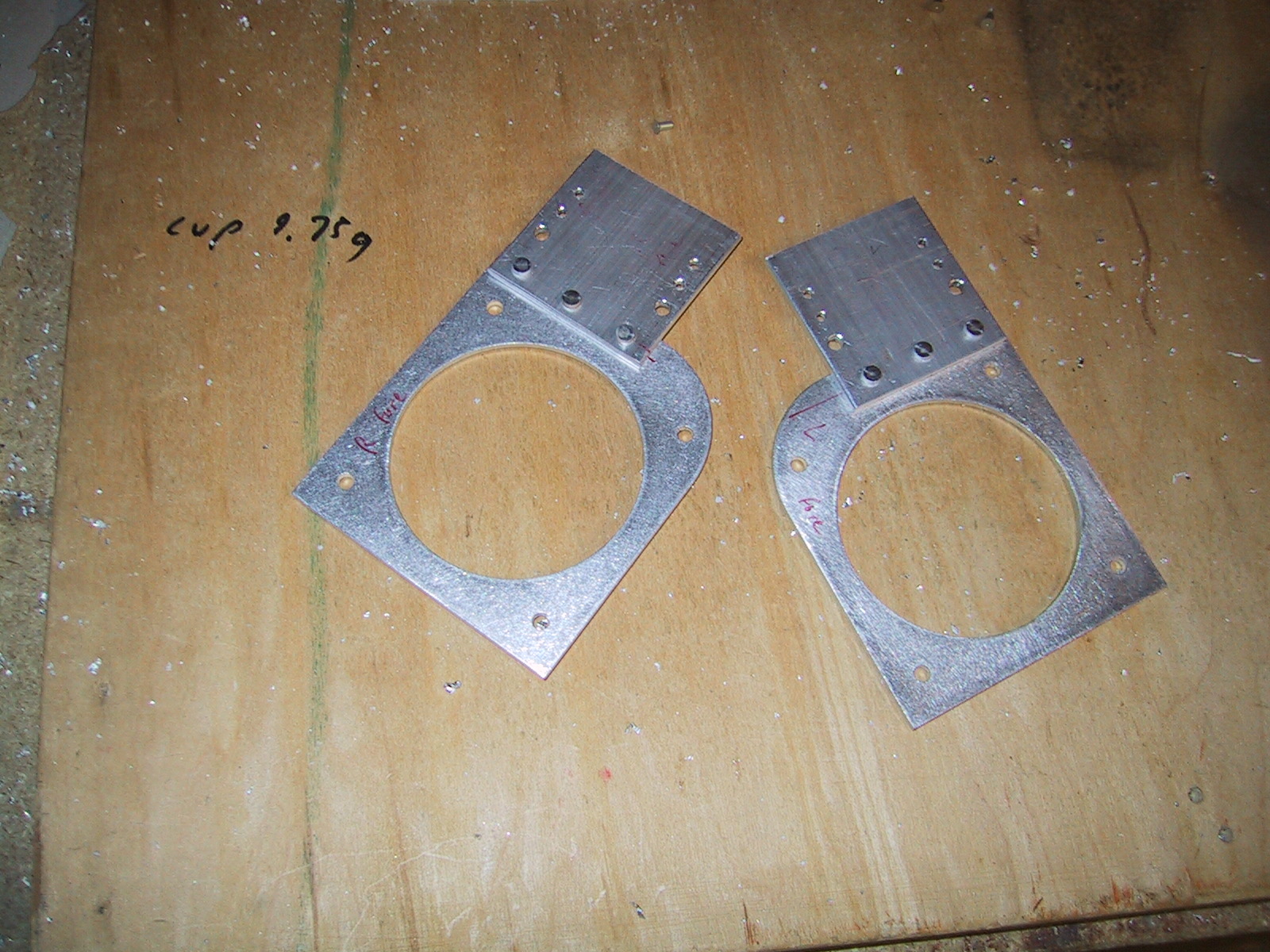

The countersinking of the tunnel cover is complete.

-

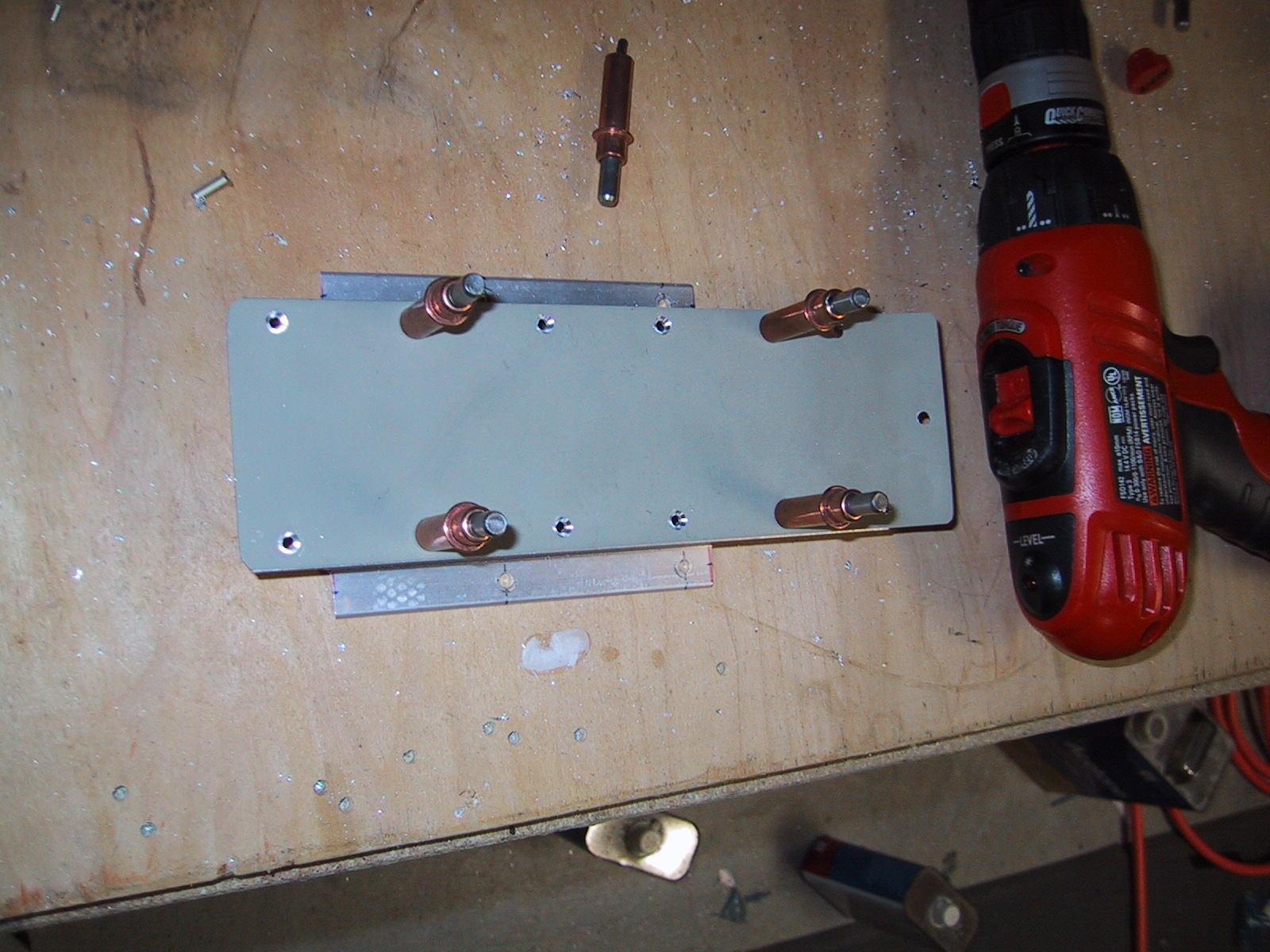

I've now riveted the vent portion of the subpanel. It can now be primed.

-

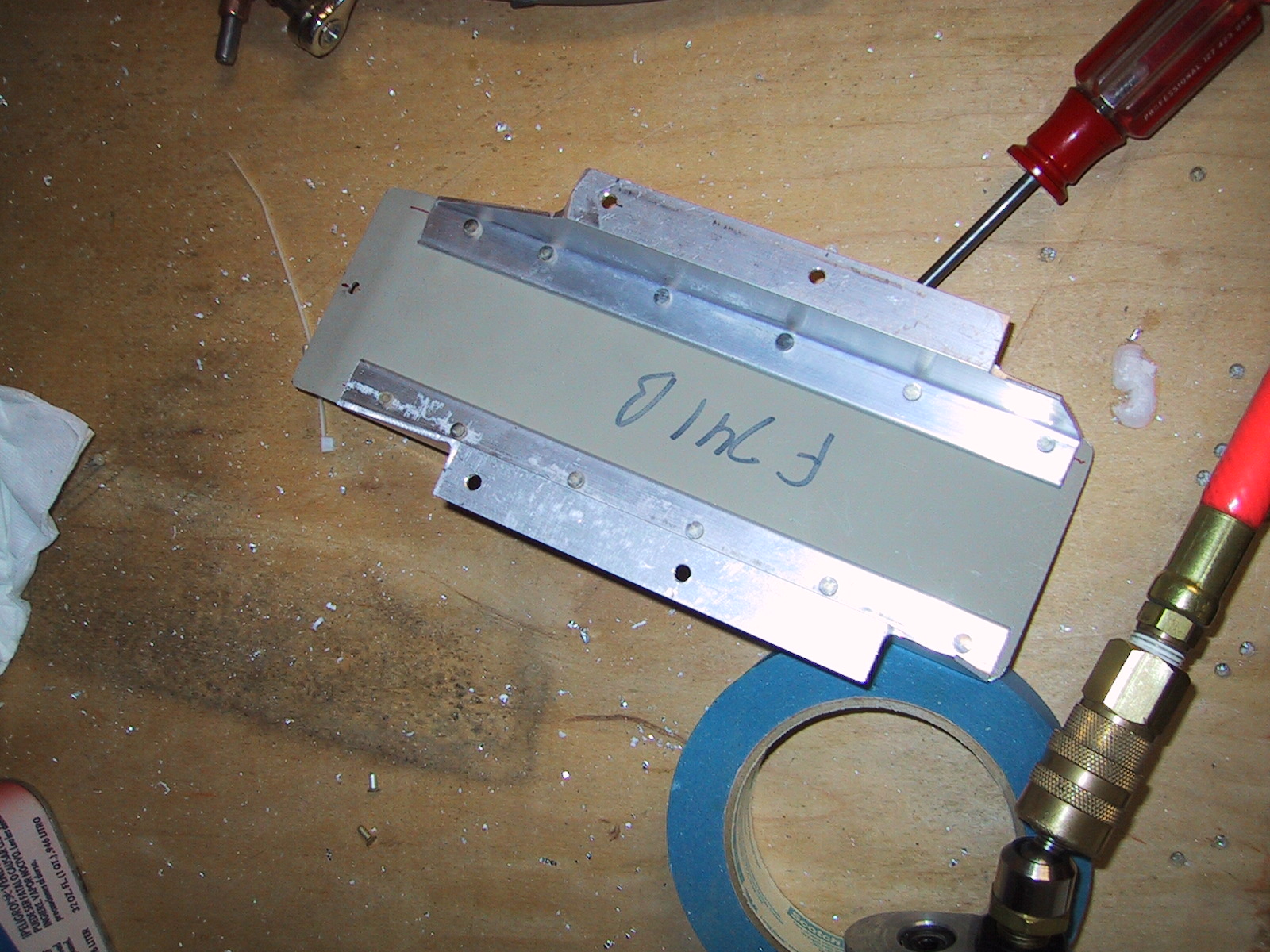

The forward tunnel cover is now done - so it can be primed.

-

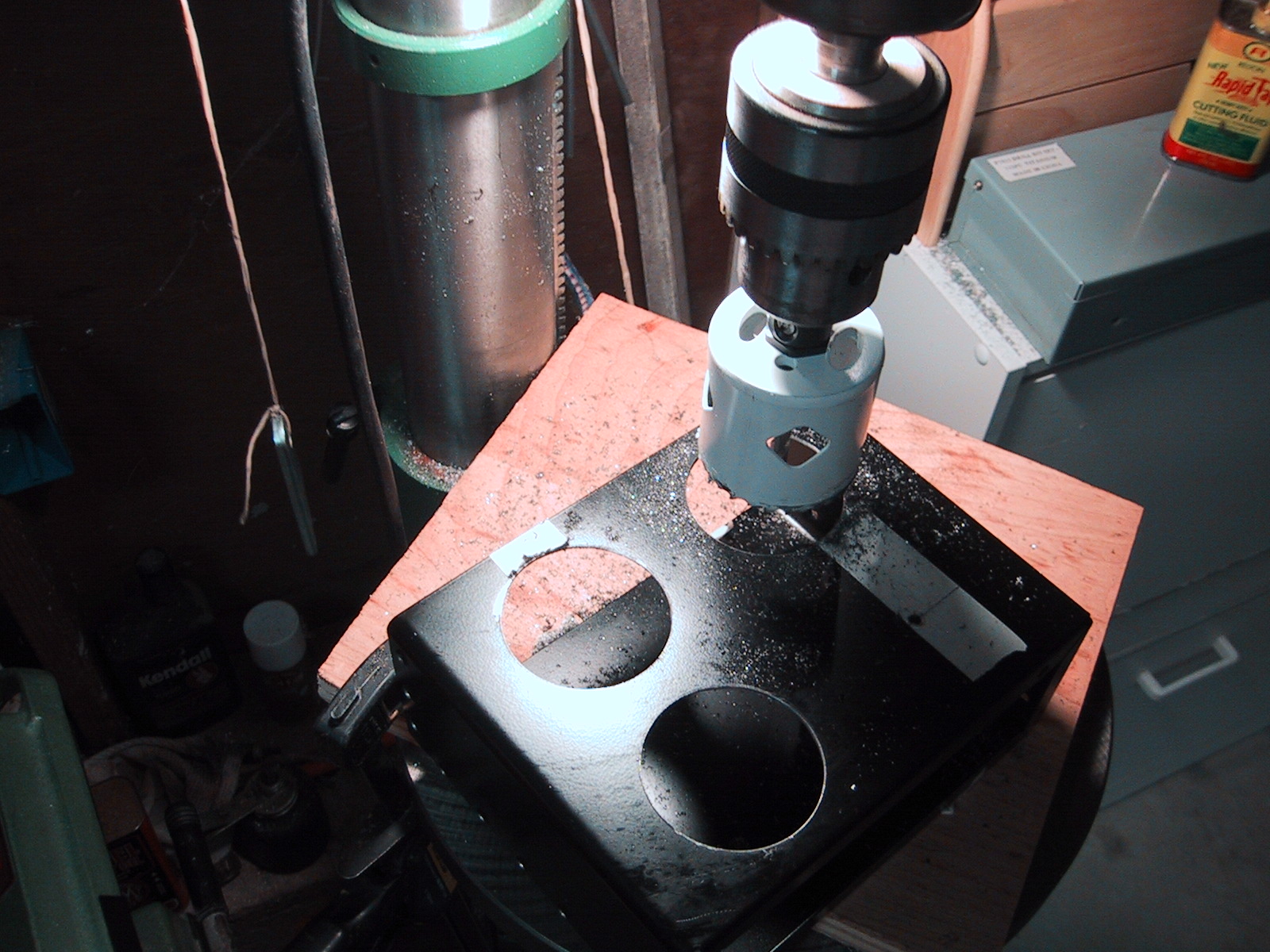

I've drilled and dimpled the battery box. Here I'm drilling lightening holes.

-

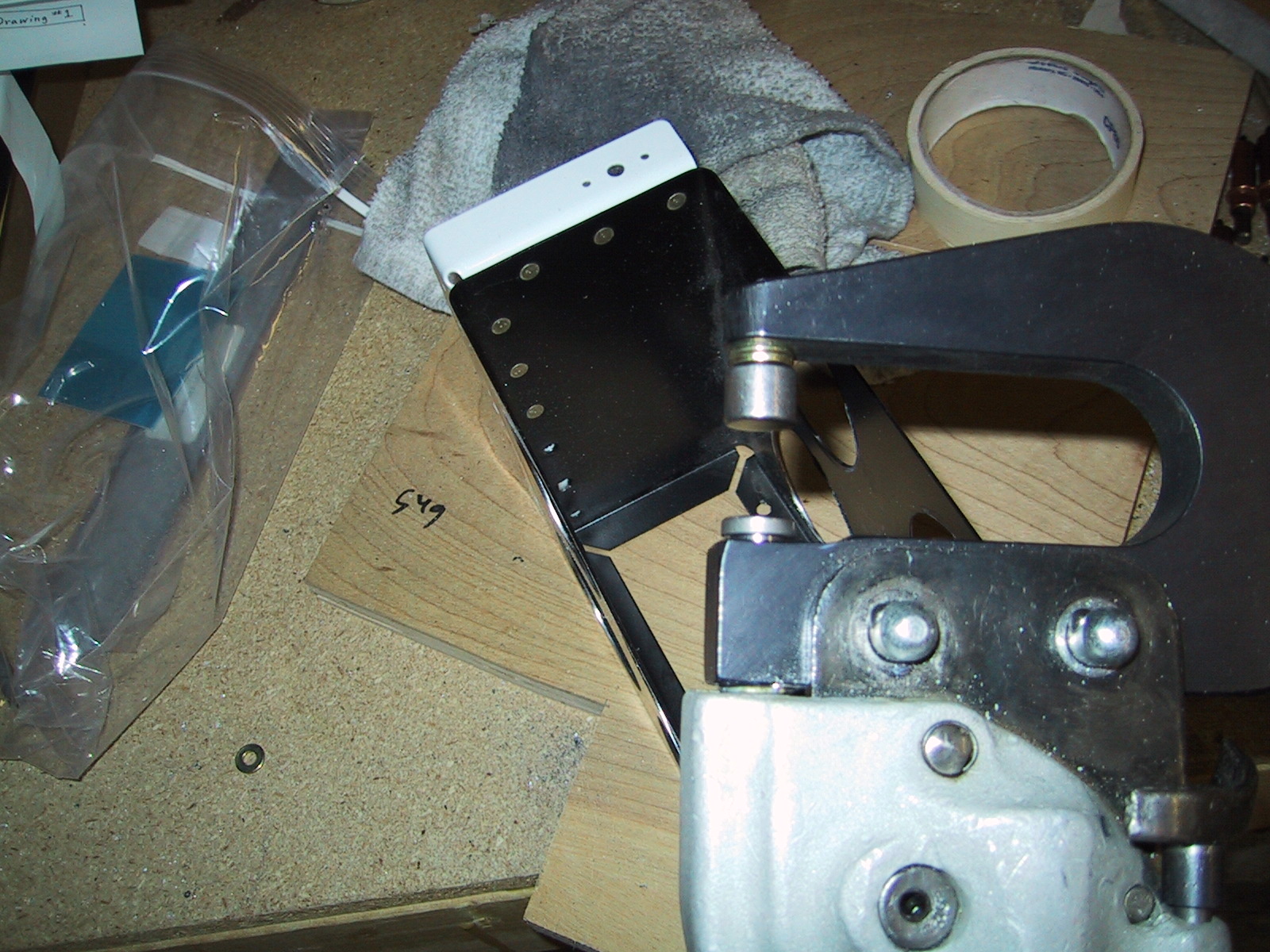

The battery box is now completed. Squeezing the last few rivets needed some extra washers underneath the rivet set - to prevent bending the bottom flange on the box.
