Build log date: Tuesday, December 09, 2003
-

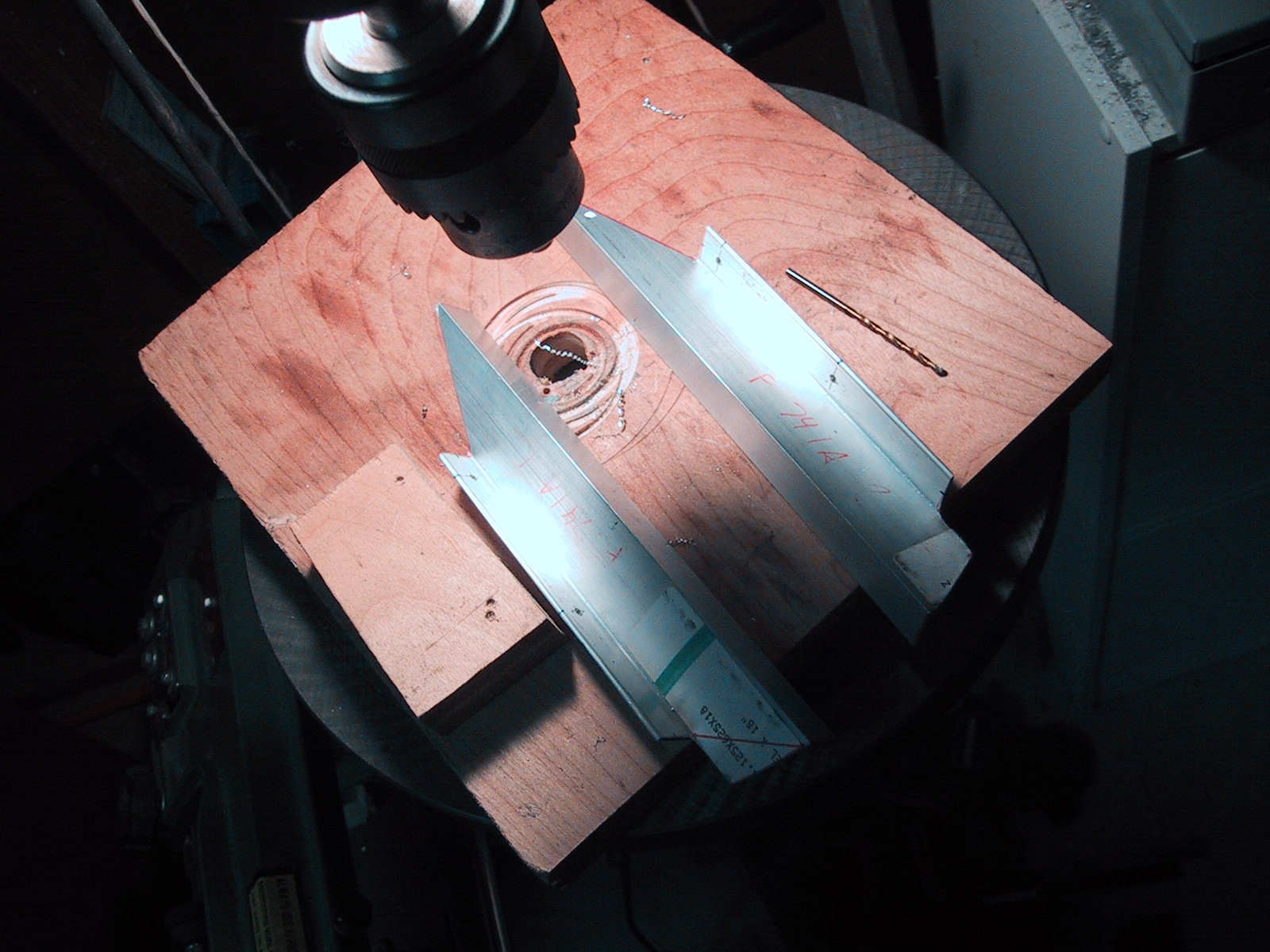

Previously I had copied the screw hole locations to these forward tunnel cover pieces. Today I drilled the tunnel covers.

-

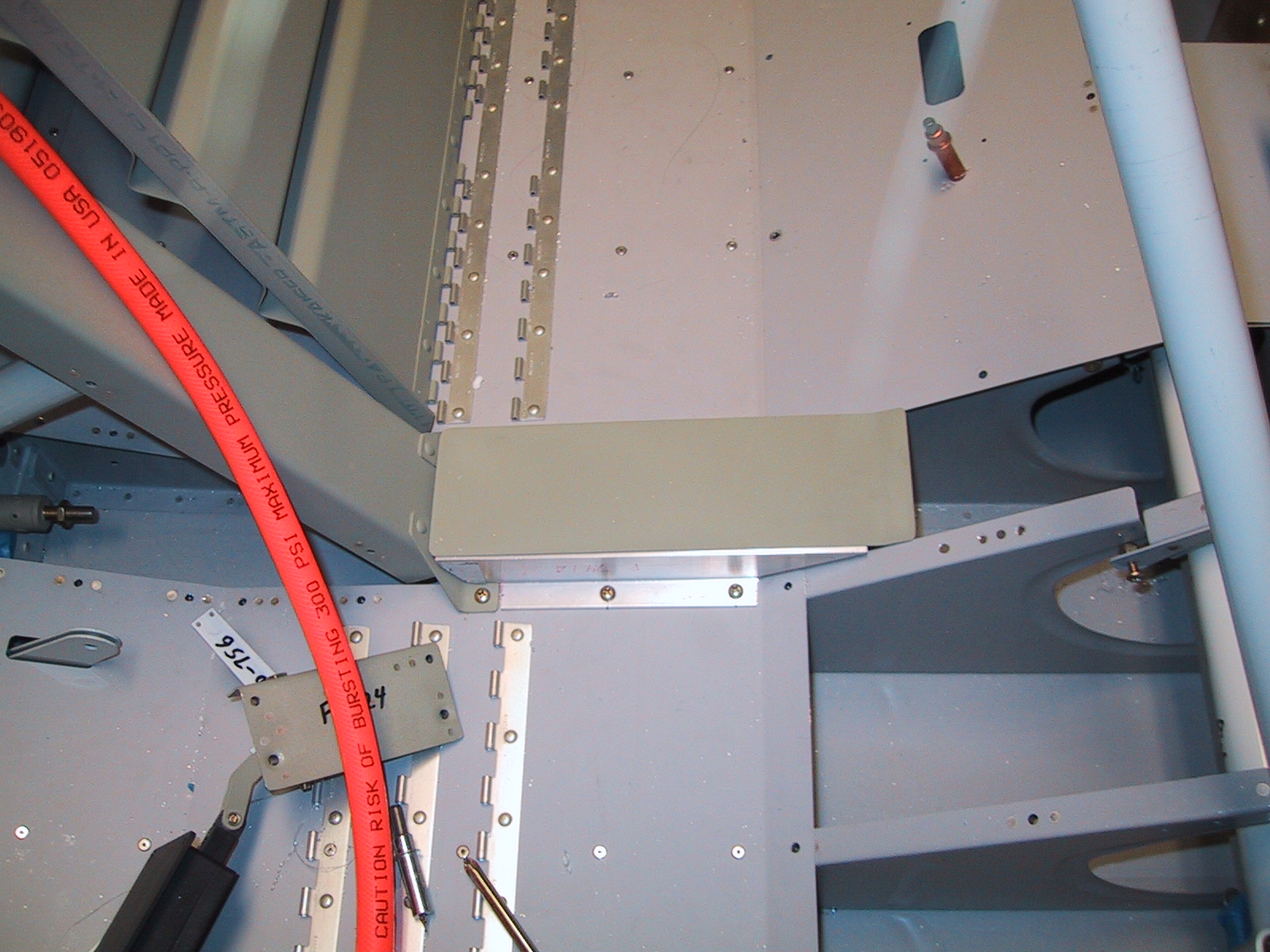

The forward tunnel covers fit well.

-

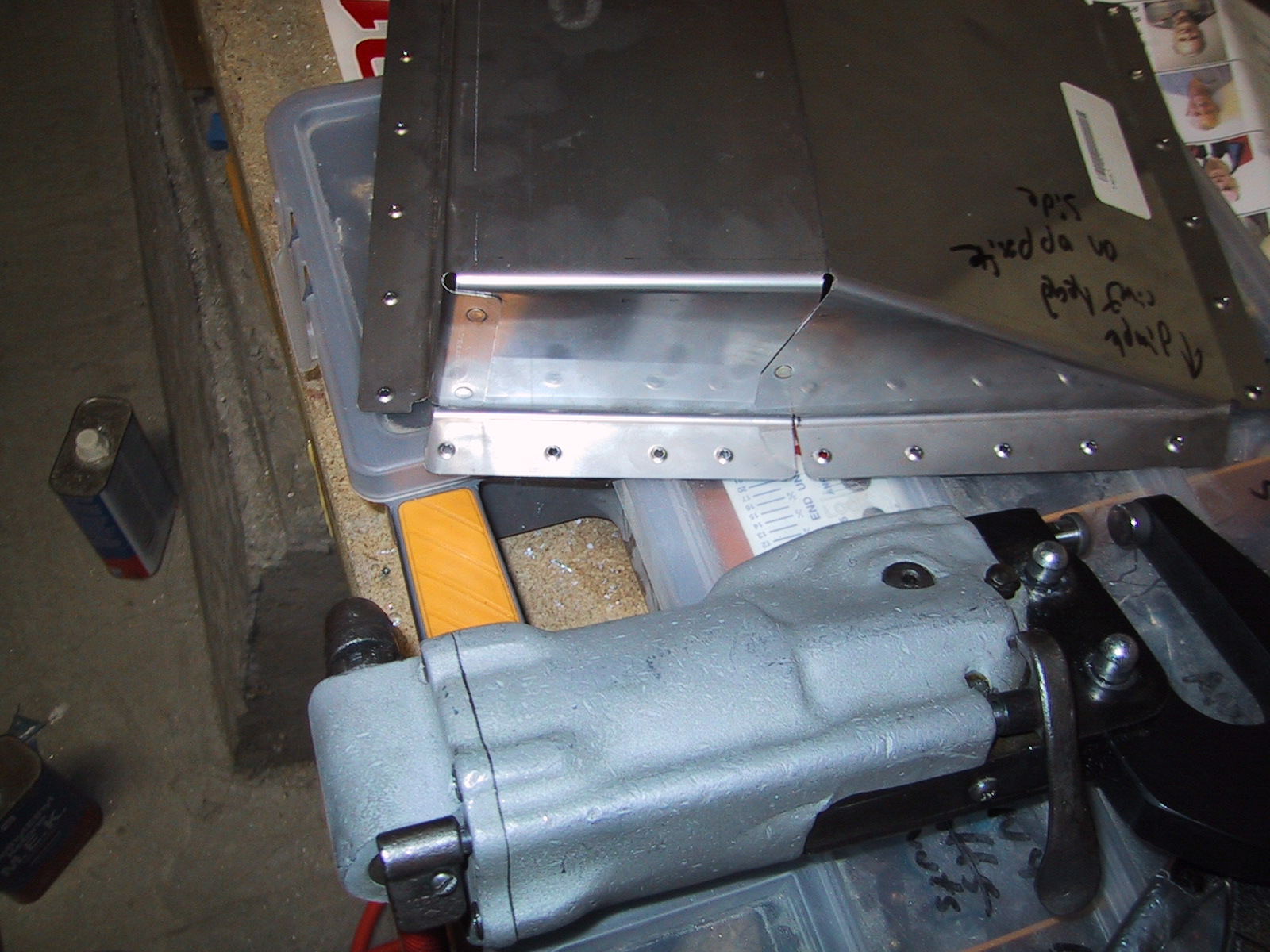

I've dimpled and riveted the firewall recess. The dimpled stainless fit the rivets better than I expected.

-

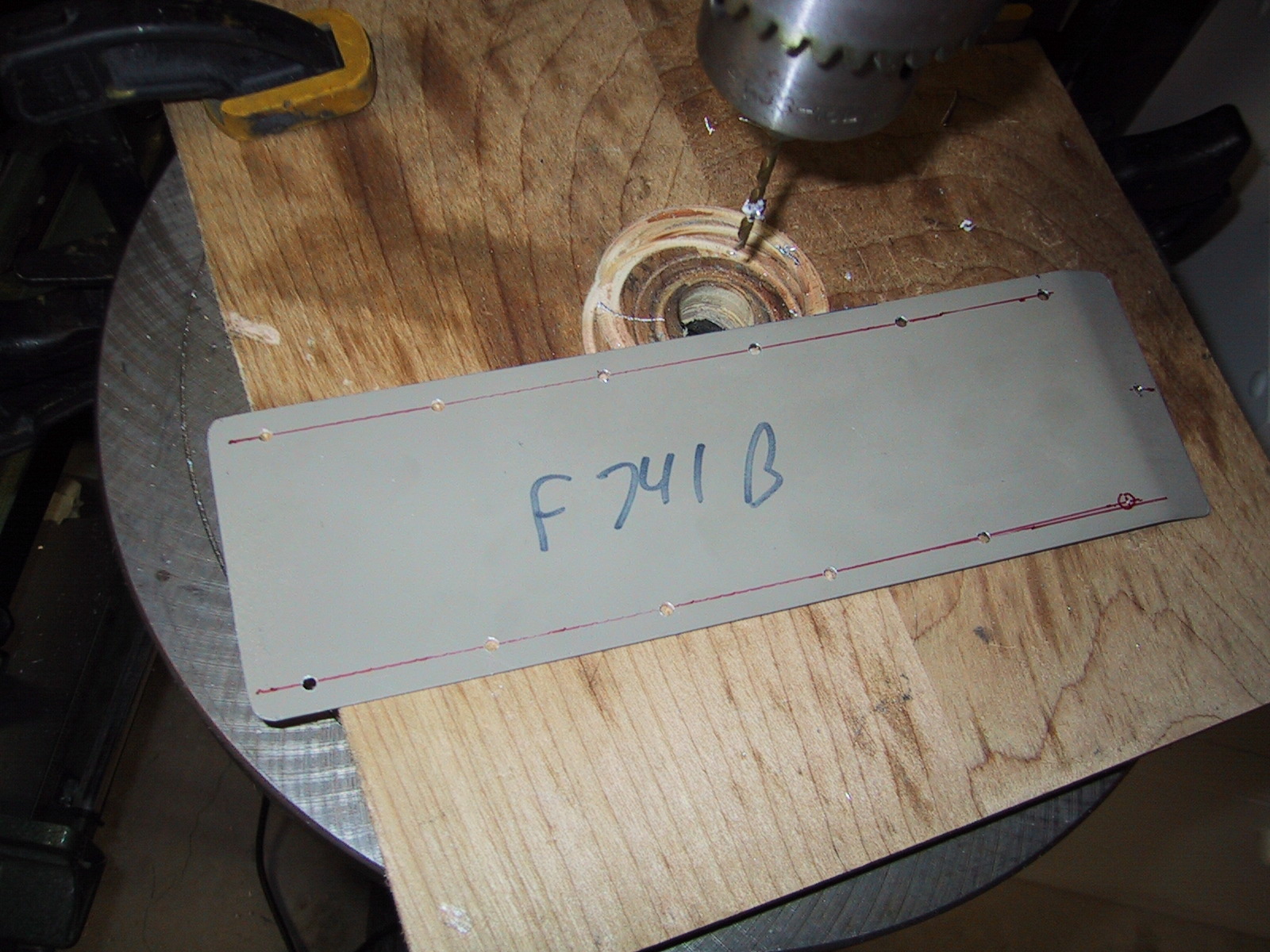

Drill pilot holes in the F-741B tunnel cover, so I can match drill with the Z channels already screwed into the fuse floor.

-

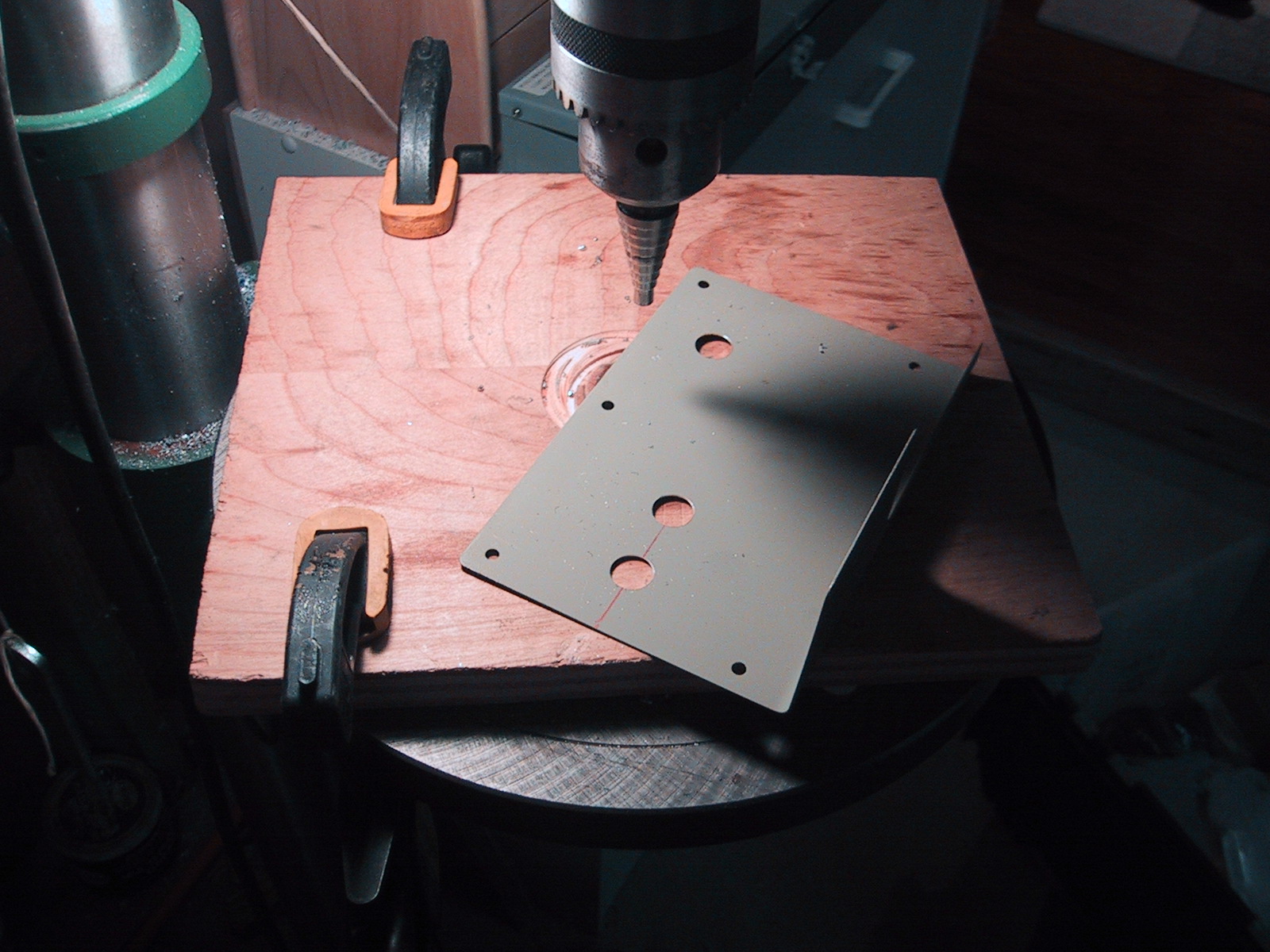

Using the unibit to make holes for mixture, throttle and carb heat cables.

-
Dimpled the F-982D heat baffle so I can prime it.
