Build log date: Tuesday, November 18, 2003
-

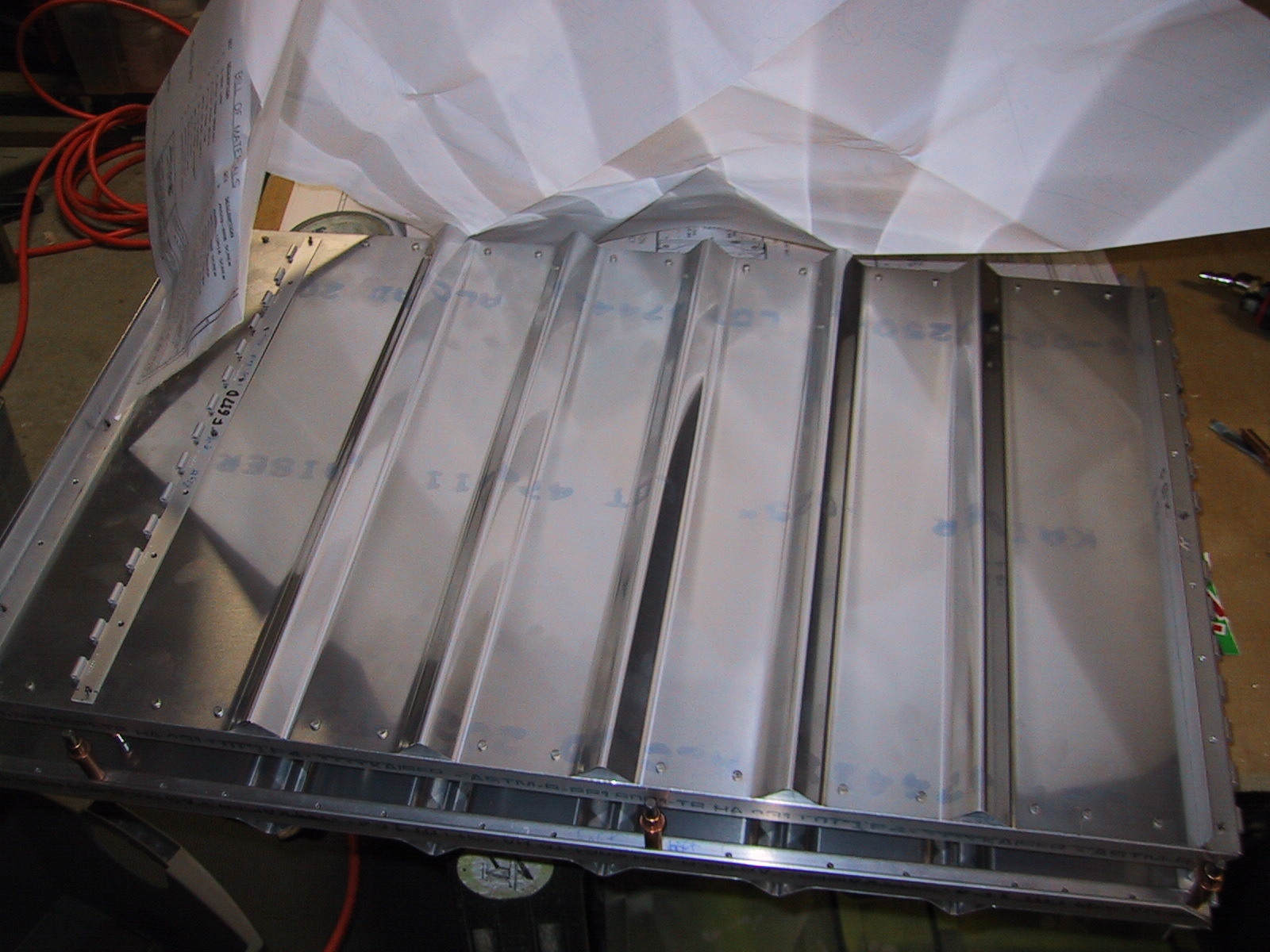

I began riveting the seat backs together. I had planned to disassemble for priming, but I'm just going to prime the assembled piece.

-

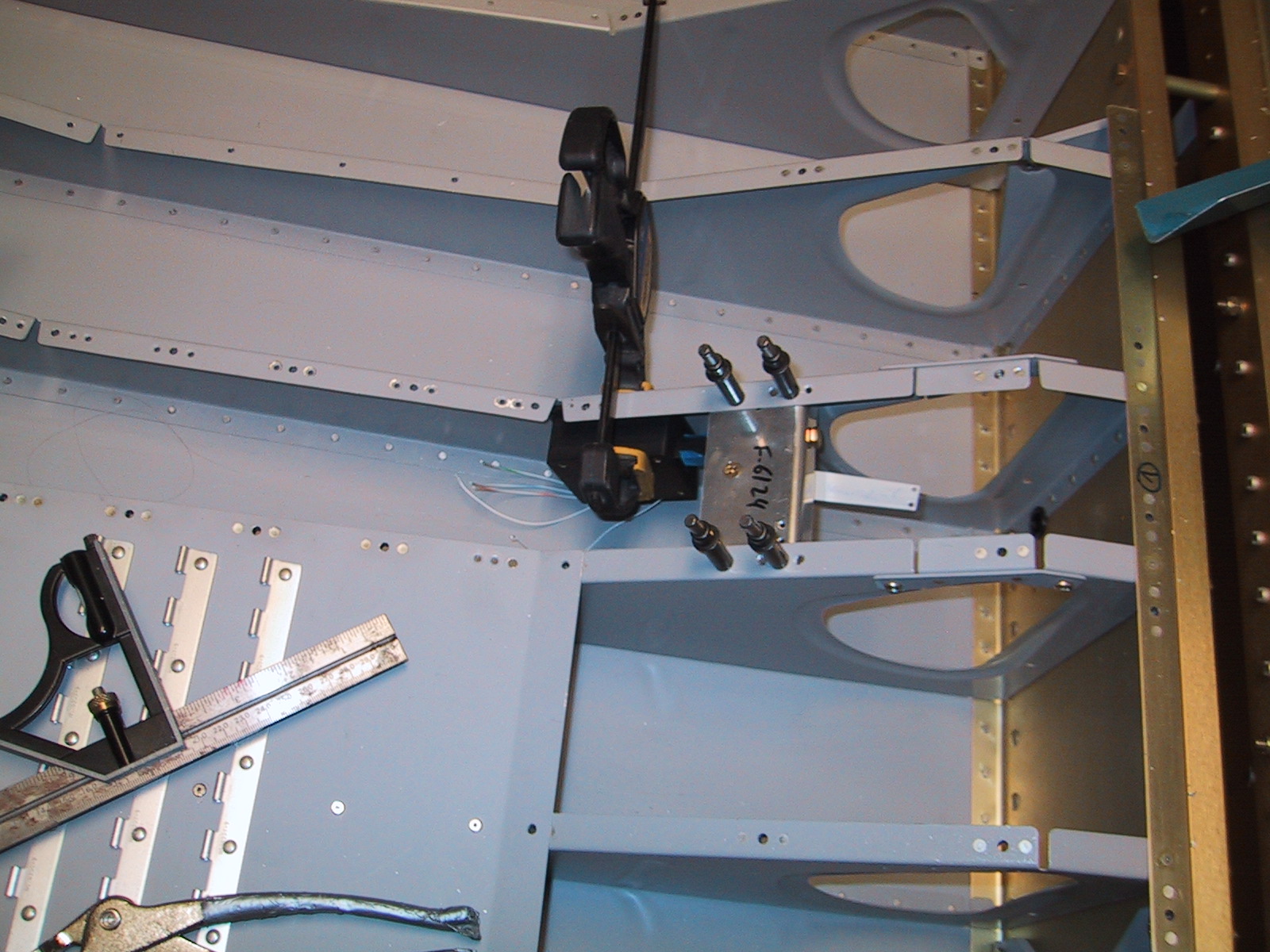

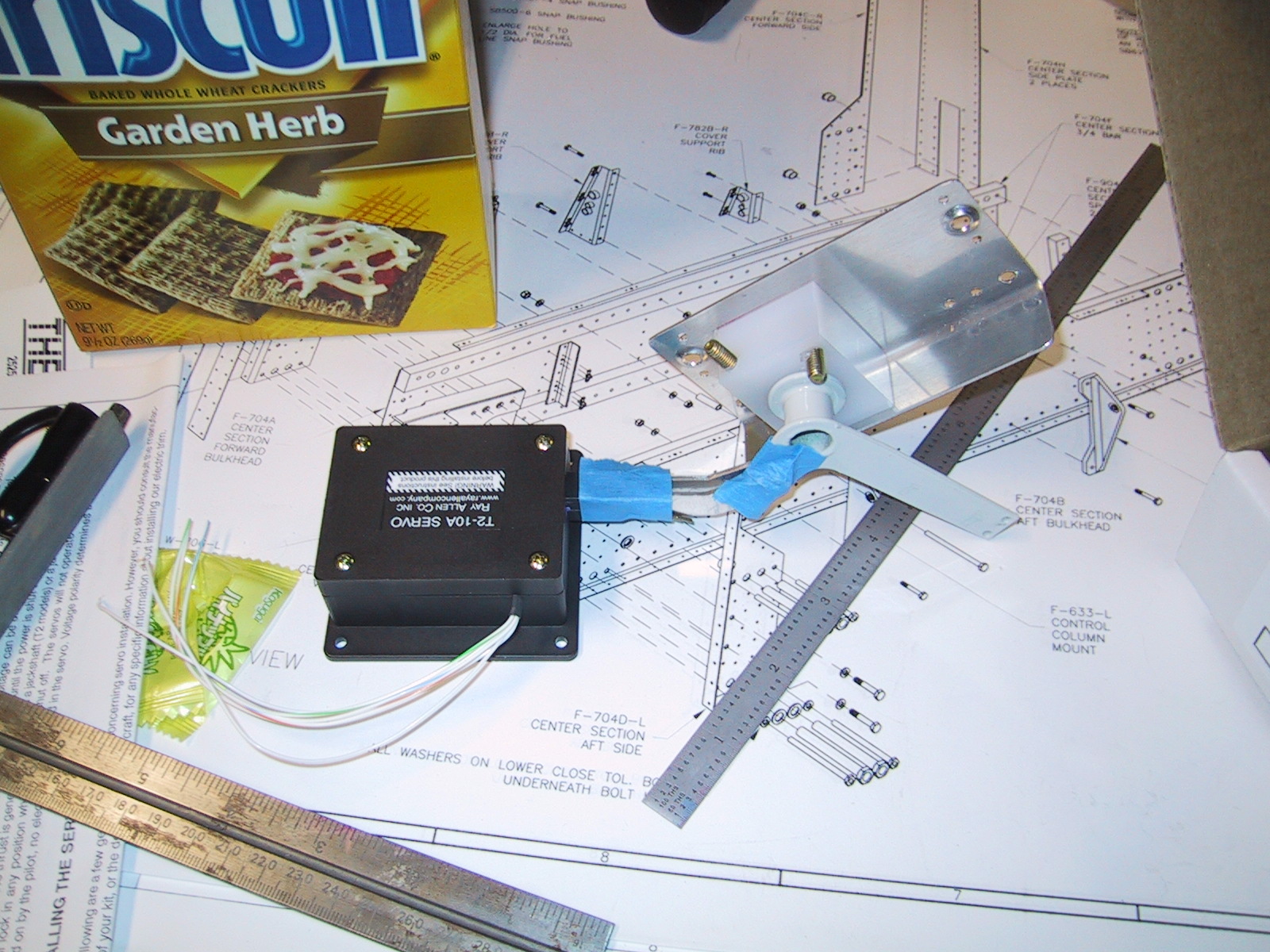

Position the aileron trim servo midway (per plans) so that I can temporarily install the bellcrank and drill holes for the servo (underneath the left aft seat cover).

-

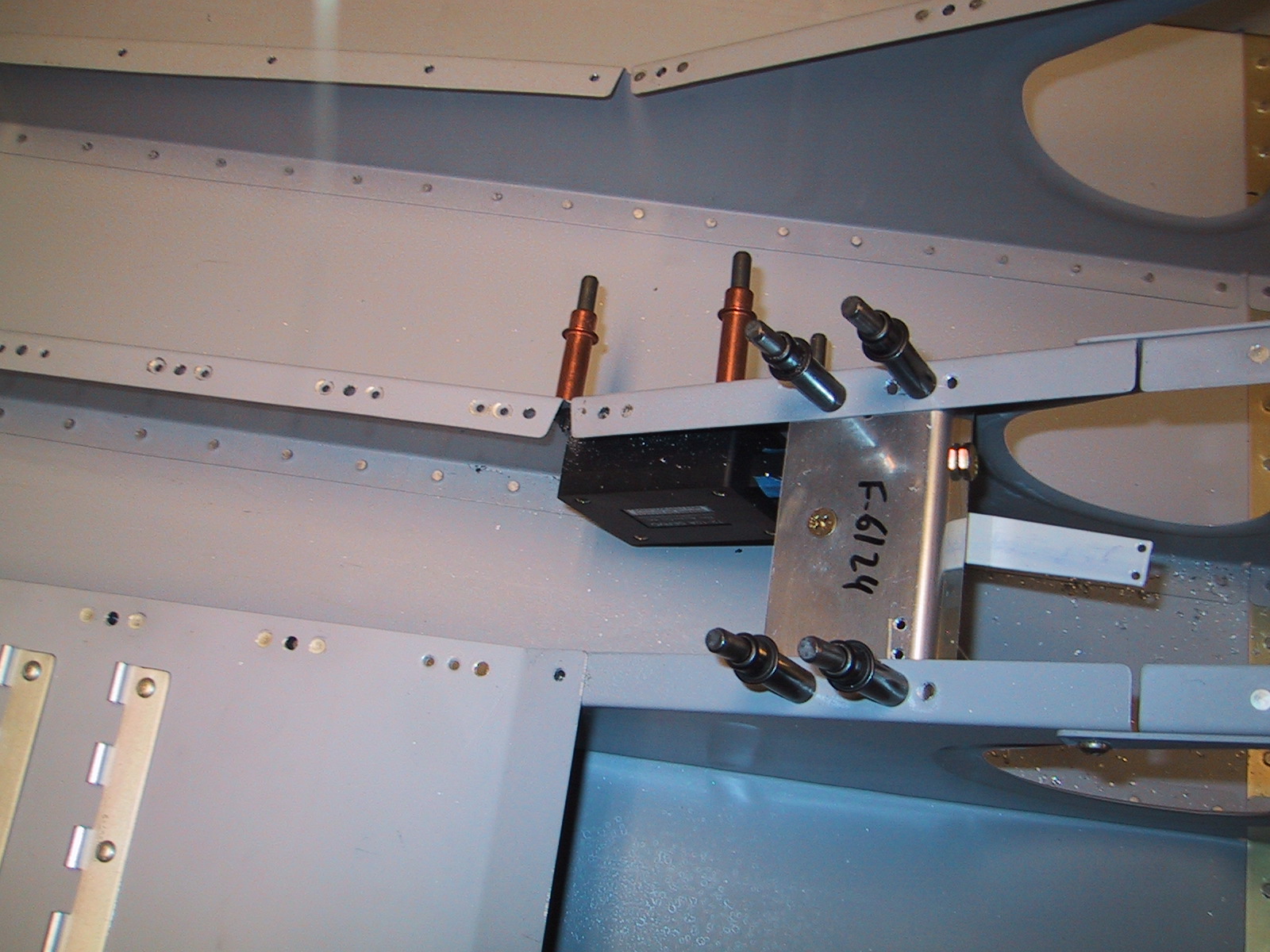

Everything is clamped in place and I can use the angle drill to drill the four holes for the servo screws.

-
Drilled now.

-

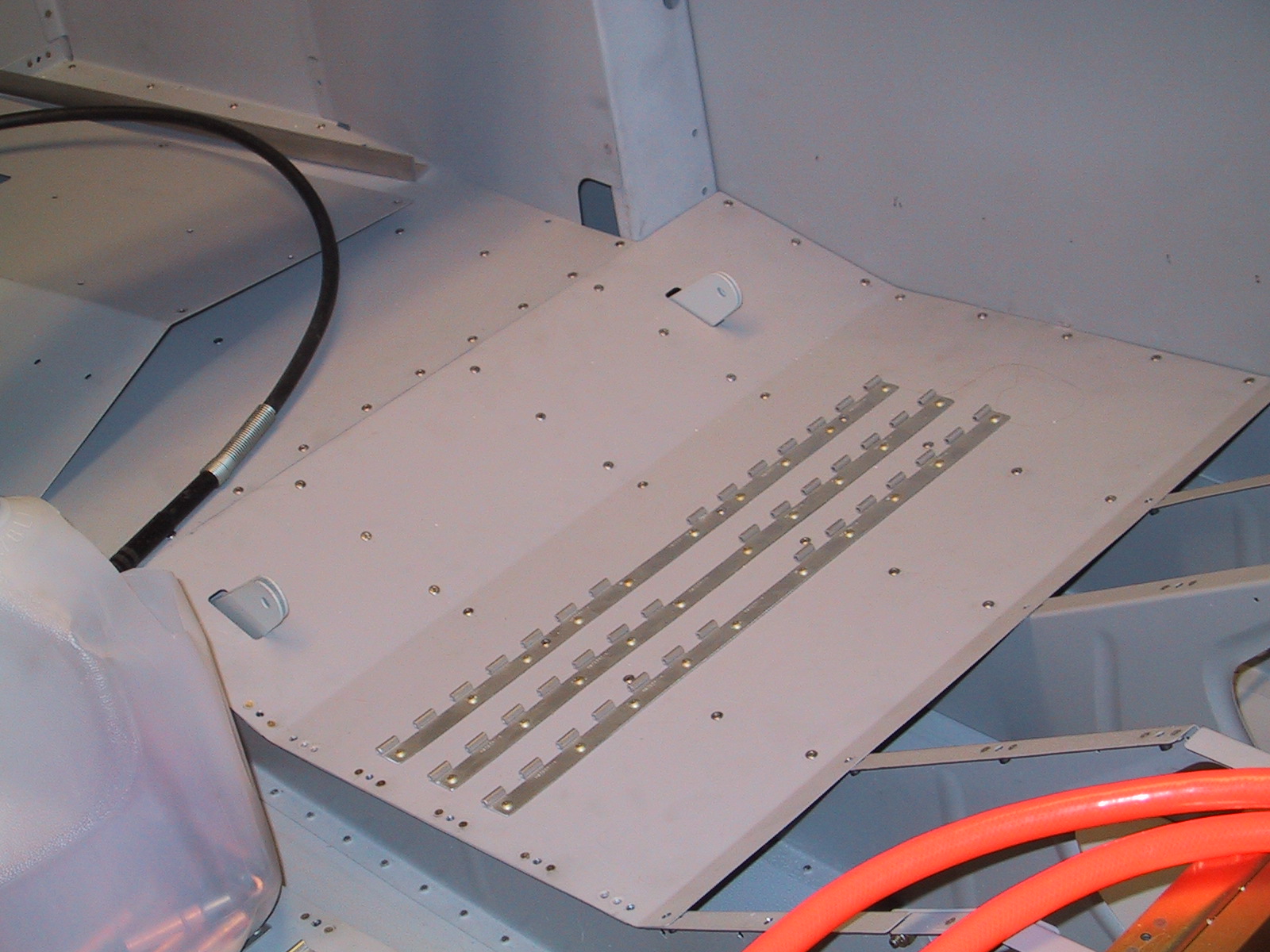

Now the left seat bottom can go in.

-

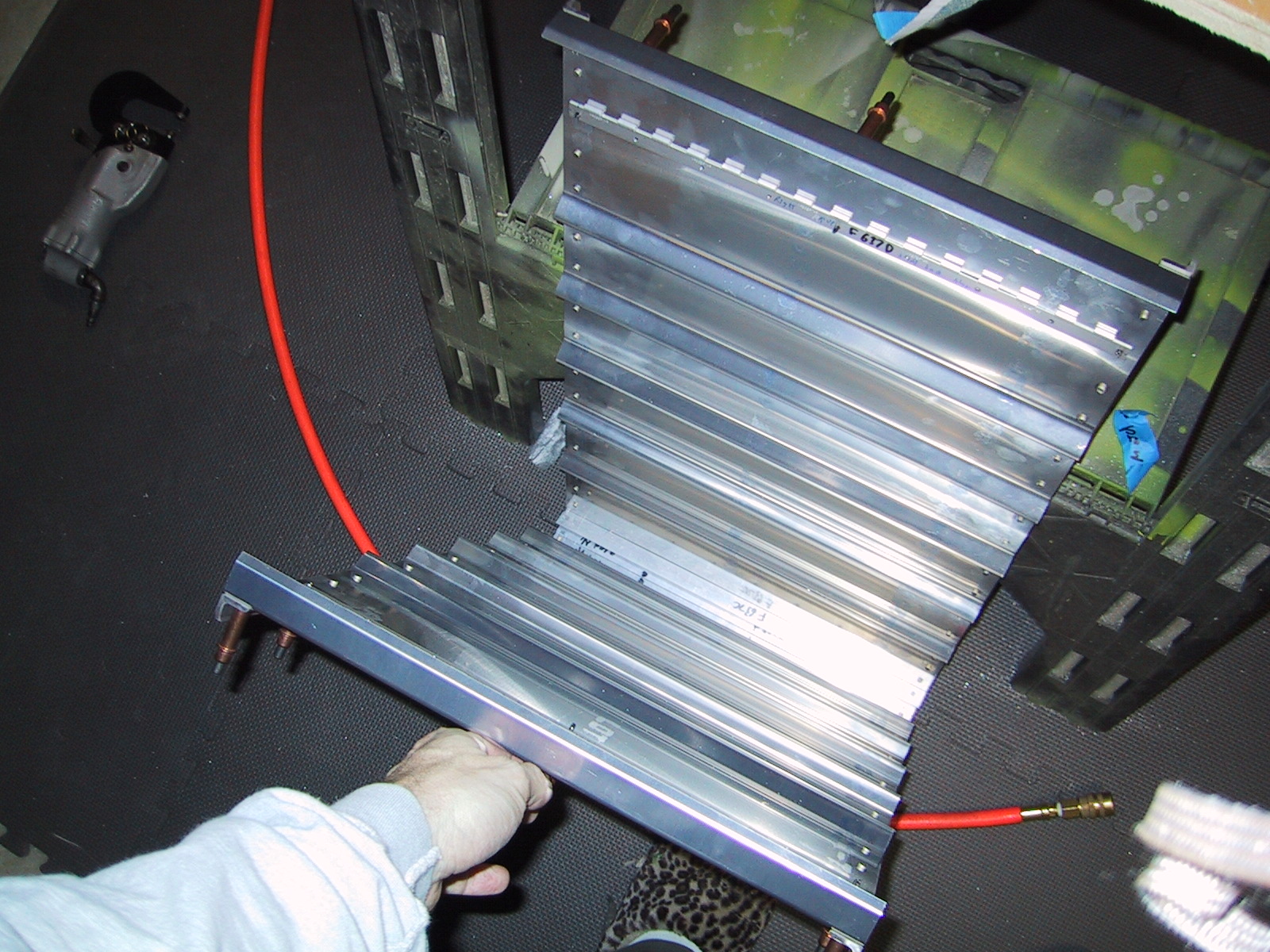

All of the seat back rivets that can be squeezed are done. The rest will need the rivet gun (i.e. noise).

-

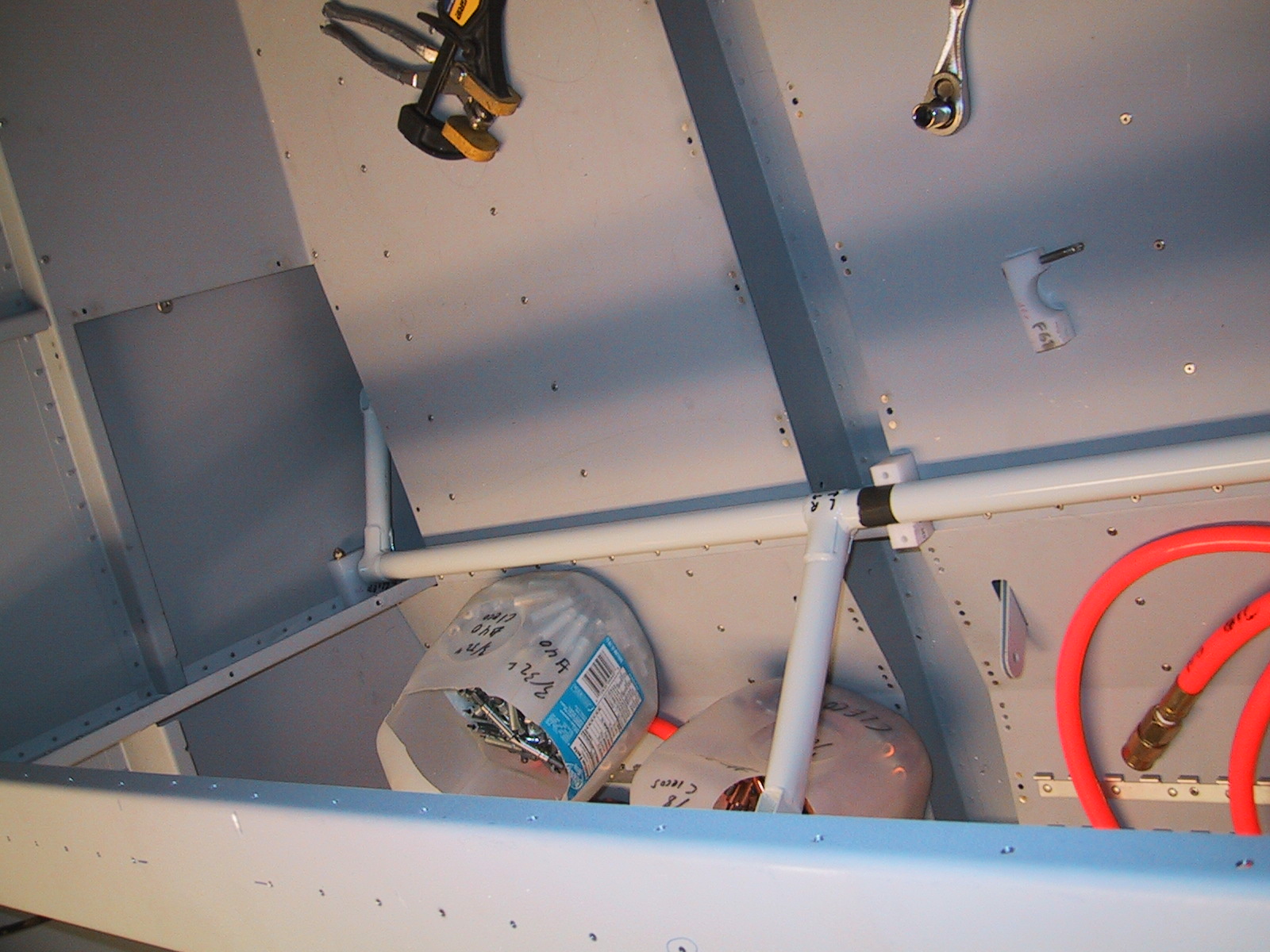

The flap weldament is temporarily installed so I can drill the three flap bearings.
