Build log date: Sunday, November 16, 2003
-

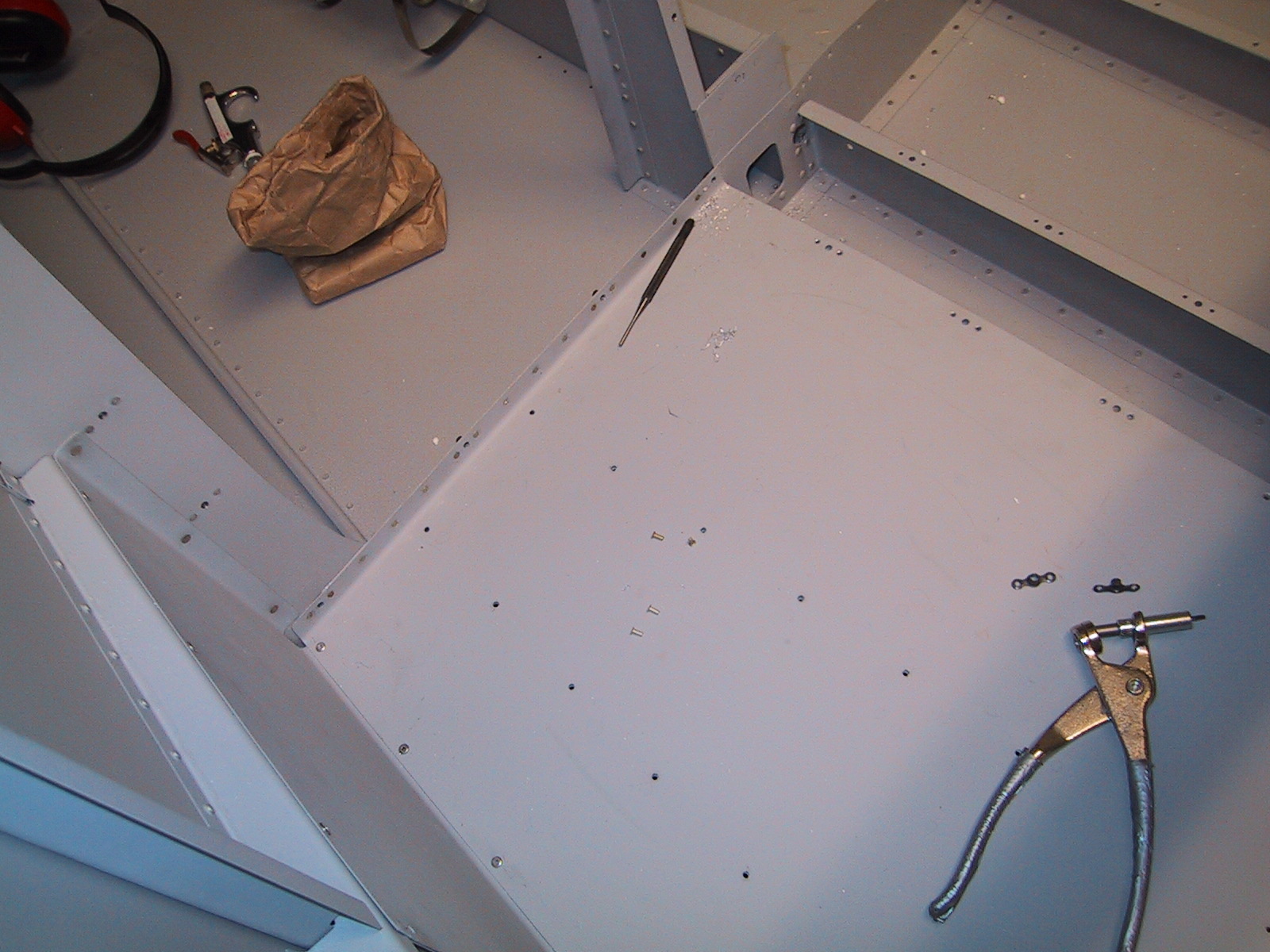

Part way through the floor.
-

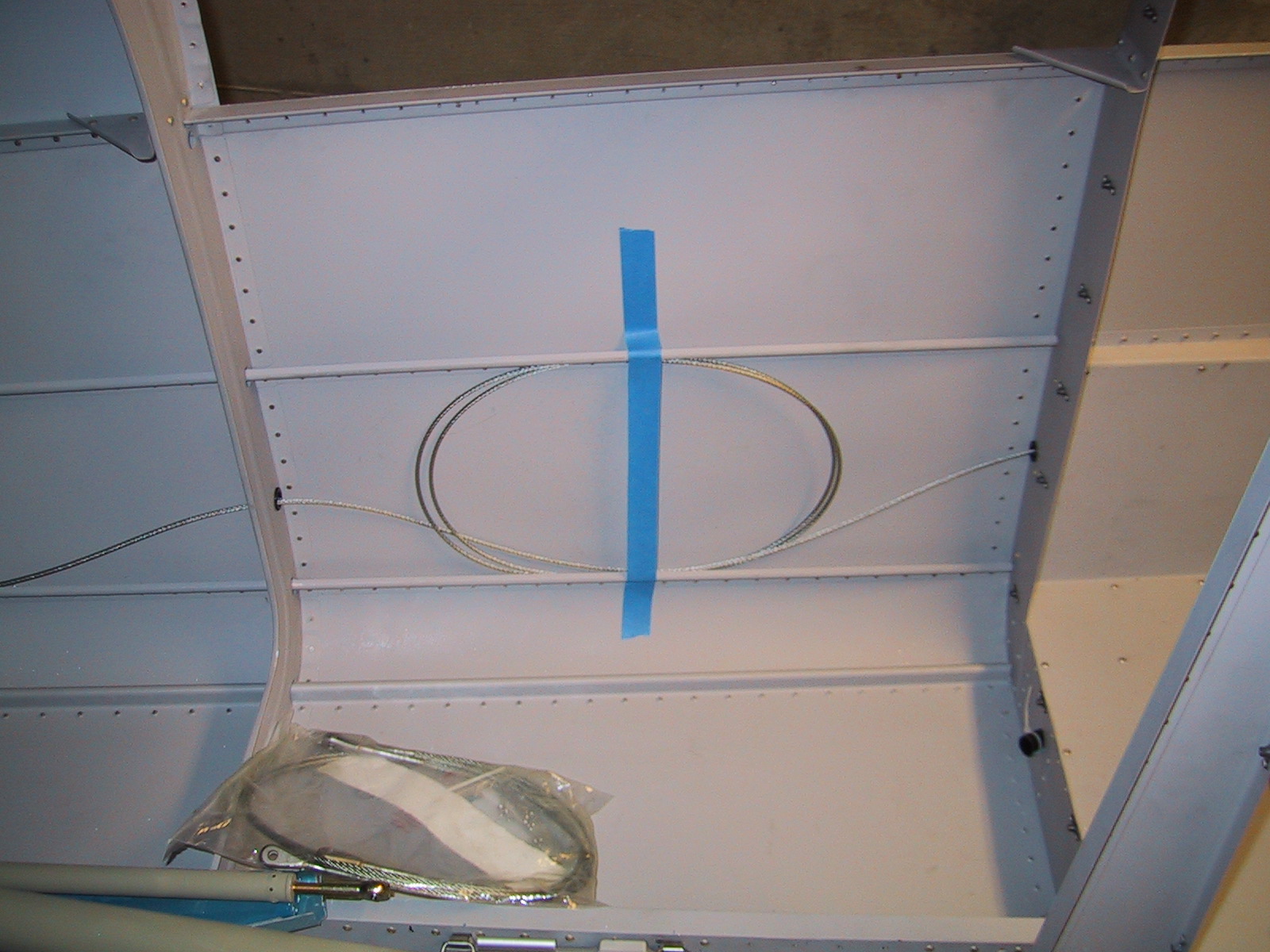

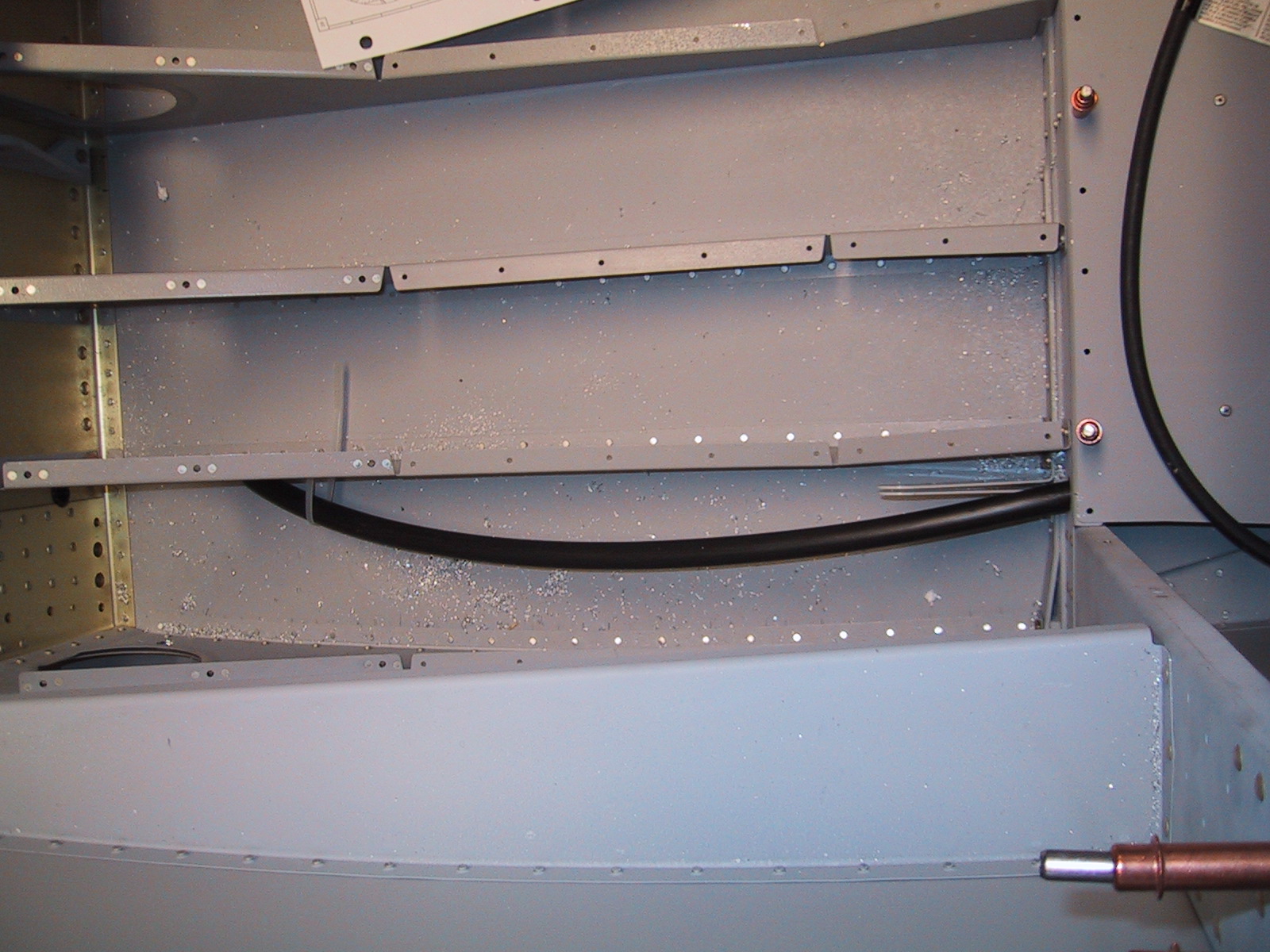

Showing the conduit that passes under the baggage floor and seats. One on each side.
-
Pretty - the floor is done. It took a lot longer than I expected - mostly due to keeping nutplates aligned.
-

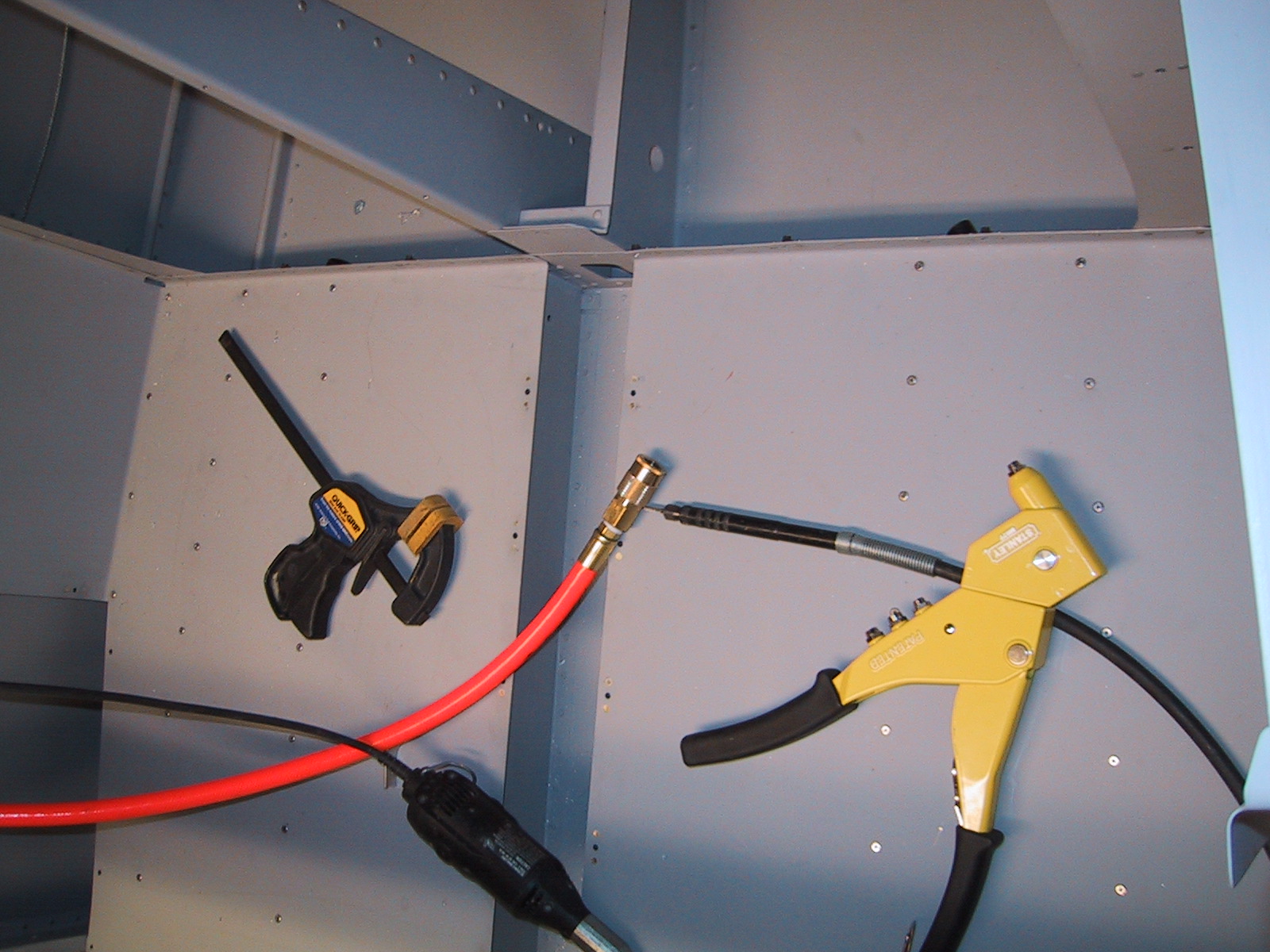

Since I was permanently attaching the aft baggage covers, I needed to install the rudder cable. This was a bit of extra trouble because the QB folks forgot to drill two of the bulkheads to full size for the plastic inserts. Now that the fuse is together I can't get a drill in to fix the mistake, so I used a dremel grinding tool.
