Build log date: Wednesday, November 12, 2003
-

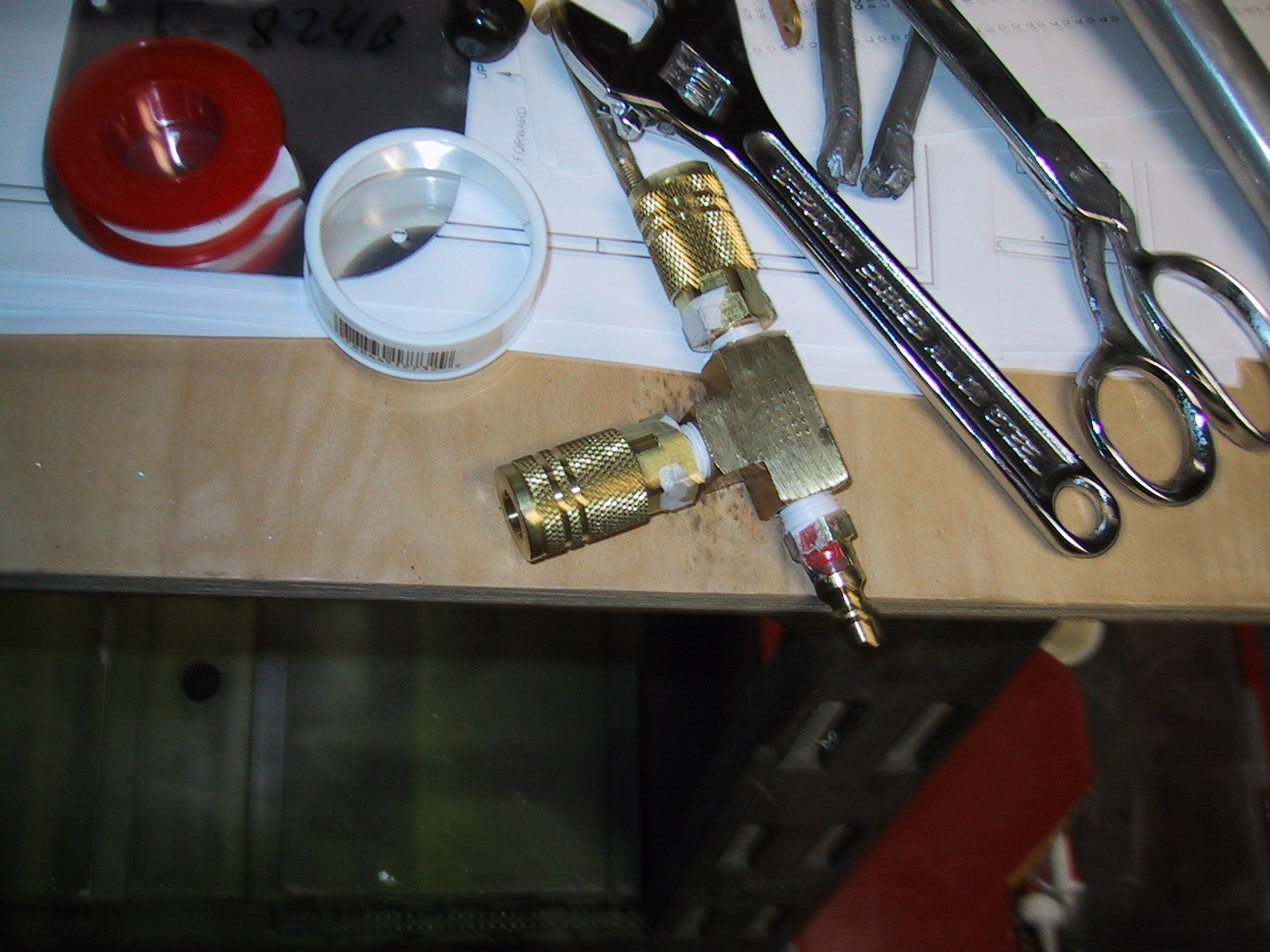

I've gotten tired of accidentally leaving the air disconnected from the shop. So I've put together this manifold so air can both go to the shop and garage.
-

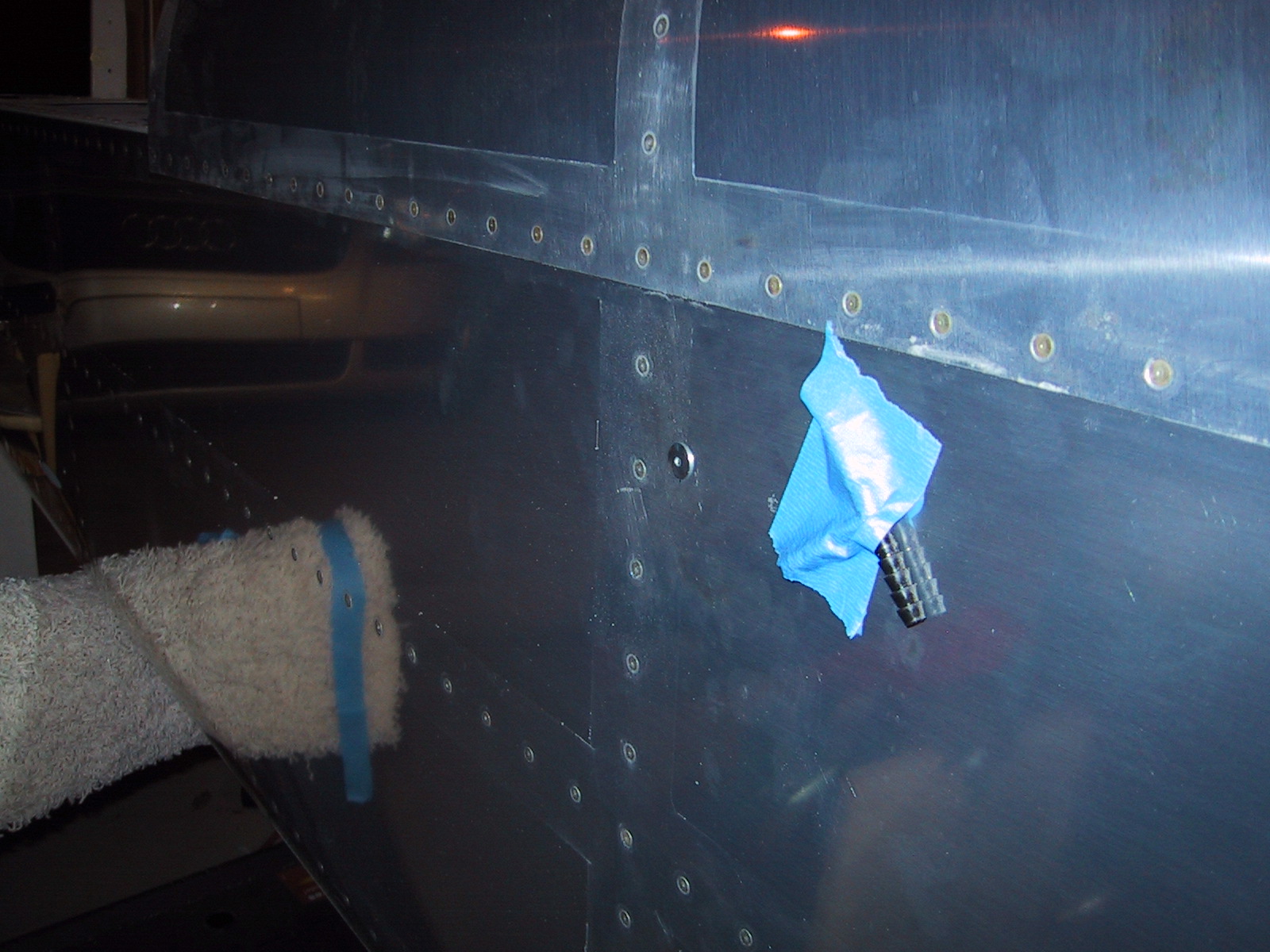

Drilled and installed the static ports.
-

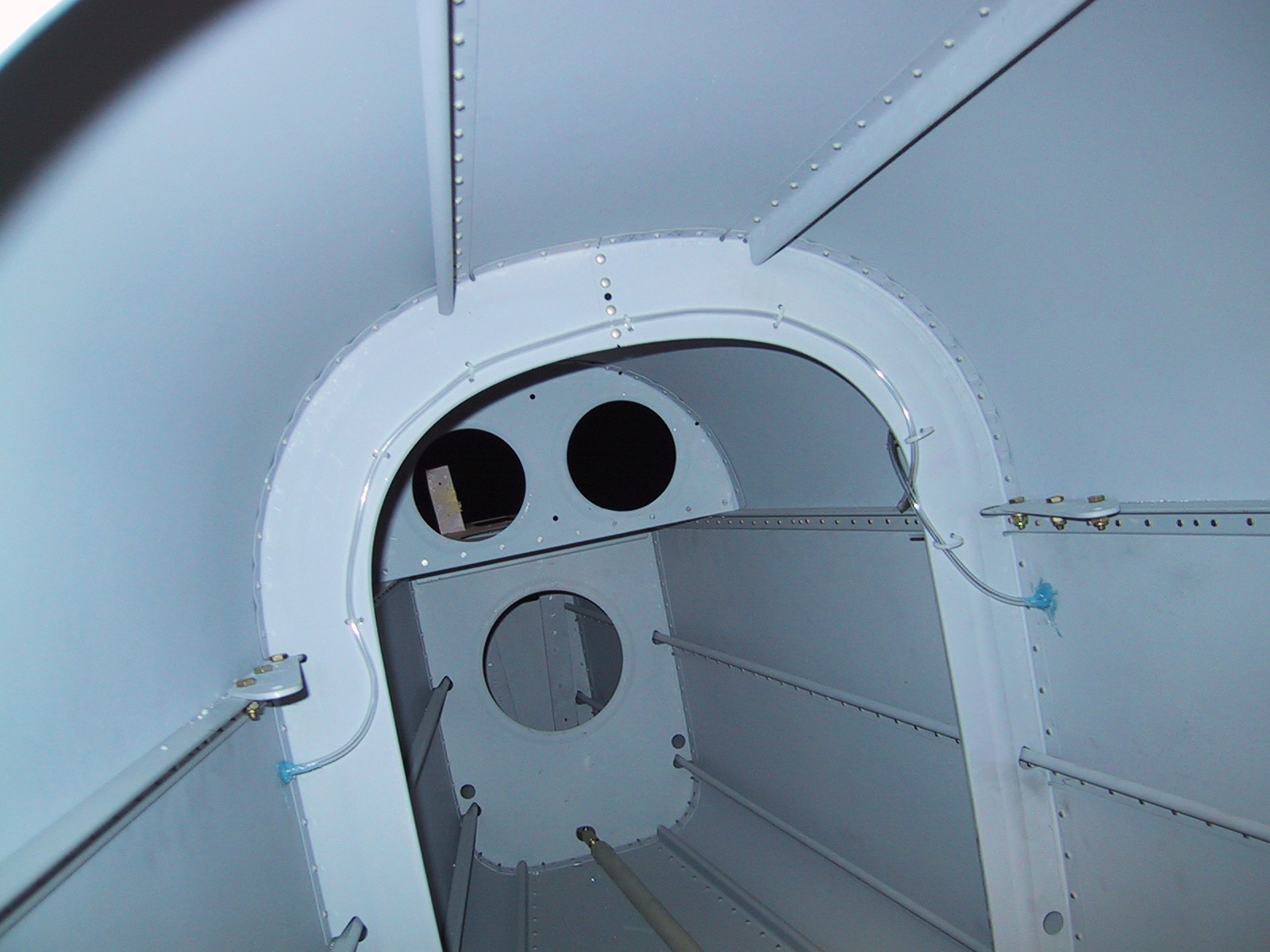

Install static tubing and seal it to the ports with RTV.
-

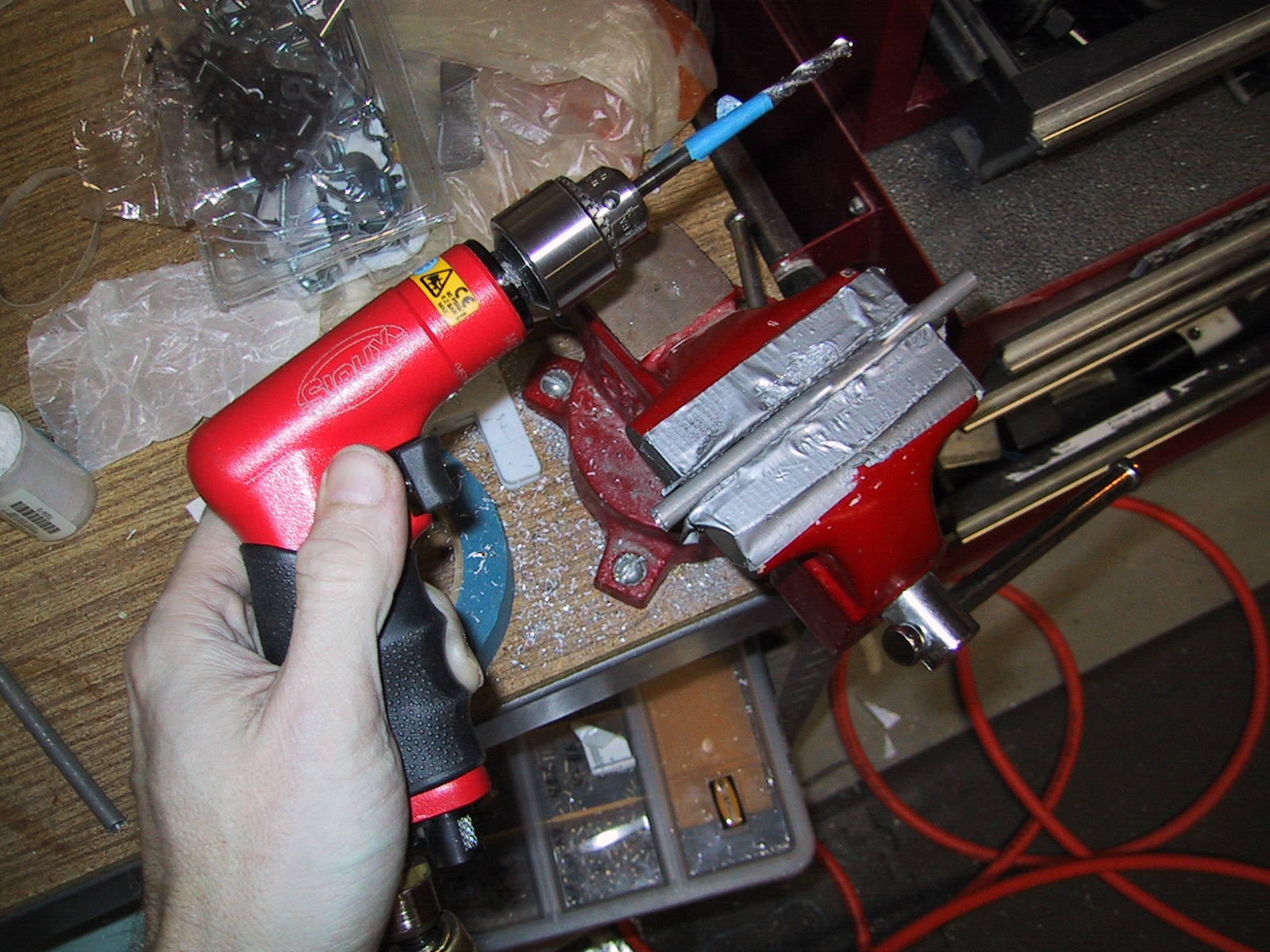

Drilling the flap pushrods to the correct inner diameter. However, in the process I screwed up one of the pushrods by letting it spin in the vice. I'm going to order a bit more of this aluminum tubing.
-

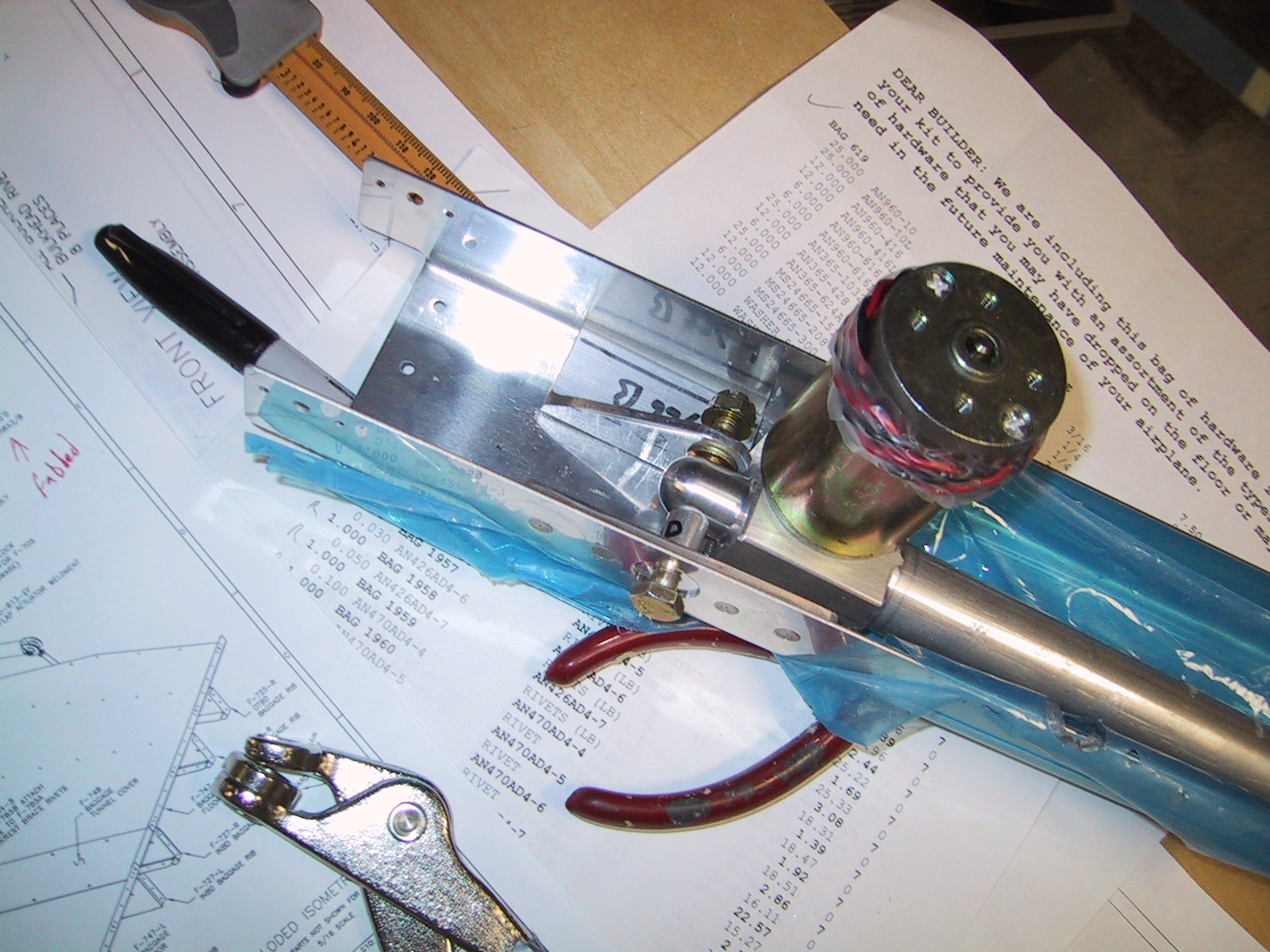

I fabricated the electric flap spacer - just testing the fit.
-

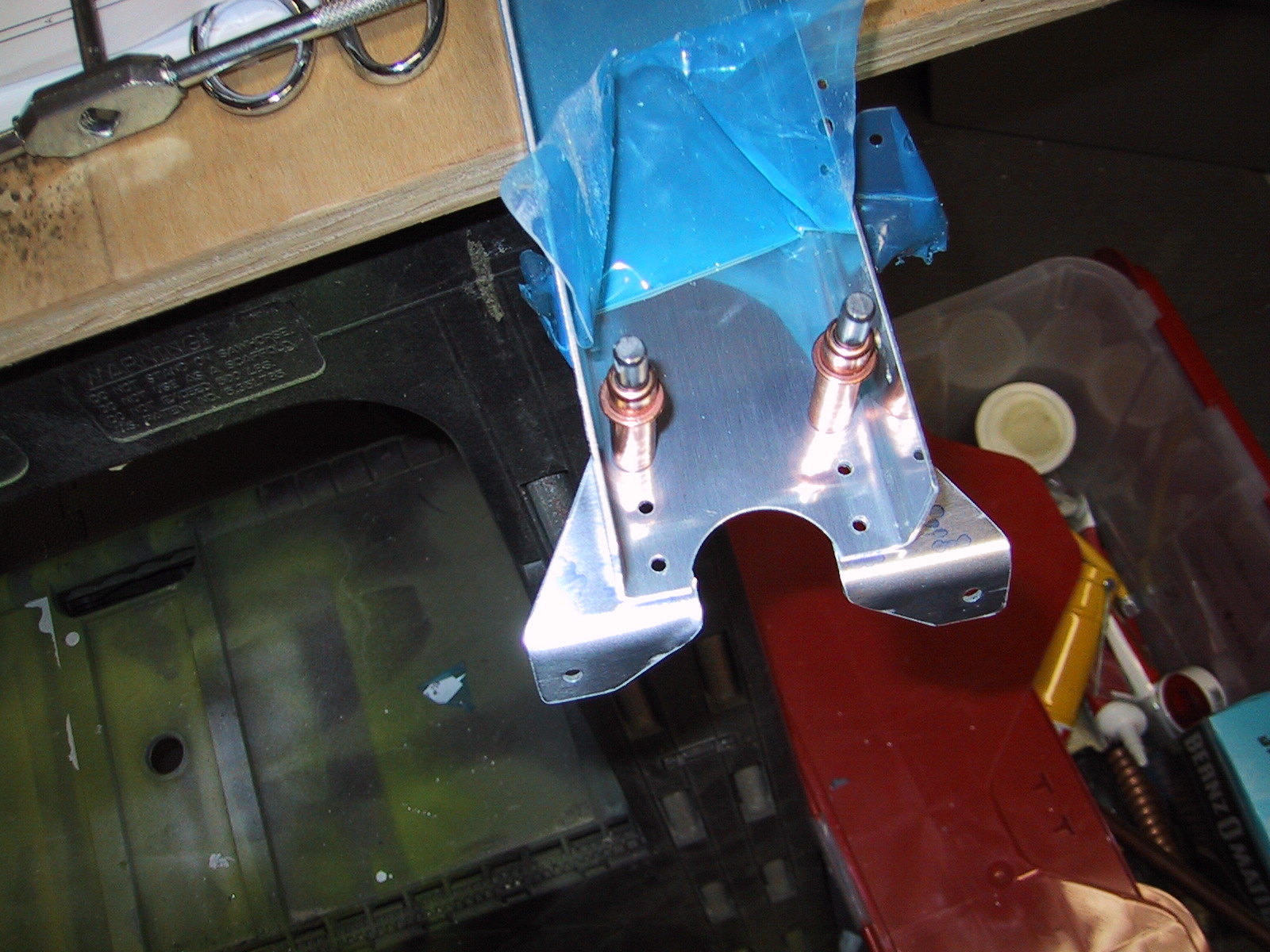

The bottom angles for the electric flap cover are ready to rivet now.
