Build log date: Wednesday, October 22, 2003
-

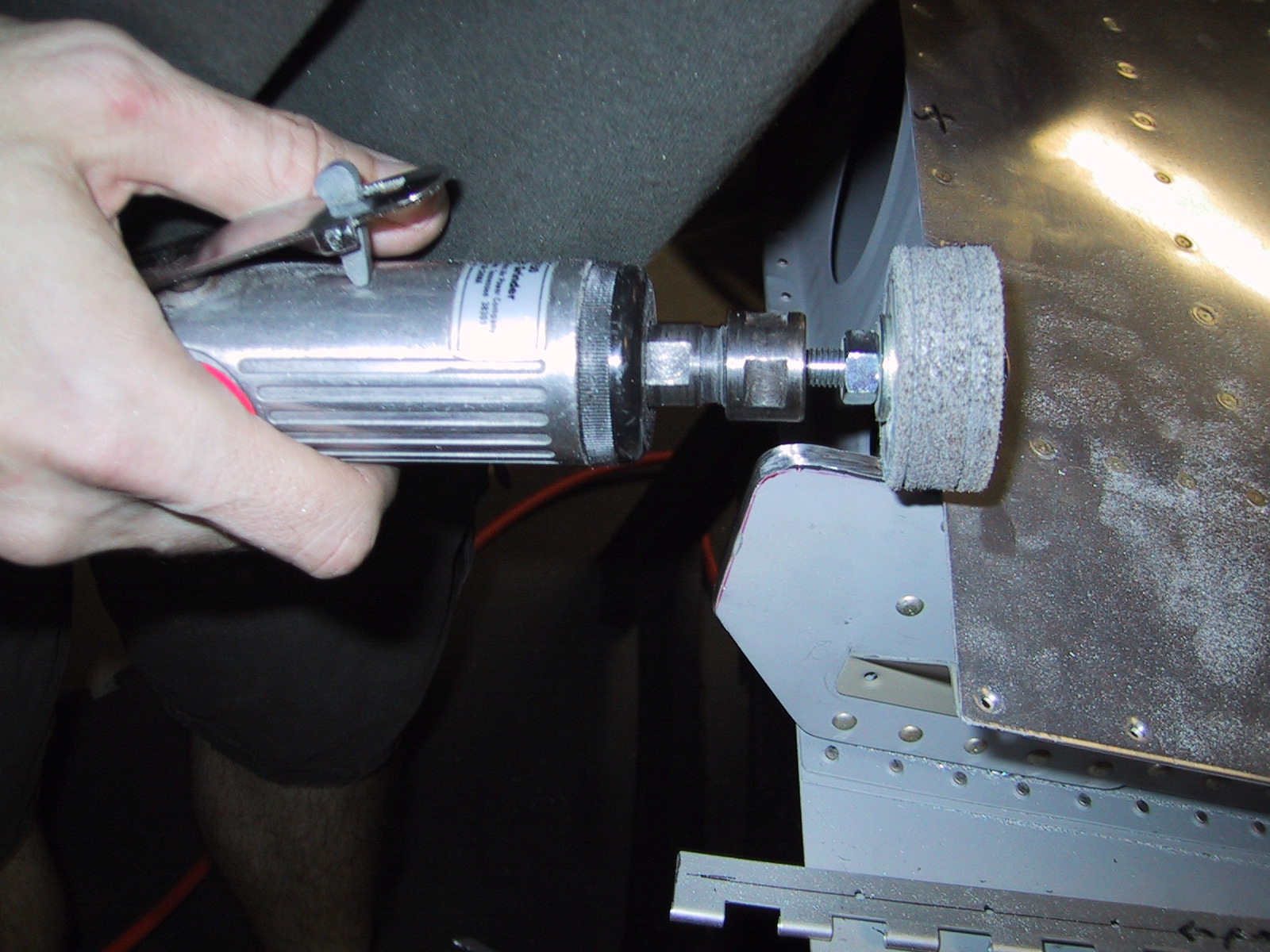

Per plans I needed to grind down the aft spar. The stock spar is for an RV-8 and needs to be trimmed to fit the RV-7.

-

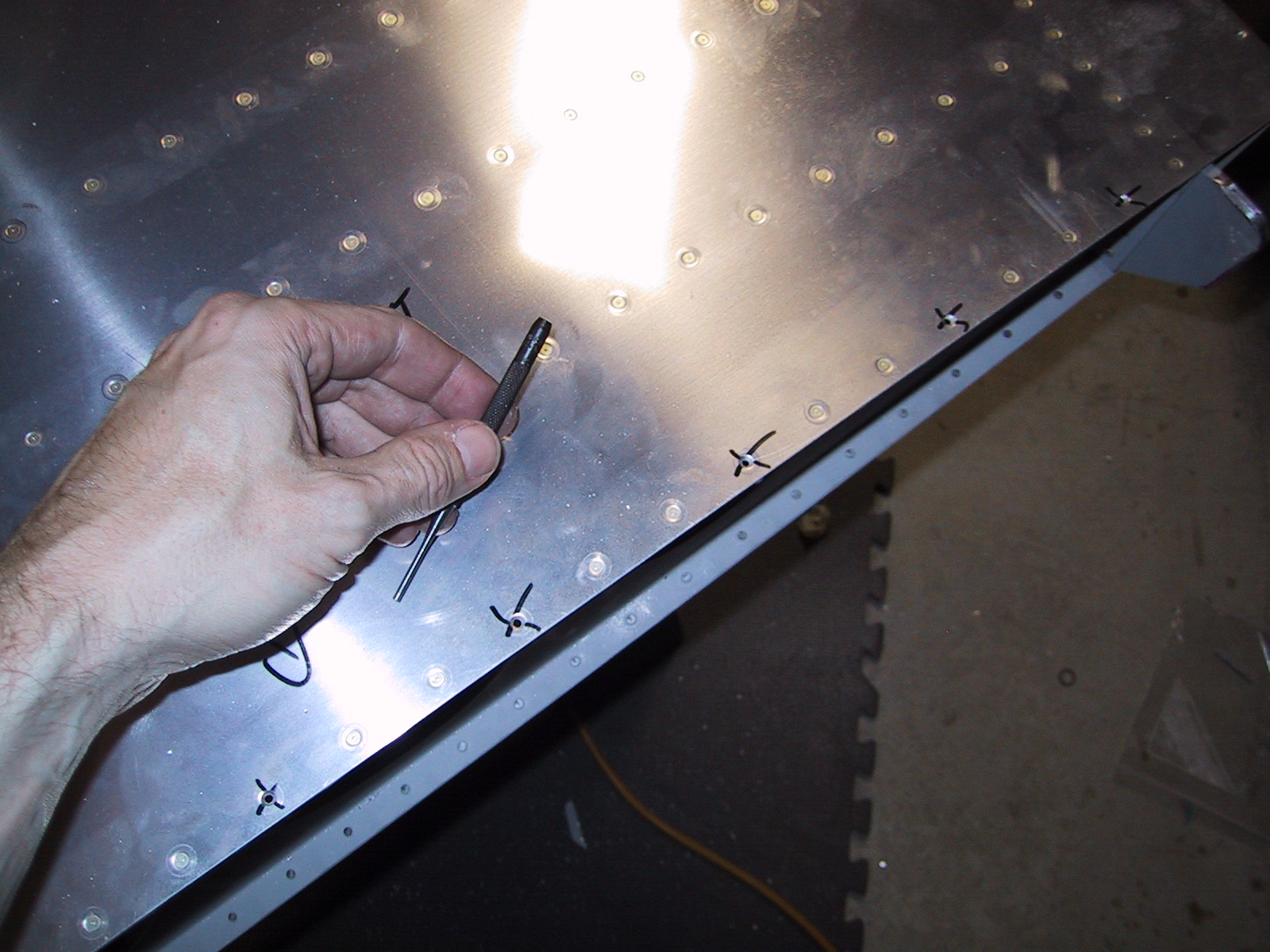

I've drilled out the extra ring rivets. I use a slightly undersized drill bit and a punch to break off the head.

-

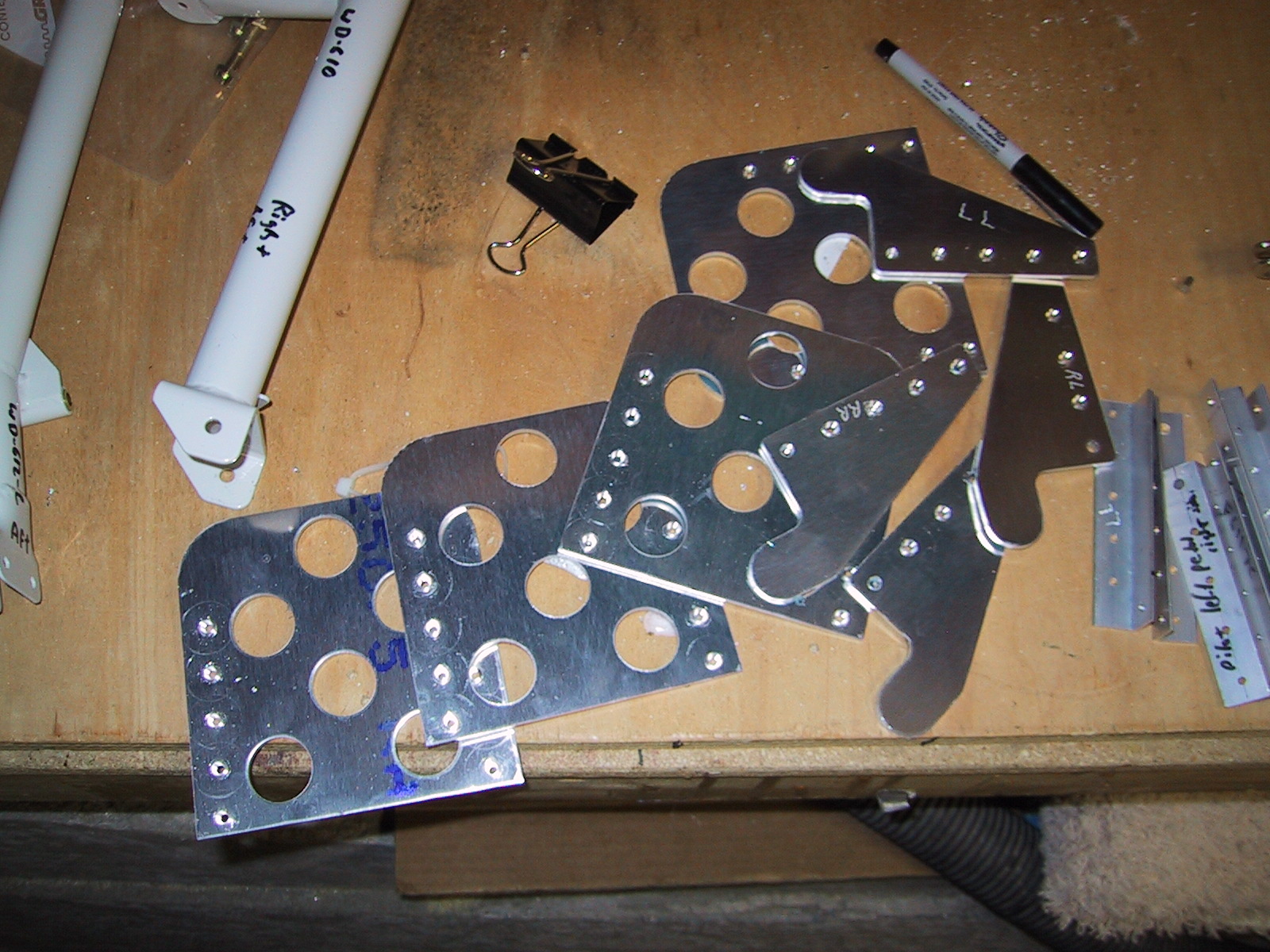

I've finally gotten around to making the passenger brake peddals.

-

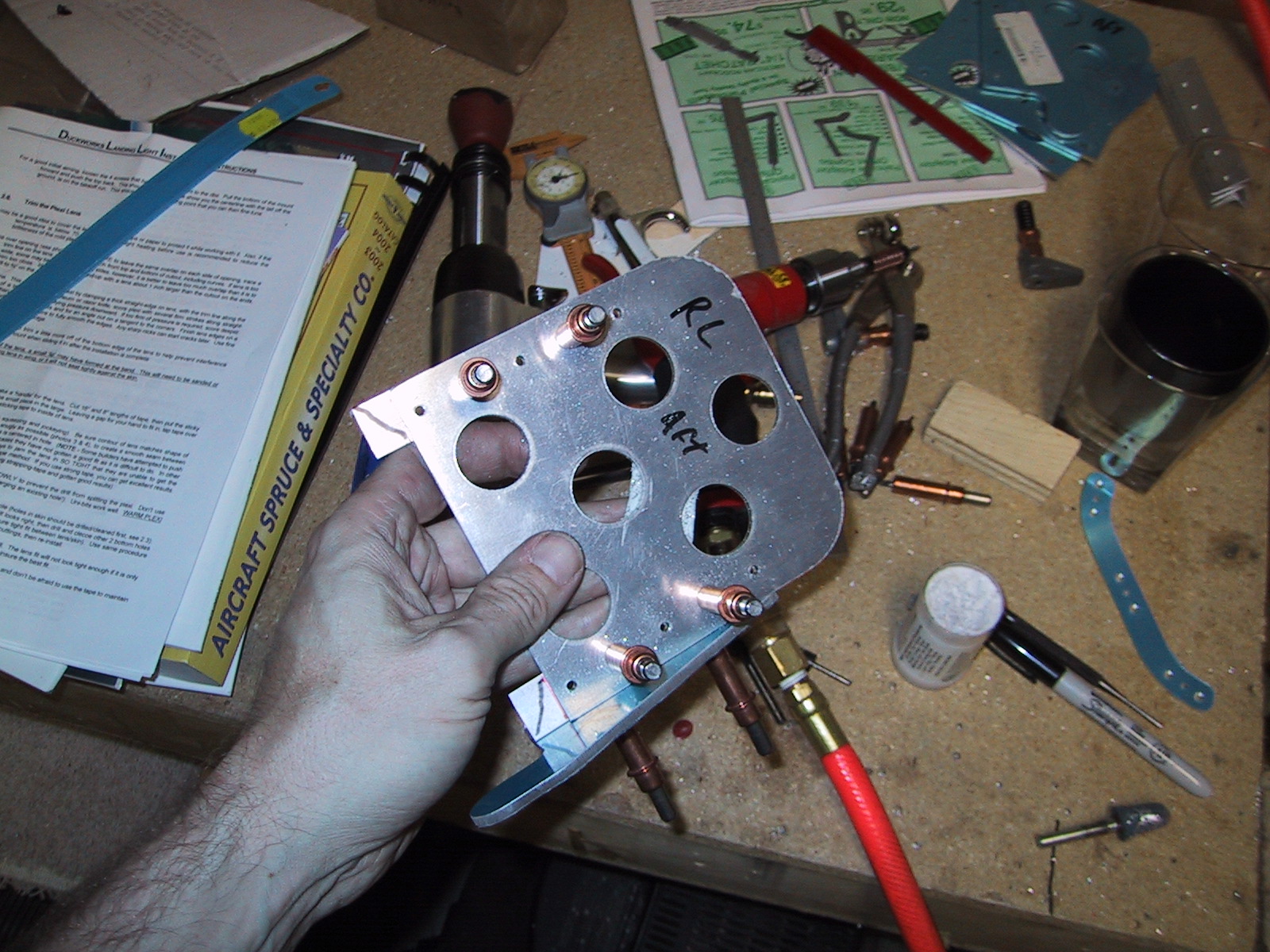

For some reason I don't really enjoy countersinking. However, I had to go countersink a zillion holes in the brake peddals.

-

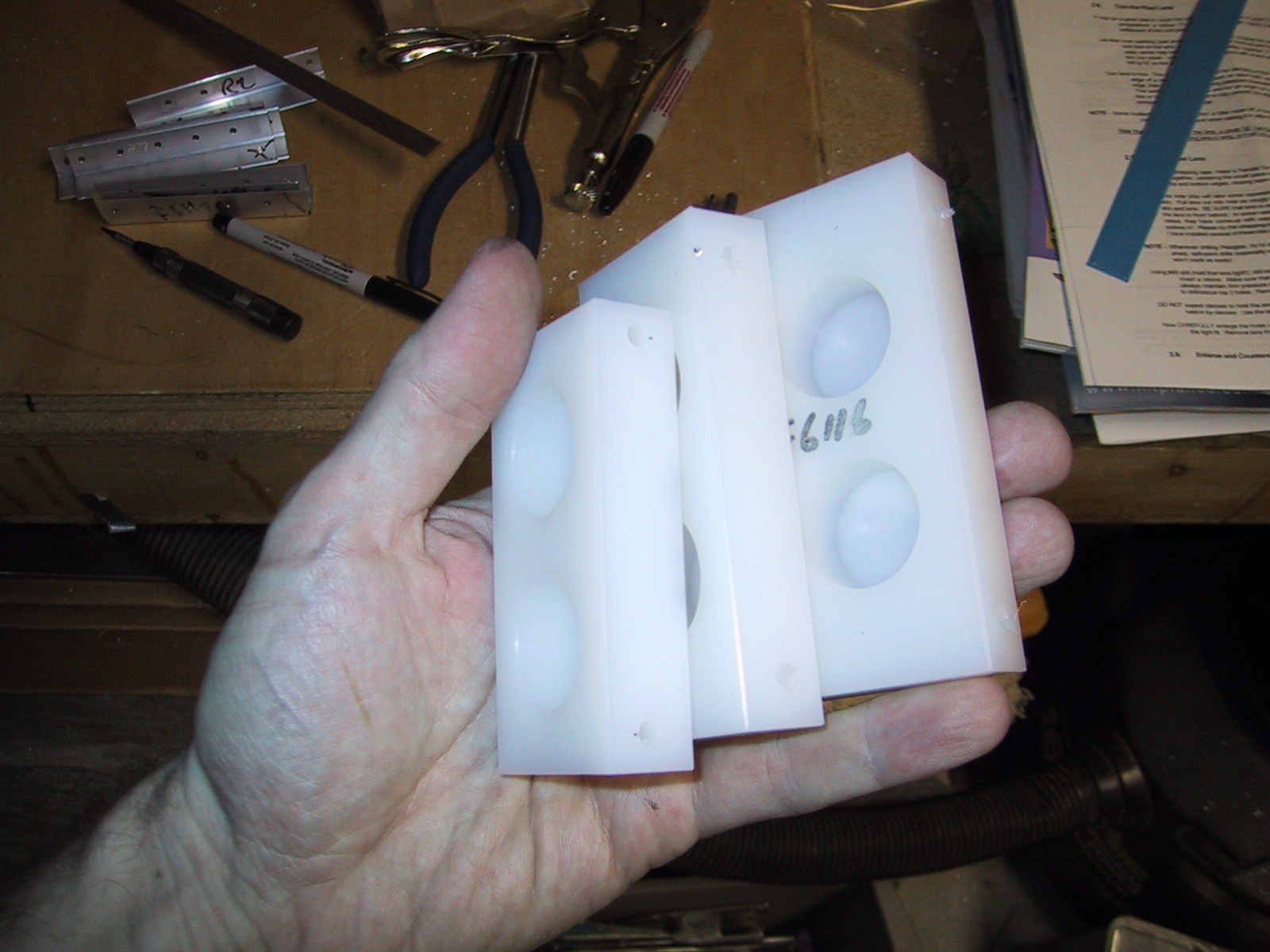

To kill some time I fabbed the rudder peddal bearing blocks.
