Build log date: Tuesday, September 09, 2003
-

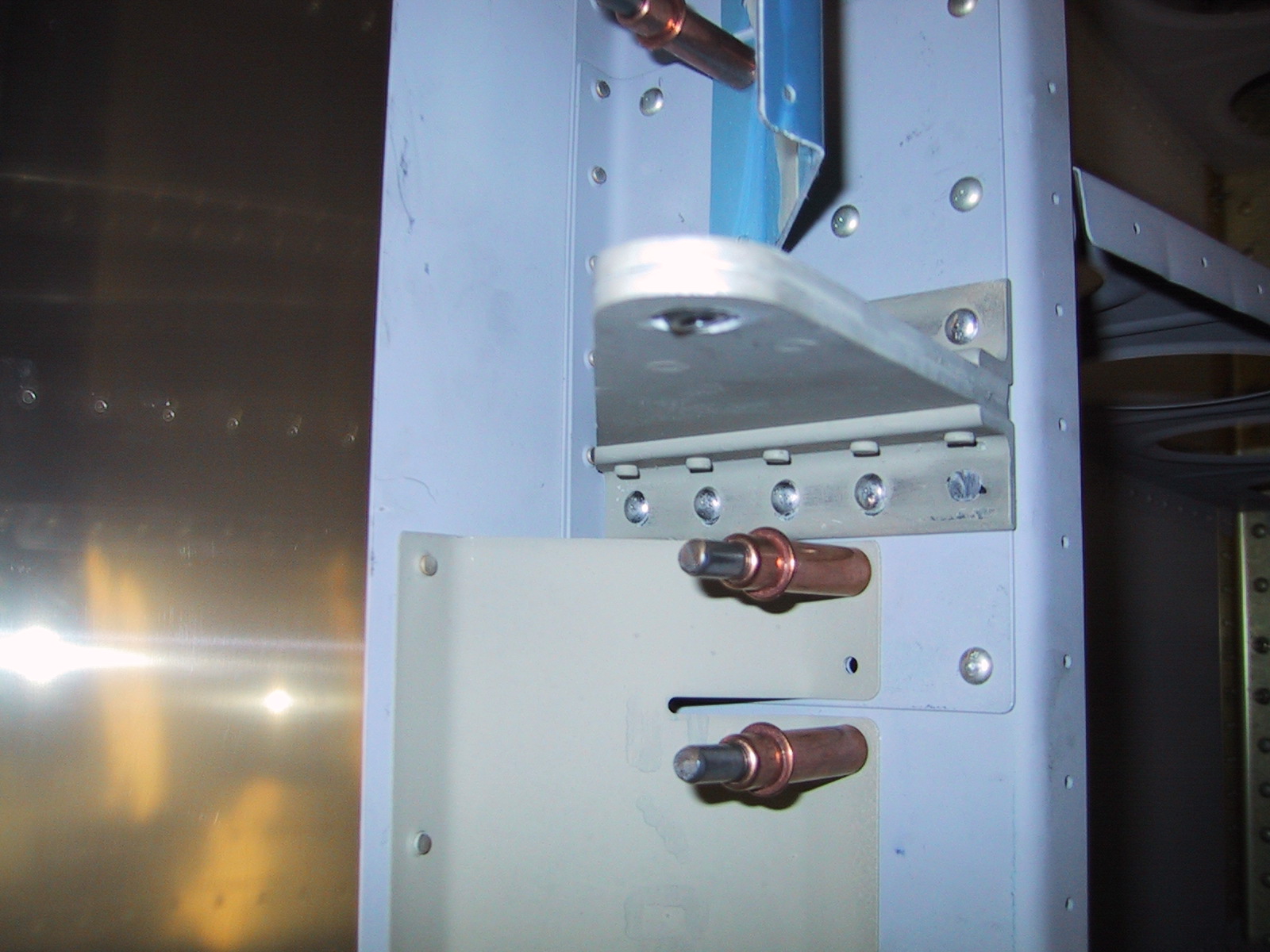

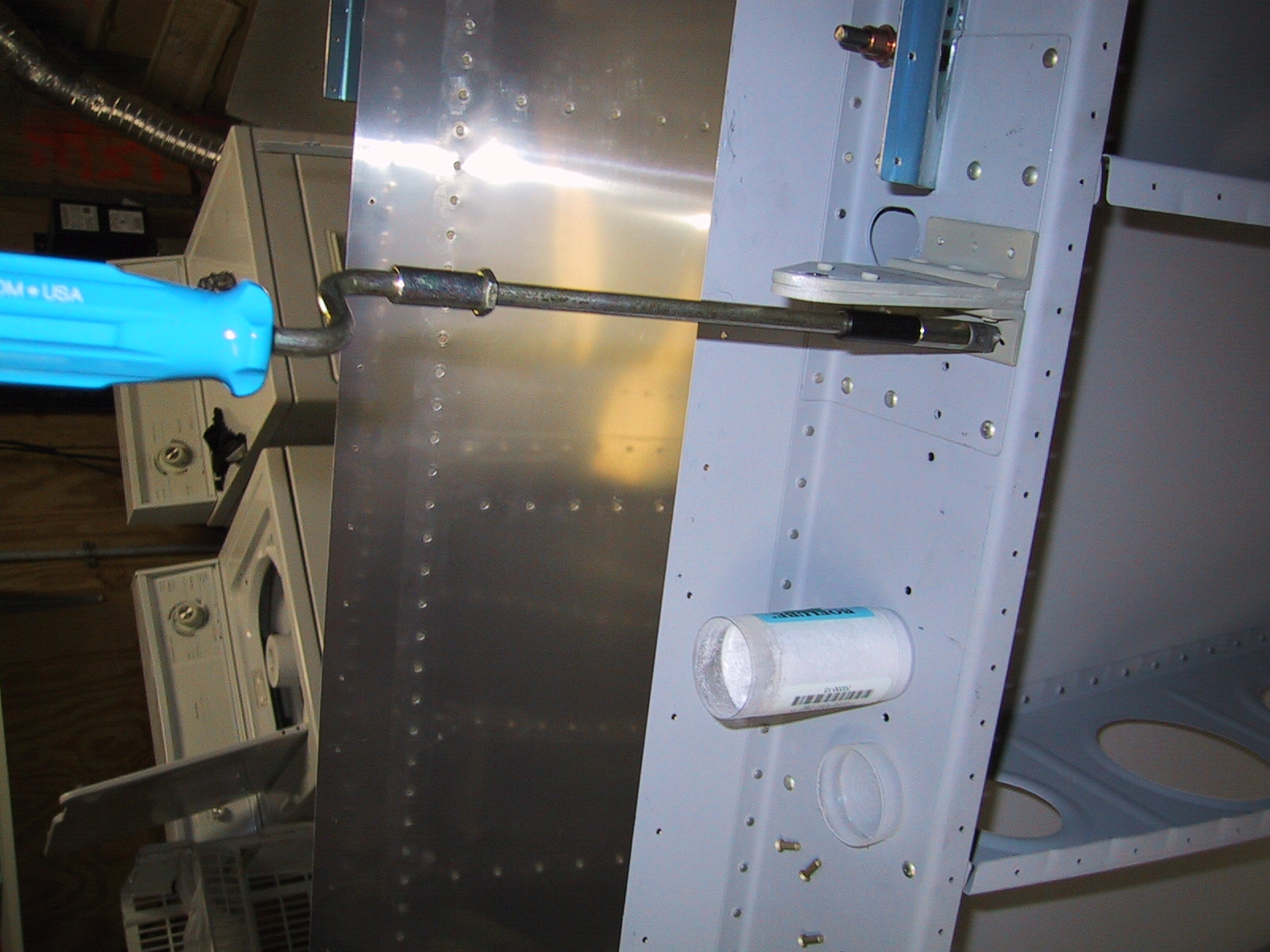

The bottom rivets of the aileron brackets are flush - so I need to counterskink the hole. Unfortunately the microstop csink set doesn't fit this close to the bracket, so I have to do it carefully by hand.

-
The parts have been primed and dimpled, so I can now rivet in the aileron fairing.

-

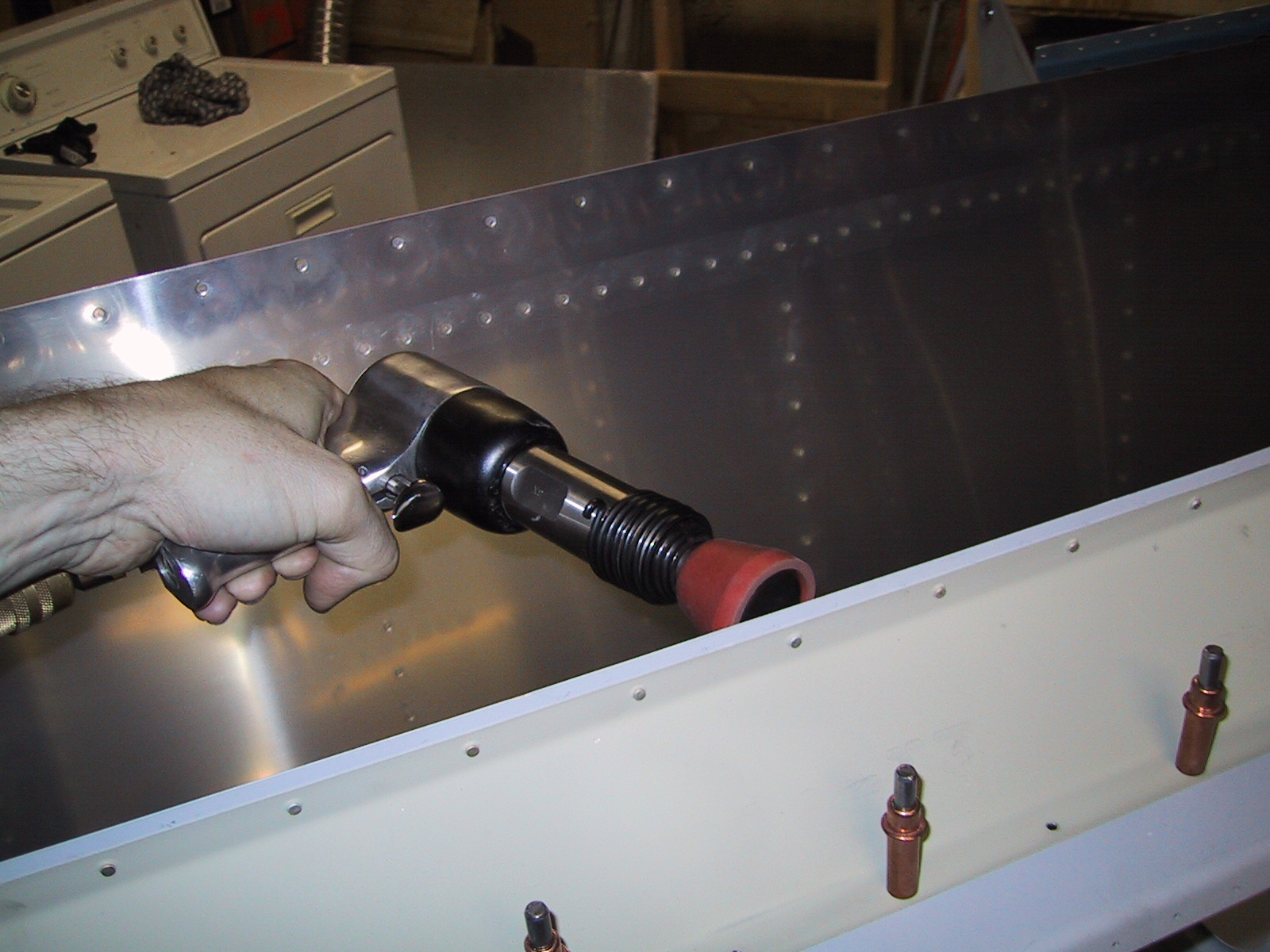

As I mentioned the flush rivets were a real pain without being able to use the mushroom rivet set. I smilied one of the rivets and one other is a hair to high.

-

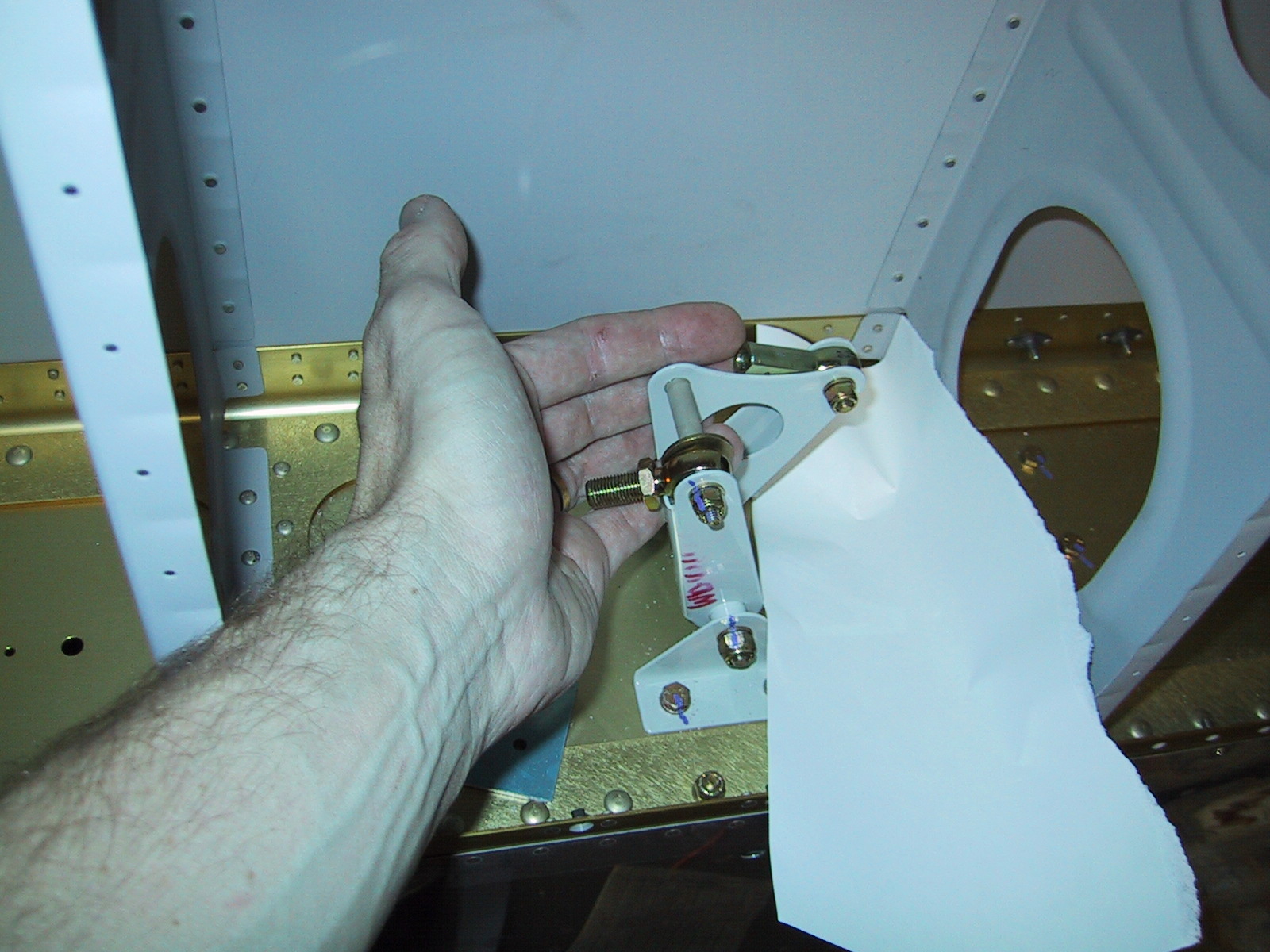

I've attached the Heim bearings to the aileron belcranks.

-

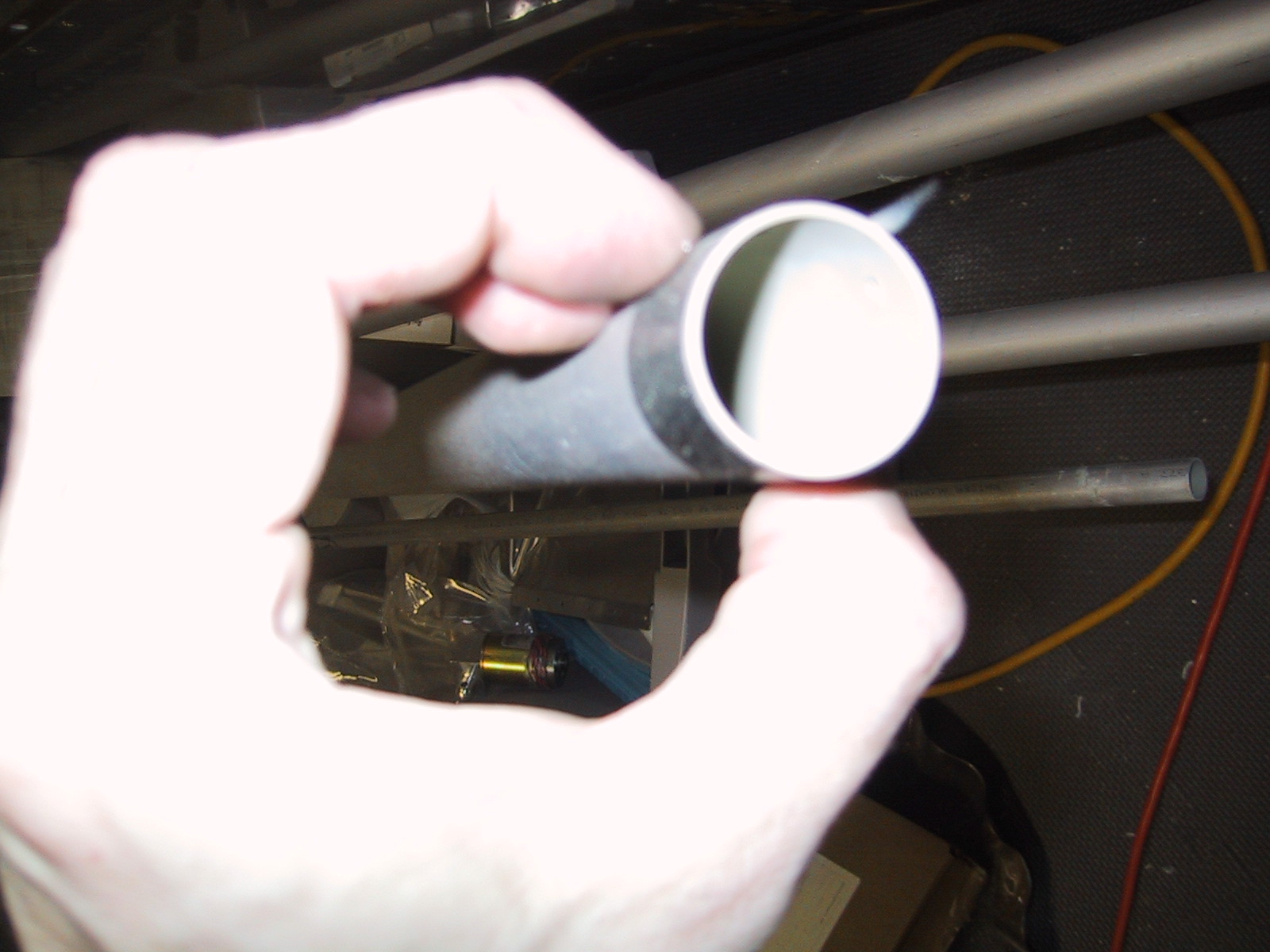

All of the pushrods are nicely primed on the inside.
