Build log date: Saturday, August 09, 2003
-
I've completed the rudder spar now riveting on the counterbalance. The sequence is important if you want to build the rudder without needing to use any blind rivets.
-

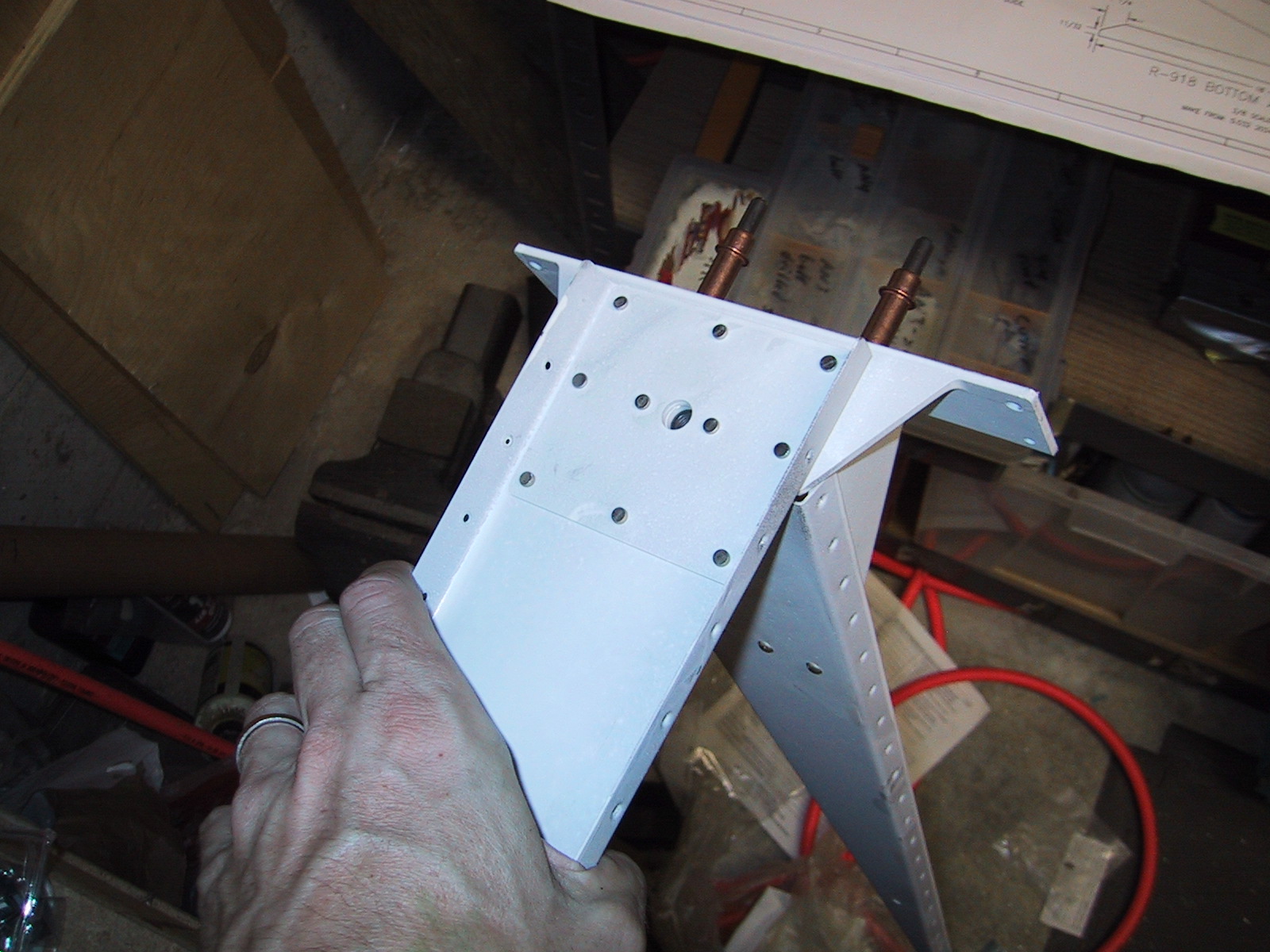

A detail photo of the bottom rib of the rudder riveted onto the spar.
-

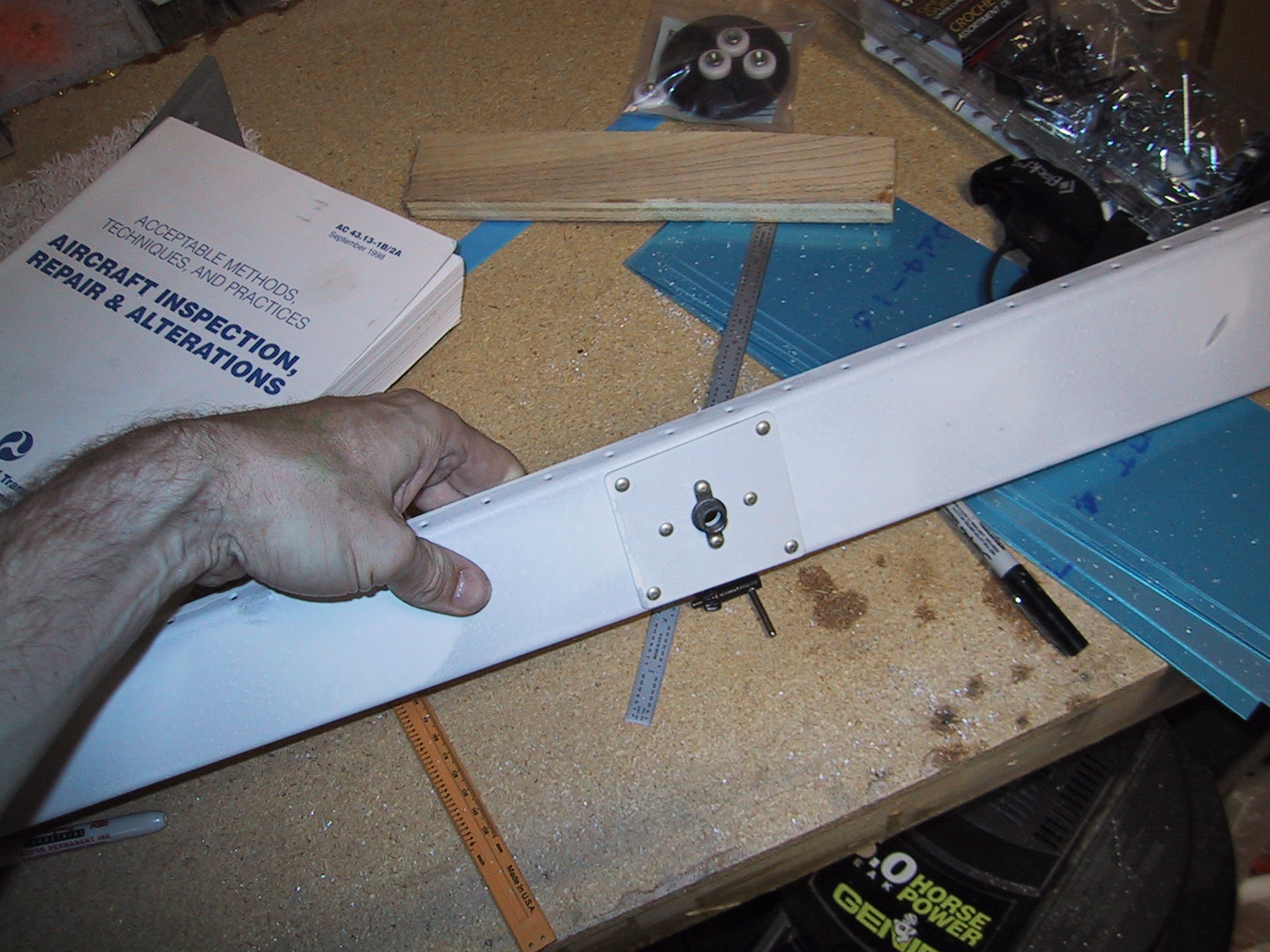

The inside of the rudder spar - detail on the nutplate.
-

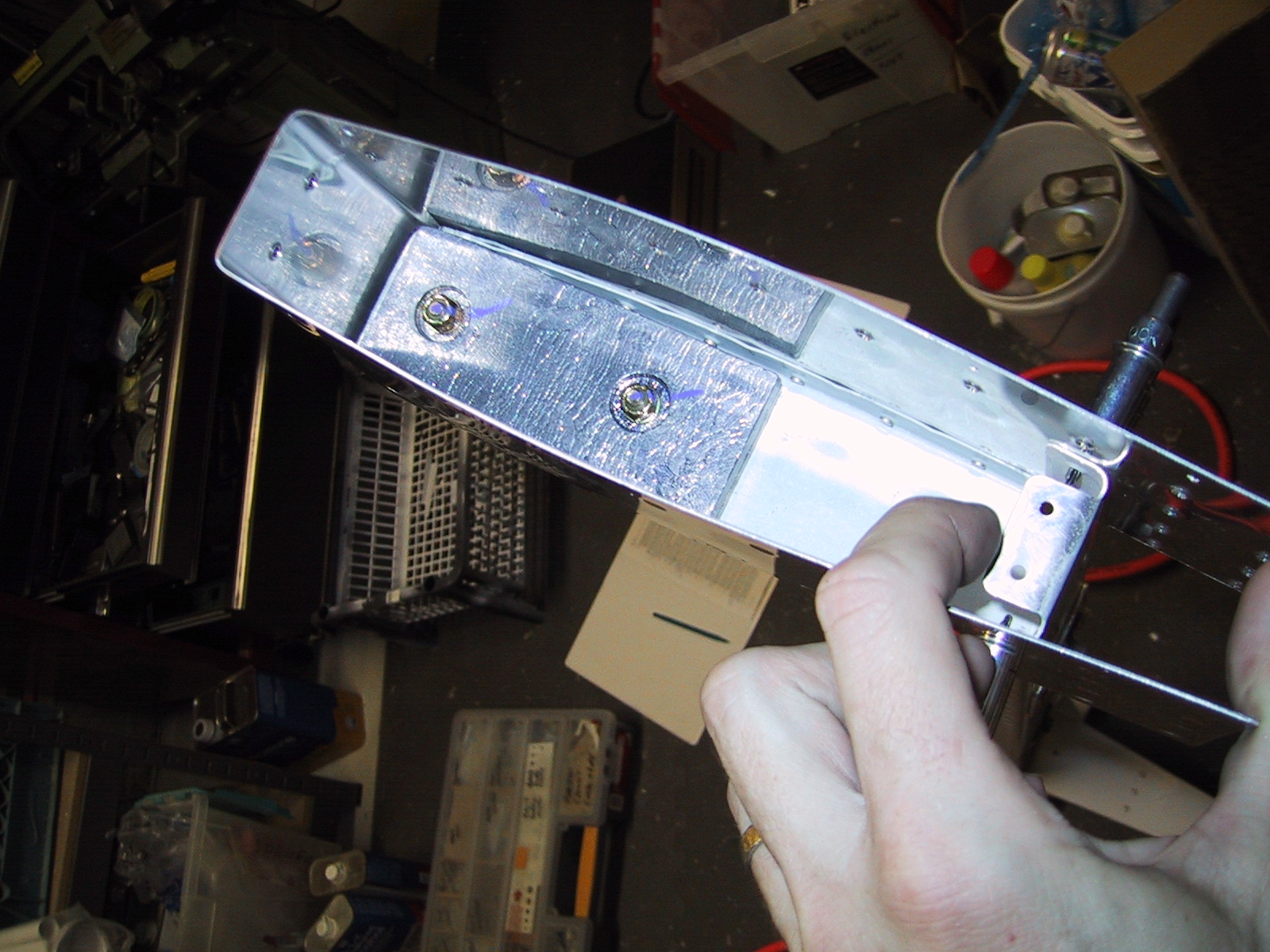

The rudder counterbalance weight is installed and the screws are torqued.
