Build log date: Saturday, July 12, 2003
-

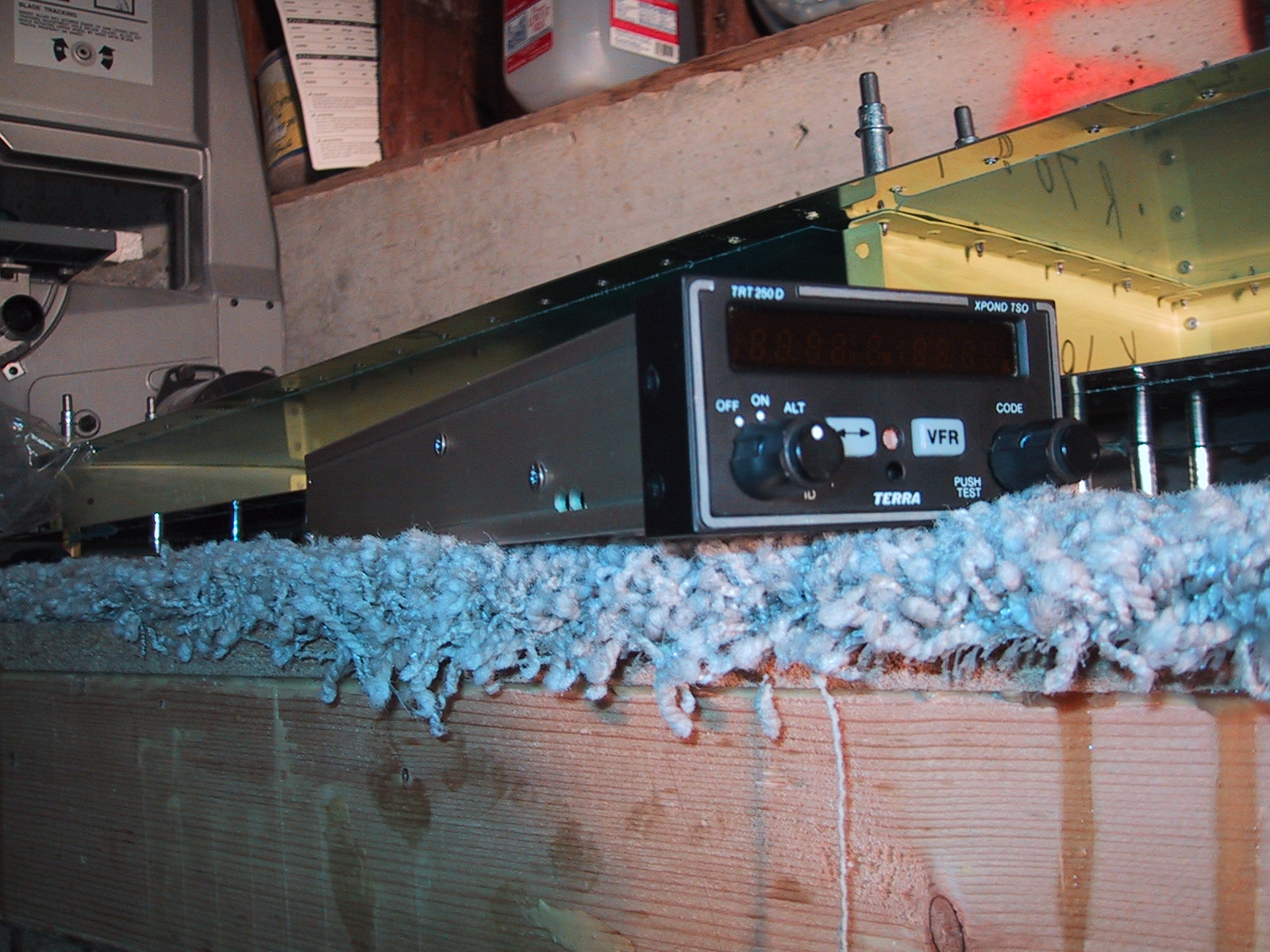

I purchased an installed but unused Terra transponder on eBay. This will go in storage for a while. I've placed connector diagrams elsewhere on this website.
-

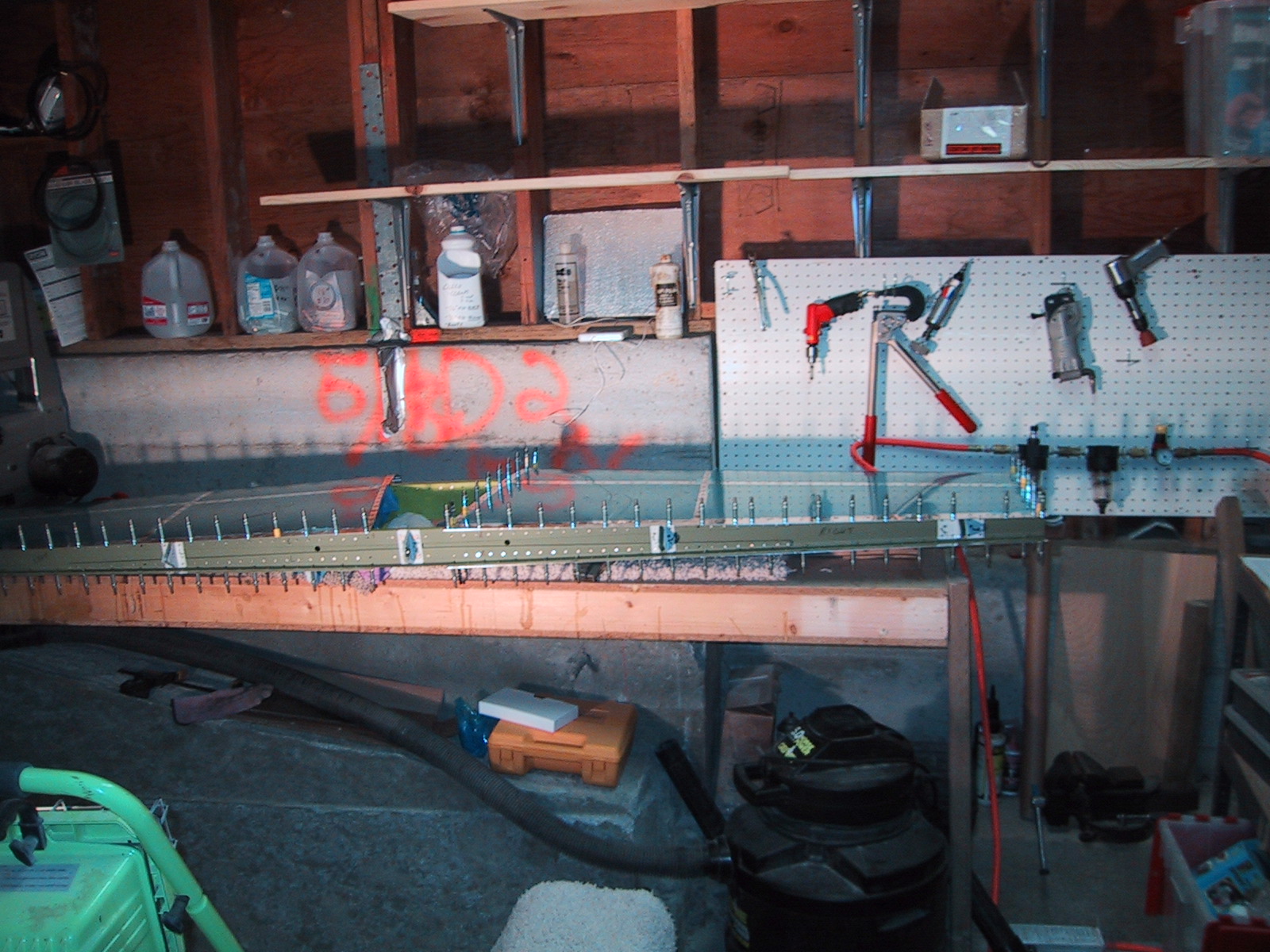

At this point I've placed the rear spar assembly into the Horizontal Stabilizer. The next step is to squeeze the rivets holding the spar to the skins.
-
Another shot of the rear spar installation process.
-

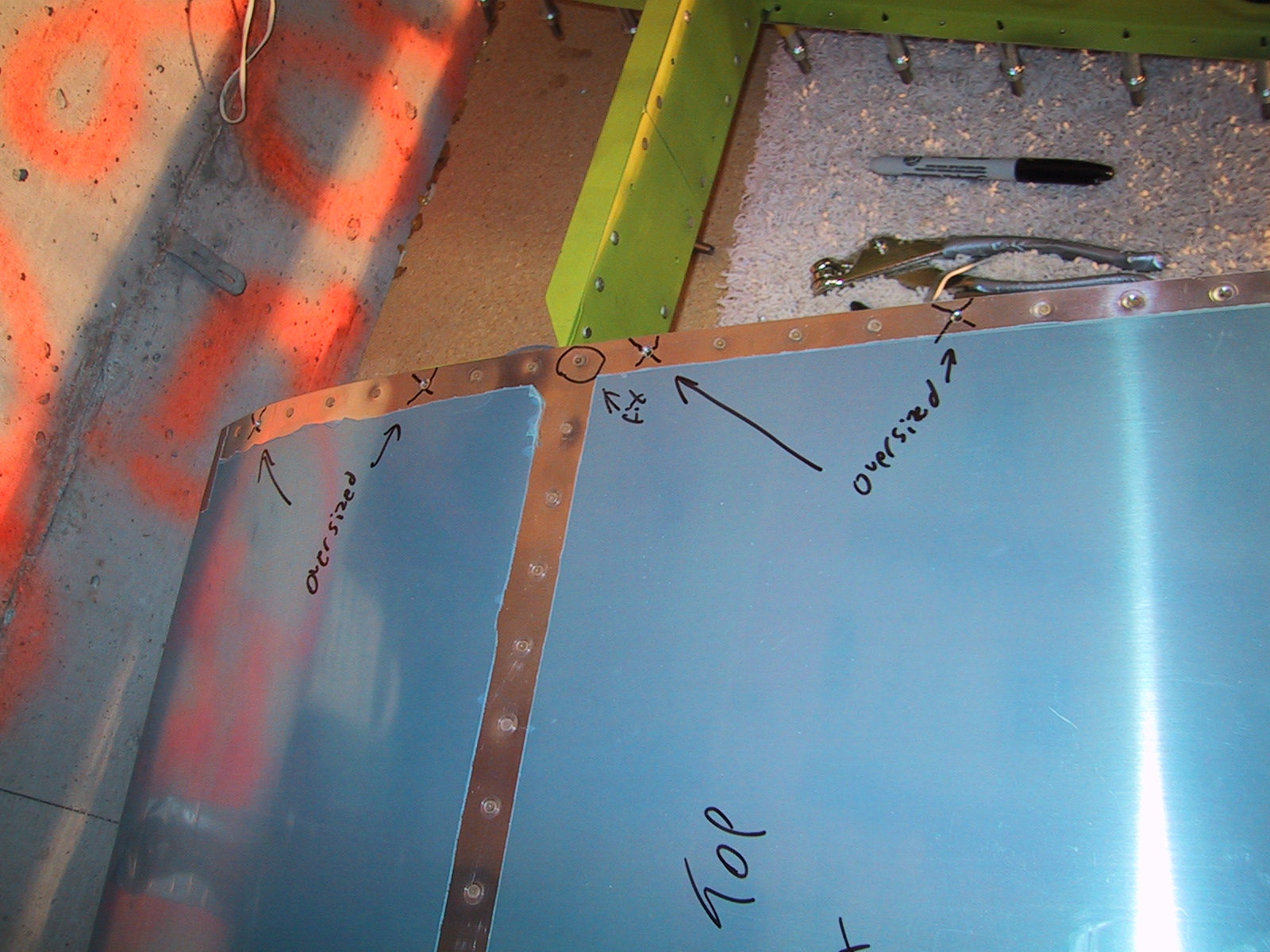

Ugh. I realized I inadvertently installed a few rivets in the left stab that should not be installed until the fairings are being attached. I've drilled these rivets out and a couple of the holes are now slightly oversize - I may need to use 'oops' rivets here. I've also marked one rivet which is a little undersqueezed, I'll buck or squeeze it to have a correct shop head.
